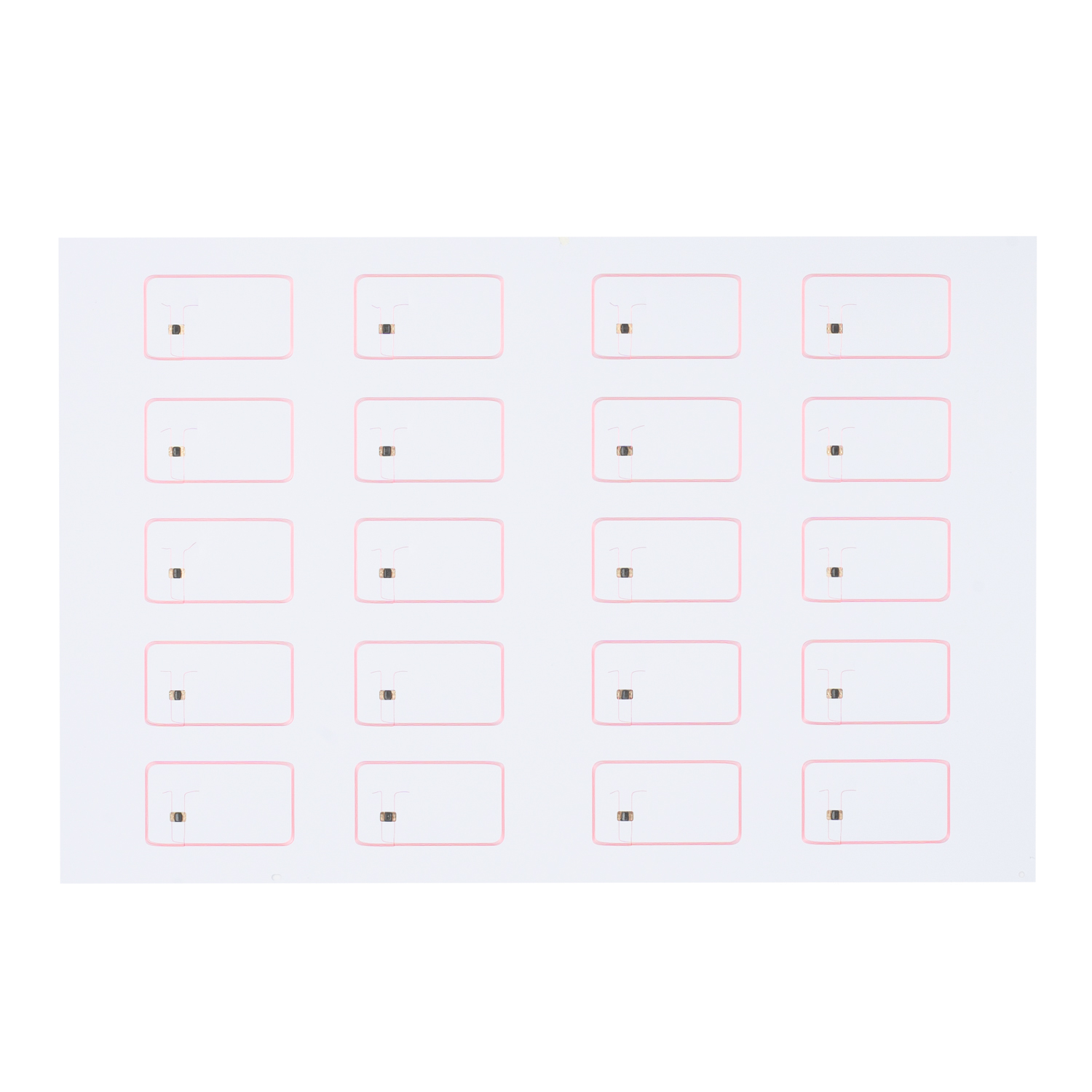

RIFD PVC PET PETG PC Prelam Sheet

As core part of RFID card, we provide high-quality RFID inlay which they are suitable to ISO standard cards and made into different thickness and various shape for option.

  • WLS-Oeralay with Mag stripe
  • WALLIS
Layout:
Operating Frequency:
Availability:
Quantity:

As core part of RFID card, we provide high-quality RFID inlay which they are suitable to ISO standard cards and made into different thickness and various shape for option


Specification of RFID Inlay

Item

PVC PET PETG   PC Prelam / Inlay

Operating Frequency

LF 125KHz, HF 13.56MHz   UHF 860-960MHz

Chip IC

LF: TK 4100,   EM 4200, EM 4305, T5577, HID, HITAG 1, HITAG 2, HITAG S, etc.

HF: FM11RF08,   MF S50, FM11RF32N, MF S70(4KB), ICODE SLI, ICODE SLI-X, ICODE SLI-S, MF UTL   EV1, MF UTL-C, MF D21, MF D41, MF D81, MF PLUS S, MF PLUS X, MF PLUS X,   TAG-IT, NTAG 213, NTAG 215, NTAG 216, TOPAZ512, etc.

UHF: U-CODE   EPC G2, U-CODE G2XL, U-CODE G2XM, Alien H3, Alien H4, Monza 3, Monza 4, Monza   5, etc.

Standard

ISO1443,   ISO15693, ISO18000

Material

PVC, PET

Dimension

210*297mm,   295*365mm, 295mm*285mm..

Layout

2*5, 3*6, 3*7,   3*8, 4*7, 4*8, 5*5,5*6, 6*8, 8*10 or any customization of CR80 card or any unit antenna

Thickness

HF normal 0.45mm, 0.5mm,   min 0.3mm

LF normal 0.6mm,   min 0.5mm

UHF 0.6mm,0.5mm

Antenna

HF:   air antenna, ultrasonic embedding or air etching

LF: air antenna or ultrasonic embedding

UHF:AL etching

Bonding

LF: wire bonding

HF: FUDAN,   ULTRALIGHT, ICODE SLI

UHF: ALIEN, H3

Read range

depends on the reader and the chip

Working temperature

-25ºC~55ºC

Storage temperature

-25ºC~65ºC


Features

High durability and excellent electrical performance

100% tested

Hermetically sealed transponders

Delivered with reference marking, which can be a trimmed corner, or optional printed crossmarks or punch holes

Standard and customized sheet layouts

Various ICs such as NXP, Infineon, Fudan and others


RFID Card Structure

RFID CARD

Chip For Options


3 type chips

dual interface

LF HF UHF Dual Interface Card




Our Producing line

车间1


车间2


车间3


车间4
车间5


车间6


Our Warehouse

仓库1


仓库2


仓库7


仓库4
仓库5


仓库6
