White Coated PVC Core Sheet for Offset Printing
Wallis supplies white coated PVC core sheets for offset printing to plastic card manufacturers, security printers, smart card converters and B2B material distributors. The coated white printing surface is intended to support clear graphics and color reproduction, while the rigid PVC base serves as a printable structural layer in laminated card constructions.
Available in 0.10–0.80 mm thicknesses and standard or custom-cut sheet sizes, this card-grade material is used for ID cards, membership cards, gift cards, access cards and selected IC, SIM or payment card constructions. Coating, ink, printing press and lamination compatibility should be validated using samples before volume production.
Key purchasing points: offset-printing-grade white surface, customizable sheet dimensions, layer-thickness selection, overlay lamination and OEM bulk supply.
White Coated PVC Core Sheet Specifications
The specifications below reflect the listed product range. Final values, tolerances, coating sides and grade-specific performance should be confirmed in the quotation, approved sample and technical data sheet.
| Parameter | Available Specification / Confirmation |
| Material | Rigid PVC card core sheet with a white coated printable surface |
| Coating | White printing coating; confirm one-side/two-side treatment, coating coverage and opacity |
| Thickness | 0.10–0.80 mm; the required layer thickness depends on finished-card construction |
| Standard Sheet Sizes | A4, A3, 295 × 485 mm, 310 × 485 mm and 500 × 600 mm |
| Custom Size | Custom cutting and imposition formats available subject to order requirements |
| Primary Printing Process | Commercial offset printing; UV offset / screen-printing grades subject to ink and press validation |
| Other Printing Methods | Inkjet, thermal transfer or UV digital printing require separately verified material grades; not universally interchangeable |
| Downstream Processing | Overlay lamination, die cutting, punching and card personalization after process validation |
| Application | ID, membership, gift, access, hotel, IC, SIM and other multilayer plastic card constructions |
| Samples / OEM | Sample evaluation, custom specifications, packaging and bulk supply subject to confirmation |

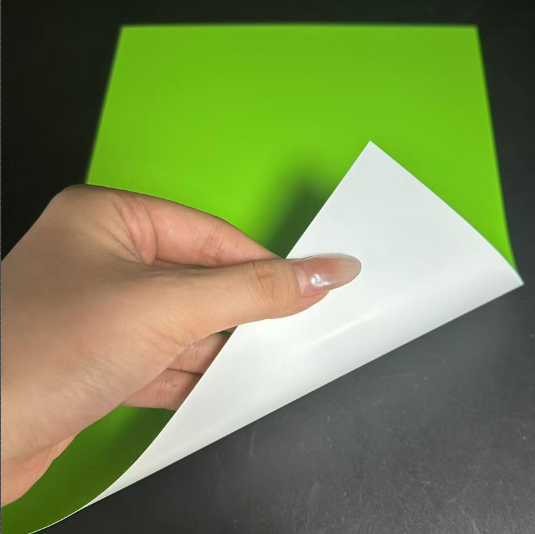

![High-precision offset printing PVC card finished products made with white coated PVC core sheet]( "High-Precision Offset Printing PVC Card Finished Products")
Examples of finished offset-printed PVC cards

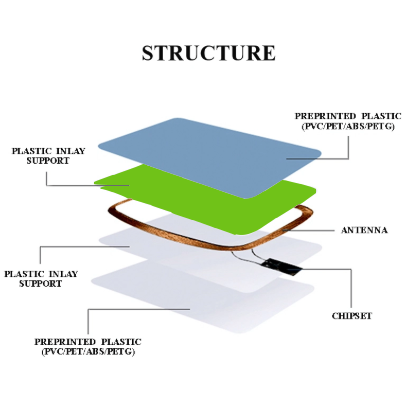

![Intelligent card structure diagram using PVC core sheet with white coating]( "Intelligent Card (PVC Substrate) Structure Diagram")
Illustrative structure of a laminated PVC card
What Is a White Coated PVC Core Sheet?
A white coated PVC core sheet is a rigid polyvinyl chloride substrate with a purpose-selected white surface layer for printing. It is typically printed with artwork and then assembled with transparent or functional overlays. After lamination and punching, the printed stack becomes part of a finished plastic card.
Unlike a finished card, the PVC core sheet is an input material for card manufacturing. The white coating and PVC base must work with the buyer’s ink system, drying or UV-curing process, overlay material, heat-press settings and finished-card specification.
Why Use a White Coated Printing Surface?
The white coating provides a consistent background for logos, text, photographs, barcodes and fine graphic details. With the correct ink and coating grade, it can help control print appearance and adhesion across production batches. Results depend on press settings, ink chemistry, storage condition and surface cleanliness.
How Is the Sheet Used in a Laminated Card?
Card producers generally print the PVC core sheet, align it with compatible protective overlays and any specified inlay or functional layers, laminate under controlled heat and pressure, and punch the finished cards. For chip or antenna cards, the stack design and lamination window must be evaluated as a complete construction.
PVC Sheet Manufacturing and Factory Workshop
Material consistency begins before the printing press. Sheet thickness, surface appearance, flatness, coating uniformity and cutting accuracy are practical acceptance points for downstream card producers.
PVC sheet production process
![Wallis PVC core sheet production workshop]( "Wallis Workshop")
Wallis production workshop
![Wallis factory workshop for PVC sheet production]( "Wallis Workshop")
PVC sheet processing workshop
![Wallis PVC material manufacturing workshop]( "Wallis Workshop")
PVC materials manufacturing area
Performance Advantages for Offset Card Printing
Consistent White Background and Print Definition
A uniform white surface helps maintain a repeatable visual base for CMYK artwork, fine lines and branding. Printing trials should verify color reproduction, registration, curing or drying behavior, and adhesion using the buyer’s actual press and inks.
Reliable Sheet Flatness and Handling
Flatness and controlled dimensions are important for accurate sheet feeding, registration and downstream punching. Buyers should agree on thickness tolerance, edge quality, sheet squareness and allowable surface defects before mass production.
Designed for Multilayer Card Production
The printable core can be combined with approved PVC overlays and other card-construction layers. Lamination temperature, pressure and dwell time should be optimized to reduce risks such as curling, bubbles, delamination or surface defects.
Customizable Formats for Production Efficiency
A4, A3 and card-production sheet formats are available, with custom-cut dimensions for the buyer’s imposed printing layout. Matching sheet size to the plate and cutting plan can help improve material use in high-volume card production.
Repeatable Quality for B2B Supply
For repeat orders, a signed-off reference sample and agreed test methods help control variation between batches. Possible checks include thickness, whiteness, coating appearance, ink adhesion, lamination bonding, flatness and packaging condition.

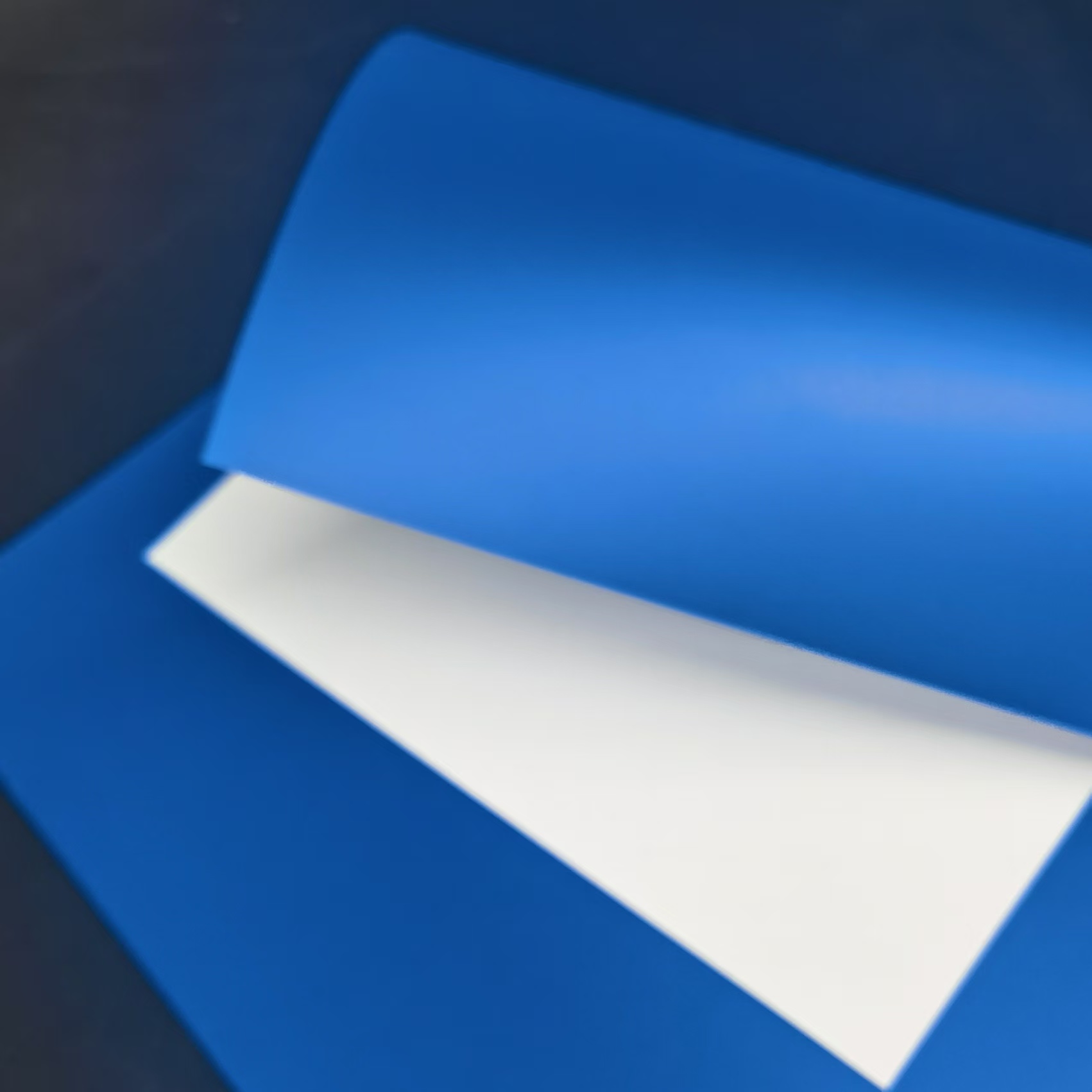

![offset printing specific double-sided white coated PVC core sheet material display]( "Offset Printing-Specific Double-Sided Material Display")
White coated PVC sheet surface examples

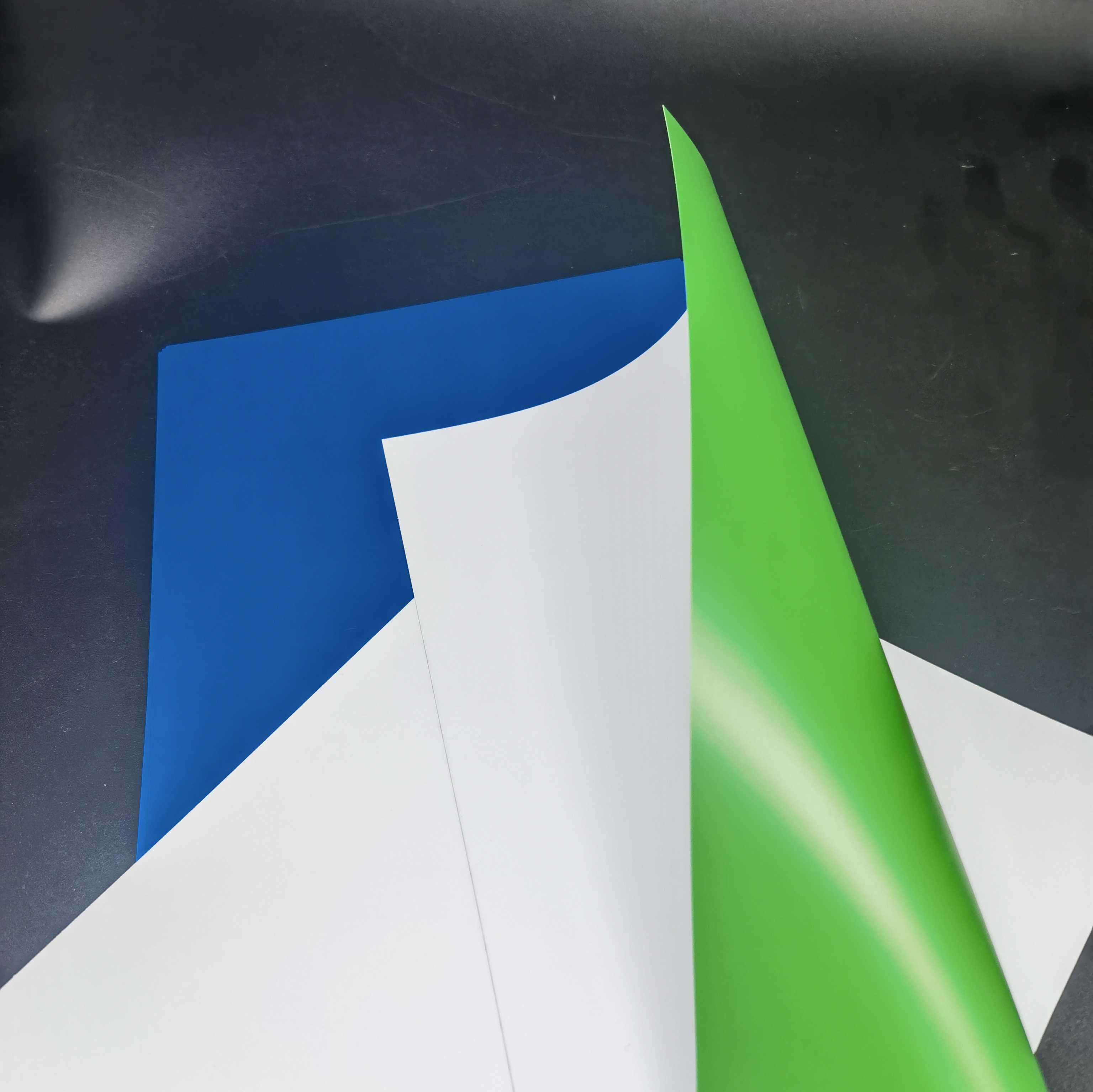

![coating flatness and material layering details of PVC core sheet]( "Coating Flatness & Material Layering Details")
Coating and multilayer material details

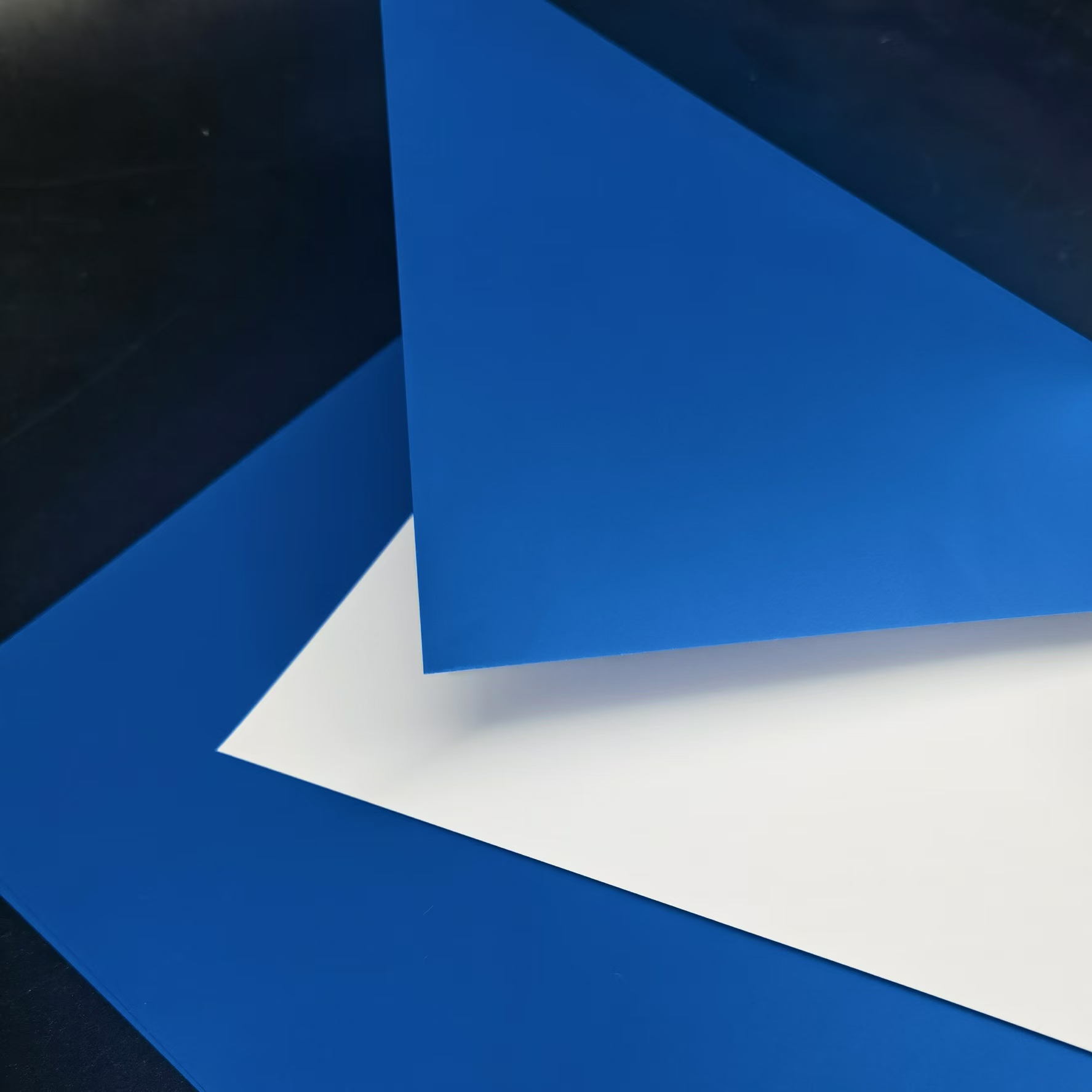

![double-sided color and texture close-up of white coated PVC offset printing substrate]( "Double-Sided Color & Texture Close-Up of Offset Printing Substrate")
Surface and color appearance close-up
White Coated PVC vs. Other PVC Card Materials
Not all white PVC sheets are interchangeable. A material specified for offset printing may not work correctly in desktop inkjet printers, and a printable core is not the same as a transparent protective overlay.
| Material Type | Primary Purpose | Buyer Selection Point |
| White Coated PVC Core Sheet | Printed internal layer for laminated cards | Confirm white coating, ink adhesion and overlay bond |
| Standard White PVC Offset Sheet | Card-grade substrate with an offset-printable surface | Match surface treatment, ink system and heat lamination |
| Inkjet-Printable PVC Sheet | Digital inkjet artwork printing | Use a dedicated receptive coating qualified for that printer |
| Transparent PVC Overlay Film | Protecting the printed card face after lamination | Match bonding grade, thickness and finished-card design |
| Color Core PVC with White Coating | Printed surface over colored PVC substrate | Confirm color, coating coverage and exposed card-edge appearance |
Applications in Plastic Card Manufacturing
ID Cards, Student Cards and Employee Badges
White coated PVC core sheets are used for ID card programs requiring printed portraits, text, school or company branding and dependable lamination in a multilayer card.
Membership, Loyalty and Gift Cards
Retail and membership card producers can print brand graphics, barcodes and other details on the white surface, then combine the printed layer with an appropriate protective overlay.
Access Cards and Hotel Key Cards
For access control and hotel cards, the printed PVC layer can form part of the card stack with designated magnetic-stripe, RFID or chip components. Card-function compatibility must be assessed at the finished-product level.
IC, SIM and Smart Card Applications
Selected card-grade PVC materials can support structures used in IC and SIM cards. The appropriate sheet grade depends on chip integration, thermal processing, precision punching and qualification requirements.
Financial and Regulated ID Card Programs
Payment and government ID projects may have additional material, security and durability specifications. Any relevant scheme approval or compliance requirement must be independently confirmed; using PVC core material alone does not establish product certification.
How to Evaluate Print and Lamination Compatibility
A sample trial should be carried out under the intended manufacturing conditions rather than assuming universal performance across inks and printers.
| Evaluation Step | What to Check |
| 1. Artwork and Printing | Offset press type, ink chemistry, coating side, print sharpness, color and registration |
| 2. Ink Adhesion | Adhesion after drying or UV curing using an agreed test method |
| 3. Lamination Trial | Overlay selection, heat-press settings, bond integrity, bubbles and curl |
| 4. Converting | Cutting, punching, edge quality and final card dimensions |
| 5. Stability / Handling | Approved storage conditions, appearance, warping and batch consistency |
| 6. Acceptance Standard | Golden sample, tolerances, inspection method and agreed defect limits |
Custom Sizes, Coating and OEM Supply
Wallis can discuss specification matching for card manufacturers and plastic sheet distributors. Final OEM availability depends on order volume, process feasibility and approved samples.
Sheet thickness: select a suitable core layer within the offered grade range.
Cut size: A4, A3, 295 × 485 mm, 310 × 485 mm, 500 × 600 mm or project-specific formats.
White coating: define required coated face, appearance, opacity and printing treatment.
Printing: provide the press model, ink type, curing method and expected print quality.
Card stack: specify overlay, inlay, lamination parameters and target finished-card thickness.
Packing: define protective wrapping, carton/pallet configuration and labeling.
Request PVC Core Sheet Samples & Quote
Packaging and Export Delivery
For international shipments, rigid card-core sheets should be protected against scratching, dust, moisture exposure, pressure marks and edge damage. Wallis describes export packing options including protective film, moisture-resistant wrapping, cartons and palletized packing.
The final packing specification should be matched to sheet dimensions, order weight, shipping method and warehouse conditions. Confirm pallet dimensions, sheet count per pack and packing labels when requesting a quotation.
![full container protection packaging for white coated PVC core sheet]( "Full Container Protection")
Container loading and transport protection
![professional export packaging for PVC core sheet with white coating]( "Professional Export Packaging")
PVC core sheet export packaging
Why Source White Coated PVC Core Sheets from Wallis?
Wallis supplies printable PVC core sheets and related card-manufacturing materials for B2B customers. The product range includes specified sheet thicknesses, custom cutting and packaging, and support for evaluation samples before bulk ordering.
Focused supply of PVC card core sheets, printable grades and card overlay materials.
Standard and customized dimensions for commercial card production.
Support for print, lamination and converting sample evaluation.
B2B communication for repeat orders, quality criteria and export delivery.
Ability to coordinate a suitable sheet grade with the customer’s application and production method.
![Wallis professional team for PVC core sheet and card material solutions]( "Wallis Team")
Wallis team
![Wallis distinguished global clients for PVC card materials]( "Wallis Distinguished Clients")
Wallis customers and business partners
![Wallis factory for PVC core sheet manufacturing]( "Wallis Factory")
Wallis production facility
Information Needed for a Technical Quotation
To receive a quotation that matches your equipment and card construction, provide as many of the following details as possible.
| Information | Details to Provide |
| Application | ID / gift / membership / access / IC / SIM / other card type |
| Sheet Specification | Required thickness, width, length, quantity and tolerance |
| Coating | White coating on one or both sides, surface finish and opacity requirements |
| Printing | Press type, inks, curing conditions, number of print sides |
| Card Construction | Overlay material, inlay, lamination cycle and finished-card target |
| Quality Requirements | Ink adhesion, color, flatness, bonding and sample approval criteria |
| Delivery | Target market, shipping destination and packing requirements |
Frequently Asked Questions
What is a white coated PVC core sheet for offset printing?
It is a rigid PVC card substrate with a white printable coating. It is used as a printed layer in multilayer plastic cards and is normally combined with protective overlays during lamination.
What thicknesses are available?
The product range lists 0.10–0.80 mm. Specify the target thickness of the core layer separately from the complete finished-card thickness and confirm the allowable tolerance.
Which sheet sizes can I order?
Common listed sizes include A4, A3, 295 × 485 mm, 310 × 485 mm and 500 × 600 mm. Custom sizes can be discussed based on your press format and cutting layout.
Is the PVC sheet suitable for offset printing?
The white-coated grade is intended for offset printing. Before bulk production, test it with the intended press, ink, curing method and finished-card lamination process.
Can the same sheet be used in inkjet or digital printers?
Not automatically. Inkjet and certain digital printing systems often require different surface coatings. Ask for a specifically qualified grade and conduct a print test.
Can printed PVC core sheets be laminated with overlays?
Yes, for a compatible card construction. Match the core, print, adhesive or overlay, lamination temperature, pressure and dwell time and check bond strength after processing.
What is the difference between PVC core sheet and PVC overlay film?
The core sheet generally carries printing and contributes to the card structure. Transparent overlay film is added over printed layers for protection and bonding. The two materials have different roles.
Can I use this material for RFID, IC and bank cards?
It can be considered for applicable multilayer card designs, but chip, antenna, security, thermal and durability requirements must be qualified for each project. No payment-card approval is implied.
How can I check coating adhesion and print quality?
Agree on a physical reference sample and conduct print trials, adhesion inspection, lamination testing and visual quality checks using your own inks and production conditions.
Does the white sheet have a guaranteed anti-yellowing lifetime?
Lifetime depends on formulation, UV exposure, storage, overlay protection and the final application. Request test data or conduct accelerated-aging trials; a universal service life should not be assumed.
What is the lead time for bulk orders?
Lead time depends on sheet size, thickness, coating grade, order quantity and factory schedule. Wallis can confirm the production and shipping schedule in a quotation.
Can Wallis provide samples and OEM packaging?
Sample evaluation, custom sheet dimensions and export packaging options can be discussed. Share your specification and destination to confirm availability, cost and shipping arrangements.
Request White Coated PVC Core Sheet Samples and Pricing
Tell Wallis your offset-printing process, PVC core sheet dimensions, intended card construction, quantity and destination. The team can help coordinate grade selection, sample evaluation and a project-specific B2B quotation.
