Honeycomb Corrugated Polycarbonate Sheet

Twin-walls polycarbonate sheet
Triple-walls polycarbonate sheet
Four-walls polycarbonate sheet
Honeycomb polycarbonate sheet
  • Thickness: 3.0-12.0 mm Twin-wall. / 16mm, 20mm Triple-wall.
  • Width: 2100mm.
  • Length: 5800mm, 11800mm.
  • Color: Clear, Opal, Blue, Green, Bronze.
  • Wallis -Hollow Polycarbonate Sheet
  • Wallis
  • Hollow Polycarbonate Sheet
Color:
Width :
Length :
Availability:
Quantity:

Shanghai Wallis Technology Co.,Ltd offer you Solid Polycarbonate Sheet and Hollow Polycarbonate Sheet with advanced and competitive products . Regarding Hollow Polycarbonate sheets we have Twin-walls , Triple-walls , Four-walls ,Honeycomb, 5 Layer Honeycombe , X-Structure Polycarbonate Sheets with Customized size and colors .

Polycarbonate sun panel is made of polycarbonate resin imported from famous brand in the world ,such as Sabic ,Byer . It is the most popular material for construction and decoration.  The transmission of sun panel is from 35-80% with double anti-UV protection.  The hollow structure enhances the effect of heat insulation and sound insulation and makes it lighter to transport and install. Besides the characteristics of general hollow sheet, the crystal sun panel has better performance for the appearance and durability.


The # and X triple-wall sheet is more firm with better performance of anti-impact, sound insulation and heat insulation. It is the first choice for the roofing material of high building.


Hollow Polycarbonate sheets are used for a variety of applications such as Architectural Roofing,,Glazing Roofing, Translucent roofing in sports facilities and more. These sheets are largely used to cover walkways, awnings, entrances, parking structure covering, swimming pool covers and more.

Polycarboante sheet

Hollow Polycarbonate Sheet (2)

Yellow Twin Wall

Hollow Polycarbonate Sheet (3)

Smoke Twin Wall

Hollow Polycarbonate Sheet (5)

Red Twin Wall

Hollow Polycarbonate Sheet (6)        Clear Twin Wall
Triplewall Polycarbonate1 Triple Wall
Hollow Polycarbonate Sheet (4)            Four Wall
微信图片_20210807163209           Honeycomb
X-structure-hollow-sheets

X-Structure

Production Range:

A. Product Range

Product Type

Thickness

Width

1) twin-walls polycarbonate sheet

4-12mm

2100mm

2) triple-walls polycarbonate sheet

8-16mm

2100mm

3) four-walls polycarbonate sheet

8-20mm

2100mm

4) honeycomb polycarbonate sheet

6-11mm

2100mm

5) 5 layer honeycomb polycarbonate   sheet

14-25mm

2100mm

6) X-structure polycarbonate sheet

14-30mm

2100mm

7) solid polycarbonate sheet

0.9-8mm

1220mm/1560mm/1820mm/2100mm
  (Usually 1220*2440mm, 2050*3000mm)

8) corrugated polycarbonate sheet

0.8-2.5mm

Customized

9) locking-design polycarbonate   sheet

3-10mm

1040mm

B. Length

No limit(Recommend 5800, 6000,   11800, 12000mm to suit 20'container &40'container).

C. Color

Clear/Transparent, Lake Blue,   Green, Blue, Opal, White, Brown/Bronze,Silvery Gray, Red, Yellow, etc.


Product

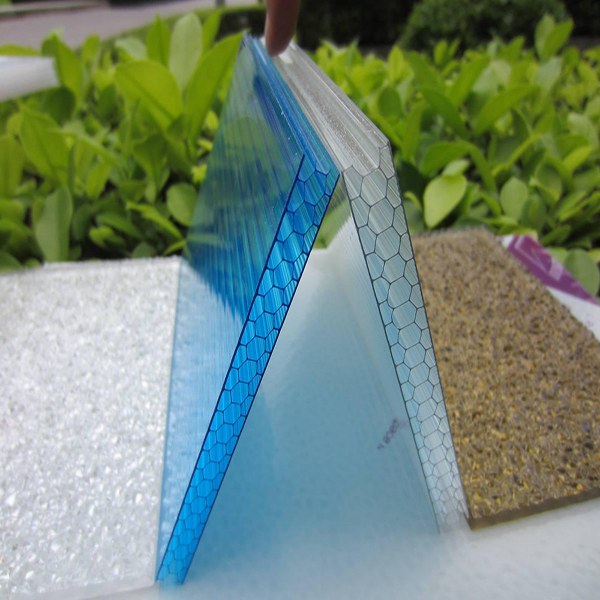

Honeycomb Polycarbonate Sheet

Material

100% bayer material or sabic   material or customized

Color

Clear, Blue, Lake Blue,Green,   Bronze, Opal or Customized

Standard Width

Customizable

Thickness

4mm-20mm,or as your request

Length

Customizable

UV thickness

50 micron,Franco

Retardant standard

Grade B1(GB Standard)

Technology

Grade B1(GB Standard)


Workshop :

Hollow Polycarbonate SheetProduction Process 2

Polycarboante Sheet 1

Clean Polycarbonate Sheet Workshop

Polycarbonate Sheet 2

1200mm Polycarbonate Sheet

Polycarboante Sheet 3Mask Protected Film

Production Application:

  • Skylight in residence, workshop and warehouse, swimming-pool, gymnasium and greenhouse;

  • Shield for passageway, parking and so on

  • Sound-insulation walls of Expressway;

  • Screen decoration, advertisement light box, LED electronic screen.

Polycarbonate Separate

Separate

greenhouse

Greenhouse

Roof

Roof

Pakage and Shipping :

Package
