Transparent PC PMMA Composite Sheet for Impact Protection

Transparent PC/PMMA Composite Sheet for Impact and Scratch Resistance

Wallis transparent PC/PMMA composite sheet combines a polycarbonate core with a PMMA acrylic surface layer to balance impact strength, optical clarity and improved scratch resistance. It is developed for display covers, equipment windows, control panels, decorative components, protective screens and other transparent parts requiring better surface durability than standard polycarbonate.

The PC layer provides toughness and resistance to breakage, while the PMMA layer contributes surface hardness, gloss, weatherability and optical appearance. Two-layer PC/PMMA and three-layer PMMA/PC/PMMA constructions may be selected according to the required surface performance, forming process and finished component design.

Wallis supplies B2B customers including plastic fabricators, display manufacturers, equipment builders, automotive interior-component suppliers, electronics manufacturers, contractors, importers and distributors. Custom thickness, sheet size, finish, color, hard coating, masking and export packaging can be discussed after technical review.

Request PC/PMMA Samples and B2B Quote

What Is a PC/PMMA Composite Sheet?

A PC/PMMA composite sheet is a multilayer transparent thermoplastic produced by bonding or co-extruding polycarbonate and polymethyl methacrylate. The material is designed to combine the toughness and formability of PC with the harder, glossier and more scratch-resistant surface of PMMA.

The composite construction is not identical to a standard hard-coated polycarbonate sheet. A PMMA cap layer, a separately applied abrasion-resistant coating and a PMMA/PC/PMMA structure can deliver different hardness, chemical resistance, weatherability and forming behavior. The exact layer structure must therefore be stated in the quotation and approved sample.

Transparent Composite Structure

Clear Surface with Protective Masking

Product Specifications

The values below summarize information from the existing product page. Final thickness, layer ratio, optical values, operating temperature, UV grade, coating, tolerances and test methods should be confirmed on the approved technical specification for each order.

Two-Layer vs. Three-Layer PC/PMMA Structures

Key Advantages of PC/PMMA Composite Sheet

Improved Scratch Resistance Compared with Standard PC

Standard polycarbonate is tough but can scratch relatively easily. The PMMA surface improves hardness and gloss retention for display covers, equipment windows and frequently handled transparent components. For severe abrasion, repeated cleaning or chemical exposure, an additional hard-coat grade and test specification may be required.

Higher Impact Resistance Than Standard PMMA

The PC core reduces the brittleness associated with pure acrylic and helps lower breakage risk during fabrication, transport and installation. Impact performance should still be confirmed at the selected thickness and temperature using the required test method.

Clear Appearance and High-Gloss Surface

The PMMA face provides a smooth, glossy appearance suitable for windows, displays and decorative components. Optical requirements should specify light transmission, haze, distortion, surface defects and viewing distance rather than relying only on the word “transparent.”

Water and Humidity Resistance

PC and PMMA sheets do not absorb water and swell in the same way as wood-based boards. However, joints, drilled holes, adhesives, printed layers and supporting structures determine whether a finished product is watertight. Outdoor or wet-area assemblies require proper sealing and drainage design.

Optional UV-Stabilized Outdoor Grade

Outdoor use should be based on a UV-stabilized construction with the protected face installed toward sunlight. Weathering expectations depend on climate, sheet orientation, color, coating and exposure time, so accelerated and real-world testing may be required.

Fabrication and Forming Options

The material can be cut, routed, drilled, printed, bent or thermoformed using suitable equipment. Processing parameters must protect the PMMA layer and any hard coating from chipping, cracking, stress whitening or delamination.

Combined Optical, Surface and Impact Performance

Impact-Resistant Clear Panel

PMMA Surface with PC Toughness

PC/PMMA Composite Sheet vs. PC, PMMA and Hard-Coated PC

Typical B2B Applications

Machine Guards and Equipment Viewing Windows

PC/PMMA composite sheet can be evaluated for machine enclosures, inspection windows and equipment covers where visibility, impact resistance and repeated cleaning are important. Safety certification, thickness and mounting design must be determined by the equipment manufacturer.

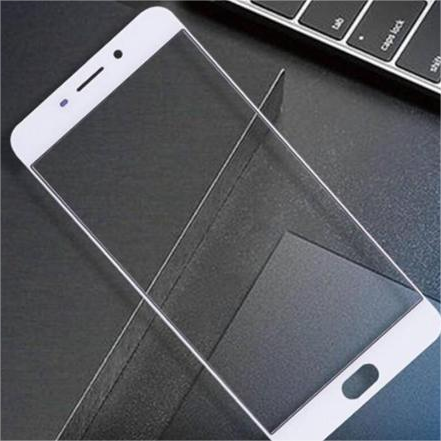

Displays, Control Panels and Protective Covers

The clear, glossy surface suits display windows, instrument covers, information panels and human-machine-interface components. Optical distortion, printability, anti-glare treatment, touchscreen function and cleaning chemicals should be included in the specification.

Retail Fixtures and Public-Space Screens

Retail covers, partitions, display guards and high-touch transparent components can benefit from the combination of toughness and improved surface durability. Fire classification and building-code requirements should be confirmed for the installation.

Automotive Interior and Display Components

PC/PMMA composites are used in automotive interior display covers, control panels and decorative trim. Use in regulated vehicle glazing, windshields or safety-critical exterior parts requires an application-specific certified grade and formal homologation; the general sheet should not be presented as automatically approved.

Medical Equipment Covers and Protective Barriers

The material can be evaluated for non-implant medical-equipment covers, observation windows and barriers. Chemical resistance to disinfectants, cleaning frequency, stress cracking, fire performance and regulatory requirements must be tested for the finished application.

Outdoor Signage and Architectural Components

Outdoor signs, covers and transparent architectural elements require a UV-stabilized grade, suitable support spacing, thermal-expansion allowance and correct sealing. Roof glazing, skylights and safety barriers require structural engineering and applicable certification.

Protective and Display Components

Transparent Fabricated Parts

Industrial Viewing Window

Commercial and Decorative Use

Fabrication and Installation Guidelines

Cutting and CNC Routing

Use sharp carbide tools, stable support and controlled feed rates. Leave protective masking in place where practical. Excessive heat or vibration can cause melted edges, chipping, stress or damage to the PMMA surface.

Drilling and Fastening

Drill with suitable plastic-cutting geometry and provide adequate edge distance. Holes and frames must allow thermal expansion. Overtightened fasteners can introduce stress and initiate cracking.

Cold Bending and Thermoforming

Minimum bend radius and forming window depend on thickness, layer structure and coating. Hard-coated grades may have limited forming capability. Drying requirements and heating profile should be confirmed before production trials.

Printing, Bonding and Cleaning

Ink, adhesive and cleaner compatibility must be tested because certain solvents can cause crazing or stress cracking. Use a soft cloth and approved mild cleaner; avoid abrasive pads and unverified solvents.

Outdoor Use and Water-Resistance Limitations

The solid plastic sheet itself is resistant to moisture and does not rot, but an installed enclosure, facade or cover is only watertight when joints, holes, edges, gaskets and sealants are correctly designed. “Waterproof” should therefore be treated as an assembly requirement rather than an unconditional property claim.

Outdoor projects also require confirmation of the UV-protected face, expansion allowance, wind load, support spacing, coating warranty and expected climate. Transparent sheets expand more than glass or metal, so rigid installation without movement allowance can lead to bowing or stress.

B2B Customization Options

Quality Control and Testing

Testing should be selected according to the application rather than applying one generic quality claim to every grade. Wallis can coordinate available inspections and sample evaluation based on the agreed purchase specification.

• Dimensions and thickness: Sheet size, profile, tolerances and squareness.

• Optical performance: Light transmission, haze, tint, distortion and surface defects.

• Surface durability: Pencil hardness, Taber abrasion or customer-specified scratch test.

• Impact performance: Impact strength at the required thickness and service temperature.

• Weathering: UV aging, yellowing, gloss retention and coating adhesion for outdoor grades.

• Chemical compatibility: Cleaners, disinfectants, inks, adhesives or process chemicals.

• Fabrication trial: Cutting, drilling, bending, printing, bonding or thermoforming.

• Packaging inspection: Masking quality, surface protection, pallet security and identification.

Material Testing and Quality-Control Equipment

Transmittance & Haze

Taber Abrasion Testing

Salt Spray Evaluation

UV Weathering Testing

Coating Line

Protective Mask Film

Export Packaging

Why Choose Wallis for PC/PMMA Composite Sheets?

• Application-based grade selection: Layer structure, coating, UV requirement and fabrication process are reviewed before recommendation.

• Sample-first process: Buyers can test optics, abrasion, impact, fabrication and installation before bulk purchasing.

• OEM specifications: Thickness, size, color, finish, masking and packaging can be discussed.

• Quality-control support: Inspection items can be aligned with the agreed project requirements.

• Processing coordination: Cutting, CNC routing, drilling, printing or forming requirements can be reviewed.

• Global B2B supply: Export packaging supports fabricators, manufacturers, contractors and distributors.

Global Customer and Project Support

Wallis works with international buyers on grade selection, sample approval, customized dimensions, batch supply and export shipment. Approved physical samples and signed specifications should be retained as the reference for repeat orders.

International B2B Project Coordination

Customer Cooperation

Project communication may cover layer structure, optical target, hardness or abrasion method, UV grade, fabricated-part drawings, packaging and delivery schedule. For critical applications, buyers should validate the finished component rather than approving the raw sheet alone.

Information Needed for a Fast B2B Quotation

• Finished application and indoor or outdoor environment.

• Two-layer PC/PMMA or three-layer PMMA/PC/PMMA preference.

• Required thickness, sheet size, color and annual quantity.

• Light transmission, haze, surface-defect and optical-distortion targets.

• Pencil hardness, Taber abrasion, chemical or cleaner-resistance requirements.

• Impact, fire, weathering or other certification requirements.

• Cutting, drilling, bending, printing, bonding or thermoforming process.

• Drawings, tolerances, masking and packaging requirements.

• Destination port, delivery schedule and sample size.

Discuss Your Transparent Sheet Project

Frequently Asked Questions

What is the difference between PC/PMMA composite sheet and hard-coated polycarbonate?

PC/PMMA uses a PMMA cap layer bonded to a PC core, while hard-coated PC uses a separate abrasion-resistant coating on polycarbonate. They can differ in hardness, chemical resistance, formability, weathering and cost, so the correct grade depends on the application.

Is PC/PMMA more impact resistant than acrylic?

The PC core normally provides greater toughness than standard PMMA. Actual impact performance varies with thickness, layer ratio, temperature and test method, so numerical requirements should be stated in the purchase specification.

Is the sheet completely scratch-proof?

No transparent plastic is completely scratch-proof. The PMMA layer improves scratch resistance compared with standard PC, while demanding abrasion or cleaning applications may require a validated hard coating.

Is the material waterproof?

The solid sheet resists water and does not swell like wood, but a finished product is only watertight when edges, joints, holes, seals and frames are designed correctly.

Can PC/PMMA sheet be used outdoors?

Outdoor use requires a confirmed UV-stabilized grade, correct orientation of the protected face, thermal-expansion allowance and project-specific weathering expectations. Standard indoor grades should not be assumed suitable outdoors.

Can it be used for automotive windshields or vehicle glazing?

Not without an application-specific certified and homologated grade. General PC/PMMA sheet can be evaluated for interior display covers and trim, but regulated glazing requires formal testing and approval.

Can the sheet be thermoformed?

Suitable composite grades can be thermoformed, but the layer structure, drying, heating profile, draw ratio and surface coating must be validated. Some hard coatings significantly limit forming.

Can it be laser cut?

Mechanical saw cutting or CNC routing is generally preferred for thick transparent PC-based sheets. Laser cutting can create heat-affected edges, discoloration, stress or fumes and should only be used after equipment-specific testing.

Which cleaners are safe for the surface?

Use a soft cloth and a mild cleaner approved for the exact grade. Avoid abrasive pads and unverified solvents. Disinfectants and strong chemicals should be tested for haze, cracking, coating damage and stress crazing.

What thicknesses and sizes are available?

The current page lists 2–10mm and standard sizes of 1220 × 2440mm and 2050 × 3050mm. Availability depends on the required structure, coating, color, finish and order quantity.

Can samples be tested before a bulk order?

Yes. Sample testing is recommended for optics, abrasion, impact, cleaning chemicals, cutting, drilling, forming, bonding and installation before confirming volume production.

What determines the minimum order quantity?

MOQ depends on layer structure, thickness, sheet size, color, texture, coating, masking and whether the specification is standard or customized.

What information should be included in an inquiry?

Provide the application, environment, structure, thickness, size, quantity, optical target, scratch or abrasion method, impact requirement, processing method, packaging and destination.

Request Transparent PC/PMMA Composite Sheet Samples

Contact Wallis Plastic to discuss transparent PC/PMMA composite sheets for equipment windows, displays, protective covers, control panels and OEM fabricated parts. Our team supports grade selection, custom specifications, sample evaluation and export-ready B2B supply.

Request Samples and Factory Quote
