Solid Embossed Diamond Textured Polycarbonate Sheet

Color: clear,grass green,lake blue,blue,brown,opal or customized
Thickness: 1.2mm-20mm
HS Code:392061000
  • Wallis -Solid Polycarbonate Sheet

  • Wallis

  • Solid Polycarbonate Sheet

Color:
Width :
Length :
Availability:
Quantity:


1.Introduction



Solid Embossed Diamond Textured Polycarbonate Sheets, a revolutionary product in the realm of building materials, have garnered substantial attention in recent years. Their unique characteristics and versatile applications have made them an essential component in modern construction and design.



Material
100% new polycarbonate resin.
Width
1220mm, 1560mm, 1820mm, 2100mm, or can be cut as your need.
Length
5800mm, 6000mm, or can be cut. No limit.
Thickness
1.0mm-20mm
Color
Clear, green, opal, bronze, blue, orange, red


Characterics
Unit
Data
Impact strength
J/m
88-92
Light transmission
%
50
Specify Gravity
g/m
1.2
Elongation at break
%
≥130
Coefficient thermal expansion
mm/m℃
0.065
Service temperature
-40℃~+120℃
Heat conductively
W/m²℃
2.3-3.9
Flexural strength
N/mm²
100
Modulus of elasticity
Mpa
2400
Tensile strength
N/mm²
≥60
Soundproof index
dB
35 decibel decrease for 6mm solid sheet


2.Understanding Solid Embossed Diamond Textured Polycarbonate Sheets


Solid Embossed Diamond Textured Polycarbonate Sheets are a remarkable building material with distinct features that set them apart from traditional construction materials. These features include:


2.1.Texture: The embossed diamond texture on the surface of these sheets not only adds a visually appealing dimension but also enhances their structural integrity, making them ideal for demanding architectural applications.


2.2.Transparency: One of the standout qualities of these sheets is their high light transmission capabilities. They allow as much as 90% of natural light to pass through, making them suitable for spaces where daylight is essential.


2.2.Impact Resistance: Polycarbonate is renowned for its exceptional impact resistance, and the embossed texture further fortifies this aspect, making these sheets an excellent choice for areas where protection against breakage or vandalism is crucial.


2.3.UV Resistance: These sheets are typically coated with UV-resistant materials, ensuring that they do not yellow or degrade when exposed to sunlight, which is especially valuable for outdoor applications.


2.4.Thermal Insulation: Polycarbonate sheets offer excellent thermal insulation, helping to maintain a comfortable interior temperature and reducing energy costs.


CLEAR PC SHEET 1

Clear Polycarbonate Sheet

Clear Color PC Sheet

Transparent Color PC Sheet

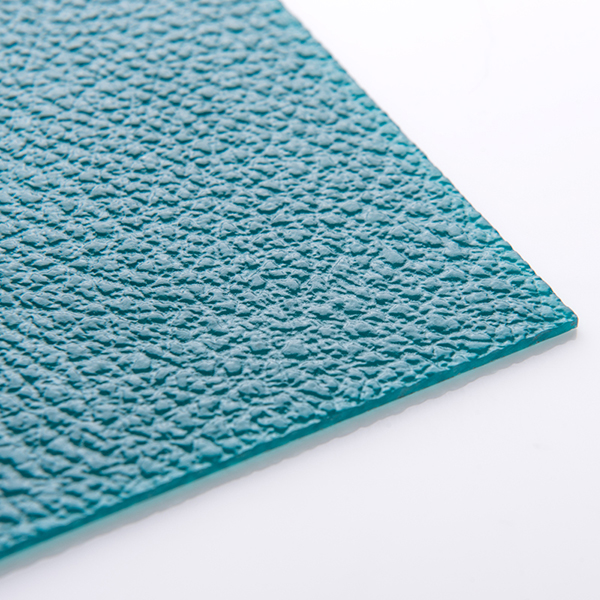

Embossed Polycarbonate Sheet (6)

Embossed Polycarbonate Sheet

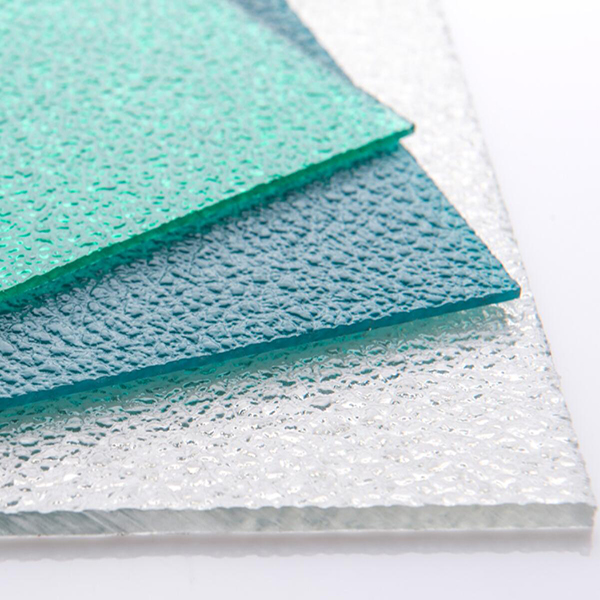

Embossed Polycarbonate Sheet (2)

Embossed Polycarbonate Sheet

Embossed Polycarbonate Sheet (1)

Embossed Polycarbonate Sheet

Embossed Polycarbonate Sheet (5)

Embossed Polycarbonate Sheet


3.Advantages of Solid Embossed Diamond Textured Polycarbonate Sheets



The advantages of using Solid Embossed Diamond Textured Polycarbonate Sheets in construction are vast and varied, making them an attractive choice for architects and builders. These advantages include:


3.1.Design Flexibility: These sheets are available in a range of sizes, thicknesses, and colors, providing architects and designers with the freedom to create unique and aesthetically pleasing structures.


3.2.Lightweight: Significantly lighter than glass, these sheets are easier to transport, handle, and install, reducing labor and transportation costs.


3.3.Ease of Installation: Solid Embossed Diamond Textured Polycarbonate Sheets can be easily cut, shaped, and installed, which decreases installation time and labor requirements.


3.4.Durability: These sheets are highly durable, with a long lifespan. They can withstand harsh weather conditions, including rain, hail, and strong winds.


3.5.Energy Efficiency: The excellent thermal insulation properties of these sheets contribute to energy savings in both heating and cooling applications.


  • Feature



4.Applications of Solid Embossed Diamond Textured Polycarbonate Sheets


Solid Embossed Diamond Textured Polycarbonate Sheets have found a wide range of applications across various sectors. Some of the prominent uses include:


4.1.Skylights: Their high light transmission properties make them ideal for skylights, allowing natural light to flood interior spaces, creating well-lit and inviting environments.


4.2.Canopies: These sheets are commonly used in canopy construction, providing shelter while maintaining an open and transparent feel, perfect for covered outdoor spaces.


4.3.Greenhouses: With their UV resistance and light transmission qualities, these sheets are well-suited for greenhouse applications, creating an optimal environment for plant growth.


4.4.Interior Partition Walls: These sheets can be used to create visually appealing and functional interior partition walls in commercial and residential spaces, allowing the flow of light while maintaining privacy.


4.5.Atriums: Atriums benefit from the aesthetic appeal and durability of Solid Embossed Diamond Textured Polycarbonate Sheets, providing a stunning focal point in buildings and allowing natural light to reach the heart of the structure.


Solid PC Application 1
微信图片_20210808155117


5.Worksshop :

anti-static 6
Anti-static 4


Frequently Asked Questions


1. Can the 12mm PC sheet withstand heavy rain and extreme weather conditions?


Yes, the 12mm PC sheet is designed to withstand varying weather conditions, including heavy rain, without deteriorating.


2. Is the anti-scratch coating permanent?


The anti-scratch coating is highly durable and long-lasting, ensuring that the court maintains its appearance even after regular use.


3. Can the 12mm PC sheet be customized to match different court designs?


Absolutely, the 12mm PC sheet is available in various colors and can be customized to match the desired court aesthetics.


4. How does the UV resistance of the PC sheet contribute to court longevity?


The UV resistance prevents the sheet from fading, discoloration, and structural damage caused by prolonged sun exposure, ensuring the court's longevity.


5. Is the installation process complex?


The installation process is relatively straightforward and involves securing the sheet onto a stable base. Professional installation is recommended for optimal results.
