RFID & NFC Inlay Guide 2026 for Smart Card Manufacturing

An RFID or NFC inlay is the functional electronic core inside a contactless smart card, RFID tag, NFC product, access credential, transport card, hotel key card, asset tag, or connected product. It combines an integrated circuit with a carefully designed antenna so the finished product can communicate wirelessly with a compatible reader or NFC-enabled device.

For smart card manufacturers and RFID integrators, selecting the correct inlay involves much more than choosing a frequency. Buyers need to match the frequency, communication protocol, chip family, antenna design, inlay layout, carrier material, final card construction, lamination process, reader environment, RF performance, and quality-control requirements.

This 2026 guide explains the major RFID and NFC inlay types, how prelaminated inlays differ from dry and wet inlays, which materials are used, what manufacturers should test, and what information B2B buyers should provide before mass production.

1. What Is an RFID or NFC Inlay?

An inlay is an intermediate electronic component containing a chip and antenna mounted or embedded on a carrier structure. Depending on its construction, it can later be laminated into a plastic card, converted into a label, encapsulated into another product, or combined with adhesive and face materials.

In smart card production, a prelaminated RFID inlay is typically positioned between printed card layers and overlays. The final stack is laminated, cooled, punched, and optionally personalized or encoded to create the finished contactless card.

Why the Inlay Is Critical to Final Card Performance

The inlay determines much of the contactless performance of the finished product. Chip selection, antenna geometry, conductor material, connection quality, RF tuning, substrate thickness, lamination conditions, and final card construction can all influence reading distance, coupling stability, transaction reliability, bending resistance, and service life.

For this reason, a chip and antenna should be treated as a matched RF system. Changing the chip, antenna size, conductor, substrate, card thickness, reader, or surrounding material can shift resonance and alter performance.

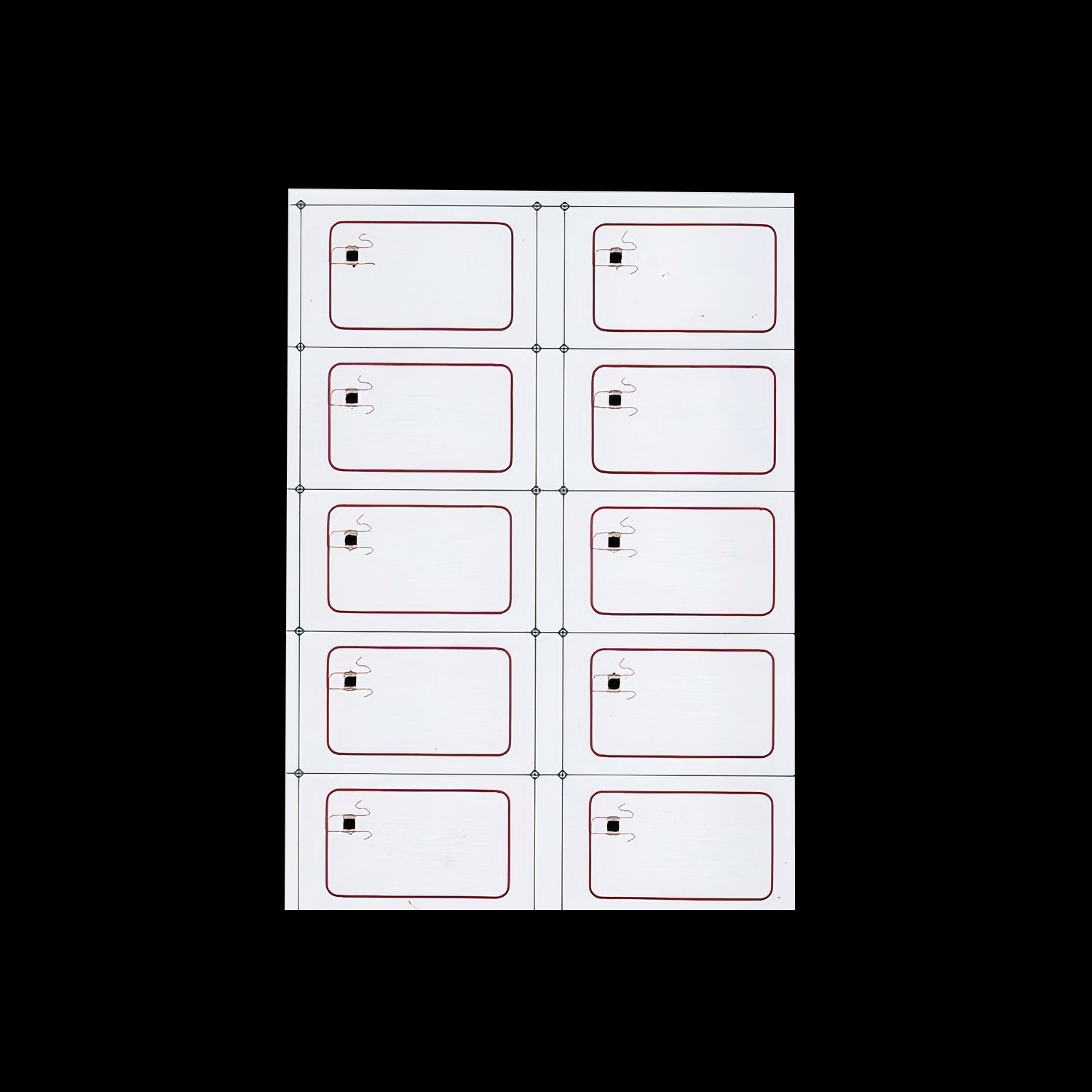

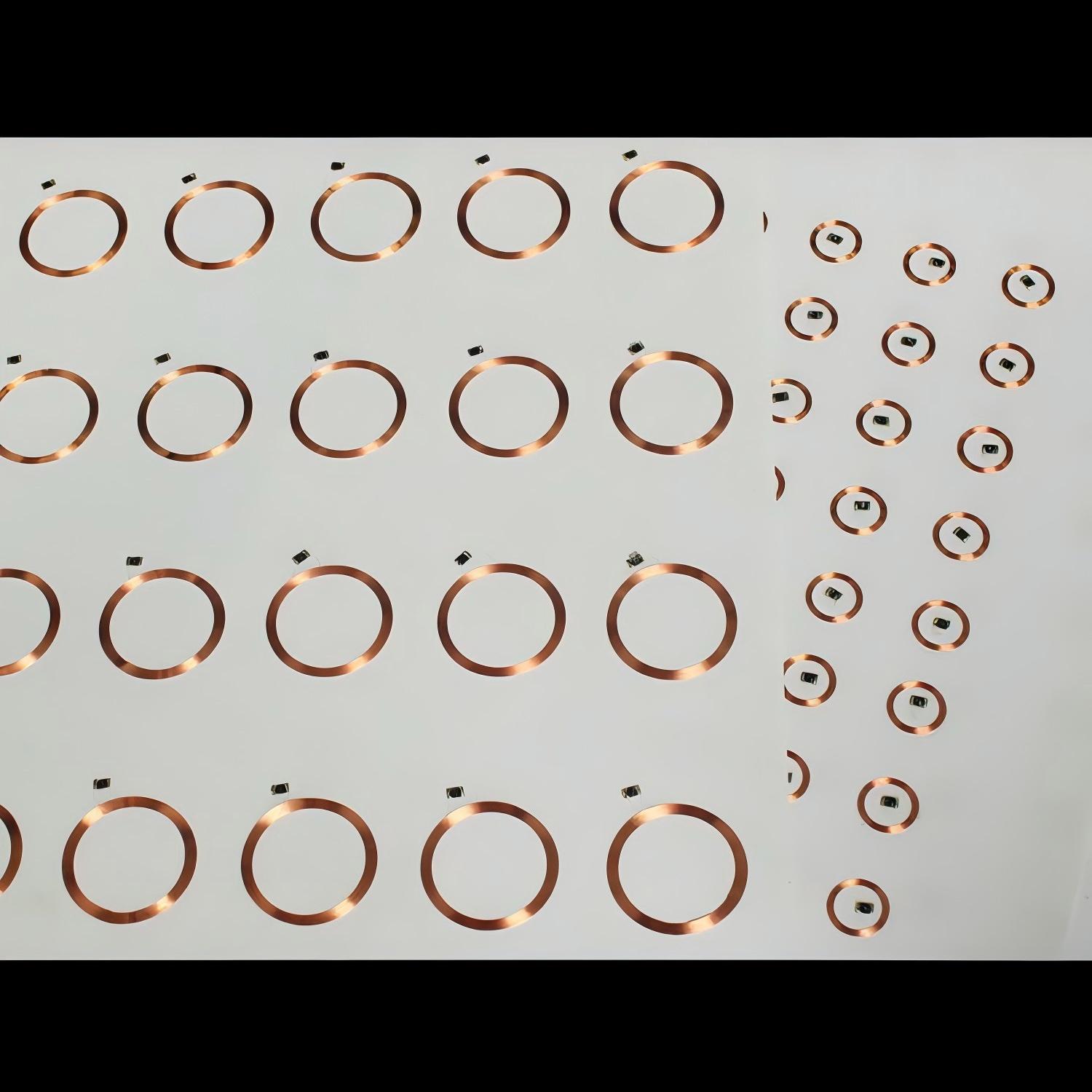

RFID Inlay Sheet

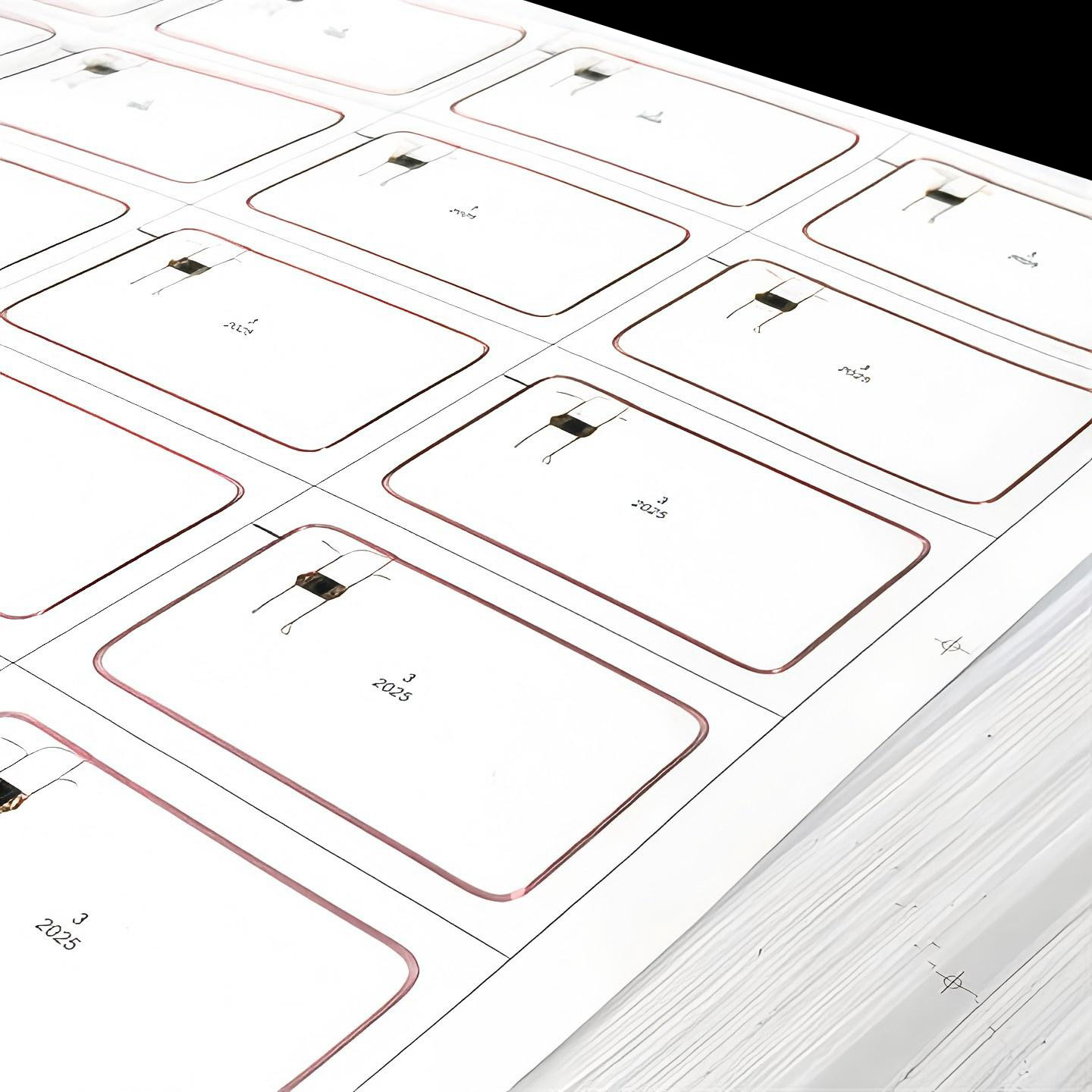

Smart Card Prelam Inlay

2. RFID Inlay Types by Frequency

RFID inlays are commonly grouped into LF, HF/NFC, and UHF categories. Frequency strongly influences coupling behavior, reader architecture, antenna dimensions, reading distance, anti-collision capability, and application suitability.

2.1 LF RFID Inlays

LF RFID inlays are generally used where short-range, reliable identification is required. Typical applications include legacy proximity access cards, animal identification, industrial identification, and selected security systems.

LF systems should be specified using the exact chip and reader requirements rather than frequency alone, because memory, UID behavior, coding, authentication, and reader compatibility vary between chip families.

2.2 HF RFID and NFC Inlays at 13.56 MHz

13.56 MHz HF technology is widely used for contactless smart cards, access credentials, transport cards, library systems, campus cards, hotel keys, identity applications, and NFC-enabled products.

An important purchasing point is that 13.56 MHz does not define the protocol. Projects may use ISO/IEC 14443 Type A, ISO/IEC 14443 Type B, ISO/IEC 15693, NFC Forum Tag Types, or another supported application architecture.

For example, NTAG-family devices are commonly associated with NFC applications, secure MIFARE DESFire-class products are used in selected secure smart-card systems, while ICODE-type devices are commonly associated with ISO/IEC 15693 vicinity applications. The exact IC should always be matched to the reader, software, memory, security, and certification requirements.

2.3 UHF RFID Inlays

UHF RFID inlays are widely used in inventory, logistics, retail, warehouse automation, asset management, supply-chain tracking, apparel tagging, and other applications requiring rapid identification of multiple items.

Unlike typical HF smart-card applications, UHF performance is highly sensitive to antenna orientation, reader power, surrounding materials, liquids, metals, packaging construction, regional frequency regulations, and tag placement. Inlay selection should therefore be validated on the actual target product whenever possible.

3. Frequency Is Not the Same as Protocol

One of the most common mistakes in RFID purchasing is specifying only “13.56 MHz” or “NFC” without defining the protocol and chip. Two products can operate at the same frequency but still be incompatible with the same reader, software, command set, memory architecture, or security system.

4. Prelam, Dry Inlay and Wet Inlay: What Is the Difference?

The term “inlay” covers several constructions. Buyers should define whether the component will be laminated into a plastic card, converted into a pressure-sensitive label, or embedded into another product.

For smart-card manufacturers, prelaminated RFID inlays are usually the most relevant structure because the electronics need to survive subsequent card lamination, cooling, punching, printing, and personalization processes.

5. Materials Used in Smart Card Inlays

Carrier and prelam materials influence lamination behavior, dimensional stability, flexibility, heat resistance, card construction, and long-term mechanical performance. The correct material should be selected according to the final card stack rather than by cost alone.

6. Chip Selection for RFID and NFC Inlays

The chip determines much of the memory, protocol, security, command set, UID behavior, cryptographic capability, application architecture, and reader compatibility of the final product.

Choose the Chip From the Application, Not the Brand Name Alone

For a basic NFC marketing card, memory size, NDEF capacity, smartphone compatibility, password features, and URL length may be important. For secure access or transport, application files, cryptography, key management, personalization, transaction speed, reader infrastructure, and certification may be more important.

Secure Chips Do Not Automatically Create a Secure System

A secure IC is only one part of the security architecture. Key generation, key injection, diversification, reader authentication, backend systems, access rights, card personalization, issuer procedures, and lifecycle management also need to be designed correctly.

Payment and Government Projects Require Additional Qualification

A generic RFID or HF inlay should not automatically be described as suitable for payment, government ID, regulated transit, or other high-security credentials. Such programs may require certified chips, audited manufacturing, secure personalization, scheme approval, laboratory testing, and project-specific qualification.

7. Antenna Design and RF Tuning

Antenna design is one of the most important engineering steps in an RFID or NFC project. Antenna dimensions, number of turns, conductor width, conductor material, connection method, chip capacitance, substrate, finished card thickness, and surrounding environment all affect RF behavior.

Common Antenna Construction Methods

• Embedded copper-wire antenna.

• Etched aluminum antenna.

• Etched copper or other project-specific conductive structures.

• Special antenna geometries designed for the target chip and product.

Why RF Tuning Must Be Done on the Real Construction

An antenna that performs correctly as an open inlay can behave differently after being laminated inside PVC, PETG, or polycarbonate layers. Printing inks, metallic effects, adhesives, nearby electronics, reader antenna geometry, and final product thickness can also influence coupling.

For important B2B projects, RF performance should therefore be checked both at the inlay stage and after final card lamination.

8. Manufacturing Process of High-Quality Inlays

The exact process depends on whether the product uses etched antennas, embedded wire, dry inlays, wet inlays, or prelaminated card sheets. A professional production workflow typically includes several controlled stages.

Antenna Production

The antenna is produced using the selected conductor and geometry. Dimensional accuracy is important because small variations can influence inductance, resonance, and coupling performance.

Chip Attachment

The IC is electrically connected to the antenna using a suitable bonding or assembly process. Connection quality must withstand the later converting, lamination, bending, and handling conditions of the finished product.

Prelam Assembly

For smart-card prelaminated inlays, the antenna and chip structure is protected inside compatible plastic layers with the required multi-card layout, registration, sheet dimensions, and final thickness.

Electrical and Mechanical Testing

Testing may include chip identification, electrical continuity, RF response, read/write operation, dimensional inspection, appearance, bending resistance, lamination simulation, or project-specific environmental testing.

9. Key Performance Indicators for RFID and NFC Inlays

A professional inlay should be evaluated against measurable requirements appropriate to the application rather than generic descriptions such as “long range” or “high quality.”

10. Applications of RFID and NFC Inlays

Access Control and Employee Cards

Access systems may use LF proximity technology, HF contactless chips, or secure multi-application credentials depending on the installed reader infrastructure and security architecture.

Hotel Key Cards

Hotel-card projects must match the chip and inlay to the lock system, encoder, hotel-management software, card thickness, printing method, and daily-use environment.

Transportation and Campus Cards

Transit and campus cards often require fast transactions, secure authentication, multi-application support, reliable reader compatibility, controlled personalization, and long service life.

NFC Business and Marketing Cards

NFC cards can connect smartphones to websites, digital profiles, product information, authentication systems, loyalty programs, or other NDEF-based experiences. Chip memory and phone compatibility should be confirmed before production.

Library, Asset and Inventory Applications

ISO/IEC 15693 HF solutions and UHF RFID systems are commonly used in different asset, library, retail, logistics, and inventory environments. The best option depends on reading distance, anti-collision requirements, object material, reader infrastructure, and system architecture.

RFID Card

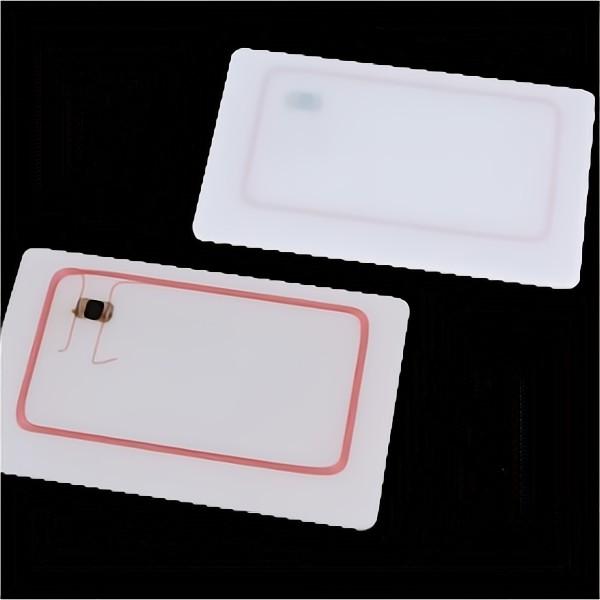

HF RFID Smart Card

11. OEM and ODM Inlay Customization

B2B inlay projects frequently require customization because card factories use different lamination plates, punching layouts, finished-card structures, chips, printers, and reader systems.

Custom Chip Selection

Chip options can be selected according to protocol, memory, security, UID requirements, reader compatibility, lifecycle, smartphone compatibility, application software, and project budget.

Custom Antenna Design and RF Tuning

Antenna dimensions and construction can be developed around the chip, card size, reader environment, card material, final stack thickness, and required performance.

Custom Sheet Layout

Multi-card sheet layouts can be designed to match the customer's lamination plate, printing registration, punching machine, and production process. Antenna position and chip orientation should be confirmed using drawings before bulk production.

Custom Material and Thickness

PVC, PETG, PET, polycarbonate-compatible, and other project-specific structures can be evaluated according to the customer's final card architecture and processing conditions.

       Request Custom RFID & NFC Inlay Samples

12. Quality Control for RFID and NFC Inlays

Quality-control requirements should be defined before production. The phrase “100% tested” is not precise enough unless the supplier and customer agree on exactly which characteristics are inspected at every position and which tests are performed by sampling.

Chip Verification

Verify the IC type, UID behavior where relevant, lot information, memory, protocol, and required functional characteristics.

Antenna Continuity and Electrical Testing

Electrical tests help identify open circuits, connection problems, chip failures, and abnormal responses before the inlay enters the customer's card-production process.

RF Performance Testing

RF validation should use defined test fixtures, readers, distances, orientations, power settings, or frequency-measurement equipment according to the project.

Dimensional and Visual Inspection

Sheet size, thickness, antenna coordinates, chip position, surface quality, contamination, wrinkles, bubbles, deformation, and layer alignment should be checked against the approved specification.

Batch Traceability

For professional B2B supply, traceability can include chip lot, conductor or antenna lot, substrate lot, production date, sheet layout, machine or line, test program, inspection records, and packing information.

Test the Finished Card After Lamination

An inlay can pass incoming inspection but still be damaged by excessive lamination temperature, pressure, cooling, punching, printing, or personalization. Final qualification should therefore include testing after the customer's actual production process.

13. How to Choose the Right Inlay for Your Project

Step 1: Define the End Application

Start with the actual use case: access control, hotel card, transit ticket, NFC business card, library card, payment-related project, inventory tag, product authentication, asset tracking, or another application.

Step 2: Confirm Frequency and Protocol

Do not specify frequency alone. Provide the exact reader protocol, chip requirement, NFC Tag Type, or installed system wherever possible.

Step 3: Confirm Chip and Security Requirements

Define memory, UID, authentication, encryption, password, originality, key-management, application files, NDEF data, or other requirements appropriate to the system.

Step 4: Define Card Construction and Manufacturing Process

Provide the final card material, card thickness, sheet size, layout, printing method, overlay, lamination temperature, pressure, cycle, punching process, and any special features such as magnetic stripe, signature panel, hologram, or metal component.

Step 5: Validate With Samples

For new projects, sample qualification should be completed before mass production. Test the inlay with the target reader and then repeat testing after printing, lamination, punching, personalization, and final assembly.

14. Information B2B Buyers Should Provide for an Inlay Quote

• End application and destination market.

• Required frequency and protocol.

• Exact chip model or acceptable chip options.

• Reader model or existing system information.

• Required reading behavior or target distance.

• Prelam, dry inlay, wet inlay, or other structure.

• PVC, PETG, PET, PC, paper, or other material.

• Sheet dimensions, roll dimensions, or card layout.

• Required thickness and tolerance.

• Lamination temperature, pressure, and production process.

• Printing, punching, encoding, or personalization requirements.

• Required certifications or compliance documentation.

• Sample quantity and expected annual or monthly volume.

       Discuss Your RFID Inlay Project

15. RFID and NFC Inlay Trends in 2026

Greater Focus on Interoperability

As NFC applications expand across more phones, readers, cards, tags, digital keys, access systems, and connected products, end-to-end interoperability testing is becoming increasingly important. Inlay qualification should therefore include the real reader or device ecosystem whenever possible.

Stronger Security Requirements

Security requirements continue to evolve, especially for access, digital keys, identity, transport, product authentication, and other sensitive applications. Chip selection, backend architecture, credential personalization, key management, and system testing will become increasingly important alongside physical inlay quality.

More NFC Smartphone Interaction

NFC-enabled products are increasingly used for digital product information, brand engagement, authentication, loyalty, connected packaging, access, and other tap-based experiences. This increases the importance of smartphone compatibility, NDEF configuration, scan position, antenna design, and user experience.

Thinner and More Integrated Structures

Card and connected-product manufacturers continue to seek thinner structures, improved mechanical durability, optimized antenna designs, and better integration of RFID electronics into limited spaces.

Material Efficiency and Sustainability

Sustainability requirements are increasingly influencing carrier materials, adhesive constructions, production scrap, product weight, recyclability, and lifecycle evaluation. Claims should be based on the actual inlay construction and local recycling or regulatory environment rather than generic terms such as “eco-friendly.”

16. Why Choose Wallis for RFID and NFC Inlay Projects?

Wallis supplies RFID prelam inlays, card materials, PVC sheets, PETG sheets, polycarbonate card materials, overlays, and customized smart-card manufacturing solutions for B2B customers.

Chip and Protocol Matching

Projects can be evaluated according to required frequency, protocol, chip family, memory, reader compatibility, security level, and application.

Custom Antenna and Sheet Layout

Antenna design, position, sheet layout, dimensions, thickness, and material structure can be discussed according to card-production equipment and final card construction.

Sample and Lamination Validation

For new projects, samples can be evaluated through the customer's printing, lamination, punching, and reader environment before large-volume orders are confirmed.

       Contact Wallis for Custom RFID & NFC Inlays

FAQ About RFID and NFC Inlays

What is an RFID inlay?

An RFID inlay is an intermediate electronic component containing an RFID chip and antenna on or inside a carrier structure. It can be converted into a smart card, label, tag, ticket, wristband, package, or other RFID-enabled product.

What is the difference between an RFID inlay and an RFID prelam?

“Inlay” is a broad term. A prelaminated inlay is specifically designed as an intermediate card-production sheet in which the chip and antenna are protected inside plastic layers before final card lamination and punching.

What is the difference between a dry inlay and a wet inlay?

A dry inlay contains the chip-and-antenna component without the final pressure-sensitive adhesive label construction. A wet inlay adds pressure-sensitive adhesive and a release liner for label converting or compatible direct application.

Is every 13.56MHz RFID inlay NFC-compatible?

No. Frequency alone does not determine NFC compatibility. The chip, communication protocol, NFC Forum Tag Type, data format, and smartphone support must all be considered.

What is the difference between ISO/IEC 14443 and ISO/IEC 15693?

Both can operate at 13.56 MHz, but they are different contactless standards with different communication behavior and system architectures. ISO/IEC 14443 is widely associated with proximity cards, while ISO/IEC 15693 is used for vicinity-card applications. Reader compatibility must be confirmed.

Which chip should I choose for an NFC business card?

The chip should be selected according to NDEF memory, URL or data size, smartphone compatibility, password requirements, originality or authentication features, read/write requirements, and project budget. The exact chip should be tested with the target phones before mass production.

Can one antenna design be used with different RFID chips?

Not automatically. Different chips have different electrical characteristics, and changing the IC can alter resonance and RF performance. The antenna-chip combination should be measured and tuned before production.

Can RFID prelam inlays be customized by size and layout?

Yes. Prelaminated inlays can be developed with different sheet dimensions, card-array layouts, antenna positions, materials, thicknesses, and chip options according to the customer's lamination and punching equipment.

Why should RFID inlays be tested after card lamination?

Lamination heat, pressure, cooling, punching, printing, and final card materials can affect the antenna, chip connection, resonance, and overall RF performance. A prelam that passes initial testing should still be validated as a finished card.

What should I send when requesting an RFID inlay quotation?

Provide the application, frequency, protocol, chip model, reader information, material, dimensions, sheet layout, thickness, required reading performance, lamination conditions, sample quantity, order quantity, and any required compliance or certification information.

Conclusion

The RFID or NFC inlay is the functional foundation of a contactless smart card or connected product. Successful projects require the chip, antenna, carrier material, protocol, reader system, RF tuning, card construction, manufacturing process, and quality-control plan to work together as one system.

For B2B buyers, the best inlay is therefore not simply the lowest-cost chip or the longest claimed reading distance. It is the inlay that delivers stable performance in the actual reader environment, survives the customer's manufacturing process, matches the application protocol and security requirements, and can be produced consistently at scale.
