Wet Inlay vs. Dry Inlay: 10 Key Insights for RFID Buyers
RFID wet inlays and dry inlays are core components used to manufacture smart labels, NFC stickers, RFID cards, tickets, packaging tags, asset labels and embedded RFID products. Although both contain an RFID chip and antenna, they are supplied in different constructions and are intended for different downstream converting processes.
For B2B buyers, choosing between a wet inlay and a dry inlay should not be based only on whether adhesive is present. The correct choice also depends on frequency, protocol, chip family, antenna dimensions, tagged material, target read range, adhesive requirement, lamination process, roll format, encoding and final product construction.
This guide explains 10 practical differences between RFID wet and dry inlays and shows how converters, card manufacturers, packaging companies, RFID integrators and distributors can select the correct inlay for their production process.
![Wallis RFID wet inlay and dry inlay technology]( "Wallis RFID Wet and Dry Inlay")

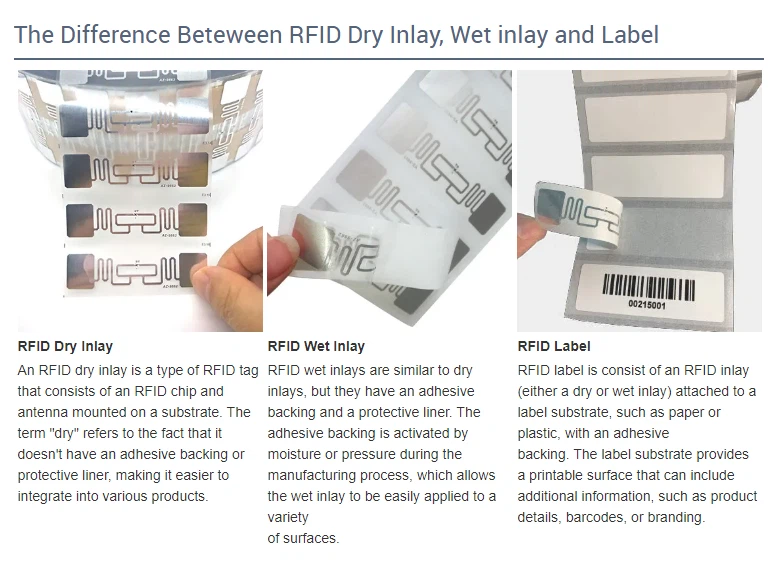

1. What Is the Difference Between a Wet Inlay and a Dry Inlay?
What Is an RFID Wet Inlay?
An RFID wet inlay normally consists of an RFID chip bonded to an antenna on a carrier, combined with pressure-sensitive adhesive and a release liner. It can be supplied for compatible direct-application projects or used as a semi-finished component in RFID label conversion.
A wet inlay should not automatically be considered a finished printable RFID label. Many commercial RFID labels add an additional paper, PET, PP or other face material above the inlay together with the final adhesive, die-cut shape, printing and roll specification.
What Is an RFID Dry Inlay?
An RFID dry inlay contains the chip-and-antenna assembly on PET or another suitable carrier without the final pressure-sensitive adhesive and release-liner construction used for a self-adhesive label.
Dry inlays are typically selected when the RFID component will be laminated, embedded, encapsulated or converted into another product such as a PVC card, PET card, ticket, wristband, molded component or customized RFID label.
![RFID wet inlay and dry inlay construction comparison]( "RFID Wet Inlay and Dry Inlay Comparison")
2. Wet Inlay and Dry Inlay Construction
| Component | Wet Inlay | Dry Inlay |
| RFID Chip | Yes | Yes |
| Antenna | Etched aluminum, copper or project-specific design | Etched aluminum, copper or project-specific design |
| Carrier / Substrate | Typically PET or another approved carrier | Typically PET or another material selected for integration |
| Pressure-Sensitive Adhesive | Included | Not included as the final self-adhesive construction |
| Release Liner | Included | Normally not part of the final dry-inlay structure |
| Printable Face Stock | Can be added during label conversion | Can be added during subsequent converting or embedding |
3. Wet Inlay, Dry Inlay and Finished RFID Label Are Not the Same Product
One of the most common sourcing mistakes is assuming that a wet inlay and a finished RFID label are identical. In professional label converting, they are often separate production stages.
| Format | Typical Construction | Typical Buyer |
| Dry Inlay | Chip + antenna + carrier without final PSA label construction | Card manufacturer, tag converter or product integrator |
| Wet Inlay | Chip + antenna + carrier + pressure-sensitive adhesive + release liner | Label converter, packaging converter or RFID integrator |
| Finished RFID Label | RFID inlay + printable face stock + application adhesive + liner + final die cut | Retail, warehouse, logistics, healthcare or end-use program |
4. HF, NFC and UHF Inlays Require Different Technology Selection
“Wet” and “dry” describe the physical inlay construction. They do not define the RFID frequency or communication protocol.
Wallis currently focuses its main wet/dry inlay product range on 13.56 MHz HF/NFC and 860–960 MHz UHF RFID. LF RFID can also exist in other transponder constructions, but it should not automatically be assumed to use the same standard wet/dry product architecture offered for HF and UHF projects.
| Technology | HF / NFC Inlay | UHF RFID Inlay |
| Frequency | 13.56 MHz | Typically 860–960 MHz with regional tuning |
| Typical Protocols | ISO/IEC 14443 Type A, ISO/IEC 15693, NFC Forum types depending on chip | EPC Class 1 Gen 2 / ISO/IEC 18000-63 |
| Typical Reading Behavior | Short-range tap or proximity reading | Short range to several meters depending on system design |
| Common Applications | NFC interaction, authentication, library, access, ticketing and smart cards | Retail inventory, apparel, logistics, warehouse, cartons and asset tracking |
| Key Selection Input | Phone/reader, protocol, memory, security and antenna size | Region, reader power, tagged material, orientation, density and target read zone |
5. Chip and Antenna Selection Matter More Than “Wet or Dry” Alone
Two wet inlays can perform very differently even when they have the same external dimensions. The same is true for two dry inlays. RF performance depends strongly on the selected chip, antenna geometry, antenna material, tuning and final application environment.
Common HF and NFC Chip Families
Depending on the system, Wallis can discuss chip families such as NTAG213, NTAG215, NTAG216, MIFARE Ultralight, MIFARE Classic, DESFire, ICODE, F08 and other compatible HF/NFC options.
Common UHF Chip Families
UHF projects may use NXP UCODE, Impinj M730/M750 or Monza families, Alien Higgs and other chips selected according to EPC memory, TID, user memory, sensitivity and the intended reader environment.
Aluminum vs. Copper Antennas
Both aluminum and copper antenna constructions can be used depending on the product design. The correct choice should consider electrical performance, manufacturing process, antenna geometry, thickness, flexibility, lamination temperature and cost.
6. Wet Inlays Are Best for Adhesive and Label-Converting Workflows
Wet inlays are generally preferred when the converter needs a self-adhesive RFID component that can be combined with printable face stock, die-cutting and roll converting.
Retail and Apparel RFID Labels
UHF wet inlays can be converted into apparel, retail and inventory labels for automated stock visibility and item identification.
Logistics and Carton Tracking
Adhesive RFID inlays can be incorporated into carton labels and logistics labels, provided the antenna is selected for the carton contents, reader setup and required read zone.
NFC Stickers and Smart Packaging
HF/NFC wet inlays can be converted into finished NFC stickers for product information, digital content, promotions, warranties and authentication workflows when a compatible chip and backend system are selected.
Pharmaceutical and Healthcare Labels
RFID can support identification, inventory and authentication workflows in healthcare and pharmaceutical packaging, but the finished label construction, adhesive, regulatory requirements and security architecture must be validated for the intended application.
7. Dry Inlays Are Designed for Embedding, Lamination and Further Converting
A dry inlay gives the downstream manufacturer greater freedom to design the final card, tag or embedded product because it does not arrive as a finished pressure-sensitive label construction.
RFID Smart Cards
Dry inlays can be integrated into suitable PVC, PET, PETG or PC card structures when chip position, antenna dimensions, total card thickness, lamination temperature and punching layout are compatible.
Access, Membership and Hotel Cards
Contactless inlays can be incorporated into access, hotel, loyalty and membership card bodies when the chip and protocol match the intended reader system.
Tickets, Wristbands and Embedded Products
Dry inlays can also be integrated into wristbands, tickets, molded parts, packaging structures and custom transponders where the RFID component must be protected inside the finished product.
Payment Applications Require a Certified System
A generic RFID dry inlay should not automatically be described as a bank-card or payment-card inlay. Payment applications require appropriate secure chips, certified card construction, personalization, key management, issuer approval and the relevant payment-system requirements.
![RFID dry inlay for smart card lamination and embedded applications]( "RFID Dry Inlay for Card Manufacturing")
8. RFID Read Range Depends on the Complete System
Wet inlay versus dry inlay alone does not determine the read range. A free-air laboratory result may change substantially after the inlay is attached to a carton, bottle, plastic container, card body or another material.
Important factors include:
Chip sensitivity
Antenna size and tuning
Reader type and transmitted power
Reader antenna polarization
Tag orientation
Regional UHF frequency
Product material and contents
Nearby metal or liquid
Tag population and read-zone geometry
Standard RFID Inlays and Metal Surfaces
A standard RFID inlay should not automatically be attached directly to metal. Metal can detune or significantly change antenna performance. On-metal applications normally require a specially engineered tag, spacer, foam or ferrite structure.
RFID Inlays on Bottles and Liquid Products
Liquid can also change RF performance, particularly for UHF systems. A label designed in free air should therefore be tested on the final filled bottle or container at the actual mounting position.
![RFID wet and dry inlay applications and antenna performance]( "RFID Inlay Applications")
9. Wet Inlay vs. Dry Inlay: B2B Comparison
| Feature | Wet Inlay | Dry Inlay |
| Final PSA Adhesive | Included | Not included |
| Release Liner | Included | Normally not part of final construction |
| Main Conversion Path | Label conversion and compatible direct application | Embedding, lamination and custom converting |
| Adhesive Flexibility | Defined by supplied wet-inlay construction unless reconverted | Converter can select the final adhesive system |
| Typical Delivery | Roll | Roll or sheet depending on downstream process |
| Typical Buyers | Label converters, packaging companies and RFID integrators | Card makers, tag manufacturers and embedded-product integrators |
| Durability | Depends on final label construction and environment | Depends on final lamination, encapsulation or product structure |
| Cost | Depends on adhesive, liner, conversion and order volume | Depends on integration, lamination and downstream processing |
10. Roll Converting, Encoding and Quality Control Matter in Bulk Orders
For industrial RFID purchasing, the chip name and inlay dimensions are only part of the specification. Roll geometry and converting details can determine whether the product runs correctly on the buyer's production line.
Important Roll Specifications
RFID Encoding and Personalization
Depending on the selected technology, inlays can be supplied with approved data operations such as NDEF URL writing, EPC encoding, serial-number assignment or other customer-defined data.
Memory capacity must be specified by the actual chip model rather than quoted as one universal NFC or UHF memory figure.
RF Quality Testing
Bulk production should include defined electrical and RF quality-control procedures. Buyers should agree on defective-inlay identification, roll records, chip verification, encoding checks and relevant performance criteria before production.
How to Choose Between Wet and Dry RFID Inlays
Choose a Wet Inlay When You Need Label Conversion
A wet inlay is generally appropriate when the RFID component will be converted into a self-adhesive label or attached directly in a compatible application.
Choose a Dry Inlay When You Need Embedding or Lamination
A dry inlay is usually preferred when the RFID component will be laminated into a card, embedded into a product or integrated into a custom construction where the manufacturer wants to control the final adhesive and protective structure.
Choose a Finished RFID Label When the Product Must Be Ready for End Use
If the project requires a printable or preprinted label with final face material, adhesive, die cut, encoding and roll specification already completed, request a converted RFID label rather than a basic wet inlay.
Adhesive Selection for RFID Wet Inlays
Adhesive selection should be based on the final application surface and operating environment. Paperboard, glass, PP, PE, PET, coated cartons, textiles and painted surfaces can require different pressure-sensitive adhesive systems.
Depending on the project, buyers may need permanent, removable, high-tack, low-temperature or other specialized adhesive. Samples should be tested for tack, peel strength, edge lifting, dispensing and environmental exposure on the actual product surface.
Dry Inlay Lamination Considerations for Smart Cards
When a dry inlay is laminated into a PVC, PETG or PC card, the antenna and chip must survive the temperature, pressure and duration of the lamination cycle.
Card manufacturers should confirm:
A sample lamination and finished-card RF test should be completed before high-volume production.
What Information Should Buyers Include in an RFID Inlay RFQ?
Format: wet inlay, dry inlay or finished RFID label.
Application: retail, logistics, smart card, packaging, asset, NFC, ticket or another use.
Frequency: HF/NFC 13.56 MHz or UHF 860–960 MHz.
Protocol: ISO/IEC 14443, ISO/IEC 15693, ISO/IEC 18000-63 or specified system requirement.
Chip: exact chip model where already defined.
Reader: reader, smartphone or card-system model.
Tagged material: paper, carton, plastic, glass, textile, metal, liquid container or another substrate.
Read requirement: target distance, reading direction, tag density and read-zone conditions.
Antenna dimensions: maximum available label or card space.
Adhesive: permanent, removable, freezer-grade or other requirement for wet inlays.
Encoding: NDEF, EPC, serial numbers or other data.

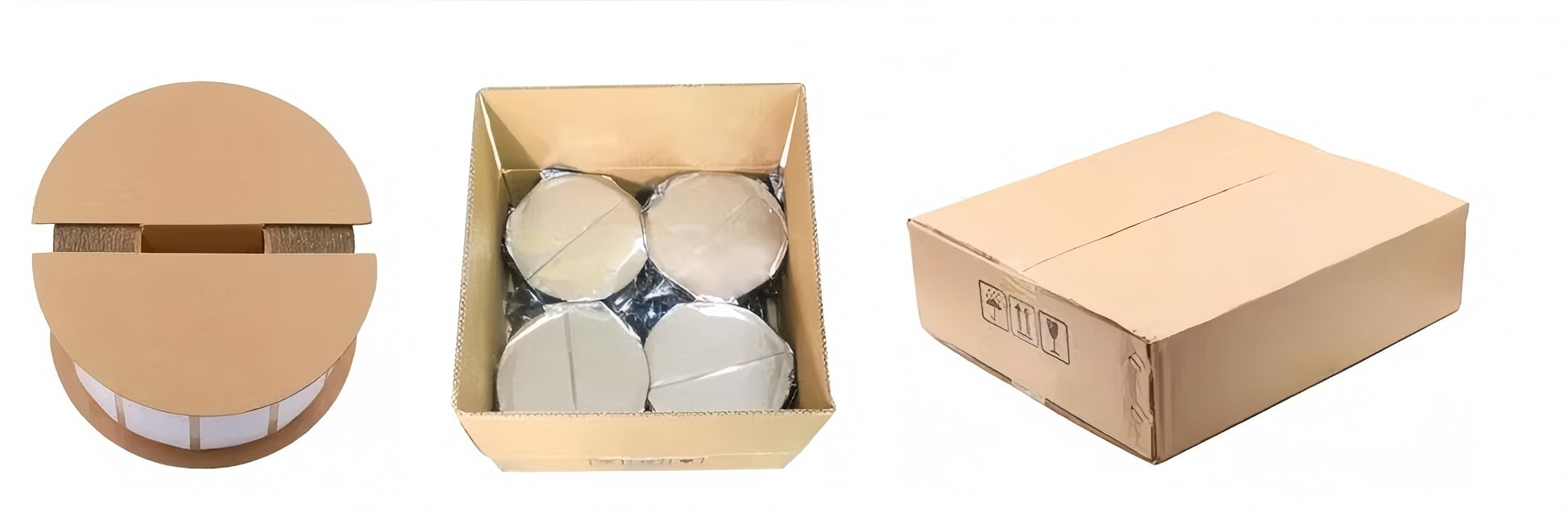

Roll specification: core, pitch, web width, labels per roll and winding direction.
Quantity: samples, pilot order and expected commercial volume.
Destination: especially important for regional UHF frequency selection.
RFID Inlay Technology Trends
RFID inlay development is increasingly focused on optimizing antenna performance, reducing material use, improving conversion efficiency and supporting more specialized applications.
More Application-Specific Antenna Designs
Instead of using one generic antenna for every application, buyers increasingly select antenna designs optimized for apparel, cartons, cosmetics, bottles, assets and other specific materials.
Dual-Frequency RFID Structures
Some projects require both NFC/HF interaction and UHF inventory functionality. These require a specifically designed dual-frequency construction; a normal NFC inlay cannot simply be read by a UHF reader, and a normal UHF inlay cannot automatically interact with an NFC smartphone.
Lower-Material RFID Constructions
Suppliers and converters continue to develop thinner and lower-material inlay and label constructions. Sustainability should still be evaluated using the complete tag construction, adhesive, face stock, liner and end-of-life system rather than assuming that every new RFID inlay is automatically recyclable.
Why B2B Buyers Source Wet and Dry RFID Inlays from Wallis
HF/NFC and UHF Product Options
Wallis supplies 13.56 MHz HF/NFC and 860–960 MHz UHF RFID inlays with chip, antenna and protocol options selected according to the target application.
Wet Inlay and Dry Inlay Formats
Buyers can source adhesive-backed wet inlays for label conversion or dry inlays for card lamination, embedding and custom product integration.
Custom Antenna and Inlay Dimensions
Antenna dimensions, inlay size, carrier, adhesive construction and final delivery format can be discussed according to the available product space and required RF performance.
Roll, Sheet and Encoding Support
Roll or sheet formats, winding direction, chip verification, encoding, serial data, label conversion and packaging requirements can be customized for compatible B2B projects.
Sample Testing Before Mass Production
RFID performance should be evaluated on the actual tagged item and reader system. Wallis recommends confirming RF performance, adhesive behavior, encoding, converting or card lamination before high-volume production.
![Wallis RFID wet inlay dry inlay and smart card solutions]( "Wallis RFID Inlay Solutions")
Frequently Asked Questions About Wet and Dry RFID Inlays
What is the main difference between a wet inlay and a dry inlay?
A wet inlay includes a pressure-sensitive adhesive and release liner. A dry inlay does not include the final self-adhesive label construction and is normally used for embedding, lamination or further conversion.
Is a wet inlay the same as an RFID label?
Not necessarily. A finished RFID label normally includes a printable face stock, application-specific adhesive, final die-cut shape, printing and roll specification in addition to the RFID inlay.
Can a dry inlay be converted into a wet inlay?
Yes. A suitable pressure-sensitive adhesive and release liner can be added during converting to create a wet-inlay construction.
Which is more durable, wet inlay or dry inlay?
Neither format is inherently more durable in every situation. Final durability depends on the face material, adhesive, lamination, encapsulation, edge protection and operating environment of the finished product.
Can dry inlays be laminated into PVC or PETG cards?
Yes, when the inlay carrier, chip position, antenna layout, lamination temperature, card thickness and punching layout are compatible. A finished-card sample test is recommended.
What frequency is used for NFC inlays?
NFC operates at 13.56 MHz. The exact chip, NFC Forum type, memory and smartphone compatibility should still be confirmed for the intended application.
What frequency is used for UHF RFID inlays?
Passive UHF RFID commonly operates within the 860–960 MHz range. Actual authorized frequency ranges and antenna tuning differ by region, so the destination market should be specified.
Can the same inlay work with NFC phones and UHF RFID readers?
A normal single-frequency NFC or UHF inlay cannot support both systems. A specifically designed dual-frequency product is required when both NFC/HF and UHF functionality are needed.
What read range can an RFID inlay achieve?
There is no universal read-range figure. NFC/HF normally operates at short range, while UHF can reach from short distance to several meters in suitable conditions. Final performance depends on chip, antenna, reader, tagged material, orientation and environment.
Can a standard RFID inlay be placed directly on metal?
Standard RFID inlays generally should not be assumed to perform correctly when placed directly on metal. On-metal applications normally require a specifically designed tag with an appropriate spacer, foam or ferrite structure.
Can RFID wet inlays be used on bottles containing liquid?
Yes, but liquid can affect RF performance. Test the proposed antenna, label position and reader setup on the final filled container before production.
Can Wallis encode NFC URLs or UHF EPC data?
Compatible projects can include NDEF URL writing, EPC values, serial numbers and other approved encoding requirements. Buyers should provide the exact data structure, sequence and verification rules.
What information is required when ordering RFID inlays?
Provide the inlay format, frequency, protocol, chip, reader, tagged material, desired read range, antenna dimensions, adhesive requirements, encoding, roll or sheet specification, quantity and destination market.
Should samples be tested before a bulk RFID inlay order?
Yes. Test samples using the intended reader, application surface, product contents, orientation, adhesive system and converting or lamination process before approving commercial production.
Choose RFID Inlays Based on the Final Product, Not Only the Adhesive
The simplest difference between wet and dry RFID inlays is the final adhesive construction, but a professional sourcing decision requires much more information.
Buyers should evaluate RFID frequency, protocol, chip, antenna design, read environment, application material, adhesive, roll format, lamination process, encoding and quality-control requirements before choosing the final inlay.
Wallis supplies wet and dry RFID inlays for HF/NFC and UHF applications, together with customized antenna dimensions, roll or sheet formats, encoding and integration support for label converters, card manufacturers and RFID solution providers.
