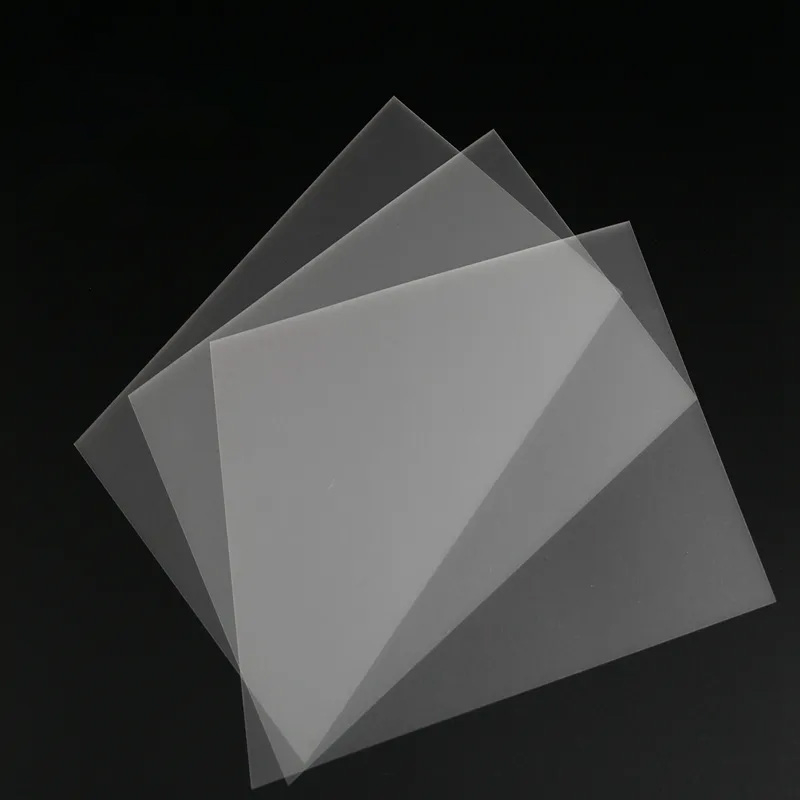

Polycarbonate Offset Printing Sheet

​​​​​​Polycarbonate (PC) polymers or simply polycarbonate is an increasingly popular choice in many countries worldwide, as it significantly enhances the level of ID document security.

It has won the trust of many governments around the globe.

  • WLS-PC Sheet
  • WALLIS
Size:
Thickness:
Availability:
Quantity:

As a secure and adaptable substrate, the trend in polycarbonate continues to increase in popularity.


Polycarbonate sheet, abbreviated as PC sheet, A big advantage of polycarbonate is the ability to create modular feature combinations upon the substrate construction to create a unique and highly secure national document. Such as windows, optically variable inks, holograms, tactile surface embossing and Multi Laser Imaging (MLI) all are the typical features of Polycarbonate.


Physical Performance

Item

Unit

Results

Density

g/cm3

1.22 ±0.05

Tensile Strength

Horizontal

MPa

≥50

Vertical

≥50

Vicat

145±2

Surface Dyne

dynes/cm

≥38


Why polycarbonate sheet for ID Card, Passport and Driving license?

What makes polycarbonate sheet so unique?


First, you can hear the difference!

Polycarbonate cards are so rigid they sound like a compact disc when dropped.

What sets it apart from other materials is the non-delaminable property of a full polycarbonate ID card. When used in pure form and not mixed with other plastics, the different polycarbonate layers fuse to form a solid monolithic structure.


In Wallis,  we recommend a 100% polycarbonate data page or cards.


So what does it mean?

It is impossible to separate the layers of polycarbonate when fused. This is one reason why polycarbonate is so secure: the intertwined layers of plastic make it virtually impossible to swap document information or photos without destroying the document and making it useless.


The layered structure is also ideal for deploying security features that can be safely located and protected within a genuine polycarbonate ID.


Wallis' polycarbonate sheet has excellent strength and wear resistance, high temperature resistance, Applicable to ID cards, driving licenses, passports, etc.



The regular size of Polycarbonate offset printing sheet:

0.15mm / 0.22mm/ 0.3mm thickness * 485 * 295mm

0.15mm / 0.22mm/ 0.3mm thickness * 480 * 300mm

0.15mm / 0.22mm/ 0.3mm thickness * 595 * 505mm

0.15mm / 0.22mm/ 0.3mm thickness * 340 * 420mm

0.15mm / 0.22mm/ 0.3mm thickness * 420 * 297mm


Wallis has many cooperation with foreign stated owned enterprise, we offered a sophisticated solution for all layers of PC ID card, including laserable or non-laserable polycarbonate film, polycarbonate offset printing sheet, Polycarbonate core sheet.
