Color PVC Sheet with White Coating for Bank Card Manufacturing
Wallis color PVC sheet with white coating is a printable card substrate developed for bank cards, financial cards, ID cards, smart cards, access cards, membership cards and other laminated plastic card programs. It combines a colored rigid PVC base with a controlled white printing layer so manufacturers can obtain a bright image area while retaining a distinctive colored card core or edge.
The material can be customized by base color, white coating coverage, sheet thickness, sheet size, surface finish and printing grade. For reliable mass production, the exact grade should be selected according to the printing press, ink system, overlay structure, lamination cycle, chip or antenna design and final card test requirements.
Product Specifications
| Parameter | B2B Specification |
| Material | Rigid PVC card sheet with colored base and white printable coating |
| Base Colors | Red, blue, green, yellow and custom colors based on an approved color reference |
| Coating | White printing layer; coating coverage and one-side or two-side configuration should be confirmed during sampling |
| Thickness | Customized according to the printed layer, core structure, overlay combination and target finished-card thickness |
| Sheet Size | Standard card-production sheet formats or custom dimensions based on the printing and punching layout |
| Printing Grade | Offset, silk screen or UV printing grade selected according to the ink and equipment; dedicated digital or inkjet coating requires separate confirmation |
| Downstream Processing | Printing, hot lamination, die cutting, punching, chip embedding, magnetic stripe integration and card personalization |
| Applications | Bank cards, credit and debit cards, ID cards, access cards, hotel cards, membership cards, gift cards and customized smart cards |
| Sample Approval | Color, coating, print adhesion, lamination and finished-card performance should be approved before bulk production |
What Is a White-Coated Color PVC Card Sheet?
A white-coated color PVC sheet is a multi-function card material consisting of a colored rigid PVC substrate and a white surface layer designed to receive printed graphics. The colored base remains visible at selected areas or along the card edge, while the white coating creates a neutral background for logos, portraits, fine text, barcodes, security patterns and brand colors.
In a laminated card structure, the printed sheet is normally combined with compatible overlays and, where required, an RFID inlay, contact-chip module area, magnetic stripe, signature panel or other functional layer. The final material combination must be tested as a complete card stack rather than evaluating the coated sheet alone.
Color PVC Core, White-Coated Sheet and White Printable Sheet
| Material Type | Primary Function | Typical Selection Reason |
| Color PVC Core Sheet | Provides structure and a visible colored core or edge | Brand differentiation, premium card appearance or a defined internal color layer |
| Color PVC with White Coating | Combines a colored base with a bright printable area | Projects requiring both a colored substrate and accurate reproduction of printed artwork |
| White Printable PVC Sheet | Provides a uniform white printing substrate | Standard card artwork where no colored core or exposed colored area is required |
| Dedicated Inkjet or Digital Grade | Uses a coating developed for a specified printer and ink system | Digital workflows that cannot use a conventional offset or silk-screen surface |
Why Bank Card Manufacturers Use a White Coating
Neutral Background for Accurate Artwork
Printing directly over a saturated colored substrate can shift CMYK values and reduce contrast. A controlled white layer creates a more neutral base, helping the printer reproduce logos, portraits, fine lines and variable card graphics more consistently.
Controlled Opacity and Color Contrast
The coating can separate the printed image from the underlying base color. Coating opacity, thickness and coverage should be approved against the actual artwork because different colors and graphic designs require different masking performance.
Colored Edge and Premium Card Identity
A colored PVC base can remain visible at the card edge or in intentionally uncoated design areas. This allows issuers and card brands to create a distinctive visual identity without sacrificing the white printing background needed for detailed graphics.
Compatibility with Laminated Card Structures
The coated layer must retain ink adhesion and remain bonded to the PVC base after heat and pressure. Approval testing should therefore include printing, curing, overlay lamination, punching and finished-card flex testing.
Printing and Coating Compatibility
The correct product grade depends on the printing technology and ink chemistry. A sheet described as offset printable should not automatically be treated as compatible with water-based inkjet, electrophotographic or every UV digital system. Wallis recommends confirming the press model, ink brand, curing method and expected print speed before sample preparation.
| Printing Process | Material Requirement | Recommended Validation |
| Offset Printing | Controlled surface energy, coating smoothness and ink anchorage | Solid ink density, dot reproduction, drying, tape adhesion and post-lamination peel test |
| Silk Screen Printing | Compatibility with the selected solvent or UV ink and required coating coverage | Mesh-mark appearance, curing, adhesion and resistance after lamination |
| UV Digital Printing | Surface matched to the printer, primer and UV ink system | Cross-hatch adhesion, bending, scratching and overlay bonding |
| Inkjet Printing | Dedicated ink-receptive coating developed for the ink chemistry | Image density, drying, water resistance, smudging and lamination compatibility |
| Thermal or Personalization Printing | Final overlay and surface finish selected for the personalization process | Ribbon transfer, abrasion, card-reader handling and variable-data durability |
Recommended Bank Card Layer Structure
A typical laminated card may include transparent overlay, printed white-coated color PVC sheet, one or more core or inlay layers, a second printed layer and a rear overlay. Dual-interface or contactless cards may also include an antenna and chip inlay. The thickness of each component must be calculated together to achieve the specified finished-card construction.
Front transparent or functional overlay
Front printed white-coated color PVC sheet
PVC core, RFID prelam or functional middle layer
Rear printed sheet or colored core layer
Rear overlay with optional magnetic stripe, signature panel or security feature
Applications
White-coated color PVC sheets are suitable for B2B card programs that require a controlled printing background together with a colored substrate or colored edge. The material can be developed for conventional cards as well as chip and contactless structures after system-level testing.
Bank, credit, debit and prepaid cards
Dual-interface and contactless financial cards
Government, employee and campus ID cards
Access control and hotel key cards
Membership, loyalty, VIP and gift cards
Customized brand cards with colored-edge designs

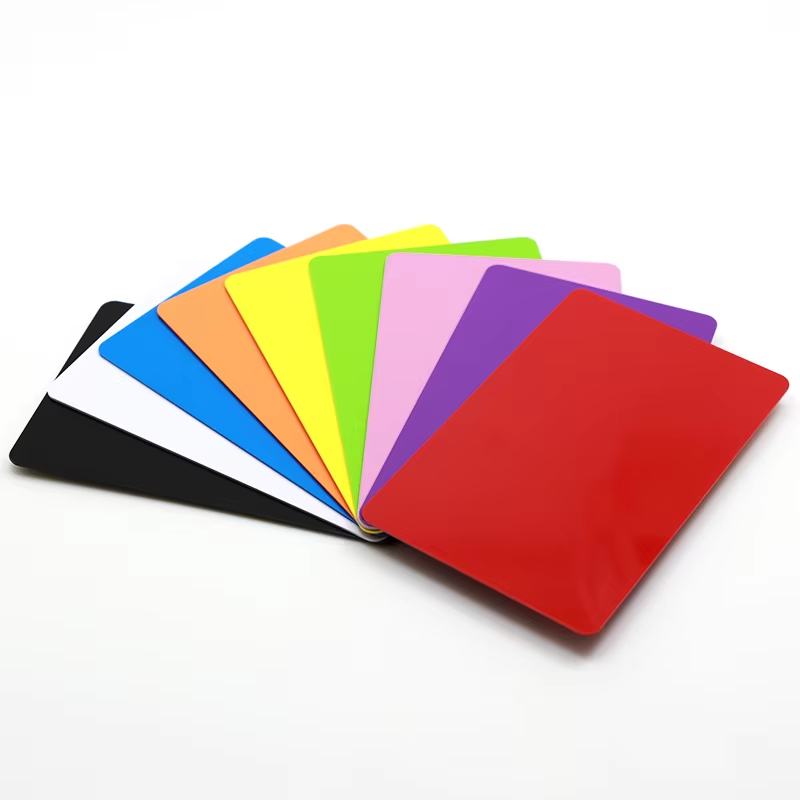

![Color PVC sheet options for bank and smart card production]()
Custom Color, Coating and Sheet Options
Base Color Matching
Base colors can be developed from a physical reference, approved laboratory sample or recognized color code. Because PVC formulation, surface finish and lighting influence visual appearance, the approved production sample should be retained as the color reference for repeat orders.
White Coating Coverage
Buyers should specify whether the coating is full-area or selective, one-sided or double-sided, and whether uncoated colored areas must remain visible. Artwork registration and coating-edge tolerance should be evaluated during sampling.
Surface Finish and Printing Grade
Matte, smooth or other project-specific finishes can be discussed according to the printing and lamination process. The surface grade should be approved with the actual ink, printer, overlay and lamination parameters.
Sheet Size and Cutting Layout
Sheet dimensions should match the customer’s press, collation and punching layout. The RFQ should include finished sheet size, grain or machine direction when relevant, card matrix, registration marks and acceptable edge condition.
Quality Control for Bulk Card-Material Orders
| Inspection Item | Why It Matters | Approval Method |
| Base Color | Controls brand appearance and repeat-order consistency | Compare with the signed color sample under agreed lighting conditions |
| White Coating Color and Opacity | Affects artwork contrast and masking of the colored base | Visual comparison plus project-specific color or opacity measurement where required |
| Coating Adhesion | Reduces peeling during printing, lamination and card use | Tape, cross-hatch or agreed peel test before and after lamination |
| Thickness and Flatness | Supports printing registration, collation and final card thickness control | Multi-point thickness measurement and flatness inspection |
| Surface Energy and Print Adhesion | Influences wetting, drying and image durability | Dyne or agreed surface test followed by production-ink adhesion testing |
| Lamination Bonding | Prevents bubbles, edge lift and layer separation | Test the complete card stack at the intended temperature, pressure and cycle |
| Finished-Card Performance | Confirms that the full construction works after conversion | Punching, bending, torsion, abrasion and functional-card tests as applicable |
Sample Approval and Mass-Production Workflow
1. Confirm the Card Structure
Provide the final card application, layer stack, target finished thickness, chip or antenna design, overlay type and planned personalization process.
2. Submit the Color and Artwork Reference
Supply the required base color, white coating coverage, print files and critical brand-color targets. Indicate whether colored areas must remain exposed after printing.
3. Test Printing and Lamination
Run the sample on the intended press using production ink, curing settings, overlay and lamination cycle. Check image density, coating adhesion, layer bonding and card flatness.
4. Approve the Golden Sample
Sign and retain the approved sheet and finished card as the reference for color, coating, print result, lamination and repeat-order inspection.
Why Choose Wallis for White-Coated Color PVC Sheets?
Wallis supplies card-production materials for manufacturers, converters, project integrators and distributors. Support can include custom base colors, coating development, sheet-size matching, sample preparation, card-structure coordination and export packaging.
Custom color and white coating development based on approved samples
Material support for printing, overlay lamination and card conversion
Project-specific sheet size, thickness and surface options
Sample and Golden Sample approval before volume production
Export packaging and B2B order coordination
Workshop and Export Packaging
Sheet inspection and packaging should protect the coated surface from dust, scratches, moisture, blocking and deformation. Packaging configuration can be discussed according to sheet dimensions, order volume, transport method and customer labeling requirements.
![Wallis production workshop for white coated colored PVC card sheets]( "Wallis PVC sheet workshop")
![Professional export packaging for white coated PVC sheets]()
Information Required for a Fast B2B Quotation
| Required Information | Details to Provide |
| Card Application | Bank card, ID card, access card, membership card, gift card or another project |
| Base PVC Color | Color code, physical sample or approved existing reference |
| White Coating | One or two sides, full or selective coverage, required finish and opacity target |
| Printing Process | Press model, ink type, curing method and number of printing sides |
| Sheet Specification | Thickness, width, length, quantity and packing preference |
| Card Construction | Overlay, core, inlay, magnetic stripe, chip and final thickness requirements |
| Quality Criteria | Color tolerance, coating adhesion, surface energy, lamination and finished-card tests |
Frequently Asked Questions
What is a color PVC sheet with white coating?
It is a rigid colored PVC card substrate with a white printable surface layer. The colored base provides card identity, while the white layer supports clearer and more predictable artwork reproduction.
Why not print directly on the colored PVC base?
Dark or saturated base colors can alter CMYK values and reduce contrast. A white layer masks the underlying color and provides a more neutral background for text, logos, portraits and security graphics.
Is the sheet suitable for offset printing?
Offset grades can be supplied, but the sheet should be tested with the customer’s actual ink, press, drying conditions, overlay and lamination cycle before mass production.
Can the same material be used for inkjet printing?
Not automatically. Water-based inkjet and some digital systems require a dedicated ink-receptive coating. The printer model and ink chemistry must be confirmed before selecting the material grade.
Can the PVC base color be customized?
Yes. Custom colors can be developed from a color code or physical reference. A signed sample should be used as the production and repeat-order standard.
Can the white coating be applied to both sides?
One-side or two-side coating can be discussed according to the card design and printing structure. Coating coverage, registration and surface requirements should be defined in the RFQ.
Can part of the colored PVC remain visible?
Selective coating or artwork design may leave selected colored areas visible. The coating boundary and print registration must be confirmed through samples.
Is this sheet suitable for dual-interface bank cards?
It can be evaluated as a printed layer within a dual-interface construction. The complete stack, including the RFID inlay, overlays, chip cavity and lamination parameters, must be tested together.
What quality checks are recommended?
Recommended checks include base color, white coating shade and opacity, thickness, flatness, coating adhesion, surface energy, print adhesion, lamination bonding and finished-card mechanical tests.
Can Wallis provide a sample before bulk production?
Samples can be discussed for color, coating, printing and lamination evaluation. Customized developments may require artwork, color references and card-structure details before sample preparation.
How should repeat-order color consistency be controlled?
Keep a signed Golden Sample and define the agreed comparison method. Repeat orders should be checked against the same base-color, coating and finished-card reference.
What information should be included in an RFQ?
Provide the application, base color, coating coverage, printing method, sheet dimensions, thickness, quantity, card-layer structure, testing criteria and packaging requirements.
Request Samples and a Factory Quotation
Send Wallis your color reference, coating requirement, printing method, sheet specification, card structure and estimated order quantity. The technical and sales teams can prepare a project-specific material recommendation and sample plan.
