0.05–0.25mm PC Laserable Overlay Film for Secure ID Cards

0.05–0.25mm Polycarbonate PC Laserable Overlay for Secure Plastic Cards

Wallis polycarbonate PC laserable overlay film is engineered for manufacturers of government ID cards, driver’s licenses, resident cards, smart access cards, banking cards, passport data pages, and other long-life security documents. The transparent or matte film becomes the protective outer layer of a laminated PC card while supporting permanent laser personalization inside the card structure.

Available in thicknesses from 0.05mm to 0.25mm, the overlay can be supplied in A4, A3, and customized sheet formats. Different laser-reactive grades, surface textures, coatings, and card-layer configurations can be evaluated according to the customer’s laser system, lamination process, document lifespan, and security requirements.

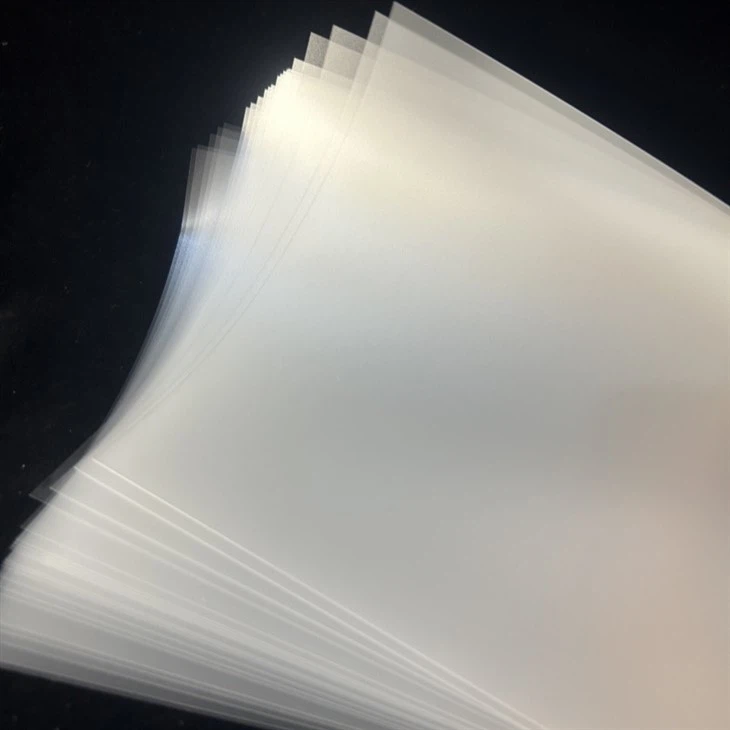

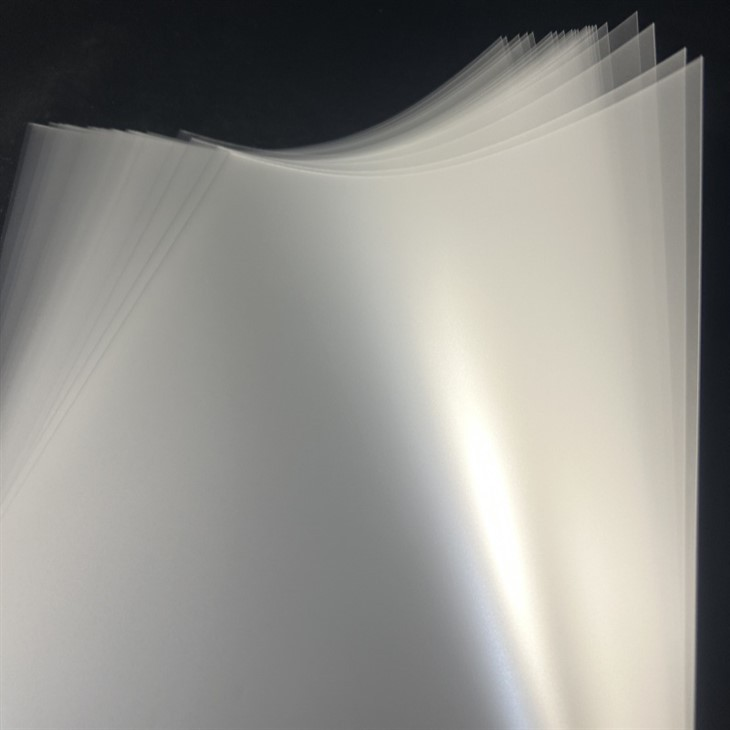

PC Laserable Overlay at a Glance

How Polycarbonate Laserable Overlay Works

Laser-reactive PC overlay is formulated to generate a visible mark when processed by a compatible laser personalization system. Variable data such as portraits, names, identification numbers, signatures, barcodes, and security graphics can be created within the polycarbonate layer rather than printed only on the exposed surface.

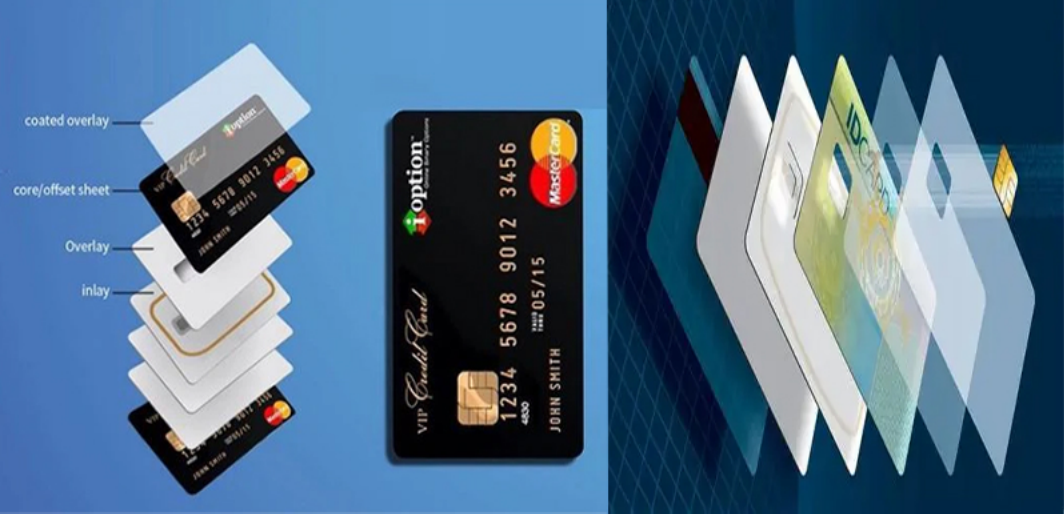

During card lamination, compatible polycarbonate layers fuse under controlled temperature and pressure. The resulting multilayer card body is difficult to separate without visible damage, helping protect both physical personalization data and embedded electronic components. Final performance depends on the complete card construction, film grade, laser settings, and lamination parameters.

Product Specifications and Customization

Technical note: Final tolerances, laser contrast, haze, surface texture, bonding performance, and processing window should be confirmed through samples and production-line testing before bulk approval.

Factory Production and B2B Supply Capability

Wallis supports card manufacturers with customized film thickness, sheet dimensions, surface treatment, coating structures, packaging, and batch supply. For security document projects, samples can be prepared for laser contrast, lamination, print compatibility, dimensional stability, and finished-card evaluation before commercial production.

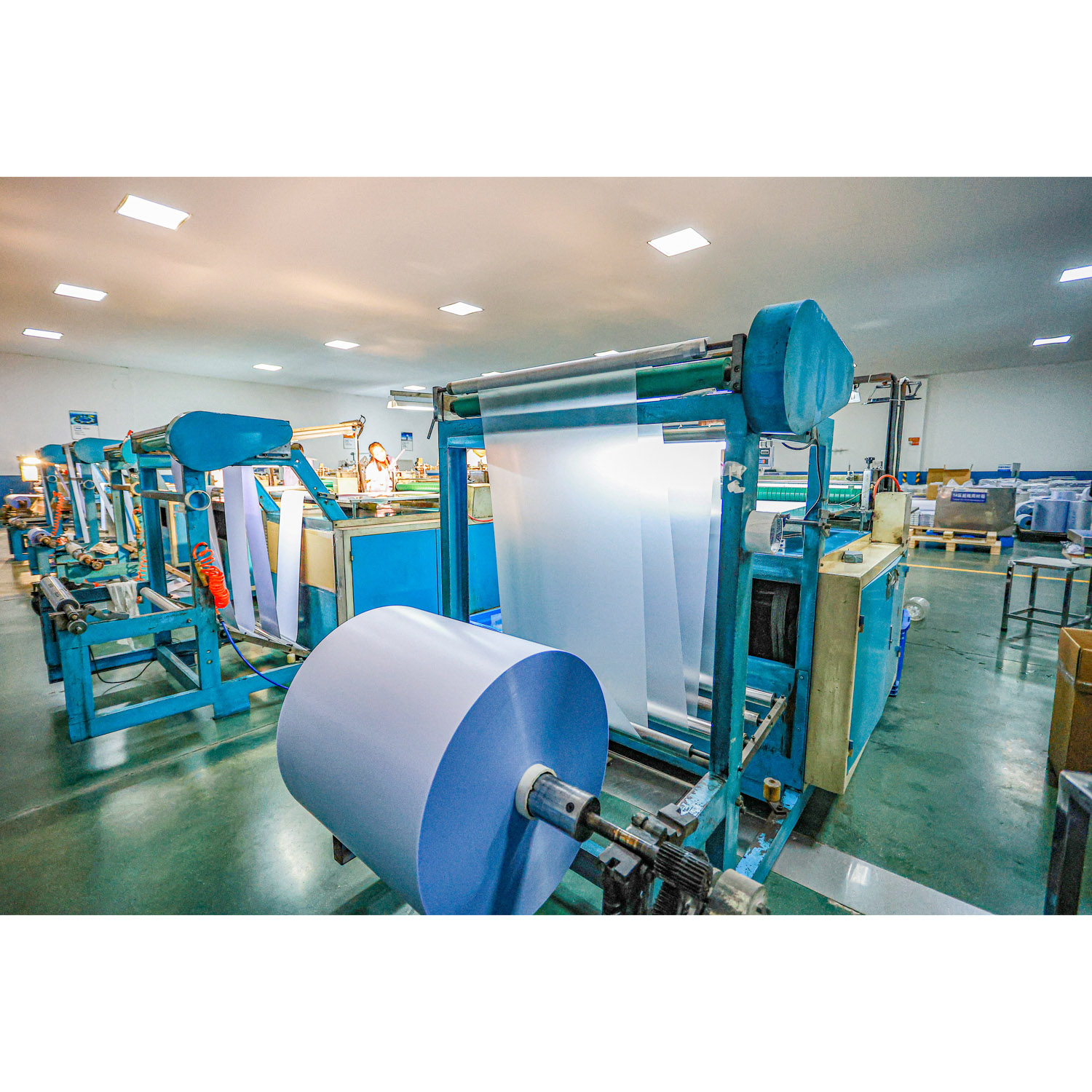

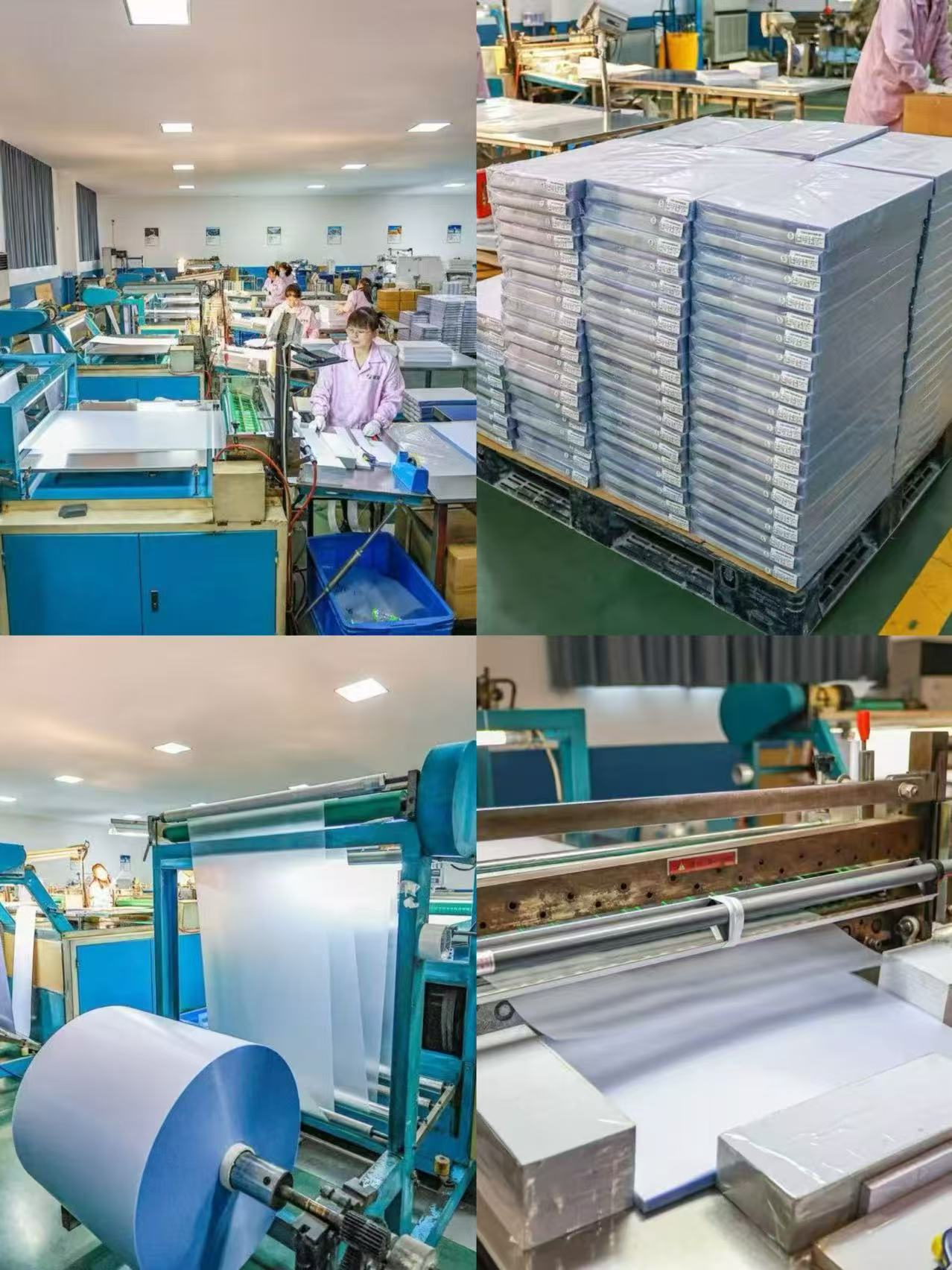

PC Film Production

Stable Batch Supply

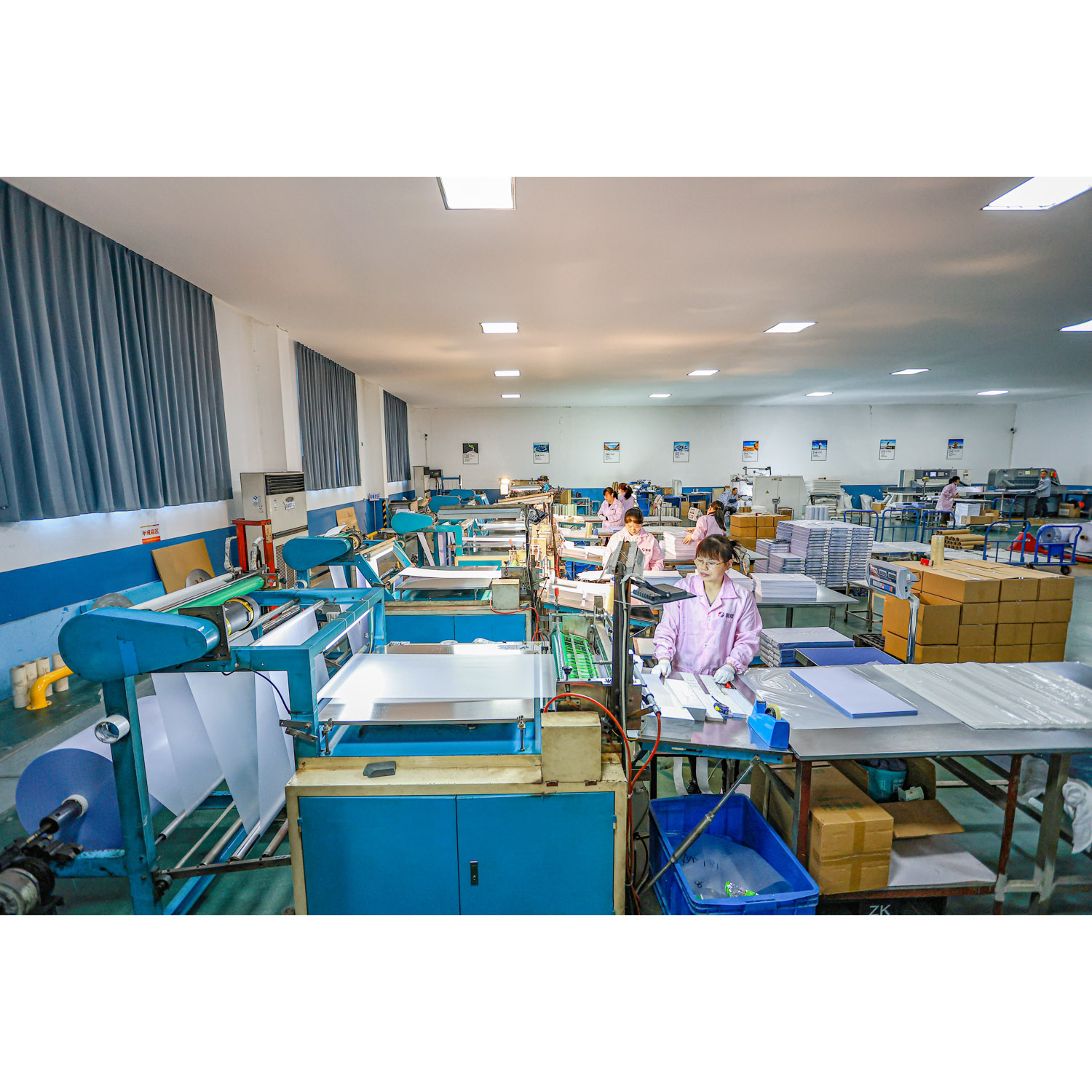

Quality Inspection

Key Advantages for Secure Card Manufacturing

High-Contrast Permanent Laser Personalization

A compatible laser-reactive grade enables permanent grayscale portraits, text, numbers, signatures, and machine-readable elements to be created within the card layer. Internal personalization is more difficult to alter than information applied only to the exposed card surface.

Tamper-Evident Multilayer Construction

Polycarbonate layers can form a strongly fused card body under appropriate lamination conditions. Attempts to open or separate the document may cause irreversible visible damage, supporting layered anti-counterfeiting strategies for government and institutional credentials.

Optical Clarity and Controlled Surface Texture

Transparent overlay maintains visibility of portraits, printed artwork, microtext, security backgrounds, and transparent-window structures. Matte and textured options can reduce glare, improve handling, and create a controlled professional appearance.

Mechanical and Environmental Durability

PC film offers strong impact resistance, dimensional stability, and heat resistance for cards exposed to frequent handling. Finished-card resistance to abrasion, chemicals, moisture, UV exposure, bending, and temperature cycling must be verified against the intended document specification.

Integration with Advanced Security Features

The overlay can be incorporated into security-document constructions containing chips, antennas, printed security patterns, transparent windows, holographic elements, tactile features, and multiple laser-personalized data layers. Compatibility should be established at the complete-card level.

Thickness Selection Guide

These are selection guidelines rather than fixed application rules. The correct thickness must be determined from the entire card stack and validated on the customer’s equipment.

Transparent, Matte, and Textured Overlay Options

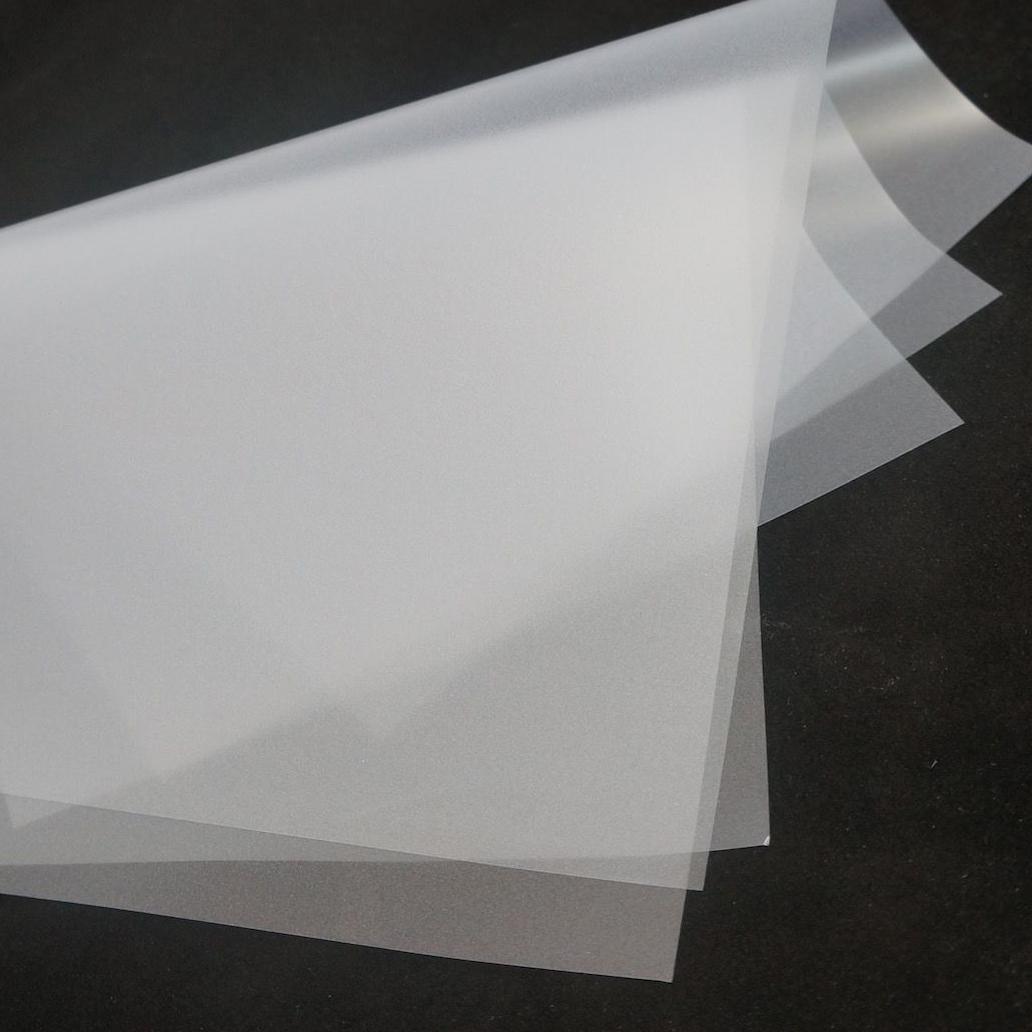

Transparent PC Laserable Overlay

Clear overlay is selected when high visibility of the printed design, photograph, security background, or transparent-window area is required. Optical performance should be assessed after lamination because haze and clarity are influenced by the complete material stack and process.

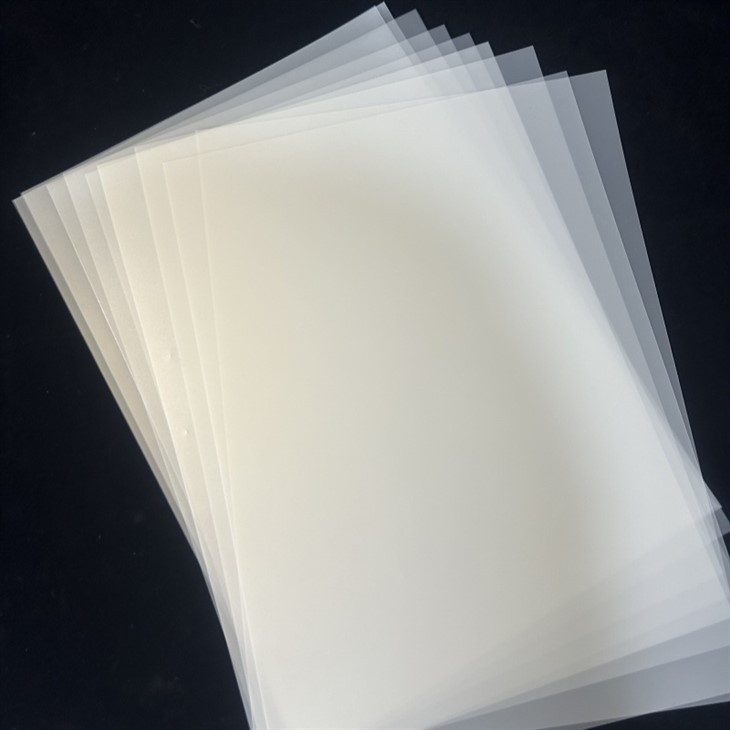

Matte or Fine-Texture Overlay

Matte, fine-matte, or velvet-style surfaces can reduce glare and fingerprint visibility while providing a controlled tactile finish. Surface texture must also be matched to printing, laser readability, lamination plates, and downstream card handling.

Applications of PC Laserable Overlay Film

Government ID and Resident Cards

PC overlay supports durable card bodies, internally engraved personal data, chip integration, and layered security features for national ID, resident, social security, and public-service credential programs.

Driver’s Licenses and Vehicle Documents

Driver’s licenses require long-term readability under frequent handling. Laserable PC overlay helps protect portraits, variable data, barcodes, and security artwork while supporting a tamper-evident card structure.

Passport Data Pages and Border Credentials

Polycarbonate film can be used in rigid passport data pages and border-crossing credentials that combine permanent laser personalization, embedded electronics, transparent windows, and multiple overt or covert security features.

Smart Access, Banking, and Institutional Cards

Secure access cards, financial credentials, employee badges, healthcare cards, and high-value membership cards can use PC overlay when long service life, internal personalization, and resistance to physical alteration are priorities.

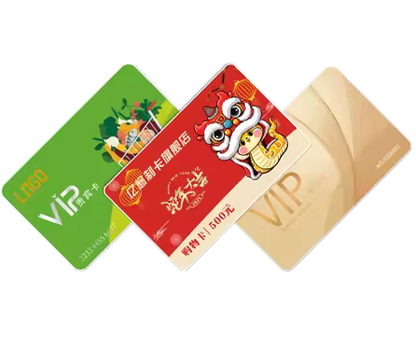

Premium and Institutional Cards

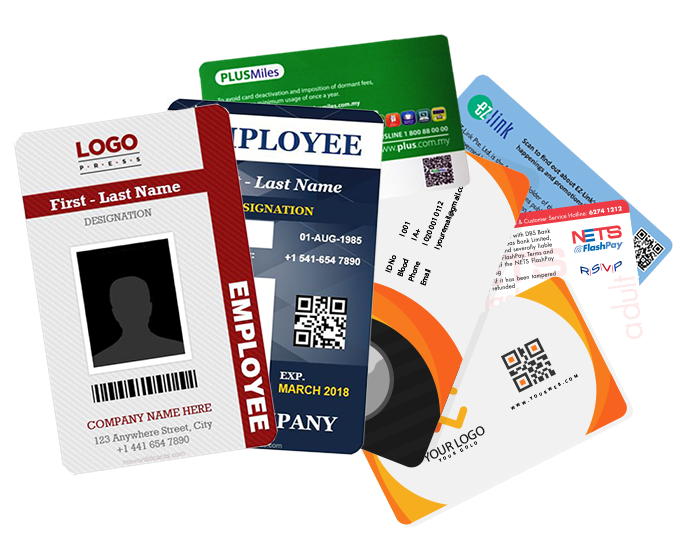

ID, Access, and Smart Cards

PC Overlay Compared with PETG and PVC Overlay

Material selection should be based on the finished document specification rather than one property alone. Wallis can review the card stack, personalization method, target service life, and production equipment before recommending a grade.

Recommended Sample Testing and Approval Process

Packaging and Global Shipping

PC overlay sheets are packed to reduce contamination, moisture exposure, bending, pressure marks, and surface scratches during storage and international transport. Packaging can include protective PE film, moisture-resistant wrapping, cartons or pallets, corner protection, labels, and customized export marks according to order size and shipping method.

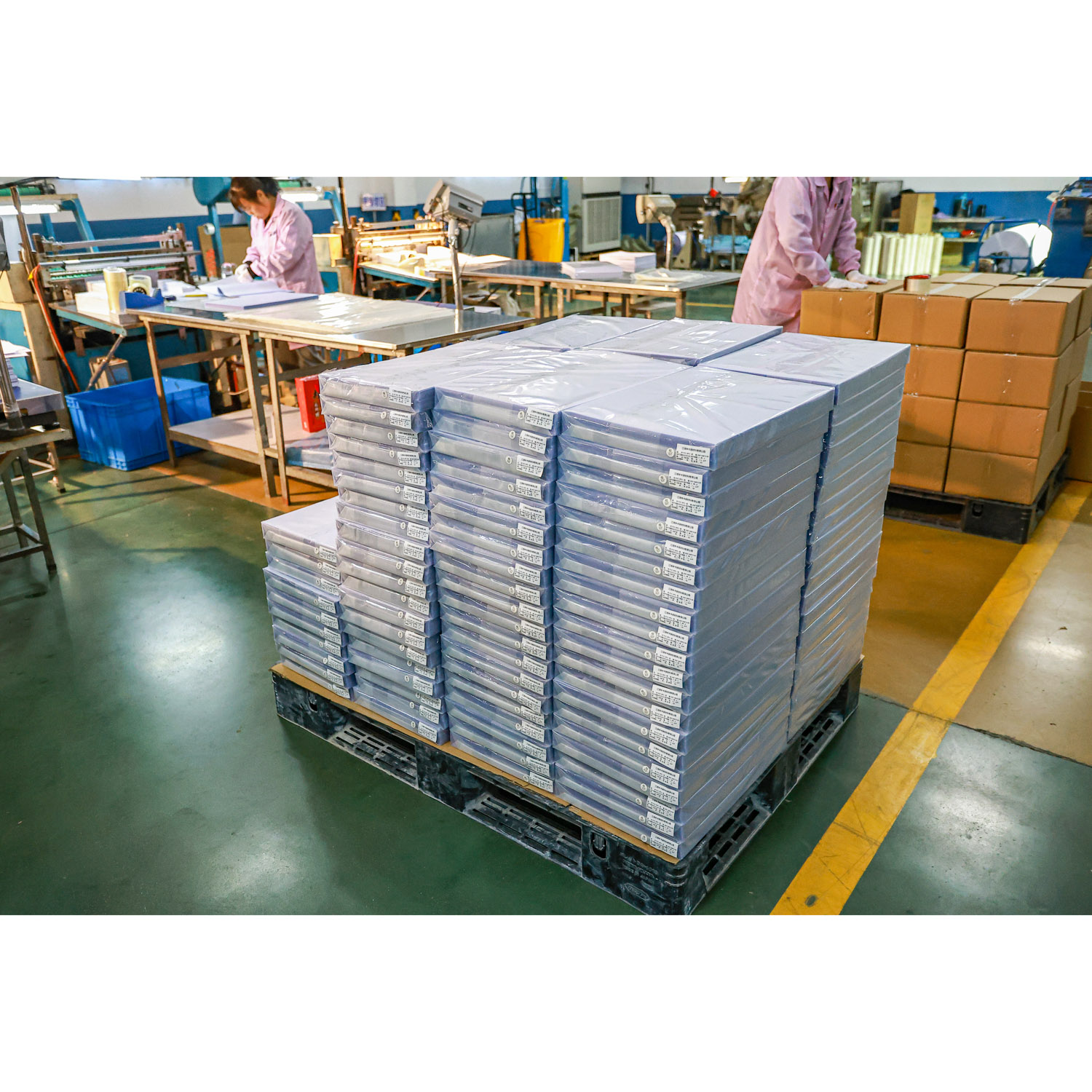

Protected Pallet Loading

Export Container Protection

Why Choose Wallis as Your PC Overlay Supplier?

• Manufacturer support for PC, PETG, PVC, magnetic stripe, holographic, and other card-layer materials.

• Customized thickness, dimensions, surface texture, coating, packaging, and labeling.

• Samples for laser, lamination, printing, and finished-card qualification.

• Batch supply and export packaging for card manufacturers and material distributors.

• Technical communication based on the customer’s card stack, laser source, laminator, and target performance.

• One-stop sourcing support for secure card core sheets, overlays, inlays, and related card materials.

Professional Project Support

Global B2B Cooperation

Manufacturing and Export Supply

Information Required for an Accurate B2B Quotation

To recommend the correct PC laserable overlay and prepare a useful quotation, please provide as many of the following details as possible:

• Required thickness, sheet size, quantity, and annual forecast.

• Transparent, matte, velvet, coated, magnetic stripe, or other surface requirement.

• Laser manufacturer, laser source or wavelength, and desired image or text result.

• Complete card-layer structure, final card thickness, and embedded chip or antenna details.

• Lamination equipment, temperature, pressure, time, cooling, and plate finish.

• Required document lifespan, test standard, packaging, destination, and delivery schedule.

Frequently Asked Questions

What is PC laserable overlay film used for?

It is used as a laser-reactive and protective layer in polycarbonate security documents, including national ID cards, driver’s licenses, passport data pages, resident cards, smart access cards, and other credentials requiring durable internal personalization.

How does laserable PC overlay differ from standard clear PC overlay?

Laserable grades contain a formulation designed to create visible contrast under compatible laser processing. Standard non-laserable clear overlay is mainly used for protection, optical clarity, or intermediate card layers and does not provide the same personalization response.

Which thickness should a card manufacturer choose?

Thickness depends on the total card stack, location of the laser layer, final card dimensions, laminator capability, required durability, and security design. Wallis recommends testing several suitable thicknesses before finalizing the commercial specification.

Can the overlay produce laser-engraved portraits and variable data?

Yes. A compatible laser-reactive grade can support grayscale portraits, text, numbers, signatures, and security graphics. Contrast and resolution depend on the material grade, laser system, layer position, artwork, and personalization settings.

Is PC laserable overlay compatible with chip and RFID cards?

It can be integrated into contact-chip and contactless card constructions. The card stack, antenna or chip position, pressure distribution, lamination cycle, and final electrical performance must be evaluated through prototype testing.

Can Wallis supply transparent and matte PC overlay?

Yes. Transparent, matte, fine-matte, velvet-textured, coated, and customized surface options can be discussed. Availability depends on thickness, size, quantity, laser grade, and the required surface combination.

Does the PC overlay require adhesive during lamination?

Compatible all-PC card layers can fuse under controlled heat and pressure without a conventional adhesive layer. Coated grades may be selected for specific composite structures. The bonding method must be confirmed for the customer’s complete material stack.

What quality checks should be completed before a bulk order?

Buyers should evaluate thickness and dimensional consistency, surface cleanliness, optical quality, laser contrast, lamination bonding, shrinkage, warpage, abrasion, chemical resistance, environmental durability, and tamper evidence on finished cards.

Can samples be supplied for laser and lamination testing?

Sample availability can be confirmed according to the requested thickness, dimensions, laser grade, finish, and coating. Providing your laser and lamination details helps Wallis select a more relevant sample for evaluation.

What determines MOQ and production lead time?

MOQ and lead time depend on film grade, thickness, size, surface texture, coating, packaging, order quantity, and whether the item is standard or customized. Submit the full specification for a current quotation and delivery plan.

How should PC overlay sheets be stored?

Keep sheets sealed in their original packaging in a clean, dry, temperature-controlled area away from direct sunlight, dust, moisture, heat sources, and heavy stacking pressure. Follow the project-specific handling and conditioning instructions supplied with the material.
