Custom PVC, PET and ABS Hot Stamped Cards for B2B Programs
Wallis supplies custom PVC, PET and ABS hot stamped cards for loyalty programs, memberships, hotels, retail gift cards, promotions, events, access systems and branded corporate applications. Metallic, pigment and holographic foils can be applied to logos, text, borders, chip-style graphics and selected security features using a matched die, foil, heat, pressure and dwell time.
Hot stamping is a finishing process, not a substitute for full-color printing. Offset, screen, digital or thermal printing normally creates the base artwork, while hot foil adds a reflective or specialty accent. Material type, laminate, surface coating, foil adhesive, stamped area, line width and downstream personalization must be approved together before bulk production.
Wallis supports standard CR80 cards and customized formats, with options including matte, gloss, frosted and mirror-like surfaces; gold, silver, colored and holographic foil; embossing, magnetic stripes, QR codes, barcodes, scratch panels, RFID/NFC inlays, contact chips, variable data and custom packaging.
| Product Type | Custom hot foil stamped plastic cards for B2B card and promotional programs |
| Card Materials | PVC, PET or ABS according to appearance, stiffness, processing and application requirements |
| Standard Format | CR80 / ID-1, approximately 85.60 × 53.98mm; standard nominal card thickness is commonly near 0.76mm, while the original page also offers 0.84mm and custom thicknesses |

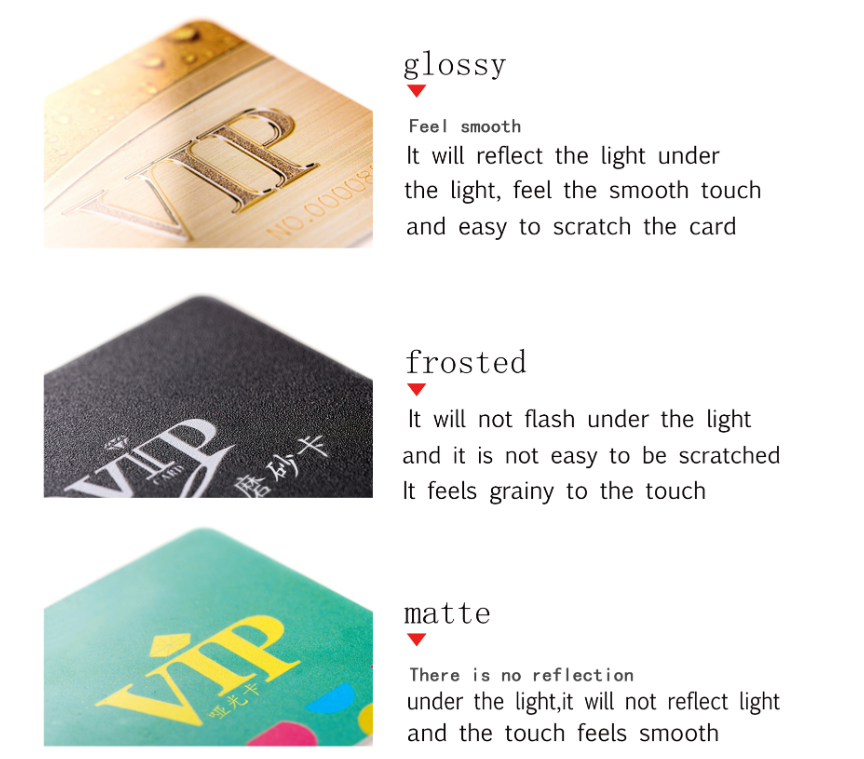

| Surface Options | Gloss, matte, frosted, transparent, metallic or mirror-effect finish subject to material and process testing |
| Foil Options | Gold, silver, rose gold, copper, red, blue, black, pigment, matte metallic, rainbow and custom holographic patterns |
| Additional Features | Embossing, debossing, laser numbering, barcode, QR code, scratch panel, hologram, magnetic stripe, RFID/NFC, contact chip, signature panel and adhesive backing |
| B2B Services | Design review, foil and substrate samples, die development, prototype approval, variable data, encoding, QC inspection and export supply |
Request Hot Stamped Card Samples and Quote
What Is Hot Stamping on a Plastic Card?
Hot stamping transfers a thin decorative or functional layer from a carrier foil to the card surface. A heated metal die presses the foil against the plastic card under controlled pressure. The release layer separates from the carrier, and the foil coating bonds to the selected area.
A Custom Die Defines the Stamped Artwork
The die contains the logo, lettering, border, pattern or chip-style image. Brass, copper, magnesium or other die materials may be selected according to run length, detail, pressure and production equipment. Fine text and broad solid areas often require different foil and die conditions.
Foil Selection Must Match the Plastic Surface
A foil that works on coated paper may not bond correctly to PVC, PET, PETG or ABS. The foil adhesive system must be selected for the actual card surface, including any laminate, varnish, coating, printed ink or texture.
Heat, Pressure and Dwell Time Form One Process Window
Insufficient energy may cause incomplete transfer or weak edges. Excessive heat or pressure may distort the card, flatten surface texture, damage electronics or create foil squeeze-out. The approved settings must be established through trials on the final card construction.
![Custom PVC PET ABS hot stamped plastic cards with metallic foil logo and premium finish]( "Custom Hot Stamped Plastic Cards")
Metallic Foil Card Customization
![Gold and silver hot foil stamped cards for loyalty membership gift and VIP programs]( "Gold and Silver Foil Plastic Cards")
Gold, Silver and Specialty Foils
Hot Stamping vs. Heat Transfer, Embossing and Cold Foil
| Process | How It Works | Best Use on Cards |
| Hot Foil Stamping | A heated die transfers metallic, pigment or holographic foil under pressure | Premium logos, borders, numbers, chip graphics and authentication features |
| Heat Transfer Printing | A printed carrier film transfers a graphic using heat, often without a metal relief die | Multicolor graphics, variable images and selected short-run applications |
| Embossing / Debossing | Mechanical pressure forms raised or recessed card features | Raised numbers, names, logos or tactile design elements |
| Cold Foil Transfer | Foil bonds to a printed adhesive without a heated stamping die | Inline printed effects when the card substrate, adhesive and press support the process |
| Holographic Laminate | A patterned security film covers a larger area of the card | Full-card protection and overt security rather than localized foil accents |
Choosing PVC, PET or ABS Card Material
| Material | Typical Advantages | Hot Stamping Considerations |
| PVC | Established card production, broad printing compatibility and cost-efficient supply | Avoid excessive temperature and pressure; confirm foil bond to the laminate or coating |
| PET | Good stiffness, chemical resistance and transparent or opaque options | Use a foil formulated for PET surfaces; verify adhesion, flexing and scratch resistance |
| ABS | Impact resistance, rigidity and suitability for molded or specialty card bodies | Surface chemistry and texture vary; use dedicated foil and pre-production trials |
| Transparent Card | Distinctive visual effect with clear, tinted or frosted areas | Foil opacity, back-side visibility, registration and surface cleanliness become more critical |
The material name alone does not determine card life. Finished performance depends on resin grade, layer structure, thickness, printing, lamination, hot stamping, personalization and the card’s actual use environment.
Foil Colors, Effects and Custom Design Options
| Foil Type | Visual Effect | B2B Application |
| Bright Metallic | Mirror-like gold, silver, copper or rose-gold reflection | Premium logos, VIP cards, membership tiers and luxury retail programs |
| Matte Metallic | Soft satin metallic appearance with reduced glare | Corporate cards, understated premium branding and dark card designs |
| Pigment Foil | Opaque non-metallic color, including red, blue, black or white | High-contrast text, logos and color-coded membership levels |
| Holographic Foil | Diffractive rainbow, lens, geometric or custom optical pattern | Brand authentication, event access, premium membership and security features |
| Transparent / Clear Foil | Gloss contrast, subtle pattern or selective surface enhancement | Minimalist cards, hidden patterns and tactile branding |
| Custom Security Foil | Customer-specific logo, microtext or optical authentication pattern | Controlled ID, access and high-value card programs with larger development requirements |
![Gold silver colored and holographic hot stamping foil options for custom plastic cards]( "Hot Stamping Foil Card Options")
Metallic, Colored and Holographic Foil Effects
Design Rules for Clean Hot Foil Transfer
| Artwork Factor | Recommended Production Review |
| Minimum Line Width | Confirm the minimum positive and reversed line widths with the die and foil supplier |
| Minimum Text Size | Use sufficiently open letterforms and avoid extremely thin serifs or tight counters |
| Large Solid Area | May require a foil optimized for coverage, a larger die, higher pressure or multiple impressions |
| Fine Detail | Requires clean vector artwork, suitable foil release, accurate die and stable flatness |
| Edge Distance | Leave clearance from card edges, slots, holes, chips and magnetic stripes unless specifically engineered |
| Registration | Specify foil-to-print, foil-to-chip and foil-to-cut tolerances for critical artwork |
| Variable Foil Data | Traditional die stamping is normally fixed; variable names or numbers may require digital foil or a separate personalization process |
Supply Vector Artwork and Separate Foil Layers
Foil artwork should be supplied as clean vector paths at final size. Each foil color should be separated from CMYK printing, white ink, varnish, embossing, chip, stripe, barcode and cutting lines.
Prototype Approval Is Essential for Dark and Textured Cards
Dark backgrounds, matte laminates, frosted surfaces and mirror finishes can change foil appearance and adhesion. A physical sample is more reliable than an on-screen color simulation.
Hot Stamping Process Development
Confirm the card construction: Identify PVC, PET or ABS, surface coating, laminate, thickness and any embedded technology.
Review the artwork: Check line width, text size, stamped area, registration and edge clearance.
Select die and foil: Match die material, foil release and adhesive chemistry to the substrate and run length.
Run a stepped trial: Adjust temperature, pressure and dwell time until transfer is complete without distortion.
Condition the cards: Allow the foil and card to stabilize before abrasion, tape, bend and chemical testing.
Test downstream processes: Verify printing, personalization, encoding, punching, chip and magnetic-stripe function.
Lock the production standard: Record foil code, die, machine, temperature, pressure, dwell, registration and inspection limits.
| Common Defect | Likely Cause | Corrective Direction |
| Incomplete Transfer | Low heat, pressure or dwell; wrong foil; uneven surface | Confirm foil grade and increase energy gradually while checking card distortion |
| Foil Squeeze-Out | Excess heat, pressure or dwell; soft release foil | Reduce process energy and review die edge, foil release and artwork spacing |
| Pinholes or Voids | Dust, texture, low coverage foil or poor pressure distribution | Improve cleaning, use a coverage-grade foil and check platen parallelism |
| Card Warpage | Excessive local heat, long dwell or unstable card construction | Lower temperature, shorten dwell, support the card and review material selection |
| Poor Adhesion | Incompatible foil, low surface energy, contamination or coating migration | Use a substrate-specific foil and evaluate cleaning, treatment or primer |
| Registration Shift | Fixture movement, card-size variation or sensor alignment | Improve jigging, dimensional control, registration marks and machine setup |
Combining Hot Foil with Printing and Specialty Finishes
| Combination | Production Consideration |
| Offset Printing + Hot Foil | Cure ink fully, define foil-to-print registration and confirm whether foil is applied before or after lamination |
| Screen Printing + Hot Foil | Heavy ink films or textured coatings can change foil pressure and transfer quality |
| Embossing + Foil | Use registered dies and verify that raised features do not crack the card or foil |
| Spot UV + Foil | Foil may not adhere to every UV varnish; determine the process order and compatible chemistry |
| Hologram + Variable Data | Keep variable names, numbers, barcodes and photos clear of reflective features that may affect scanning |
| Scratch Panel + Foil | Separate activation data, scratch coating and decorative foil areas to prevent contamination or accidental removal |
![Custom hot foil stamped gift membership and loyalty cards with printed graphics]( "Hot Foil Stamped Gift and Membership Cards")
Gift, Loyalty and Membership Cards
![Premium PVC PET ABS plastic card with metallic foil stamping and custom branding]( "Premium Hot Stamped Plastic Card")
Premium Corporate Card Branding
RFID, NFC, Chip and Magnetic Stripe Integration
| Technology | Hot Stamping Design Requirement |
| RFID / NFC Inlay | Control heat and pressure above the chip and antenna; verify read performance after stamping |
| Contact Chip Module | Maintain clearance from the module cavity unless a decorative chip-style stamp is intentionally used on a non-electronic card |
| Magnetic Stripe | Keep foil clear of the read path and verify encoding after all heat processes |
| Barcode / QR Code | Avoid reflective foil inside code modules or quiet zones unless scanner testing confirms readability |
| Anti-Metal RFID Layer | Metallic foil and nearby metal can affect RF performance; test the finished card on the intended surface and reader |
| Encoding and Variable Data | Define the production sequence for foil stamping, chip encoding, magnetic encoding, printing and verification |
Decorative Foil Chip Graphics Are Not Electronic Chips
A foil-stamped chip pattern can create a credit-card-style appearance on a marketing or business card, but it does not add contact or contactless functionality. The quotation should clearly distinguish decorative foil graphics from real electronic modules.
Functional Cards Require Post-Process Testing
Smart and magnetic cards should be read, encoded and inspected after stamping, punching and personalization. Heat and local pressure can affect components even when no visible damage is present.
Applications for Custom Hot Stamped Cards
| Application | Recommended Features | Key B2B Check |
| Membership and VIP Cards | Gold, silver or tier-specific foil, embossing, serial number and matte finish | Brand consistency, wear resistance and variable-data accuracy |
| Gift and Loyalty Cards | Foil logo, barcode, magnetic stripe, scratch panel and retail packaging | Activation, code readability, scratch security and store-system compatibility |
| Hotel Key Cards | Branded foil, magnetic stripe or RFID, room-access encoding and optional QR code | Lock compatibility, encoding and humidity/handling performance |
| Business and Promotional Cards | Foil chip graphic, metallic logo, custom shape, QR code and clear/frosted effects | Visual impact, card thickness, mailing and scanner readability |
| Event and Access Credentials | Holographic foil, serial number, QR/barcode, RFID and hole/slot punching | Authentication, access-system function and issue-control workflow |
| Telecom and Prepaid Cards | Brand foil, scratch-off PIN, barcode, serial number and tamper-evident packaging | Data security, scratch-panel integrity and sequence reconciliation |
Security Foil and Authentication Features
Decorative foil improves visual differentiation but does not automatically create a secure credential. Security performance depends on controlled foil supply, custom optical design, serial data, card construction, issuance controls and verification procedures.
| Security Level | Example Feature | Verification |
| Decorative / Brand | Standard gold, silver or colored foil logo | Visual comparison with approved sample |
| Overt Security | Holographic pattern, diffractive logo or color-shifting effect | Recognizable by users without a tool |
| Covert Security | Microtext, hidden image, UV-responsive or tool-readable element | Magnifier, UV lamp or dedicated reader |
| Forensic / Controlled | Special marker or proprietary optical structure | Restricted equipment or laboratory method |
Standard Holographic Foil and Custom Holograms Have Different MOQs
Stock patterns can support faster sampling and smaller orders. Customer-specific holographic origination normally requires design approval, tooling, security review, a larger foil run and longer lead time.
Security Claims Must Match the Actual Supply Chain
“Anti-counterfeit” should be supported by a defined feature, restricted artwork, controlled foil or card production, traceability and a verification method. A generic rainbow foil is mainly decorative unless it forms part of a controlled security program.
Finished Card Durability and Quality Testing
| Test Item | Recommended Evaluation |
| Foil Coverage | Check missing areas, pinholes, edge sharpness, filling, squeeze-out and color consistency |
| Adhesion | Tape, scratch or rub test after the defined conditioning period |
| Abrasion and Wallet Wear | Evaluate gloss loss, foil removal, edge wear and transfer to adjacent surfaces |
| Bending and Torsion | Check foil cracking, card delamination, permanent deformation and electronic function |
| Chemical Resistance | Test alcohol, sanitizer, skin oils, cleaner and other application-specific chemicals |
| Heat and Humidity | Inspect foil adhesion, card warpage, blocking, color change and component function |
| UV / Light Exposure | Required before making outdoor, fade-resistance or long-life claims |
| Dimensions and Flatness | Measure length, width, thickness, corner radius, warpage and surface distortion |
Hot stamping does not automatically make a card more durable than a flat-printed card. Foil can become the first visible wear point when the grade, process or card use is not correctly matched. Service-life claims should be based on finished-card testing.
Production Samples, Tooling and MOQ Planning
| Cost or Lead-Time Driver | Impact on the Project |
| Custom Die | One-time tooling depends on artwork size, detail, die material and whether multiple foil colors need separate dies |
| Foil Type | Stock metallic foil is usually faster than custom color or custom holographic foil |
| Stamping Area | Large solid coverage increases foil consumption and may require additional process control |
| Number of Foil Colors | Each color normally needs a separate foil pass and registration step |
| Card Technology | RFID, contact chip, magnetic stripe and encoding add materials, testing and production stages |
| Variable Data | Names, numbers, barcodes and encoding require a database, proofing, reconciliation and privacy controls |
| Sample Type | Stock samples show general capability; exact production samples require the final die, foil, artwork and card structure |
Small Runs Are Possible but Tooling Still Matters
Hot stamping can be used for small or large batches, but fixed die setup and make-ready costs have a greater impact on a small order. Digital foil may be considered when variable artwork or very short runs are more important than traditional die-stamped results.
Approve a Signed Physical Sample
Final approval should cover card material, base print, foil shade, position, coverage, surface finish, dimensions, variable data and functional features. Screen images cannot reproduce metallic or holographic appearance accurately.
Quality Control for Bulk Hot Stamped Card Orders
| Inspection Stage | Recommended Control |
| Incoming Card Body | Material, size, thickness, flatness, surface finish, cleanliness and batch traceability |
| Foil and Die | Foil code, color, roll batch, die artwork, dimensions and condition |
| First Article | Position, color, coverage, sharpness, card distortion and match to approved sample |
| In-Process Inspection | Defined sampling for missing transfer, pinholes, registration, squeeze-out, scratches and contamination |
| Variable Data | Database-to-card reconciliation, duplicate/missing record check and barcode/QR verification |
| Encoding | Magnetic, contact or contactless read/write test with failure segregation |
| Final Inspection | Appearance, dimensions, thickness, flatness, count, packing, labels and inspection report |
| Retention Sample | Keep representative cards, foil batch and production records for repeat-order comparison |
![Custom hot stamped plastic card production and quality inspection for B2B orders]( "Hot Stamped Plastic Card Production")
Controlled Card Finishing and Inspection
![Factory production of PVC PET ABS hot foil stamped cards for international B2B customers]( "Custom Plastic Card Factory Supply")
Factory-Direct B2B Card Supply
Packing, Storage and Shipping
Allow stamped cards to condition before tight stacking or packaging.
Use clean interleaving or protective film when high-gloss foil may rub against adjacent cards.
Keep cards away from excessive heat, direct sunlight, high humidity and chemical fumes.
Protect magnetic stripes, chips, holograms and scratch panels from pressure and abrasion.
Pack variable-data cards in controlled sequence and label every box with quantity and range.
Use moisture-resistant cartons, corner protection and export pallets for international shipments.
Define secure destruction and reconciliation for rejected cards containing live numbers or encoded data.
Why Choose Wallis for Custom Hot Stamped Cards?
Multiple plastic materials: PVC, PET and ABS card options can be matched to the project’s appearance and performance requirements.
Integrated card production: Base printing, lamination, hot foil, embossing, punching, variable data and encoding can be coordinated.
Wide foil selection: Metallic, pigment, matte, holographic and custom optical effects can be reviewed.
Functional card options: Magnetic stripe, RFID/NFC, contact chip, barcode and QR code programs are available.
Prototype and QC support: Physical samples, process approval and batch inspection reduce bulk-order risk.
Factory-direct B2B supply: Suitable for card issuers, hotels, retailers, loyalty companies, event operators, importers and distributors.
Information Needed for a Fast B2B Quotation
Card application, destination market and expected service life.
Material: PVC, PET, ABS, transparent, frosted, metallic or other structure.
Finished size, thickness, corner radius, slot, hole or custom shape.
Base artwork, Pantone colors, printing method and surface finish.
Foil color, metallic/holographic effect, stamped area and number of foil colors.
Vector foil artwork and required registration tolerance.
Embossing, scratch panel, signature panel, adhesive backing or other finishing.
RFID/NFC chip, contact module, magnetic stripe, barcode, QR or encoding requirements.
Variable-data format, sequence control and data-security requirements.
Sample quantity, bulk quantity, annual forecast, packing, destination port and delivery schedule.
Discuss Your Hot Stamped Card Project
Frequently Asked Questions
What is hot stamping on a plastic card?
Hot stamping uses a heated die and pressure to transfer a metallic, pigment or holographic foil layer to selected areas of a plastic card.
Can hot stamping be used on PVC, PET and ABS?
Yes, but each material and surface may require a different foil adhesive, temperature, pressure and dwell time. Samples should be tested before production.
Can transparent cards be hot foil stamped?
Yes. Transparent PET or other clear plastic cards can receive suitable foil, but opacity, reverse-side appearance, scratches and registration are more visible.
What foil colors are available?
Common options include bright and matte gold, silver, rose gold, copper, red, blue, black, white, rainbow and holographic effects. Custom shades may require additional MOQ and lead time.
Can hot stamping reproduce full-color photographs?
Traditional hot stamping is best for fixed spot-color designs. Full-color photographs are normally printed first by offset, digital, screen or thermal processes.
Is hot stamping the same as heat transfer printing?
No. Traditional hot foil stamping uses a heated relief die, while heat transfer may move a preprinted image from a carrier film without the same die-based process.
Is hot stamping the same as embossing?
No. Hot stamping transfers foil, while embossing mechanically raises or recesses the card surface. The two processes can be combined with registered tooling.
What is the standard card size?
The common CR80 / ID-1 format is approximately 85.60 × 53.98mm. Wallis can also review custom sizes and shapes.
Is 0.84mm the standard thickness for CR80 cards?
The current Wallis page lists 0.84mm as an option, while the commonly referenced nominal ID-1 thickness is near 0.76mm. Confirm the required printer, reader and application tolerance.
Can hot stamped cards include RFID or NFC?
Yes. The stamping area, heat and pressure must be controlled around the chip and antenna, and read/write performance must be checked after finishing.
Can hot stamped cards include a real contact chip?
Yes. Contact-chip modules can be embedded in a suitable card body. A decorative foil chip image is also possible, but it does not provide electronic functionality.
Can magnetic stripes be combined with foil stamping?
Yes. Keep foil clear of the stripe’s read area and verify magnetic encoding after all heat and finishing processes.
Will metallic foil affect RFID performance?
Metallic features can affect RF performance depending on size and position. Test the finished card with the intended chip, reader and mounting surface.
Can QR codes and barcodes be placed next to foil?
Yes, but reflective foil should not enter code modules or required quiet zones unless scanner tests confirm reliable reading.
How durable is the foil?
Durability depends on foil grade, substrate, process and card use. Adhesion, abrasion, flexing, chemicals, heat and humidity should be tested on the finished card.
Can hot stamped cards be used outdoors?
Outdoor use requires specific UV, weathering, water, heat and abrasion testing. A standard metallic foil should not automatically be described as weatherproof.
What artwork format is required?
Vector artwork is preferred, with each foil color on a separate layer and clear lines for printing, foil, embossing, chip, stripe, variable data and cutting.
Can multiple foil colors be used on one card?
Yes. Each foil color normally requires a separate pass, die or setup, increasing registration requirements, tooling and cost.
Can custom holographic foil be produced?
Yes. Custom holographic origination can include logos and optical patterns, but it normally requires higher MOQ, tooling, design approval and longer lead time than stock foil.
Is hot stamping suitable for small orders?
It can be, but fixed die and setup costs have a larger effect on small quantities. Digital foil may be evaluated for very short or variable runs.
Can Wallis provide samples?
General samples can show materials and foil effects. An exact prototype requires final artwork, die, foil, card structure and feature specification.
What determines the minimum order quantity?
MOQ depends on material, card construction, size, foil type, custom die, stamped area, number of foil colors, printing, chip, encoding and packaging.
What information is required for an accurate quotation?
Provide the card material, size, thickness, surface, artwork, foil color and area, quantity, chip or stripe, variable data, packing and delivery destination.
Request Custom PVC, PET or ABS Hot Stamped Card Samples
Contact Wallis Plastic for custom hot foil stamped PVC, PET and ABS cards for loyalty, membership, gift, hotel, access, event and promotional programs. Our team supports material selection, artwork review, foil and die development, printing, embossing, RFID or magnetic integration, prototype testing, quality inspection and factory-direct B2B supply.
Request Samples and Factory Quote
