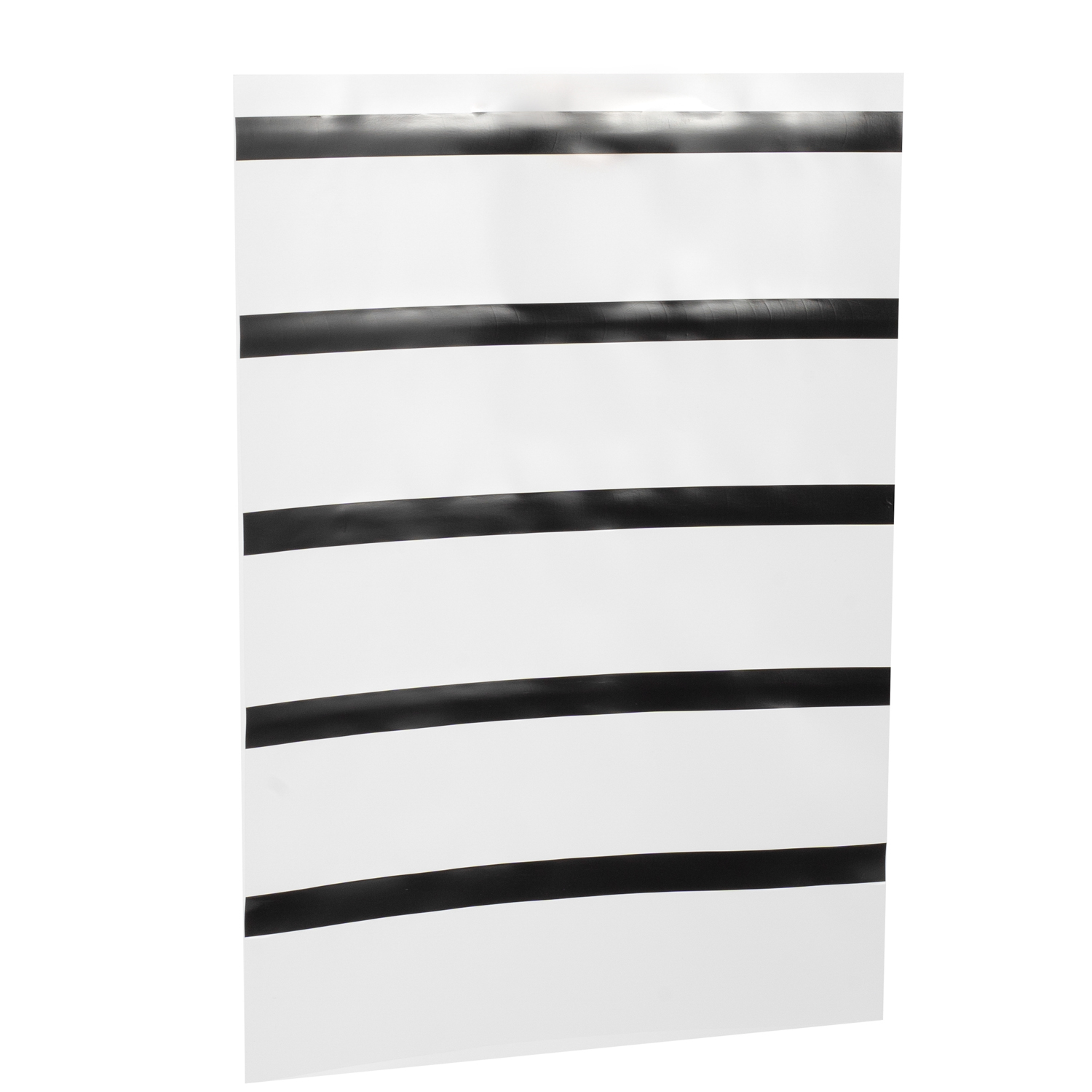

HiCo and LoCo Coated Overlay with Magnetic Stripe for Card Lamination
Wallis coated overlay with magnetic stripe is a functional card-lamination material that combines a transparent protective overlay, a bonding coating, and an integrated magnetic stripe in one production-ready sheet. It can be laminated together with printed card-core sheets before the finished cards are punched and encoded.
Available in HiCo and LoCo magnetic stripe options, the overlay is designed for professional card manufacturers producing hotel key cards, access cards, membership cards, loyalty cards, employee cards, transportation cards, banking cards, identification cards, and other machine-readable plastic cards.
Custom manufacturing options: PVC, PET, PETG or PC substrate; 0.04mm–0.15mm thickness; A4, A3, sheet or customized format; HiCo or LoCo stripe; customized stripe color, width, position, direction, coating and packaging.
| Product Name | Coated overlay film with integrated magnetic stripe |
| Available Materials | PVC, PET, PETG, PC, or customized card-compatible material |
| Overlay Thickness | 0.04mm–0.15mm; common options include 0.05mm, 0.08mm, and 0.10mm |
| Sheet Size | A4, A3, customized sheet dimensions, or project-specific format |
| Magnetic Stripe Type | HiCo or LoCo |
| Coercivity Options | 300 Oe LoCo; 2750 Oe or 4000 Oe HiCo; other specifications subject to project confirmation |
| Stripe Color | Black or customized color subject to magnetic-stripe grade and order requirements |
| Stripe Width | Standard or customized width according to card design and reader requirements |
| Stripe Position | Customized distance from the sheet or finished-card edge, according to the approved drawing |
| Coating | Lamination bonding coating on the designated card-contact side |
| Surface Finish | Transparent glossy, matte, frosted, or customized finish |
| Main Applications | Hotel cards, access cards, banking cards, membership cards, loyalty cards, transportation cards, employee cards, ID cards, and smart cards |
| OEM Customization | Material, thickness, dimensions, stripe grade, width, position, color, coating, surface, packing, and labeling |
All technical parameters should be confirmed through the approved specification, magnetic-stripe layout drawing, and production sample. Finished-card performance depends on the complete card structure, stripe grade, encoder, reader, ink, lamination equipment, and processing conditions.
Select the magnetic grade, base film and production format from the finished-card requirement. The values below are common sourcing references, not automatic stock commitments or universal acceptance limits.
| Requirement | Typical Sourcing Direction | What Buyers Should Verify |
|---|---|---|
| Low-coercivity magnetic stripe | LoCo, often around 300 Oe | Existing encoder type, rewriting requirements, field exposure and reader output |
| High-coercivity magnetic stripe | HiCo, commonly 2750 Oe or 4000 Oe | Encoder write capability, magnetic signal, card life and reader compatibility |
| Typical card overlay gauges | 0.05 mm, 0.08 mm or 0.10 mm; other gauges by request | Overlay thickness excluding or including stripe build-up, thickness tolerance and finished stack |
| Magnetic track configuration | One-, two- or three-track designs as needed | Track count, track centerlines, recording format, reader head position and coding requirements |
| Common stripe widths | Approximately 8.4 mm or 12.7 mm where appropriate | Track geometry and actual finished-card stripe width from approved drawing |
| Base material and coating | PVC standard; PET, PETG or PC by separate development | Printed core, ink chemistry, coating side, press recipe and peel performance |
| Supply format | A4, A3, custom sheets or specified production format | Card pitch, stripe orientation, punch marks, flatness, packing and quantity |
The approved specification must state the actual magnetic grade, substrate and tested construction. Bank or payment use requires additional scheme-specific qualification of the completed card.
Coated overlay with magnetic stripe is a transparent card overlay sheet that already contains a magnetic data stripe and a lamination bonding surface. During card production, the material is stacked with the printed card core and other functional layers, laminated under controlled heat and pressure, and then punched into finished magnetic cards.
Integrating the magnetic stripe into the overlay can eliminate a separate stripe-application process. This helps card manufacturers simplify layer preparation, improve stripe-position consistency, reduce handling steps, and create a protective finished-card surface in the same lamination cycle.
The magnetic stripe contains magnetizable particles that can be encoded with machine-readable data. Compatible magnetic encoders create a pattern of magnetic transitions on the stripe, and card readers convert those transitions into digital information used by the corresponding access, identification, membership, hospitality, payment, or transportation system.
The stripe itself is a data-recording medium. System security depends on the complete card program, including data format, backend verification, reader configuration, access rules, chip technology, visual security features, and credential-management procedures.
Barcode and Magnetic Stripe Card
Blank Cards Ready for Printing and Encoding
LoCo means low coercivity. A common LoCo specification is approximately 300 Oe. It requires a lower magnetic field for encoding and can be suitable for hotel key cards, temporary access cards, event cards, promotional cards, and other applications where cards are frequently reissued or rewritten.
Because LoCo data can be more easily affected by strong external magnetic fields, buyers should evaluate the intended service environment, card life, encoding equipment, and reader system before selecting it.
HiCo means high coercivity. Common project specifications can include 2750 Oe or 4000 Oe. HiCo stripes offer greater resistance to accidental magnetic erasure and are commonly considered for frequently handled or longer-service cards such as employee access cards, transportation cards, membership cards, identification cards, and financial cards.
Choose LoCo when the installed encoder and reader ecosystem requires a low-coercivity stripe; it is common in short-cycle programs. Choose HiCo when the equipment supports higher coercivity and improved resistance to accidental erasure is needed. Rewriting capability depends on the system, not only the stripe grade.
Final selection must also match the customer's encoder, reader, data format, magnetic-stripe standard, track configuration, service environment, and finished-card qualification process.
The magnetic stripe is supplied as part of the overlay layer, reducing the need to apply a separate stripe after printing or lamination. This can simplify material preparation and production scheduling.
The coated side is designed to bond with compatible printed card-core materials during thermal lamination. Correct coating selection can help reduce bubbles, edge lifting, weak adhesion, and interlayer separation.
Stripe position can be manufactured according to an approved technical drawing, helping maintain repeatable alignment after sheet lamination and card punching.
The transparent overlay protects printed graphics, text, barcodes, logos, photographs, and variable data from routine abrasion, moisture, dirt, and repeated handling.
Material, thickness, sheet dimensions, stripe grade, stripe position, stripe width, surface finish, coating, packing, and labeling can be customized for different card-manufacturing lines.
By combining the protective overlay and magnetic stripe into one material, manufacturers may reduce separate stripe-transfer operations, handling time, alignment work, and production-stage inventory.
Magnetic Stripe and Chip Card Solutions
Magnetic Overlay for Card Lamination
PVC overlay is widely used for conventional plastic cards because it provides a practical balance of lamination performance, flexibility, print compatibility, surface quality, and cost.
PET and PETG grades can be evaluated for card structures requiring higher mechanical strength, chemical resistance, dimensional stability, or compatibility with PET-family card cores.
Polycarbonate overlay can be considered for high-durability card constructions, secure identification documents, and applications requiring PC-compatible lamination or laser-personalization materials. The complete layer structure must be validated before production.
Magnetic coercivity, stripe width and track format are different specification dimensions. A nominally correct stripe may still fail in service if the recording track or reader geometry is mismatched.
| Design Element | Practical Requirement | Approval Evidence |
|---|---|---|
| Track 1 / Track 2 / Track 3 | Specify exactly which tracks will be encoded and used; track content and recording density must match the system | Encoder configuration, data structure and decoded sample records |
| Stripe width | Widths such as 8.4 mm or 12.7 mm are common references, not universal defaults | Drawing showing usable width and track centerline positions |
| Position and orientation | Dimension from the finished-card edge after punching, not only from the A4/A3 sheet edge | Signed CAD drawing, press orientation and first-article inspection |
| HiCo / LoCo | Select coercivity from use case and writer capability, not just expected card lifespan | Sample encoded by the production writer and tested on the actual reader |
| Signal quality | Magnetic flux and decoded information must remain readable after lamination and reasonable handling | Defined readback, signal-quality or error-rate criterion |
| Hybrid smart card | RFID antenna/chip placement and magnetic stripe location must not conflict with production tooling | Finished-card RF and magnetic read tests on the same approved sample |
For projects referencing ISO/IEC 7811-2 (low coercivity) or ISO/IEC 7811-6 (high coercivity), specify the applicable finished-card requirements and test methods. These standards do not mandate a single universal Oe value.
Print the card-core sheets using the approved ink, printing method, drying process, and registration marks. Confirm that the ink system is compatible with the selected coating.
Identify the coated side, magnetic-stripe side, stripe direction, and top or bottom overlay orientation before assembling the card layers.
Place the front overlay, printed core layers, inlay or functional core, and rear magnetic overlay in the approved order. The bonding sides should face the intended card-core surfaces.
Apply the qualified temperature, pressure, heating time, cooling time, release plate, and stacking method established during sample testing. A universal lamination recipe should not be assumed for every material combination.
Punch the laminated sheet into finished cards and inspect card dimensions, stripe position, surface quality, flatness, edge bonding, and visual appearance.
Encode the stripe using the intended production encoder, then verify reading performance, track data, signal consistency, swipe direction, error rate, and compatibility with the target card readers.
Overlay selection must be reviewed in the context of the complete laminated card. A coating film can perform well independently yet fail after printing, press heating, punching or encoding.
| Production Stage | What to Control | Typical Failure if Missed |
|---|---|---|
| Printed core preparation | Material compatibility, ink cure, full-coverage areas and absence of powder or oil | Bubbles, haze and coating delamination |
| Overlay collation | Correct coated side to core, stripe-bearing side and marked sheet orientation | Buried or reversed stripe, weak adhesion and incorrect reader placement |
| Lamination | Approved heat, pressure, dwell, release and controlled cooling for the entire material stack | Warping, stripe deformation, peel failure and surface marks |
| Punching | Finished-card geometry, stripe-to-edge distance, cutting clearance and tool alignment | Reader head mismatch and damaged stripe edges |
| Encoding | HiCo/LoCo writer settings, track selection, data mapping and correct swipe direction | Failed writes, weak signals, wrong track data |
| Read-back / first article | Actual production encoder and field reader with documented pass/fail values | High field failure rate despite good visual appearance |
Press parameters should come from validated production trials for the actual ink, film, coating and magnetic stripe. Do not apply a competitor’s temperature settings as a default Wallis specification.
LoCo magnetic stripe overlays are commonly evaluated for hotel guest-room cards because the credentials are often rewritten and reissued during the card's service cycle.
HiCo magnetic stripes can support frequently used access cards, employee badges, campus cards, facility credentials, and identification cards requiring improved resistance to accidental erasure.
Magnetic stripe overlays can be used for gym cards, club cards, retail loyalty cards, library cards, entertainment cards, and customer identification programs.
Magnetic cards can support fare collection, ticketing, passenger identification, parking access, and other transportation applications when matched with the designated reader infrastructure.
HiCo magnetic stripe materials may be evaluated for financial card structures that require machine-readable magnetic data. Finished cards must be validated against the buyer's applicable technical, security, payment-network, and regulatory requirements.
Magnetic stripe functionality can be combined with contact chips, contactless RFID or NFC inlays, printed barcodes, QR codes, signature panels, and visual security features to support legacy and newer reader systems within one card.
Customized Magnetic Cards
Membership and Loyalty Cards
Hybrid Magnetic and Smart Cards
Magnetic-stripe position must be defined relative to the finished card, not only the uncut overlay sheet. The supplier needs a dimensioned drawing showing the sheet orientation, card layout, cutting marks, stripe direction, distance from the finished-card edge, stripe width, and tolerance.
Finished-card size and card orientation.
Number of cards arranged on each printed sheet.
Magnetic stripe width and color.
Distance from the stripe edge to the finished-card edge.
Stripe direction and swipe direction.
HiCo or LoCo coercivity specification.
Required positional and cutting tolerance.
Any signature panel, chip, barcode, or printed area near the stripe.
Reliable magnetic card production requires inspection of both the transparent overlay and the functional stripe. Wallis can coordinate project-specific inspection requirements according to the material grade, card structure, order volume, and customer acceptance criteria.
Material and coating-grade verification.
Thickness and sheet-dimension inspection.
Transparency, haze, gloss, and surface-cleanliness inspection.
Coating uniformity and coated-side identification.
Dust, scratch, wrinkle, pinhole, and edge-damage inspection.
Trial lamination, flatness, and peel-strength evaluation.
HiCo or LoCo grade confirmation.
Stripe width, position, direction, and visual consistency.
Stripe adhesion and resistance to peeling during processing.
Surface defects, contamination, breaks, or irregular edges.
Encoding and reading verification using compatible equipment.
Finished-card swipe, track, and reader compatibility testing.
Where an ISO, customer, banking, transportation, hospitality, government, or access-control requirement applies, conformity must be evaluated on the finished encoded card using the appropriate test method. Raw overlay supply alone does not establish finished-card compliance.
Use a finished-card trial to separate magnetic-data failures from lamination, layout and punching defects before rejecting an entire production batch.
| Symptom | Possible Causes | Recommended Check |
|---|---|---|
| Card cannot be encoded | Wrong HiCo/LoCo setting, missing track, unsuitable encoder or damaged stripe | Check writer type, coercivity, track map and stripe continuity using a reference card |
| Encoded card is unreadable | Track position error, weak signal, wrong data format or reader-head misalignment | Compare track readback, card orientation and finished-edge stripe dimensions |
| Intermittent reader failures | Abrasive wear, inconsistent stripe signal, edge offset or contaminant marks | Inspect stripe surface, encoding amplitude, swipe path and multiple field readers |
| Stripe shifts after lamination | Wrong sheet orientation, thermal movement or inadequate registration control | Verify approved CAD, registration marks and post-lamination stripe-to-edge position |
| Magnetic tape lifts or peels | Wrong process temperature, incompatible adhesive/coating or contamination | Run adhesion tests and check tape, ink, cure and lamination records |
| Bubbles or delamination | Trapped air, poor ink cure, moisture, contamination or insufficient bonding | Review preconditioning, coated-side direction, print cure and cooling |
| Card bows or curls | Unbalanced overlay stack, excessive heat, uneven pressure or inadequate cooling | Measure stack thickness and flatness; balance front/back layers |
| Poor RFID performance in hybrid card | Metallic printing, antenna damage, excessive chip-zone pressure or card-stack change | Run RF test before and after lamination along with magnetic readback |
Record the defect rate, affected lot, reader/encoder model, lamination recipe and corrective-action results for repeat-order consistency.
Magnetic overlay should be tested with the buyer's actual printed core, card-body material, lamination machine, encoder, reader, cutting layout, and finished-card design before mass production.
Approve the material, thickness, stripe grade, width, color, and position drawing.
Test coating compatibility with the actual printed ink.
Confirm lamination temperature, pressure, time, and cooling cycle.
Inspect stripe alignment after lamination and punching.
Encode all required tracks using the production encoder.
Read the cards with the intended field readers.
Evaluate adhesion, abrasion, bending, flatness, aging, and handling performance.
Sign the approved sample or technical specification before bulk manufacture.
Send your overlay material, thickness, sheet layout, stripe coercivity, width, position, color, card application, encoder model, reader system, estimated quantity, and delivery destination.
Get a Technical RecommendationA good purchase specification uses testable criteria rather than only “high quality” or “strong adhesion.” Define which characteristics need 100% verification and which are evaluated by an agreed sampling plan.
| Inspection Item | Recommended Buyer-Supplier Agreement | Evidence |
|---|---|---|
| Grade and traceability | Base resin, coated overlay version, stripe grade, stripe supplier and batch IDs | Lot labels, COA or supplier traceability record as agreed |
| Film thickness and dimensions | Nominal gauge, measurement method, thickness tolerance and sheet cut tolerance | Thickness map and sheet-dimension checks |
| Stripe geometry | Width, orientation, stripe-to-card-edge dimension and position tolerance | Signed drawing and measured finished cards |
| Coating and lamination bond | Coated side identification and agreed peel/edge-bond test on a representative printed core | Approved sample and test report |
| Visual appearance | Scratches, dust, bubbles, stripes breaks, haze and contamination criteria | Inspection samples and visual acceptance standard |
| Encoding / readback | Track numbers, data format, encoder settings, pass rate and designated reader models | Functional readback logs on finished cards |
| Durability | Abrasion, bending, humidity or accelerated aging where contractually required | Trial results with specified test conditions |

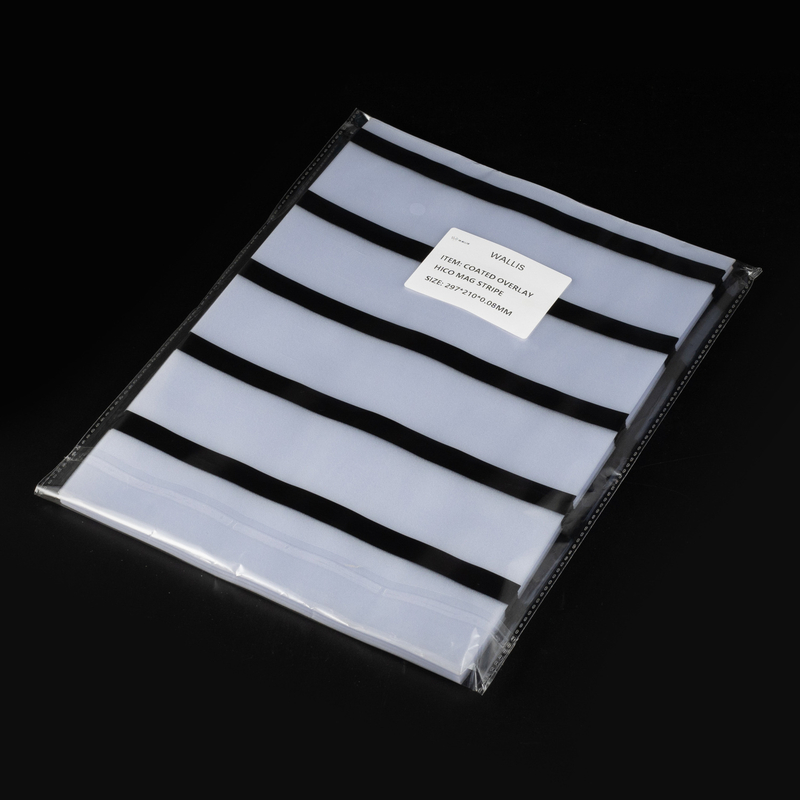

| Packaging | Protection from dust, stripe abrasion, bending, excessive heat and magnetic fields | Packing photos, lot labels and shipping record |
Specifications and acceptance limits should be established with the manufacturer and verified by representative production samples. No certification is implied solely by selecting a magnetic grade.
Magnetic stripe overlay must be protected from moisture, dust, surface abrasion, bending, edge damage, and uncontrolled magnetic exposure during storage and transport. Export packaging can be customized according to sheet size, order quantity, destination, and handling requirements.
Clean protective inner film or PE wrapping.
Moisture-resistant kraft paper or sealed protective packaging.
Carton, reinforced box, wooden case, or palletized export packing.
Corner and edge protection to reduce sheet deformation.
Lot number, material grade, coated-side and stripe-direction labels.
Customized labels, packing lists, and shipping marks.
Protected Export Packaging
Palletized International Shipping
Wallis supplies card materials to card manufacturers, printing companies, smart card factories, converters, distributors, and OEM customers. We support customized magnetic stripe overlay projects from specification review and samples through bulk production and export delivery.
More than 15 years of experience in plastic sheets and card materials.
Multiple production facilities and scalable manufacturing capacity.
PVC, PET, PETG, PC, coated overlay, core sheet, and card-inlay supply.
HiCo and LoCo magnetic-stripe customization.
Customized thickness, dimensions, stripe position, surface, and coating.
Sample and pilot-order support for lamination and encoding verification.
Customized packaging, labels, shipping marks, and export documentation.
Wallis Exhibition
Global B2B Customers
Wallis Factory
Send Wallis your material, thickness, sheet size, stripe coercivity, stripe width, stripe position, card application, encoder, reader, annual volume, and sample requirements.
Request Pricing and SamplesFor a faster technical quotation, send a single approved data pack containing the finished-card drawing, base material, film thickness, HiCo/LoCo grade, stripe width, stripe-to-edge coordinates, required tracks, card size, printing ink, laminator, encoding equipment and estimated annual demand.
For buyers who need plain card protection without an integrated magnetic stripe, Wallis also supplies PVC overlay film for card lamination. For buyers sourcing a broader range of individual magnetic stripe films and material options, see PVC, PC and PET magnetic stripe films.
Buyers with an RFID or NFC project should supply the card inlay and chip layout as well. Verify magnetic and contactless functions together after final lamination and card punching.
It is used as the protective outer layer and magnetic data layer in laminated plastic cards. The overlay protects printed card information while the integrated stripe supports compatible magnetic encoding and reading.
LoCo stripes require a lower magnetic field for encoding and are commonly used for shorter-cycle or frequently rewritten cards. HiCo stripes require a stronger encoding field and provide greater resistance to accidental magnetic erasure.
Yes. Wallis can discuss 300 Oe LoCo and 2750 Oe or 4000 Oe HiCo options. Final availability and suitability depend on the material, stripe supplier, color, width, position, quantity, and project requirements.
Yes. Stripe width, position, direction, color, coercivity, and distance from the finished-card edge can be customized according to an approved technical drawing.
Yes. Wallis can supply A4, A3, and customized sheet dimensions. The layout should be matched with the buyer's printing format, card imposition, lamination plate, and punching process.
Available material options can include PVC, PET, PETG, and polycarbonate. The correct material depends on the card core, printing method, lamination temperature, required card life, and personalization process.
Yes, when the overlay coating, printed ink, card-core material, and lamination process are compatible. The coated side should face the intended printed or core layer, and samples should be tested before bulk production.
No. A magnetic stripe is primarily a machine-readable data medium. Security depends on the encoded data, backend system, reader controls, credential-management process, and any additional chip, holographic, printed, or laser-personalized security features.
Yes. Magnetic overlay can form part of a hybrid card containing a contact chip, RFID or NFC inlay, barcode, QR code, signature panel, or other card function. The complete layer structure must be tested for bonding, flatness, card thickness, and encoding performance.
This material is primarily designed for use during card manufacturing, before lamination and punching. Adding it to an already finished card is generally not equivalent to producing a properly laminated magnetic card and may affect card thickness, dimensions, flatness, and reader compatibility.
Yes. Sample testing is strongly recommended to verify coating compatibility, stripe position, lamination bonding, punching accuracy, encoding, track reading, surface appearance, and finished-card performance.
Please provide the overlay material, thickness, sheet size, HiCo or LoCo specification, coercivity, stripe width, stripe color, stripe-position drawing, coating requirement, card application, printing method, estimated quantity, packaging, and destination.
Store the sheets sealed in their original packaging in a clean, dry, temperature-controlled environment. Protect them from moisture, dust, bending, scratches, strong magnetic fields, direct sunlight, and uncontrolled heat.
Magnetic stripe overlay is a protective plastic sheet with an integrated magnetic stripe for lamination. Magnetic stripe transfer foil is a separate stripe material applied in a designated transfer or stamping operation. The two products use different converting workflows.
Widths such as 8.4mm for some two-track structures and 12.7mm for common three-track structures are sourcing references. Confirm the exact track geometry, reader head and finished-card layout instead of choosing width from track count alone.
No. ISO/IEC 7811-6 specifies performance requirements for the finished high-coercivity magnetic stripe card, not a single obligatory Oe rating. Compliance depends on the complete card construction, encoding and test results.
Not necessarily. Some encoders cannot write the magnetic field required by HiCo grades. Confirm the writer specification and test an approved production card before ordering.
Specify stripe width, orientation and distance from the finished-card edge in CAD. Approve a laminated and punched first article, then monitor registration and tooling drift during production.
Provide required tracks, data structure, encoder model, magnetic grade, card orientation, intended field readers and readback criteria. Data format and access permissions are set by the card system, not by the overlay alone.
Agree in advance on chip or stripe lot references where relevant, overlay material lot, thickness checks, stripe-position results, sampled lamination tests and finished-card readback. Documentation scope should be defined in the purchase specification.
The approved sample should show material and coating grade, finished-card stack, stripe orientation and position, surface quality, peel performance and successful encoding/readback on the intended equipment.
Start Your Project with Us
