Custom LF/HF/UHF Transparent PVC RFID Inlay Prelam Sheet

Custom transparent PVC RFID inlay prelam sheets for LF, HF, NFC and UHF smart card production. Choose chip, antenna, layout, thickness, sheet size, encoding and OEM packaging for B2B projects.
  • card material

  • Wallis

  • inlay

Size:
Material:
advantage:
Availability:
Quantity:

Custom Layout LF, HF and UHF Transparent PVC RFID Inlay Prelam Sheet

Wallis transparent PVC RFID inlay prelam sheets are engineered for contactless smart card manufacturers that require customized antenna layouts, controlled chip positioning and reliable lamination performance. Available project configurations include LF 125kHz, HF 13.56MHz, NFC and UHF 860–960MHz technologies for access cards, identification cards, membership cards, hotel cards, asset cards and other RFID applications.

Each prelam sheet integrates the selected RFID chip and antenna inside transparent or semi-transparent PVC layers before final card conversion. Layout, sheet size, thickness, antenna geometry, chip position and card pitch can be developed around the buyer’s punching tool, printing artwork, laminator and reader system.

LF, HF and UHF are different radio technologies rather than interchangeable versions of one product. For a reliable quotation, buyers should identify the required frequency, protocol, chip model, reader model, target read range and finished card construction before sample production.

Technical Specifications

Parameter Available Specification or Project Option
Base Material Transparent PVC or semi-transparent PVC
Product Type Contactless RFID inlay prelam sheet for card conversion
Frequency Options LF 125kHz / HF 13.56MHz / NFC / UHF 860–960MHz
Layout Options 3×8 / 3×7 / 4×5 / A4-related layouts / custom card matrix
Sheet Size A4 or custom dimensions based on punching and lamination equipment
Prelam Thickness 0.30–0.76mm according to current product data; final construction confirmed by sample
Antenna Options Copper coil, embedded wire or etched antenna according to frequency and project design
Chip Options Selected by protocol and reader system; LF, HF/NFC and UHF chip families available by project
Surface Transparent / semi-transparent / frosted transparent; printable or overlay-ready grade by request
Downstream Processing Overlay lamination, sheet printing where specified, punching, chip testing and card personalization
Customization Layout, pitch, chip position, antenna geometry, thickness, sheet size, black marks and packaging
MOQ Depends on chip, antenna, layout and customization requirements

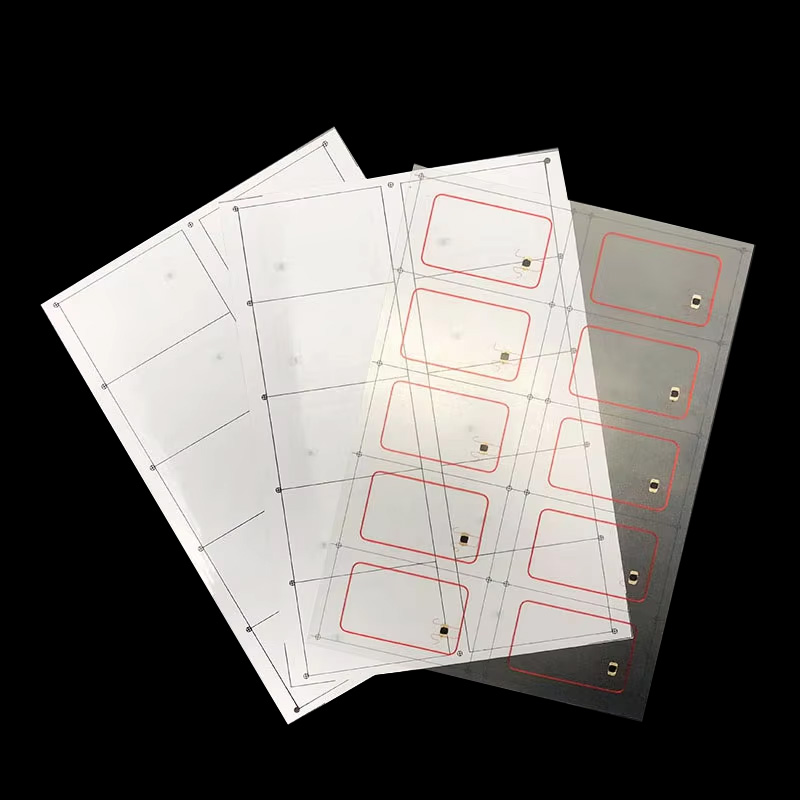

Transparent PVC RFID inlay prelam sheet with customized LF HF or UHF layout

What Is a Transparent RFID Inlay Prelam Sheet?

An RFID prelam is the functional middle layer used to manufacture a contactless plastic card. The chip, antenna and bonding structure are enclosed between plastic layers, creating a stable sheet that can be combined with printed sheets and protective overlays before final punching.

Typical Card Structure

  • Top protective overlay or printable layer

  • Transparent PVC prelam layer

  • RFID chip and matched antenna

  • Lower PVC layer and optional printed sheet

  • Back overlay or functional card layer

Transparent PVC allows the antenna and internal construction to become part of the visual card design. Because the antenna remains visible, alignment, adhesive control, surface cleanliness and chip position are especially important for premium transparent cards.

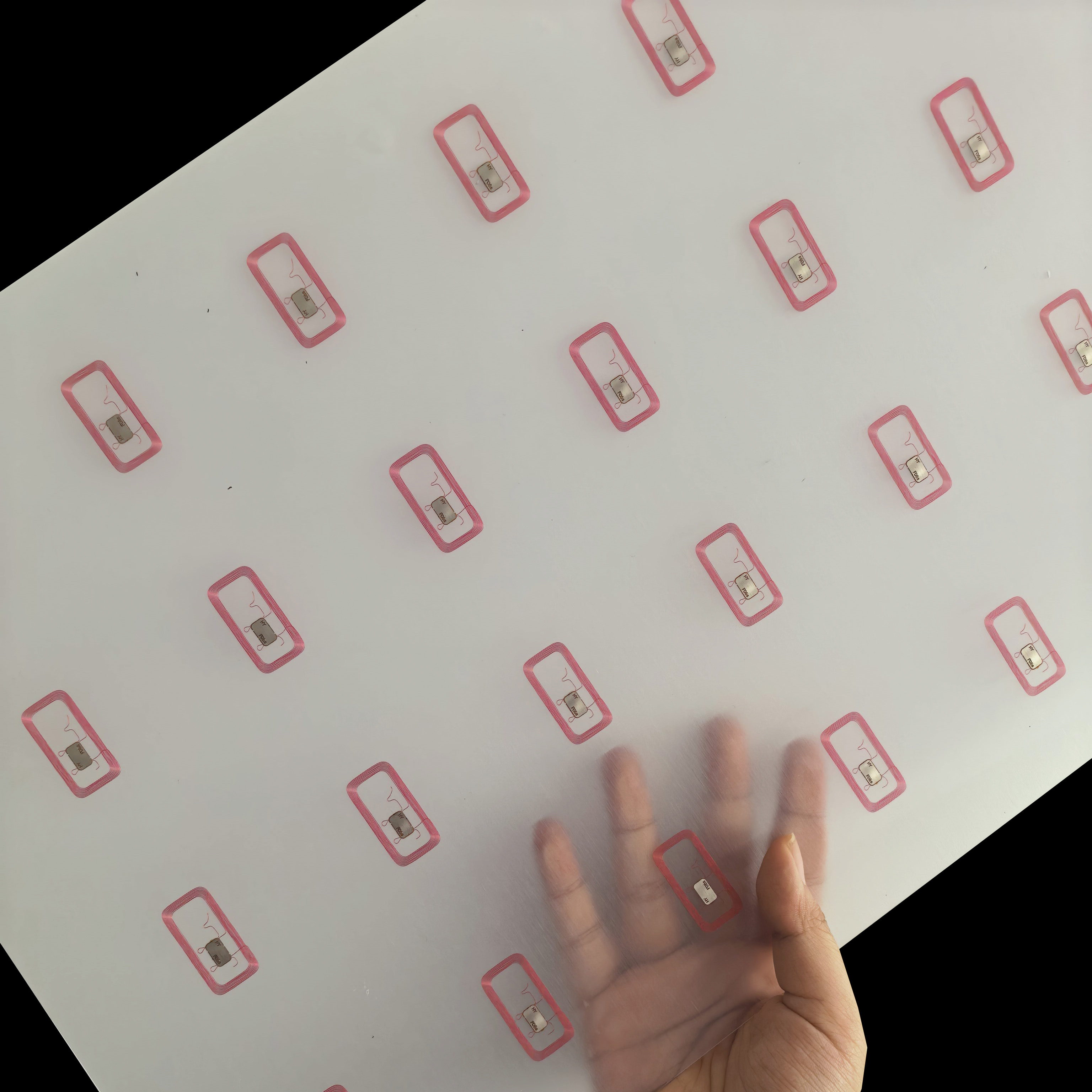

Transparent PVC RFID inlay prelam sheet showing embedded antenna layout

Transparent RFID Inlay Structure

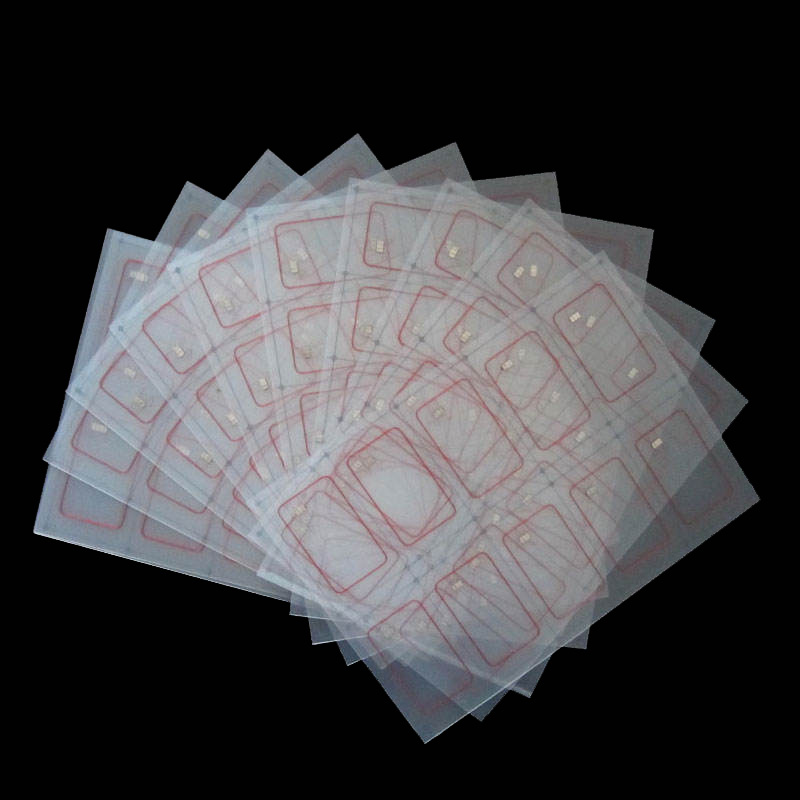

Customized chip and antenna positioning in transparent PVC prelam sheet

Customized Chip and Antenna Position

Choose the Correct LF, HF or UHF Technology

Frequency selection must be based on the reader infrastructure and application protocol. A card designed for LF access control will not automatically operate with an HF/NFC reader, and a UHF tracking card requires a different antenna and test environment from a short-range proximity card.

Technology Frequency Typical Protocol or Chip Family Common B2B Applications What the Buyer Must Confirm
LF 125kHz EM, TK, T5577 and other LF families, depending on reader protocol Proximity access, attendance, identification and legacy systems Exact chip, encoding format, UID requirement and reader model
HF / NFC 13.56MHz ISO/IEC 14443, ISO/IEC 15693, NFC-compatible and application-specific chips Access, membership, campus, transit, NFC interaction and secure identification Protocol, memory, security level, keys, reader and encoding responsibility
UHF 860–960MHz EPC Class 1 Gen 2 / ISO/IEC 18000-63 chip platforms by project Asset identification, vehicle cards, inventory and longer-range tracking Regional band, antenna orientation, target read range and surrounding materials
Hybrid Two or more frequencies LF + HF, LF + UHF or HF + UHF configurations subject to design review Migration projects and cards serving multiple installed reader systems Available card area, antenna interaction, chip position and finished thickness

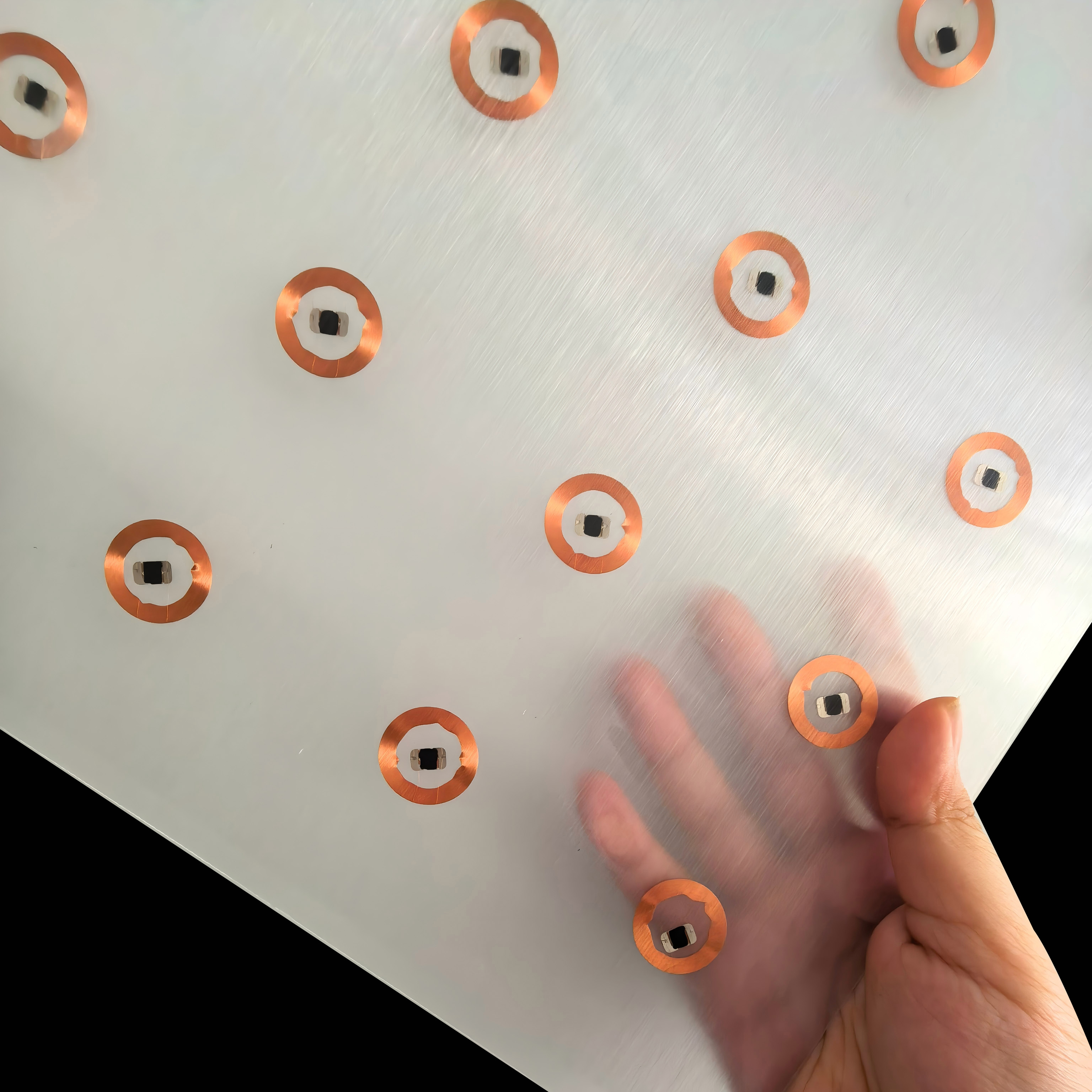

Transparent PVC RFID inlay sheet for LF HF or UHF card production

RFID Inlay Sheet for Card Conversion

Transparent RFID prelam sheet with customized card matrix

Customized Card Matrix and Antenna Layout

Custom Layout Engineering for Card Production

Match the Buyer’s Punching and Printing Layout

The inlay matrix must align with the customer’s artwork imposition, registration marks, punching die and card orientation. Standard arrangements such as 3×8, 3×7 and 4×5 can be supplied, while custom layouts require a dimensional drawing or approved card-position file.

Control Chip and Antenna Position

Chip position must avoid embossing zones, magnetic stripes, signature panels, contact modules, punch lines and critical printed elements. For transparent designs, the visible antenna path should also be reviewed against the artwork.

Design for Finished Card Thickness

Prelam thickness is only one part of the finished card construction. Printed sheets, overlays, adhesive layers, chip cavities and optional security layers must be included when calculating the final laminated thickness.

Layout Input Information Required Reason
Sheet Drawing Overall sheet length, width, margins and card matrix Matches laminator, artwork and punch tooling
Card Orientation Portrait or landscape, front/back reference and feed direction Prevents mirrored or rotated antenna placement
Chip Location X/Y coordinate and exclusion zones Avoids embossing, module, stripe and punching conflicts
RF Requirement Frequency, chip, protocol, reader and target range Supports antenna tuning and functional testing
Card Construction Layer materials, thicknesses, overlays and printing process Confirms lamination behavior and final card gauge

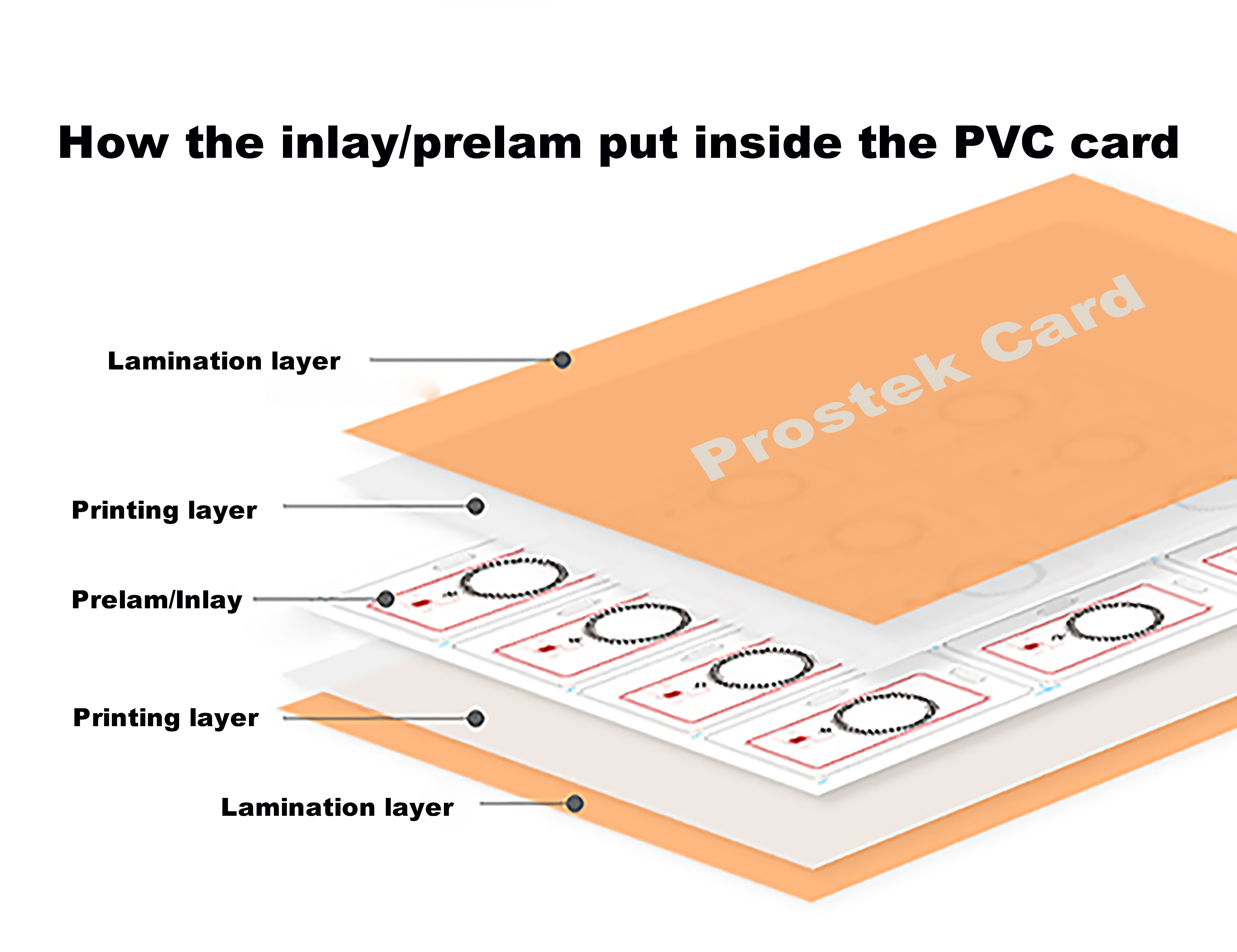

RFID inlay prelam positioned inside a laminated smart card structure

Key Manufacturing Advantages

Precise Inlay Positioning

Controlled antenna and chip placement helps the customer maintain registration through printing, lamination and punching. Dimensional requirements should be defined on the approved layout drawing and verified during sample production.

Transparent Card Design Capability

Transparent or semi-transparent prelam enables visible-technology card designs. Clean PVC layers, controlled adhesive appearance and consistent antenna routing help create a more professional finished card.

Lamination and Conversion Compatibility

The prelam can be integrated with compatible PVC printing sheets and overlays. Lamination temperature, pressure, dwell time and cooling method must be confirmed through trials because the correct settings depend on card construction and equipment.

Multi-Frequency and Hybrid Project Support

Single-frequency and selected hybrid configurations can be developed. Hybrid cards require additional engineering because two antennas can interact, compete for card area or affect read performance after lamination.

OEM Production Information

Buyers can specify sheet labels, card-position numbering, black registration marks, packing quantities and pallet labels. Encoding or UID data handling should be defined separately, including data format, security requirements and responsibility for keys.

Printing, Lamination and Card Conversion Guidance

Printing Surface Must Be Confirmed

Some prelam sheets are intended to remain inside the card and be covered by separately printed PVC sheets. Direct offset, UV or digital printing should only be specified when the selected surface treatment and ink system have been tested for adhesion.

RF Performance Must Be Tested After Lamination

Antenna resonance and read range can change after the prelam is combined with overlays, metallic inks, foil, magnetic materials or nearby electronic components. Approval testing should use the final card construction and the buyer’s production reader.

Punching Registration Must Be Verified

Before mass production, the customer should verify artwork registration, card pitch, antenna clearance and chip location on the actual punching tool. A dimensional drawing alone cannot replace a complete production trial.

Quality Control and Sample Approval

For B2B orders, the approved sample should become the reference for layout, appearance, thickness and RF performance. Inspection criteria must be agreed before production, especially for custom antenna designs and multi-frequency structures.

Inspection Item What Is Checked Recommended Approval Stage
Visual Appearance Transparency, contamination, scratches, bubbles and adhesive appearance Raw sample and finished card sample
Dimensions Sheet size, card pitch, margins, chip coordinates and antenna clearance Layout drawing and first article
Thickness and Flatness Sheet gauge, local chip area and warpage Prelam sheet and laminated card
Electrical Continuity Antenna continuity and chip connection Before packing
Reader Performance UID response, protocol, memory access and project-specific read range Before and after final lamination
Lamination Integrity Bonding, bubbles, delamination, surface marks and chip-area deformation Golden Sample card

Recommended Golden Sample Process

  1. Confirm frequency, protocol, chip, reader and encoding requirements.

  2. Approve the sheet drawing, card matrix, antenna route and chip coordinates.

  3. Produce sample prelam sheets and verify electrical performance.

  4. Laminate with the buyer’s complete card structure.

  5. Punch finished cards and test them on the intended reader system.

  6. Approve the Golden Sample and written batch acceptance criteria.

Applications

Access Control and Attendance Cards

LF or HF prelam sheets can be configured for employee access, campus identification, attendance and legacy proximity systems. The installed reader protocol must be confirmed before chip selection.

NFC and Membership Cards

HF/NFC inlays can support digital interaction, membership identification and selected smart marketing applications when the chip memory, NDEF requirement and smartphone or reader compatibility are defined.

Hotel and Hospitality Cards

Hotel cards must match the existing lock system’s frequency, chip, memory structure and security configuration. A general HF or NFC chip is not automatically compatible with every hotel lock platform.

UHF Identification and Tracking Cards

UHF card inlays can be designed for longer-range identification, vehicle access and asset workflows. Performance depends on the regional frequency band, reader power, antenna orientation and materials surrounding the finished card.

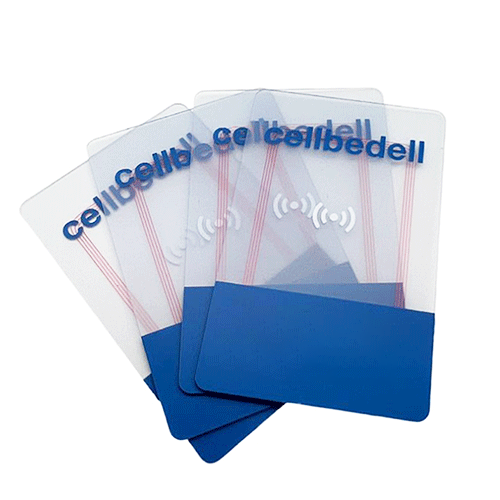

Finished RFID smart card produced from transparent PVC prelam sheet
Contactless card application using custom RFID inlay prelam

Why Choose Wallis for Custom RFID Prelam Sheets?

  • Customized layout support: card matrix, antenna route, chip position and sheet size can be reviewed for OEM projects.

  • Multiple RFID technologies: LF, HF/NFC, UHF and selected hybrid configurations can be discussed.

  • Transparent card material capability: clear and semi-transparent PVC constructions are available for visible-technology designs.

  • Card material integration: matching PVC sheets, overlays and finished card conversion support can be coordinated.

  • Sample-based approval: technical samples can be evaluated for lamination, punching and reader compatibility before mass production.

  • Export packaging: sheet protection, carton packing, labeling and pallet options can be specified for international orders.

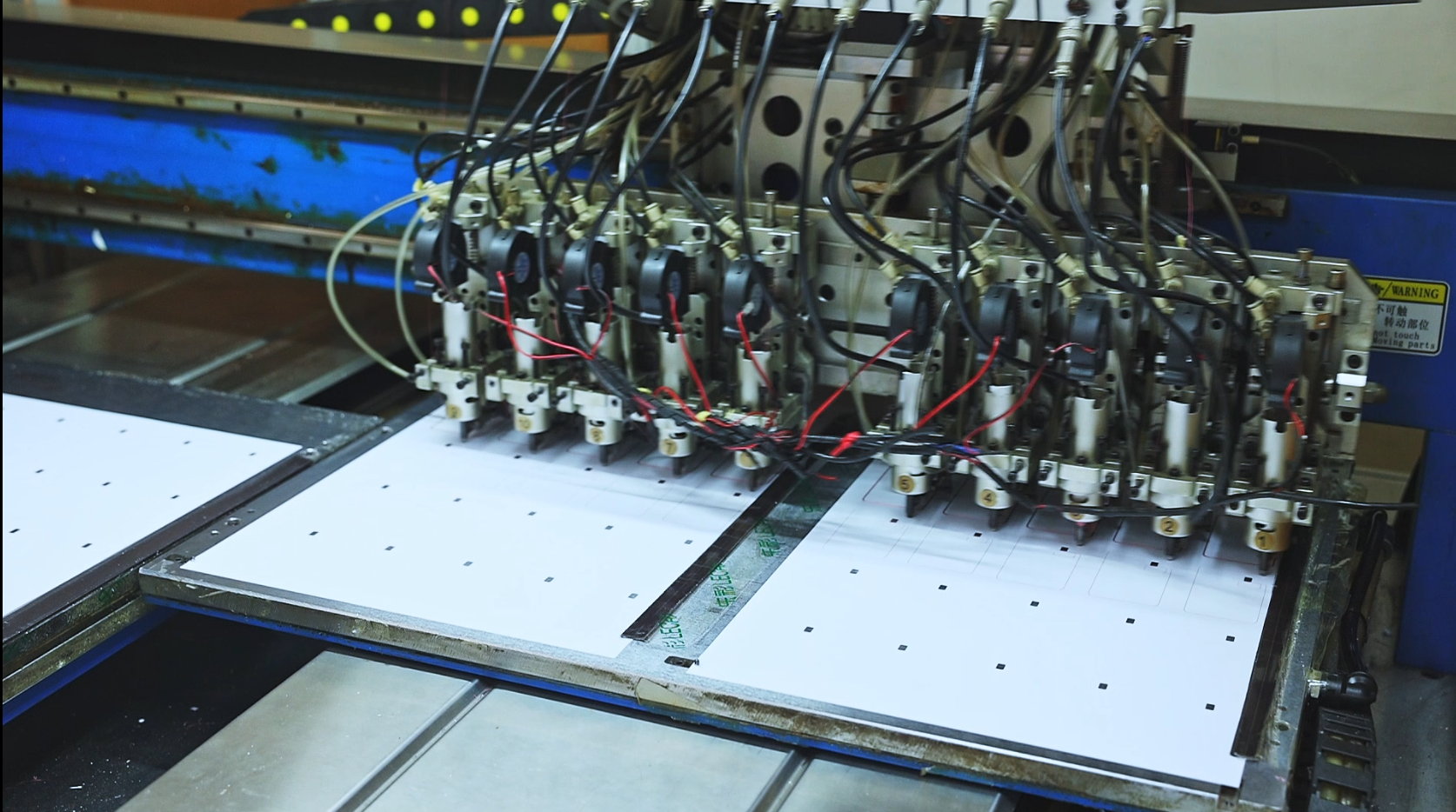

Wallis production facility for customized RFID prelam sheets

Customization Options

  • LF, HF/NFC, UHF or approved hybrid frequency structure

  • Chip model selected for the buyer’s protocol and reader

  • Copper wire, embedded wire or etched antenna design

  • 3×8, 3×7, 4×5 or fully customized sheet layout

  • Custom sheet dimensions, thickness and card pitch

  • Transparent, semi-transparent or frosted transparent appearance

  • Registration marks, card-position numbering and OEM labels

  • Sheet, carton and export pallet packaging

Custom RFID prelam sheet layout and antenna positioning options

Packaging and Global Shipping

RFID prelam sheets should be protected from bending, contamination, moisture and mechanical pressure during transport. Packing quantity, separators, anti-static requirements, carton labels and pallet configuration can be confirmed according to the sheet size and buyer’s receiving process.

Protective packaging for transparent PVC RFID prelam sheets

Protective Sheet Packaging

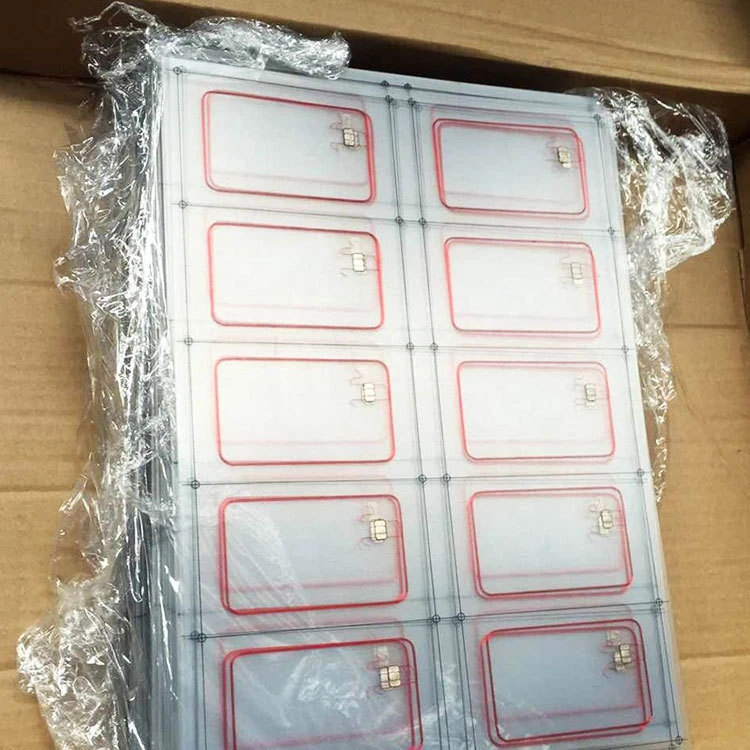

Export carton packaging for RFID inlay prelam sheet orders

Carton and Export Packaging

Information Required for a Fast B2B Quotation

Required Information Example or Explanation
Frequency and Protocol LF 125kHz, ISO/IEC 14443, ISO/IEC 15693, NFC or UHF EPC Gen2
Chip Model Exact part number, memory and security requirement
Reader Information Reader brand/model, antenna and target read distance
Sheet Layout 3×8, 3×7, 4×5 or dimensioned custom drawing
Card Construction Prelam, printed sheets, overlays and final card thickness
Printing and Finishing Direct printing or internal prelam, clear/frosted finish, special foil or magnetic stripe
Encoding Requirement Blank chip, UID list, data format, keys and locking requirement
Order Quantity Sample quantity, pilot order and annual forecast

Frequently Asked Questions

What is an RFID inlay prelam sheet used for?

It is the functional middle layer of a contactless plastic card. The sheet contains the chip and antenna and is laminated with printing sheets and overlays before punching into finished cards.

Which RFID frequencies can be supplied?

Project options include LF 125kHz, HF 13.56MHz, NFC and UHF 860–960MHz. Selected dual-frequency or hybrid structures can also be evaluated.

Can LF, HF and UHF chips be substituted for one another?

No. They use different frequencies, protocols, antennas and reader systems. The chip and antenna must be selected for the intended infrastructure.

Can the sheet layout and chip position be customized?

Yes. Layout, sheet size, card pitch, antenna geometry and chip coordinates can be developed from a dimensioned drawing and approved production sample.

Is the transparent prelam directly printable?

It depends on the selected surface grade and ink system. Many card structures use separately printed PVC sheets over the prelam. Direct printing should be confirmed by an ink-adhesion test.

What thickness is available?

The current product information lists 0.30–0.76mm. The correct prelam thickness depends on the chip cavity, antenna, overlays and required finished card thickness.

Can you make a dual-frequency RFID prelam?

Selected LF + HF, LF + UHF or HF + UHF structures can be reviewed. Feasibility depends on antenna interaction, available card area, chip positions and target card thickness.

How is RF performance verified?

Testing can include antenna continuity, chip response and project-specific reader checks. Final approval should also test punched cards after lamination with the buyer’s reader system.

Are UHF read distances guaranteed?

Read distance depends on chip sensitivity, antenna design, regional band, reader power, orientation and surrounding materials. A target range should be validated using the final card construction.

Can these inlays be used for hotel key cards?

Yes, when the chip and protocol match the hotel lock system. The lock brand, encoder and existing card specification should be supplied for compatibility review.

Can chips be encoded before shipment?

Encoding can be discussed according to the chip and project. The customer should define the data format, keys, UID handling, locking status and security responsibilities.

What should be tested before a bulk order?

Buyers should test sheet dimensions, printing or overlay compatibility, lamination, punching registration, card flatness and RF performance on the intended reader. The approved Golden Sample should become the batch reference.
