Polycarbonate (PC) Overlay is the most reliable and secure material for ID documents.

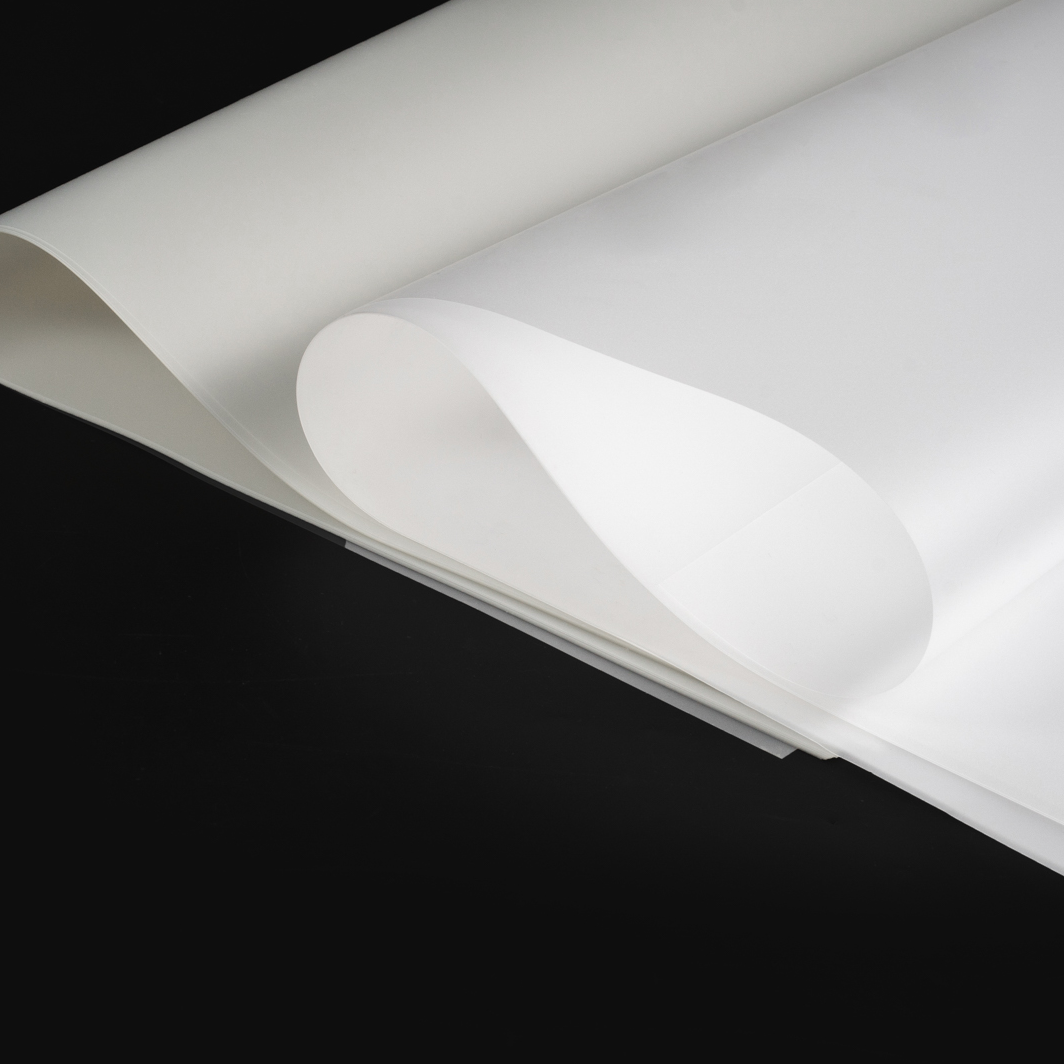

WLS-PC Overlay
WALLIS
| Color: | |
|---|---|
| Thickenss : | |
| Laserable type: | |
| Quantity: | |
In the realm of creative design and personalization, laser engraving has emerged as a powerful technique. It allows for the precise etching of intricate patterns, text, and images onto various materials. To achieve exceptional results, the choice of engraving material is crucial. One remarkable option that stands out is Laserable Polycarbonate Overlay Film.
Laserable Polycarbonate Overlay Film is a specialized film engineered to withstand the intense heat and precision of laser engraving machines. It is composed of polycarbonate, a durable and versatile thermoplastic material known for its exceptional clarity and impact resistance. This film is designed to provide a protective layer while enabling laser energy to pass through and create detailed engravings.
Item | Property | Value | Unit | Test Method |
Physical | Density | 1.2 | g/cm3 | ISO 1183 |
Haze | >75 | % | ASTM D1003 | |
Light Transmission | >85 | % | ASTM D1003 | |
Mechanical | Tensile Strength | 58 | Mpa | ISO 527 |
Elongation | >100 | % | ISO 527 | |
Tensile Modulus | 2250 | MPa | ISO 527 | |
Electrical | Dielectric Constant | 3 | - | IEC60250 |
Resistant Puncture Voltage | 30 | KV/mm | IEC 60243 | |
Surface Resistivity | 1.00E+15 | Ω/square | IEC 60093 | |
Volume Resistivity | 1.00E+16 | Ω-cm | IEC 60093 | |
Thermal | Coefficient of Thermal Expansion | 5.8 | ×10-5/℃ | ISO 11359 |
Thermal Shrinkage（at 150℃,30min） | 0.5～0.7 | % | ASTM D1204 | |
Glass Transition Temperature | 152 | ℃ | ISO 11357 | |
Vicat Softening Temperature | 156 | ℃ | ISO 306 | |
Flammability | UL94 | V-2/VTM-2 | E249605 | |
Tip: This test data is for reference only, not as an absolute application index
Laser engraving can be conducted on various materials, but it works best with documents made of polycarbonate. When a laser beam is applied to the polycarbonate substrate, the heat causes a chemical reaction that essentially burns, or carbonizes, a minute area changing it from white to black. Repeated and controlled application of the laser creates the text and images within the card.
Wallis has developed the fourth generation laserable polycarbonate overlay film, and it was widely used by oversea government market, especially in ID card, driving license card, passport…
Laserable Polycarbonate Overlay Film is compatible with a wide range of surfaces, including metals, plastics, wood, glass, and more. This versatility makes it an excellent choice for various applications.
The robust nature of polycarbonate ensures that the engravings remain intact over time, even in high-impact environments.
The film's exceptional transparency allows for clear visibility of the underlying surface and engravings, enhancing the aesthetic appeal of the final product.
Laser engraving with polycarbonate overlay film enables the creation of intricate designs with remarkable precision, capturing even the finest details.
Item | Unit | Results |
Density | g/cm3 | 1.20 ±0.05 |
Vicat | ℃ | 147±2 |
Thickness | mm | 0.05,0.075,0.1 |
Color | Transparent | |
Surface finish | Both side matt |
PC nan laserable Overlay Film has excellent strength and wear resistance, high temperature resistance, this model does not support laser graphic engraving.
It works well at high temperature, no color change with fluorescent ink.
Abrasion resistant, prolong the life of cards.
Environment friendly, no solvent or gas discharged
Pls note it is non-laserable type.
The regular size of PC Overlay:
0.05/ 0.07/ 0.1mm *295*365mm
0.05/ 0.07/ 0.1mm *295*485mm
0.05/ 0.07/ 0.1mm *505*590mm
Laserable Polycarbonate Overlay Film finds application across a wide range of industries and creative projects. Some notable uses include:
Create eye-catching signs, nameplates, and promotional displays with laser-engraved polycarbonate film.
Add a personal touch to gifts, awards, and commemorative items by engraving names, dates, or special messages.
Enhance the appearance of electronic devices by incorporating laser-engraved polycarbonate film into control panels, keypads, or casings.
Enrich architectural models, decorative panels, and lighting fixtures with intricate laser-engraved patterns on polycarbonate film.
Utilize laser-engraved polycarbonate film for identification tags, labels, and overlays in industrial settings.
To maintain the integrity and longevity of laser-engraved projects using polycarbonate overlay film, follow these maintenance guidelines:
Clean the engraved surface with mild, non-abrasive solutions to prevent damage to the film and engravings.
Handle engraved items with care and avoid abrasive materials that may scratch or mar the surface.
Polycarbonate overlay film is durable but can be sensitive to extreme temperatures. Shield engraved items from excessive heat or cold to preserve their quality.
As technology progresses, laser engraving continues to evolve. Advancements in laser systems, software, and materials are shaping the future of this creative field. Expect further enhancements in precision, speed, and versatility, leading to new possibilities and applications for laser engraving.
Our Producing line
Yes, Laserable Polycarbonate Overlay Film can conform to curved surfaces, allowing for laser engraving on a wide range of objects and products.
Yes, polycarbonate overlay film typically offers excellent UV resistance, ensuring that engraved designs remain vibrant and unaffected by prolonged exposure to sunlight.
Absolutely! The durable nature of polycarbonate and its resistance to the elements make it suitable for outdoor applications, including signage and architectural design.
Laserable Polycarbonate Overlay Film is available in various thicknesses, ranging from thin films for delicate engravings to thicker options for enhanced durability.
