Custom Transparent PVC Coated Overlay Film for ID Cards

Wallis supplies transparent PVC overlay film for ID, RFID and membership cards. Choose coated, strong-coated or non-coated grades, custom thicknesses, sheet sizes and OEM bulk supply.

  • WLS-PVC Overlay

  • WALLIS

Color:
Thickenss :
Coating:
Availability:
Quantity:

PVC Overlay Film for Professional Card Lamination

Wallis PVC overlay film is a transparent protective and bonding layer developed for professional plastic card manufacturing. It is laminated over printed card cores to improve surface clarity, abrasion resistance, moisture protection, bonding strength, and finished-card durability.

Available as coated PVC overlay, strong coated overlay, non-coated overlay, laserable overlay, and magnetic stripe overlay, the material can be supplied in standard or customized thicknesses, sheet sizes, surface finishes, and coating grades for ID cards, bank cards, RFID cards, access cards, membership cards, loyalty cards, gift cards, and other laminated card products.

PVC Overlay Specifications for B2B Card Production

Product Type PVC overlay film / PVC card overlay sheet / card lamination overlay
Material Transparent PVC
Thickness 0.04mm-0.15mm; 0.05mm, 0.08mm and 0.10mm are common options; customized thickness available
Size A4, A3 and customized sheet dimensions
Available Grades Coated overlay, strong coated overlay, non-coated overlay, laserable overlay and magnetic stripe overlay
Surface Options Glossy, matte, transparent and customized surface treatment
Printing Compatibility Suitable coating options for offset, silk-screen, UV and oxidative ink systems; production testing is recommended
Magnetic Stripe Options HiCo / LoCo; 300 Oe, 600 Oe, 2750 Oe and 3000 Oe options according to project requirements
Main Applications ID cards, bank cards, RFID cards, access cards, membership cards, loyalty cards, gift cards, hotel key cards and smart cards
Customization Thickness, size, coating strength, surface finish, magnetic stripe specification, packaging and labeling

Coated, Strong Coated and Non-Coated PVC Overlay Compared

Selecting the coating grade is a bonding decision, not just a choice of glossy or matte appearance. The printed core, ink chemistry, heat-press cycle and required peel strength determine which overlay is appropriate.

Overlay Grade Best-Fit Card Production Critical Qualification
Standard coated PVC overlay General ID, access, gift and membership cards using compatible printed PVC cores Confirm coating orientation, ink cure, peel strength and clarity after lamination.
Strong coated PVC overlay Card structures where standard coating fails to provide adequate bonding margin Approve the exact ink/adhesive combination; verify peel strength, bubbles and ageing performance.
Non-coated PVC overlay PVC constructions capable of reliable thermal bonding without an adhesive layer Demonstrate fusion to both printed and unprinted cores; check edge separation after cutting.
Magnetic stripe overlay Cards requiring an integrated magnetic recording area Specify HiCo/LoCo grade, stripe position, encoder, reader and bond strength.
Specialized laser-response grade Projects requiring tested laser personalization within a suitable complete material stack Confirm the exact laser-response chemistry and card architecture; a general PVC overlay is not automatically laser engravable.

What Is PVC Overlay Film?

PVC overlay film is a thin transparent layer placed above and below a printed PVC card core during hot-press lamination. After controlled heat and pressure are applied, the overlay bonds with the card body and forms a clear protective surface over printed graphics, text, barcodes, security marks, antennas, chips, or magnetic stripe structures.

For card manufacturers, the correct overlay grade helps reduce peeling, bubbles, haze, surface scratches, color distortion, and delamination. Coating selection should match the card core, ink system, lamination equipment, required peel strength, and finished-card performance standard.

Flexible transparent PVC overlay film for card lamination

Flexible PVC Overlay Film

High clarity PVC card overlay sheet for printed cards

Clear Imaging and Color Visibility

Moldable transparent PVC overlay sheet for card manufacturing

Stable Lamination Performance

Available PVC Overlay Grades

Coated PVC Overlay

Coated PVC overlay includes an adhesive layer designed to improve bonding between the printed ink layer and the transparent overlay. It is suitable for card projects that require reliable adhesion, clear appearance, and efficient hot-press lamination.

Strong Coated PVC Overlay

Strong coated overlay is selected when the ink system or card construction requires higher bonding performance. One side provides a smooth finished surface, while the coated side is engineered to bond to the printed card core. This grade is especially useful for demanding card structures, magnetic stripe processing, and applications where resistance to peeling is critical.

Non-Coated PVC Overlay

Non-coated overlay is used when the card core, ink, or production process already provides sufficient bonding performance. Buyers should test lamination strength, transparency, flatness, and aging performance before confirming mass production.

Laserable and Magnetic Stripe Overlay

Specialized laser-responsive overlay is a separate material grade for selected card structures; plain transparent PVC overlay is not automatically suitable for laser engraving. Confirm the supplied grade and complete card construction. Magnetic stripe overlay can be supplied with HiCo or LoCo stripe options for bank cards, hotel key cards, access cards, membership cards, and other encoded card applications.

PVC Overlay Thickness Guide and Finished Card Construction

Overlay thickness affects the card’s protective surface, overall layer build-up and lamination behavior. The film is generally placed on the front and back of a printed PVC card core; calculate both sides rather than choosing the front overlay alone.

Nominal Overlay Thickness Common Selection Logic Key Check
0.05mm / 50 μm Thin protective skins where more thickness is allocated to inner card layers Film handling, coating uniformity, local chips and surface finish.
0.08mm / 80 μm Balanced surface protection and total card thickness for many printed PVC card designs Front/back symmetry, peeling, clarity and post-lamination dimensions.
0.10mm / 100 μm A thicker protective surface when the total card stack permits it Lamination cycle, bonding, curling and compatibility with card-personalization equipment.
0.04–0.15mm / Custom Project-specific protection, card construction and production equipment Confirm actual ordered gauge, tolerance, sheet format and test criteria.

Example of a 0.76mm Card Stack

An illustrative, unlaminated arithmetic stack is 0.08mm front overlay + 0.30mm printed core + 0.30mm printed core + 0.08mm back overlay = 0.76mm. This is a thickness-planning example, not a universal production recipe. Actual card thickness changes with heat, pressure, coating flow, RFID inlays and local chip structures; always measure finished samples.

What to Record in a Thickness Approval

Record nominal film thickness, measured tolerance, finished card thickness at several locations, chip-zone variation, bow, curl and relevant ID-1 card or equipment requirements. A particular sheet grade should only be sold against the approved drawing and sample.

How PVC Overlay Is Manufactured and Converted

PVC resin is blended with selected additives and stabilizers, then processed into a thin transparent film through controlled calendaring or extrusion. Depending on the required card application, the film can be surface treated, adhesive coated, laserable, combined with magnetic stripe material, and cut into sheets or customized dimensions.

For stable bulk production, the overlay should be evaluated for thickness tolerance, surface cleanliness, transparency, coating uniformity, dimensional stability, bonding performance, and compatibility with the buyer's printing and lamination process.

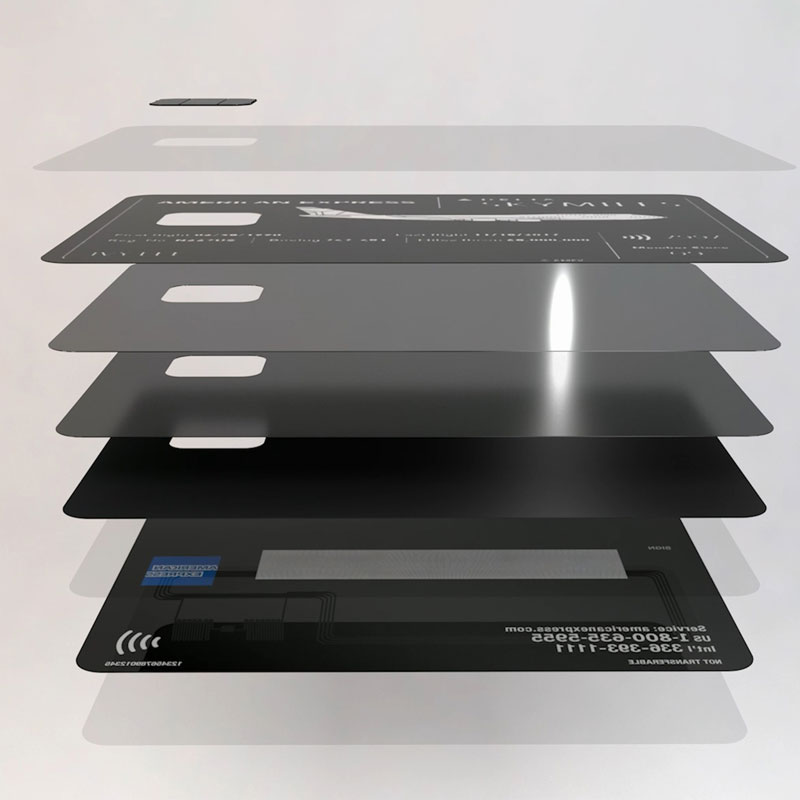

PVC overlay film and printed card layer structure

Multi-Layer Card Construction

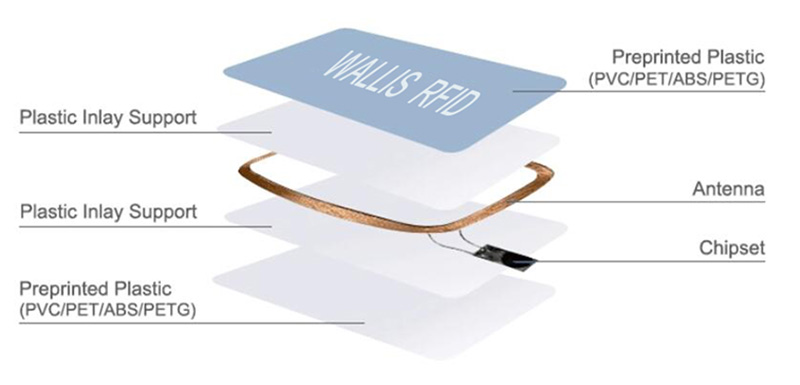

RFID card core with antenna chip and PVC overlay layers

RFID Card Core and Overlay Assembly

Card Lamination Workflow for PVC Overlay Sheets

A repeatable process is essential because even a high-adhesion overlay may delaminate if the wrong side faces the core or the printed ink has not fully cured.

Production Stage Recommended Operating Check
1. Verify material and coating side Identify coated and uncoated surfaces, protective liners (if any), sheet direction and lot number.
2. Prepare printed PVC cores Confirm ink cure, solvent removal, print-registration marks, flatness, surface cleanliness and core thickness.
3. Assemble the card stack Align front overlay, printed core, optional RFID inlay, back core and overlay in the approved order.
4. Perform thermal lamination Use the validated press temperature, pressure, dwell, release plates and heating profile for that specific structure.
5. Cool and condition Maintain controlled cooling to limit internal stress, curling and premature separation of laminated layers.
6. Punch and personalize Measure card thickness and dimensions; inspect edges, surface and encoding/printing performance.
7. Approve production output Run peel, visual, flatness and functional checks against the signed sample and purchase specification.

There Is No Single Lamination Temperature for Every PVC Overlay

The required heating and cooling cycles depend on resin grade, coating, ink film thickness, press design and stack height. Use a documented trial on the production equipment; do not directly apply another supplier’s temperature as a guaranteed setting.

Key Benefits of PVC Coated Overlay

Strong Bonding to Printed Card Cores

The coated side promotes adhesion between the printed card core and overlay layer, helping reduce lifting, edge separation, bubbles, and delamination when the coating grade and lamination parameters are correctly matched.

Clear and Professional Card Appearance

High-transparency overlay protects printed graphics while maintaining color visibility, fine text readability, barcode clarity, and a smooth glossy or matte finished surface.

Abrasion, Moisture and Surface Protection

The overlay forms the outer protective layer of the card, helping printed information resist routine handling, friction, scratches, moisture, dirt, and normal service wear.

Flexible Customization for Card Factories

Buyers can specify thickness, sheet size, finish, coating strength, magnetic stripe type, packing method, and labeling according to the card design, printing process, laminator, cutting layout, and order volume.

High transparency glossy PVC overlay film for plastic cards

High Transparency and Gloss

Multi-layer plastic card protected by PVC overlay film

Durable Multi-Layer Protection

Printing and Lamination Compatibility

Wallis offers coating options for card cores printed with offset, silk-screen, UV, and oxidative ink systems. Because ink chemistry, drying condition, print coverage, core material, lamination temperature, pressure, and cycle time can affect bonding, a production sample should be approved before bulk ordering.

  • Confirm whether the printed side requires common coating or strong coating.

  • Verify transparency, haze, surface gloss, and color reproduction after lamination.

  • Test peel strength, edge bonding, bubbles, warping, and aging performance.

  • Match overlay thickness with the target finished-card thickness and layer structure.

  • Confirm magnetic stripe position, coercivity, width, and bonding requirements when applicable.

Common PVC Overlay Lamination Defects and Corrective Actions

These are diagnostic starting points for card factories. Final corrective action should be verified by controlled samples rather than changing multiple lamination parameters at once.

Observed Defect Likely Contributing Factors What to Check First
Edge peeling or delamination Insufficient bonding, incompatible coating or ink, inadequate heat or pressure Verify coating side, ink cure and measured peel strength after conditioning.
Bubbles or silvering Trapped air or moisture, unsuitable adhesive flow or contaminated core Inspect dryness, sheet cleanliness, stack preparation and the heating profile.
Cloudy appearance / haze Film grade mismatch, surface contamination or over-processing Compare virgin film to laminated sample; inspect contact surfaces and actual temperature.
Card bow or curl Unbalanced front/back gauge, uneven heating or uncontrolled cooling Review stack symmetry, plate flatness and cooling pressure.
Scratches / plate marks Dirty press plates, abrasive handling or unsuitable release sheets Inspect plates, cleaning, interleaving and packaging.
Color shift or visible print damage Ink not fully cured, thermal stress or coating–ink interaction Test printed inks with alternative grades and revised cure/lamination cycles.
Magnetic stripe encoding fails Wrong coercivity, incorrect stripe position or damage during processing Check the exact stripe specification, laminator alignment and encoder/reader results.

Applications of PVC Overlay Film

ID and Access Control Cards

PVC overlay protects employee ID cards, student cards, access control cards, visitor cards, and government or institutional cards that require clear personalization and dependable daily-use durability.

Bank, Payment and Magnetic Stripe Cards

Coated and magnetic stripe overlay options support card structures that require surface protection together with HiCo or LoCo magnetic data functionality.

RFID, NFC and Smart Cards

PVC overlay can be laminated over RFID or NFC inlay structures to protect printing and help form a stable finished smart card for access, identification, transportation, loyalty, and asset-management programs.

Membership, Loyalty, Gift and Hotel Key Cards

Clear glossy or matte overlay improves the presentation and service life of commercial cards used by retailers, hotels, clubs, entertainment venues, schools, healthcare providers, and service businesses.

Transparent PVC overlay film for colorful printed card production

Printed Card Production

Durable identification card made with PVC overlay film

ID and Access Cards

Clear PVC overlay layer protecting printed card graphics

Clear Surface Protection

PVC vs. PETG and Polycarbonate Overlay for Cards

PVC, PETG and polycarbonate (PC) overlay films belong to distinct card-material systems. They should not be substituted solely because sheets have similar thickness or transparency.

Material Typical Use Selection Risk
PVC overlay General-purpose PVC ID, loyalty, access and gift card construction Match PVC core, print ink, coating and thermal bonding process.
PETG overlay PETG and selected composite card structures Test interlayer adhesion, heat response, card flatness and print compatibility.
Polycarbonate overlay Higher-durability multilayer PC credentials, including qualified laser-personalized constructions Check PC-to-PC bonding and use a dedicated laser-responsive grade when engraving is required.

How to Select the Right PVC Overlay

  1. Define the card structure: Confirm the core material, printed layer, inlay, chip, magnetic stripe, and target finished thickness.

  2. Identify the printing process: Share the ink type, printer, drying method, and print coverage so the coating grade can be matched.

  3. Confirm the lamination process: Provide laminator type, temperature range, pressure, cycle time, and cooling method.

  4. Specify performance requirements: Include transparency, gloss, peel strength, abrasion resistance, flatness, aging, and security requirements.

  5. Approve samples: Test printing, lamination, cutting, personalization, and final card performance before mass production.

For an accurate quotation, send Wallis your required material, thickness, sheet size, coating type, surface finish, printing method, application, annual volume, and sample-testing requirements.

OEM Ordering, Samples and Bulk Acceptance Criteria

For export orders, an approved reference sample and written specifications are more useful than a generic claim that the overlay fits every production line. The buyer and supplier should agree on the following points before volume manufacturing.

Buyer Requirement Information to Confirm
Overlay specification PVC resin/grade, coated/strong-coated/non-coated, nominal gauge, thickness tolerance, gloss/matte finish.
Sheet and layout A4, A3 or exact length × width, orientation, cutting tolerance, sheets per stack and carton.
Print and card stack PVC core model, ink type, curing conditions, card layers, RFID inlay or magnetic stripe components.
Lamination equipment Machine type, heating and cooling profile, pressure, dwell, plates and release film.
Optical and visual inspection Transparency/haze, surface scratch, black spots, wrinkles, edge condition and approved color effect.
Bonding and finished-card tests Defined peel method and limit, bubble and warpage acceptance, finished gauge, bending/abrasion when required.
Magnetic stripe option HiCo/LoCo coercivity, stripe width and position drawing, encoder and reader test results.
Order and traceability Sample quantity, MOQ, projected volume, lot marking, packing plan and required compliance documents.

Request a Sample Tested on Your Actual Production Line

An overlay sample should be laminated with the intended printed card cores and production cycle. Approve appearance, bonding, punching, finished-card dimensions and any magnetic or contactless functionality before confirming a repeat-order specification.

Packaging and Global Shipping

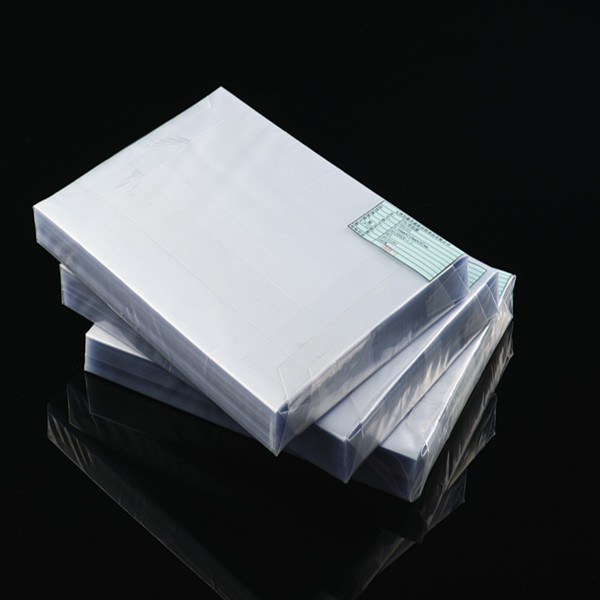

PVC overlay sheets are packed to reduce dust, moisture, edge damage, and movement during international transportation. Standard export packing can include protective PE film, moisture-resistant kraft material, cartons or pallets, corner protection, stretch wrapping, and customized labels.

Protective export packaging for PVC overlay sheets and card materials

Protected Export Packaging

Palletized global shipping for PVC overlay film and card sheets

Palletized Global Shipping

Why Choose Wallis as Your PVC Overlay Supplier?

Wallis supports card manufacturers, printing companies, smart card factories, distributors, and OEM projects with customized PVC overlay solutions, sample testing, production coordination, export packaging, and responsive technical communication.

  • Experience coordinating plastic sheet and card-material supply for manufacturing customers.

  • Production coordination, qualification support and scalable bulk supply subject to order requirements.

  • Custom thickness, size, coating, finish, stripe specification, packing, and labeling.

  • Sample support for printing, lamination, bonding, and finished-card evaluation.

  • One-stop sourcing support for PVC, PET, PETG, PC, overlay, core sheet, inlay, and related card materials.

Wallis PVC overlay and card material technical sales team

Wallis Team

Wallis global B2B customers for PVC overlay and card materials

Global B2B Customers

Wallis factory producing PVC overlay film and plastic card materials

Wallis Factory

Need a PVC Overlay Grade for Your Card Line?

Send your card structure, ink system, overlay thickness, sheet size, coating requirement, application, and estimated order volume. Wallis will help you evaluate the appropriate material and sample-testing plan.

Contact a Wallis Card Material Expert

Frequently Asked Questions About PVC Overlay

What is PVC overlay film used for?

PVC overlay film is laminated onto printed plastic card cores to protect graphics and data, improve surface appearance, increase abrasion resistance, and strengthen the finished card structure.

What is the difference between coated and non-coated PVC overlay?

Coated overlay includes an adhesive layer that improves bonding to printed card cores. Non-coated overlay relies more heavily on the compatibility of the base materials and lamination process. Strong coated overlay is preferred when higher peel strength or difficult ink compatibility is involved.

What thicknesses are available for PVC card overlay?

Wallis supplies PVC overlay from approximately 0.04mm to 0.15mm, with common options including 0.05mm, 0.08mm, and 0.10mm. Customized thickness can be discussed according to the card structure and target finished thickness.

Can PVC overlay be customized in A4, A3, or special sizes?

Yes. Standard A4 and A3 sizes are available, and customized sheet dimensions, cutting layouts, packaging, and labels can be produced for different card-manufacturing lines.

Is PVC coated overlay compatible with UV, offset, or silk-screen ink?

Suitable coating options are available for common offset, silk-screen, UV, and oxidative ink systems. Because ink formulation and curing conditions differ, buyers should test actual printed samples before confirming the coating grade and bulk order.

Can PVC overlay be laminated with PET, PETG, ABS, or composite card cores?

Cross-material lamination may be possible with the correct coating and process, but compatibility depends on the substrate, ink, adhesive chemistry, temperature, pressure, and card structure. Sample testing is required before mass production.

Do you supply magnetic stripe PVC overlay?

Yes. Magnetic stripe overlay can be customized with HiCo or LoCo options, including different coercivity specifications, stripe positions, widths, colors, and card applications.

How should buyers choose between common coating and strong coating?

Selection should be based on the printed ink layer, card core, required peel strength, magnetic stripe process, and lamination conditions. Strong coating is typically considered when standard coating does not provide sufficient bonding margin.

Can I test samples before placing a bulk order?

Yes. Sample testing is recommended to verify printing compatibility, bonding, transparency, flatness, magnetic stripe processing, cutting, personalization, and finished-card durability before mass production.

What information is needed for a PVC overlay quotation?

Please provide material, thickness, sheet size, coating type, surface finish, ink and printing method, card application, magnetic stripe requirement, estimated quantity, packaging requirement, and target delivery destination.

Is strong coated overlay always better than standard coated overlay?

Not necessarily. A stronger coating is useful only when the ink, core and lamination process need additional bonding margin. Sample peel testing determines which grade is suitable.

How do I identify the coated side of PVC overlay?

Use the supplier’s orientation or treatment markings and approved sample. Do not assume that appearance alone reliably identifies the adhesive-coated face.

Can 0.05mm and 0.10mm overlays be used on the same card?

An asymmetric card stack is technically possible, but it can increase curling or change finished thickness. Validate front/back balance on the actual card design.

How thick is a standard finished PVC card?

Many ID-1 plastic cards are designed around a nominal 0.76mm construction, but the permitted tolerance and finished thickness must follow the applicable project and printer requirements.

What causes PVC overlay delamination after card punching?

Possible causes include inadequate coating-to-ink adhesion, incomplete ink curing, unsuitable lamination conditions or mechanical stress. Measure peel strength on conditioned finished cards.

Why do bubbles appear after thermal lamination?

Air, moisture, contaminants, poor coating flow or mismatched heating profiles may create bubbles. Evaluate the full material stack and press conditions.

Does transparent PVC overlay support laser engraving?

Not automatically. Laser response depends on a dedicated material formulation and complete card construction. For secure laser-personalized credentials, evaluate an appropriate PC or qualified specialty-grade system.

Should I use PVC overlay for a PETG or PC card core?

Cross-material bonding can sometimes be developed with special coatings, but PVC, PETG and PC have different processing windows. Qualify the actual stack rather than assuming substitution.

Does PVC overlay make a card waterproof and tamper-proof?

It helps protect printed graphics from ordinary handling and moisture; it does not guarantee waterproofing or tamper-proof security. The complete card needs project-specific environmental and security testing.

What is the difference between PVC overlay and self-adhesive card laminate?

PVC card overlay for industrial hot pressing is incorporated into a multilayer card stack, while post-issuance self-adhesive laminate is applied to an already formed card. They use different processes and should not be interchanged.

How should PVC overlay sheets be stored before lamination?

Keep them clean, flat, protected from heat and dust, and sealed or wrapped according to the selected grade. Condition sheets in the production area before use when storage and workshop conditions differ.

How do I approve a PVC overlay bulk shipment?

Specify material grade, thickness tolerance, dimensions, optical appearance, bonding test method, defect limits, sampling plan, packaging and lot traceability; compare production to approved samples.

Previous:
Next:

Start Your Project with Us

Apply Our Best Quotation
Shanghai Wallis Technology Co., Ltd is a professional supplier with 7 plants to offer Plastic Sheets, Plastic Film, Card Base Material, All Kinds of Cards, and Custom Fabrication Service to Finished Plastic Products.

Products

Quick Links

Contact
      sales@wallis-plastic.com
   +86 13584305752
  No.912 YeCheng Road, Jiading Industry area, Shanghai
© COPYRIGHT 2026 SHANGHAI WALLIS TECHNOLOGY CO., LTD. ALL RIGHTS RESERVED.
