3CCT COB Zoomable LED Track Light for Retail & Showroom Lighting
Wallis 3CCT COB LED track light is a commercial adjustable spotlight designed for retail stores, showrooms, galleries, museums, exhibitions, shopping malls and architectural lighting projects. The current model combines selectable 3000K, 4000K and 6000K color temperatures with a 15°–60° adjustable beam for flexible accent and display lighting.
Available in 10W, 20W and 30W power options with AC110–240V input, this COB track spotlight can be configured for different mounting heights, merchandise sizes and display environments. The aluminum housing is designed to support thermal management while the adjustable optical system allows users to change from a narrow accent beam to a wider flood without replacing the complete luminaire.
For lighting distributors, retail fit-out contractors, architects, exhibition companies and OEM lighting brands, Wallis supports project-based customization including power, color temperature, housing color, logo and packaging. For professional lighting design, buyers should also confirm CRI, tested lumens, track adapter standard, dimming protocol, driver specification, power factor, flicker requirement, aiming range and photometric files for the exact ordered model.
3CCT COB LED Track Light Specifications
| Specification | Current Wallis Information | B2B Project Confirmation |
| Product Type | COB LED Track Spotlight | Confirm track adapter and installation system |
| Light Source | COB LED | Confirm LED brand/bin if controlled by project specification |
| Power | 10W / 20W / 30W | Select according to mounting height, target lux and beam angle |
| 3CCT | 3000K / 4000K / 6000K | Confirm switch location and whether CCT is selected before or after installation |
| Beam Angle | 15°–60° adjustable | Confirm continuous zoom mechanism and photometric distribution |
| Input Voltage | AC110–240V | Confirm frequency, driver and destination-market electrical requirements |
| Listed Luminous Efficiency | 100 lm/W | Request tested delivered lumens for each wattage and CCT |
| CRI | Not currently published | Specify required Ra/CRI, especially for retail, fashion, artwork and color-sensitive displays |
| Housing Material | Aluminum | Confirm finish and heat-management construction |
| Body Color | White / Black | Custom finishes subject to project confirmation |
| Listed Size | 83.5 × 173 mm | Confirm dimensions for each 10W / 20W / 30W version |
| Installation | Track Mounted | Current page also shows a “surface mount” image; confirm whether this is an alternate version |
| Track Compatibility | Not currently published | Confirm 1-circuit, 3-circuit, H/J/L type or project-specific adapter before ordering |
| Dimming | Not currently published | Confirm non-dimmable, TRIAC, 0–10V, DALI or other driver requirement |
| Power Factor | Not currently published | Request PF specification for commercial projects where required |
| Flicker | Not currently published | Define flicker or camera requirements for retail, exhibition and video environments |
| Listed Lifetime | 50,000 hours | Request rated-life definition such as lumen-maintenance criterion when required |
| Current IP Claim | IP65 / IP67 listed on current page | Verify the exact SKU and ingress-protection test before publishing as an engineering claim |
| Certifications | CE / RoHS / CCC currently listed | Request documentation applicable to the exact model and destination market |
Engineering note: For commercial track lighting, specifications such as CRI, delivered lumens, track adapter, driver, power factor, flicker, dimming method and photometric distribution are normally more useful to lighting designers than generic descriptions such as “high brightness.” These values should be confirmed for the final 10W, 20W or 30W SKU.

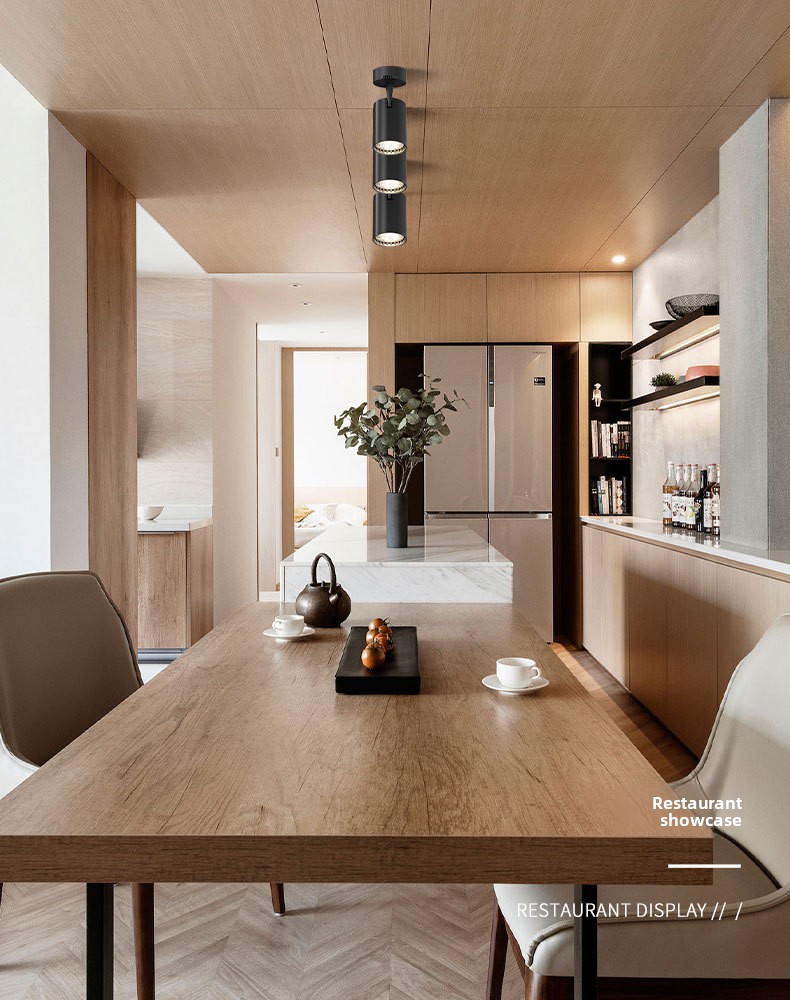

![3CCT commercial LED spotlight installation detail requiring track or surface mount confirmation]( "LED Track Light Installation Option")
Installation Configuration

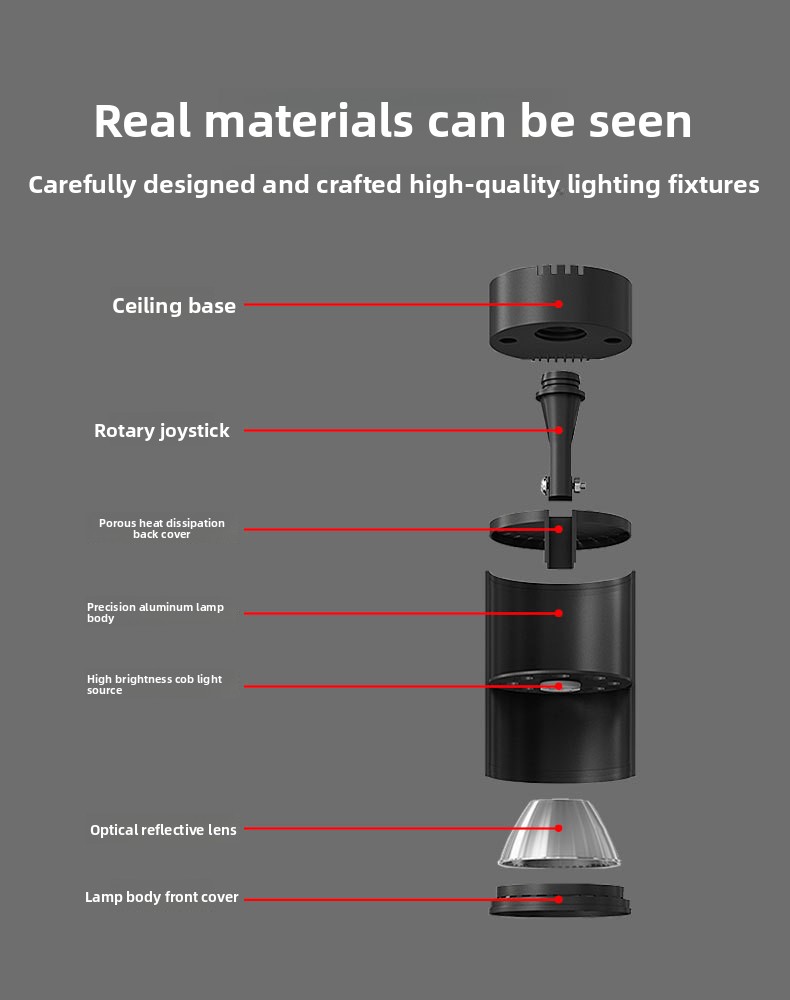

![Exploded structural view of adjustable COB LED track spotlight]( "COB LED Track Spotlight Exploded View")
Track Spotlight Structure
What Is a 3CCT COB LED Track Light?
A 3CCT LED track light integrates three selectable correlated color temperatures into one luminaire. Instead of purchasing separate warm-white, neutral-white and cool-white fixtures, the installer can select the required CCT from the available settings before or during project commissioning, depending on the product construction.
3000K Warm White
3000K creates a warmer visual atmosphere and is often selected for hospitality, premium retail, restaurants, residential-style showrooms and displays where a softer environment is desired.
4000K Neutral White
4000K provides a more neutral appearance and is frequently suitable for general retail, furniture displays, exhibitions and commercial interiors where balanced white light is preferred.
6000K Cool White
The current Wallis specification lists 6000K as the cool-white setting. It creates a visibly cooler appearance that may suit specific display concepts, technical products or commercial environments.
One SKU for Multiple Project Atmospheres
3CCT selection can simplify stock management for distributors and contractors because one fixture can support different lighting atmospheres. Buyers should still confirm how the selector is accessed after the fixture is installed.

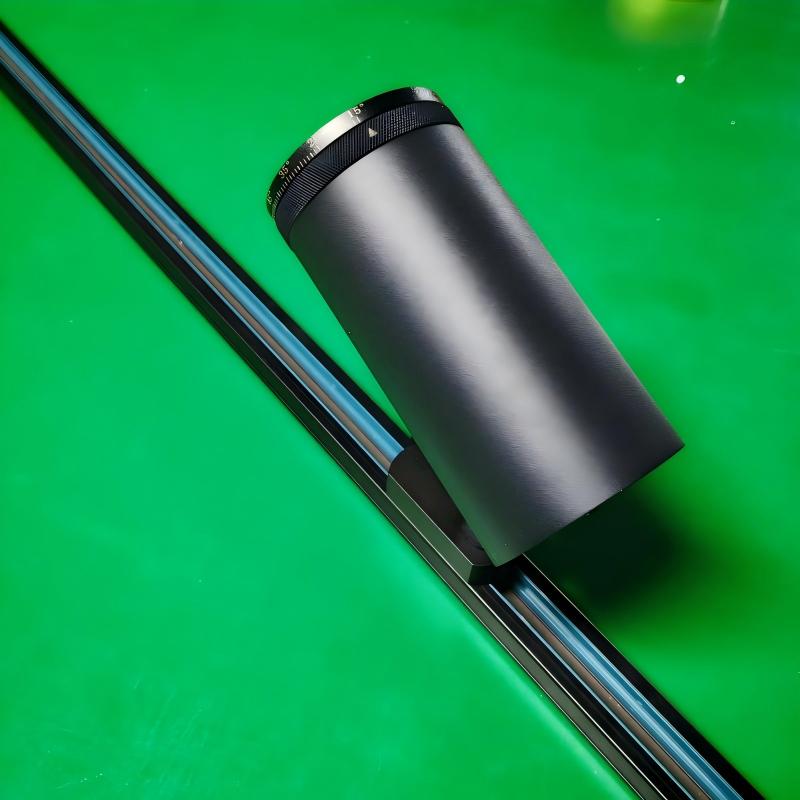

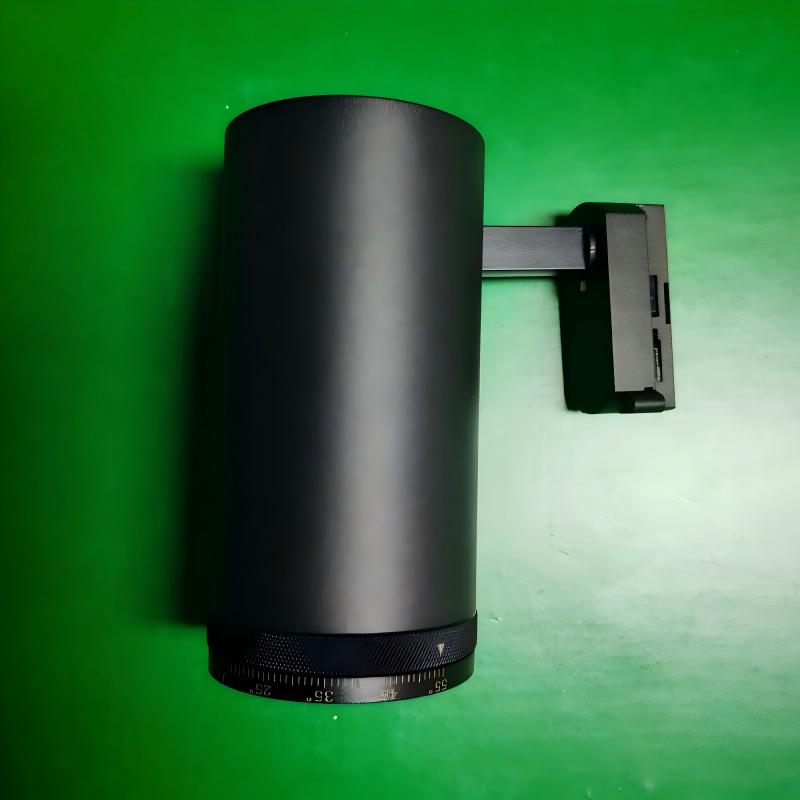

15°–60° Zoom Beam for Spot, Accent & Wide-Flood Lighting
The current Wallis track light is specified with an adjustable beam range from approximately 15° to 60°. A zoomable beam allows the same fixture to illuminate different merchandise sizes and display layouts without changing a fixed optical lens.
15° Narrow Accent Beam
A narrow beam concentrates more light into a smaller area and is useful for accenting individual products, artwork, mannequins or architectural details.
Medium Beam for Merchandise Displays
Intermediate beam settings can be used for shelves, clothing displays, furniture or exhibition objects where a narrow spot is too concentrated but a wide flood illuminates unnecessary surrounding areas.
60° Wide Beam
A wider beam covers a larger visual area and can support general display lighting, larger products and lower mounting heights.
Beam Angle Is Not the Same as Fixture Aiming
Beam angle controls the spread of light from the optical system. Fixture rotation and tilt control where that beam is aimed. Wallis should confirm the horizontal rotation and vertical tilt limits separately for lighting-design drawings.
| Beam Setting | Lighting Effect | Typical Application |
| Around 15° | Focused accent | Artwork, jewelry, mannequins, individual products |
| Medium Range | Balanced accent coverage | Retail shelving, furniture, exhibition displays |
| Up to 60° | Wide flood | Large displays, room zones and lower mounting heights |
CRI and Color Quality for Retail & Display Lighting
Color rendering is a key purchasing parameter for commercial track lighting because shoppers evaluate merchandise under the installed light. The current Wallis page does not publish a CRI value, so buyers with color-sensitive applications should specify the required CRI rather than assuming performance from the COB LED description alone.
Fashion and Apparel
Clothing stores should evaluate fabric colors, skin tones and branded colors under actual samples. CRI and, where required, additional color-rendering metrics should be included in the project specification.
Jewelry and Luxury Retail
Jewelry displays can be sensitive to color temperature, spectral distribution, glare and beam control. A physical lighting mock-up is preferable for premium installations.
Galleries and Museums
Museums and galleries typically require controlled color quality, beam distribution and glare. Where conservation or professional exhibition standards apply, the project designer should define the required photometric and spectral criteria.
10W, 20W or 30W: Choosing the Right Track Light Power
10W for Smaller Accent Areas
The 10W option can be evaluated for compact displays, lower mounting heights and smaller illuminated objects where a high-power beam is unnecessary.
20W for General Retail Displays
The 20W version can support a broader range of shop, showroom and exhibition applications. Final suitability should be determined using target illuminance and mounting-height calculations.
30W for Higher Output Requirements
A 30W track spotlight can be considered for larger spaces, higher ceilings or products requiring stronger accent contrast.
Do Not Select Wattage Alone
Wattage is electrical input, not a direct measurement of useful illumination. Lighting designers should compare tested lumens, beam angle, center-beam intensity, mounting distance and target lux before choosing 10W, 20W or 30W.

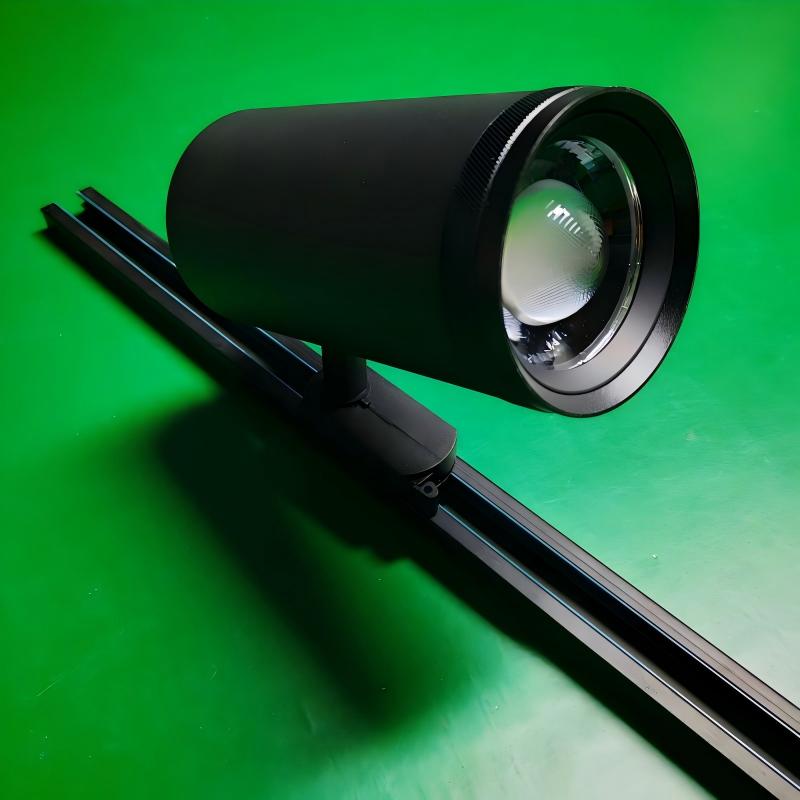

Track Adapter & Installation Compatibility
Track compatibility is one of the most important details to confirm before purchasing a commercial track light. Track systems are not universally interchangeable, and the current Wallis page does not identify the exact electrical or mechanical adapter standard.
Confirm the Existing Track System
Provide photographs, drawings or specifications of the existing track. Depending on the destination market, projects may use single-circuit, multi-circuit or other proprietary track systems.
New Projects Should Specify Track and Luminaire Together
For a new showroom or retail project, purchasing the track rail and luminaires as a coordinated system reduces the risk of adapter incompatibility.

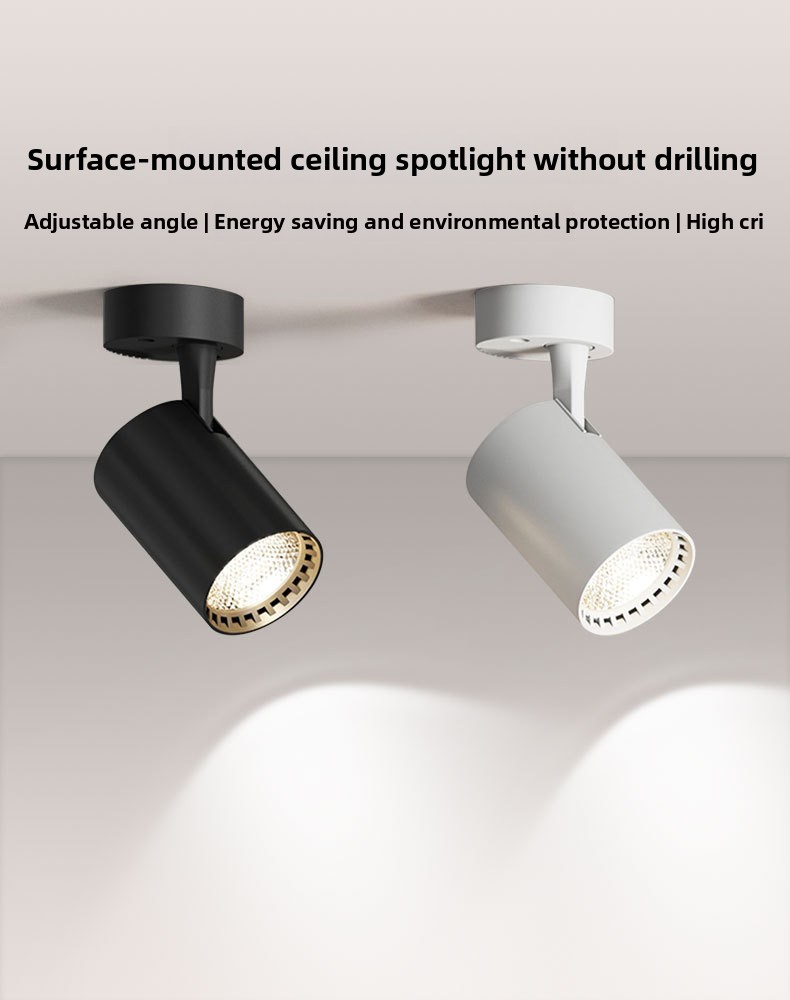

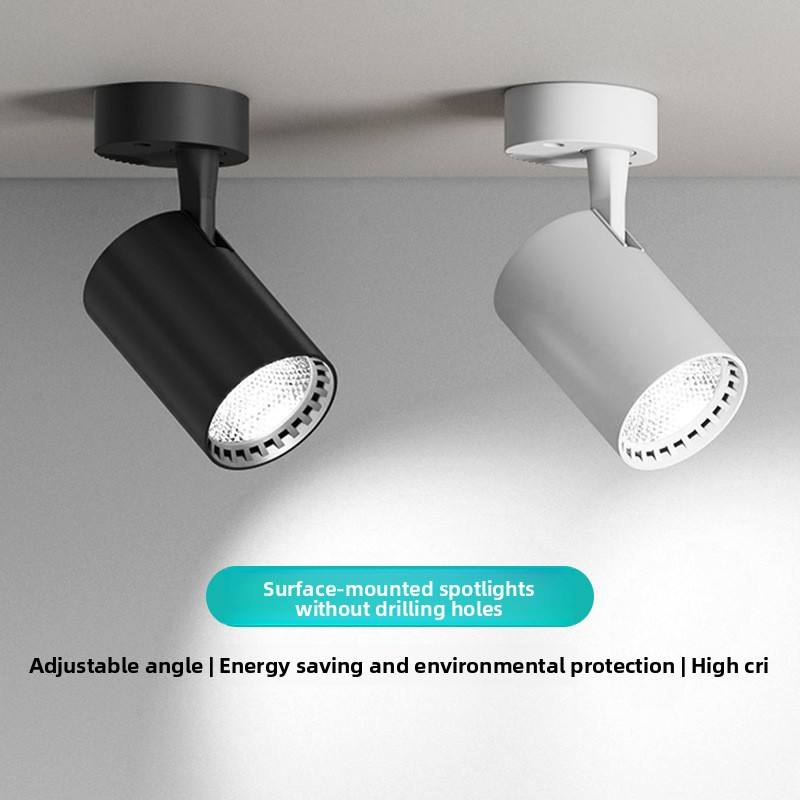

Track-Mounted vs Surface-Mounted Version
The Wallis specification table identifies this product as track mounted, while an existing product image is labeled “surface mount installation.” Buyers should confirm whether Wallis supplies two mounting versions or whether the image belongs to an alternate fixture configuration.
110–240V Driver, Dimming & Electrical Requirements
Wide AC Input Range
The current specification lists AC110–240V, allowing the track light to be considered for projects in multiple markets. Final product compliance still depends on the exact driver, frequency, track system and destination-country requirements.
Confirm Dimming Before Ordering
The current page does not identify a dimming protocol. If the project requires brightness control, specify TRIAC, 0–10V, DALI or another control method during quotation rather than assuming the standard fixture is dimmable.
Power Factor for Commercial Projects
Commercial lighting specifications often include minimum power factor requirements. Wallis should confirm the PF of the selected driver when this is required by the consultant, tender or destination market.
Flicker Requirements
Retail stores, exhibitions and showrooms are frequently photographed or recorded on video. Buyers requiring low-flicker or camera-friendly lighting should define the applicable requirement before driver selection.

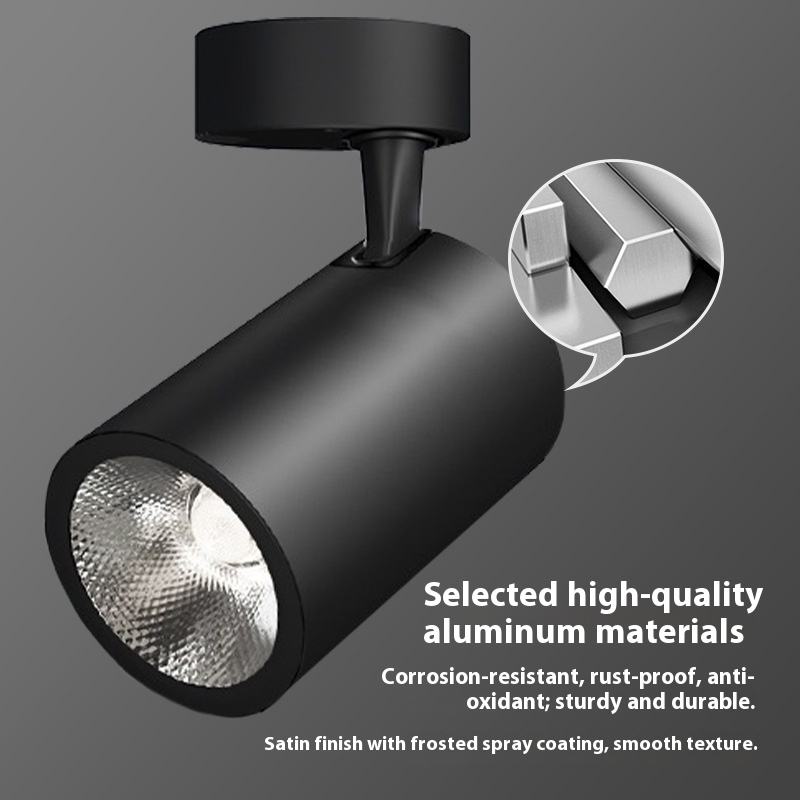

Aluminum Housing & Thermal Management
The current Wallis track light uses an aluminum housing. Effective heat transfer from the COB LED and driver helps control junction temperature and supports stable lumen output over time.
Thermal Design Affects LED Life
LED service life depends on thermal conditions, driver quality, ambient temperature and operating hours. The current page lists 50,000 hours, but project specifications should define the applicable lifetime or lumen-maintenance criterion if this figure is contractually important.
Check Ambient Operating Conditions
High ceiling temperatures, enclosed channels and poor ventilation can affect luminaire temperature. Request the permitted operating-temperature range for demanding projects.
![Wallis 3CCT COB LED track light for retail showroom exhibition and commercial lighting]( "Wallis 3CCT COB LED Track Light")
Indoor Use & IP Rating Clarification
This product is primarily positioned for retail stores, showrooms, galleries, museums, exhibitions and other indoor commercial applications. The current Wallis specification table lists IP65 / IP67, but the page does not provide construction details or a corresponding ingress-protection test report.
Verify IP65/IP67 Before Specifying Wet Locations
Do not assume that the current fixture is suitable for wet or outdoor locations solely from the existing webpage value. If IP65 or IP67 is required, request documentation for the exact track-light model, driver and adapter assembly.
Indoor Retail Projects Have Different Priorities
For standard indoor commercial lighting, CRI, glare, lumens, beam control, dimming, track compatibility and driver quality are usually more relevant purchasing parameters than a high ingress-protection rating.

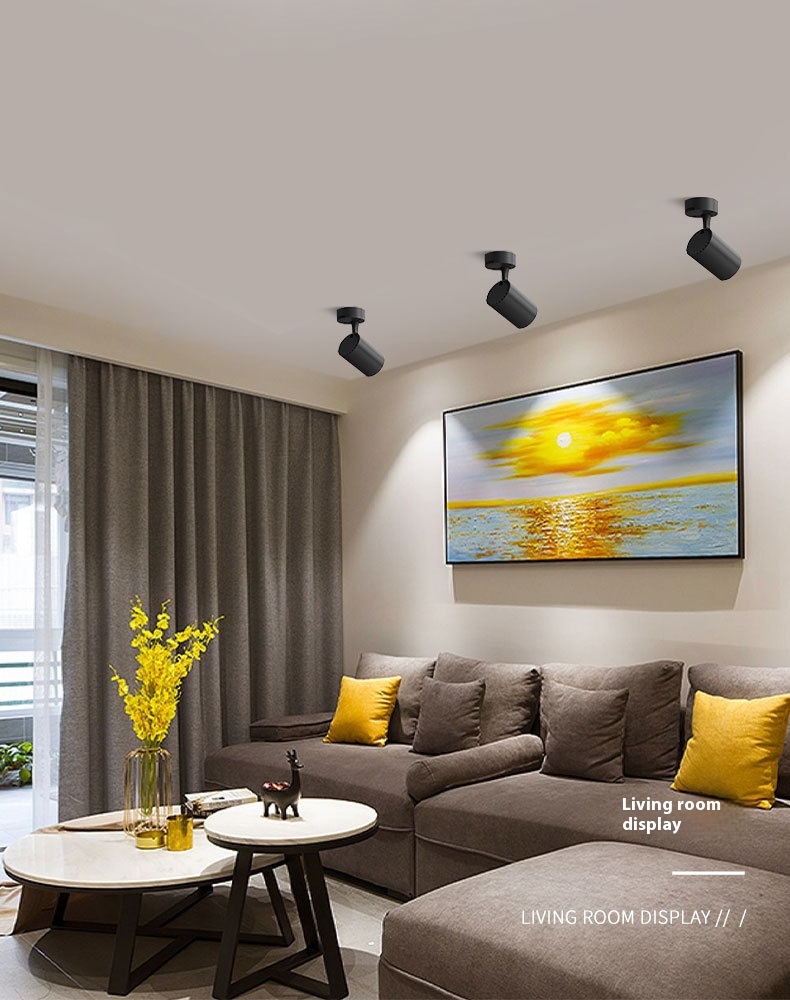

Applications of 3CCT Zoomable LED Track Lights
Retail Store Lighting
Clothing stores, footwear shops, brand stores and shopping centers can use adjustable track spots to direct attention toward featured merchandise, mannequins, shelving and promotional displays.
Showroom Lighting
Automotive, furniture, kitchen, building-material and product showrooms often change display layouts. Adjustable beam and CCT selection provide flexibility when merchandise positions or presentation concepts change.
Gallery & Exhibition Lighting
The zoomable optical system can concentrate light on individual artworks or widen the beam for larger exhibition objects. Color-quality requirements should be confirmed for professional gallery projects.
Museum Lighting
Museums can require higher levels of photometric, spectral and control performance than general retail. For such projects, provide the consultant's CRI, CCT, lux, glare, dimming and beam requirements before product selection.
Restaurants & Hospitality
Hotels, restaurants and hospitality interiors can use warmer CCT settings for atmosphere while retaining the option to change to neutral or cooler lighting for different functions.
Architectural Accent Lighting
Adjustable track spotlights can highlight interior walls, decorative materials, columns, sculptures and other architectural features without requiring fixed recessed spotlight positions.
Lighting Design Tips for Retail & Showroom Projects
Define Target Illuminance
Do not select track lights only by wattage. Define the required lux on merchandise or display surfaces and use photometric data to determine fixture quantity, spacing and beam settings.
Use Accent Contrast
Retail accent lighting works by creating contrast between featured merchandise and surrounding ambient light. Zoom optics allow the designer to adjust this contrast without replacing lenses.
Consider Mounting Height
Higher tracks generally require more output or tighter beam control to maintain target illuminance. Lower installations may benefit from wider beam settings to reduce excessive hotspots.
Control Glare
A bright COB source can create uncomfortable glare if the fixture is aimed toward normal viewing positions. Beam direction, shielding and installation angle should be evaluated in the completed space.
Request IES or Photometric Files
For professional projects, request photometric data or IES files for the exact wattage and optical configuration so the luminaire can be evaluated in lighting-design software.
Wallis OEM & Custom LED Track Light Solutions
Custom Power Options
Current standard power options include 10W, 20W and 30W. Other project requirements can be reviewed according to luminaire size, driver and thermal design.
Custom Color Temperature
The current 3CCT configuration is 3000K / 4000K / 6000K. Other CCT requirements should be confirmed according to LED availability and order quantity.
Custom Housing Color
White and black are currently listed. OEM projects can discuss alternative housing finishes subject to production feasibility.
Custom Driver & Control
Projects requiring dimming or lighting-control integration should specify the protocol before sampling so a compatible driver can be evaluated.
OEM Logo & Packaging
Wallis supports customized logo branding and packaging for distributors, contractors and lighting brands. Final artwork, labeling and packaging should be approved before volume production.
LED Track Light vs Traditional Halogen Spotlight
| Feature | 3CCT COB LED Track Light | Traditional Halogen Spotlight |
| Energy Conversion | Higher lighting efficiency possible with LED technology | More input energy is typically converted to heat |
| Current Wallis Rated Life | Page lists 50,000 hours; test definition should be confirmed | Typically requires more frequent lamp replacement |
| Color Temperature Selection | 3000K / 4000K / 6000K selectable on current model | Normally fixed by lamp type |
| Beam Control | 15°–60° adjustable on current Wallis model | Depends on reflector/lamp configuration |
| Heat at Illuminated Object | LED systems can reduce radiant heat compared with halogen, subject to fixture design | Higher radiant heat can be present |
| Maintenance | Integrated LED design can reduce routine lamp replacement | Lamp replacement is normally more frequent |
Quality Control for Commercial LED Track Lights
For repeat B2B projects, the approved specification should cover electrical, optical, mechanical and appearance requirements. Depending on the purchase specification, inspection can include:
Input power and voltage
3000K / 4000K / 6000K CCT switching
CCT consistency between fixtures
CRI where specified
Delivered lumens where specified
15°–60° beam adjustment operation
Beam uniformity and visible optical defects

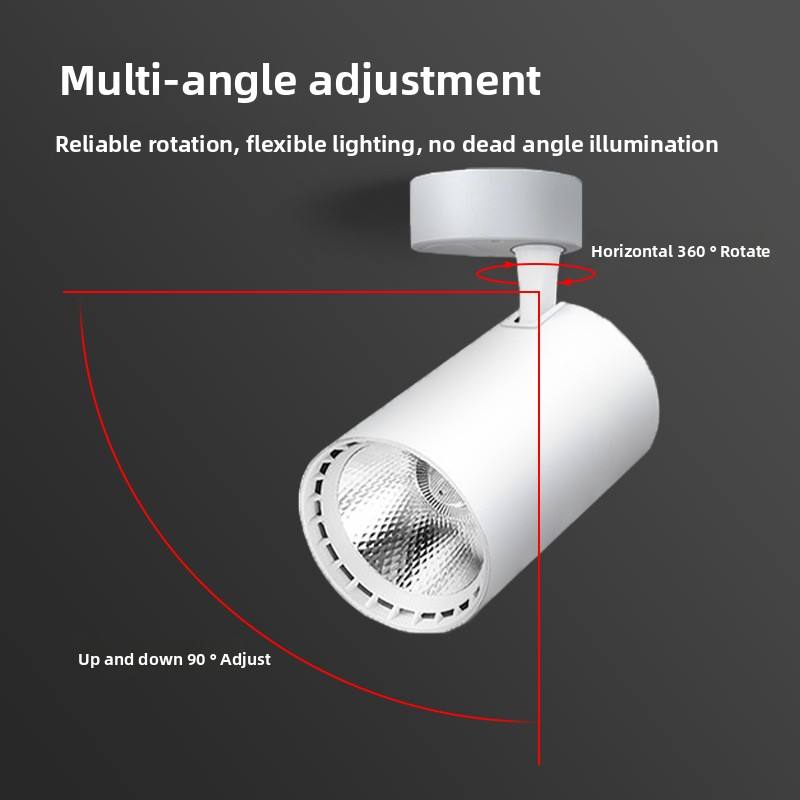

Horizontal and vertical aiming movement
Track adapter fit and electrical contact
Driver operation and dimming where applicable
Power factor where specified
Flicker performance where specified
Housing dimensions and finish
Thermal operation under rated conditions
Burn-in or aging inspection according to agreed QC plan
Applicable electrical and certification documentation
Packaging, labels and accessories
Approve a Pre-Production Sample
The current Wallis FAQ states that pre-production samples can be provided. For commercial projects, sample approval should cover the actual CCT, beam, housing, adapter, driver and branding configuration rather than appearance alone.
Compare Fixtures Side by Side
CCT and brightness variations become easier to see when multiple spotlights illuminate the same retail wall or merchandise display. Batch consistency should therefore form part of repeat-order approval.
How to Specify a 3CCT LED Track Light Project
1. Define the Application
State whether the fixtures are for fashion retail, furniture showroom, gallery, museum, exhibition, restaurant or general commercial lighting.
2. Provide Mounting Height
Ceiling and track height strongly influence wattage, beam angle and fixture spacing.
3. Select 10W, 20W or 30W
Choose the preliminary power according to mounting height and target lux, then verify using photometric data.
4. Confirm CRI
Provide the minimum CRI required by the lighting consultant or retail brand. Do not leave this unspecified for color-sensitive merchandise.
5. Confirm Track Adapter
Provide the track specification or purchase the track and spotlight as an approved system.
6. Define Dimming
State whether the project is non-dimmable or requires TRIAC, 0–10V, DALI or another control system.
7. Request Photometric Data
Use lumens, beam distribution and IES data to complete the lighting calculation.
8. Test a Sample
Evaluate CCT, beam zoom, glare, brightness, housing finish, adapter fit and driver behavior before approving the bulk order.
Wallis Commercial Lighting Projects & B2B Service
Wallis supports customized lighting projects for distributors, contractors, designers and commercial brands. For repeat track-light orders, retain an approved specification covering wattage, CCT, CRI, beam range, tested output, driver, track adapter, dimming, housing color, certification and packaging.
![Wallis commercial lighting project team and international B2B operations]( "Wallis Company Daily Operations")
FAQ About 3CCT COB LED Track Lights
What does 3CCT mean on an LED track light?
3CCT means the fixture provides three selectable color temperatures. The current Wallis track spotlight lists 3000K warm white, 4000K neutral white and 6000K cool white.
Is this a tunable-white track light?
The current product is described as 3CCT selectable. This is different from continuously tunable-white lighting unless Wallis specifically confirms an electronic tunable-white version.
What beam angles are available?
The current specification lists an adjustable beam from approximately 15° to 60°, allowing the luminaire to move from a narrow accent spot toward wider illumination.
Is the 15°–60° beam continuously adjustable?
The page describes an adjustable 15°–60° beam, but buyers should confirm the exact zoom mechanism and adjustment method on the selected model.
What power options does Wallis provide?
The current Wallis specification lists 10W, 20W and 30W options.
What voltage does the track spotlight use?
The current product specification lists AC110–240V input. The appropriate driver and certification should be confirmed for the destination market.
What is the CRI?
The current Wallis page does not publish a CRI value. Buyers should specify their required CRI and request confirmation for the exact ordered COB version.
Why is CRI important for retail stores?
CRI helps describe how naturally colors appear under a light source. Fashion, jewelry, artwork, food and branded merchandise can benefit from tighter color-rendering requirements.
What is the actual lumen output?
The page lists 100 lm/W luminous efficiency but does not separately publish tested delivered lumens for 10W, 20W and 30W. Request measured lumen data for professional lighting calculations.
Is 100 lm/W the same as 1000 lumens for the 10W version?
A simple wattage-times-efficacy calculation is not a substitute for tested delivered lumens. Optical losses, driver performance, CCT and measurement conditions can affect the finished luminaire output.
Is the track light dimmable?
The current page does not specify dimming. If dimming is required, provide the required control method during quotation so the driver configuration can be confirmed.
Can Wallis provide DALI track lights?
DALI should be treated as a project-specific requirement unless explicitly confirmed for the selected model. Submit the required control specification for technical review.
What track system does this spotlight fit?
The current Wallis page does not identify the track-adapter standard. Provide your track system specification or a physical reference before ordering replacement fixtures.
Can the lamp head rotate and tilt?
The current description states that the lamp head is adjustable for directional lighting. Exact horizontal rotation and vertical tilt angles should be confirmed for engineering drawings.
Is this light IP65 or IP67?
The existing Wallis table lists IP65 / IP67. Because the product is positioned primarily as an indoor retail and showroom track light, buyers requiring an ingress-protection rating should request the applicable test information for the exact model before specification.
Can this track light be used outdoors?
Outdoor suitability should not be assumed from the current webpage alone. Confirm the exact IP construction, driver, track system, corrosion requirements and environmental rating before outdoor use.
What housing colors are available?
White and black are currently listed as standard housing colors. Other finishes can be discussed for OEM projects.
What is the size of the fixture?
The current page lists 83.5 × 173 mm. Because three wattages are offered, confirm whether this dimension applies to all versions or one specific model.
Is the rated life 50,000 hours?
The current specification lists 50,000 hours. For tender or engineering use, request the definition and test basis associated with the rated-life value.
Are CE, RoHS and CCC available?
The current product table lists CE, RoHS and CCC. Compliance-sensitive buyers should request documents covering the exact ordered model and driver rather than relying only on the webpage.
Can Wallis customize the track light?
Current Wallis information supports customization of power, color temperature, housing color, logo and packaging. Other engineering changes should be reviewed individually.
Can I order one sample?
The current Wallis FAQ states that low-MOQ sample testing is available and one piece can be acceptable for quality checking.
What is the current sample lead time?
The current page states approximately 3–5 days for samples. Customized configurations may require different timing and should be reconfirmed.
What is the mass-production lead time?
The current Wallis FAQ states approximately 1–2 weeks depending on quantity, customization and production schedule. Confirm timing after sample and specification approval.
What information should I provide for a quotation?
Provide application, mounting height, quantity, 10W/20W/30W requirement, target CCT, CRI, beam range, track type, input voltage, dimming protocol, housing color, IP requirement, certification requirement, logo, packaging and delivery destination.
Request 3CCT COB LED Track Light Samples & Project Pricing
Looking for a reliable 3CCT COB LED track light manufacturer for retail stores, showrooms, galleries or exhibition projects? Send Wallis your wattage, mounting height, CCT, CRI, track system, beam requirements, dimming method and quantity for technical review, sample testing and B2B project pricing.
