12V/24V Waterproof Silicone LED Neon Flex Strip Light

12V/24V Waterproof Silicone LED Neon Flex Strip Light

Wallis waterproof LED neon flex strip light is a flexible silicone linear lighting solution designed for architectural lighting, commercial signage, retail displays, hospitality spaces, furniture, landscape lighting and customized OEM projects. Available in DC12V and DC24V configurations, LED neon flex provides continuous, dot-free illumination while offering easier installation and greater design flexibility than traditional glass neon.

Waterproof options including IP65, IP67 and IP68 are available according to the selected construction and project requirements. Silicone encapsulation helps protect the internal LED strip from dust, moisture and outdoor environmental exposure while creating a smooth diffused luminous surface.

Wallis supports different LED technologies including SMD2835, SMD2216 and COB, with single-color, white, RGB and RGBW options. Custom profile size, strip length, connectors, waterproof sealing, packaging and OEM branding can also be discussed for B2B lighting projects.

Waterproof LED Neon Flex Specifications

Note: LED density, power per meter, cutting interval, bend direction, minimum bend radius, maximum continuous run, IP rating and connector configuration vary by selected neon profile and internal LED strip. Confirm the final specification before mass production.

Key Advantages of Wallis Waterproof LED Neon Flex

Continuous Dot-Free Neon Lighting

The diffusing silicone housing blends individual LED points into a smooth luminous surface, producing a continuous neon-style lighting effect. This makes LED neon flex well suited to applications where the light source is directly visible, including signage, architectural outlines, shelves, decorative lines and branded display installations.

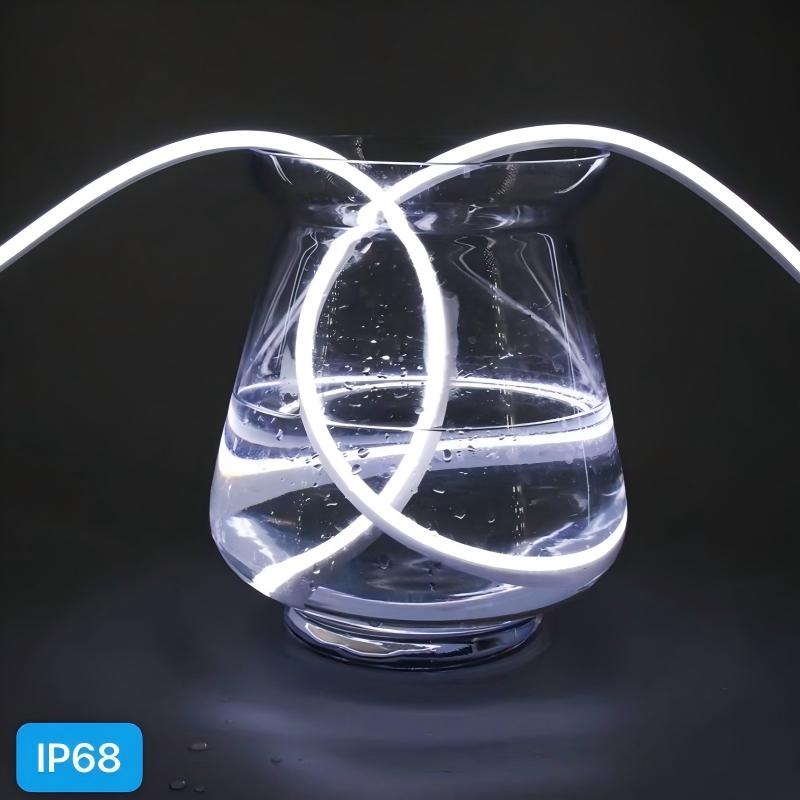

Waterproof Silicone Construction

Silicone encapsulation helps protect the internal LED circuit from dust, humidity and water exposure. Wallis offers different waterproof constructions including IP65, IP67 and IP68 options so buyers can select a product according to the installation environment.

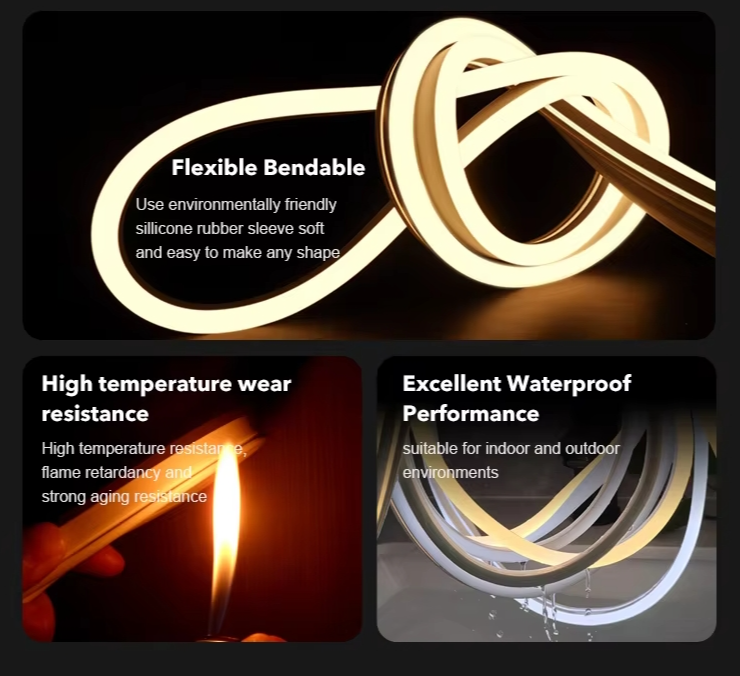

Flexible Profiles for Curved Lighting Designs

Flexible silicone profiles allow LED neon to follow curves and custom shapes that would be difficult to create with rigid linear fixtures or glass neon. Different profile constructions may support top bending, side bending or other bending directions depending on the selected model.

12V and 24V Low-Voltage Options

Both DC12V and DC24V versions are available. DC24V is commonly preferred for longer commercial lighting runs because it can reduce current and voltage-drop challenges compared with an equivalent-power 12V installation, while 12V can be useful for suitable shorter runs and project-specific designs.

Multiple LED and Color Options

Depending on the required neon profile, Wallis can integrate SMD2835, SMD2216 or COB LED strips. Available lighting options include fixed white, single colors, RGB and RGBW, allowing one product family to serve architectural, signage, hospitality and decorative projects.

OEM and ODM Manufacturing Support

Wallis supports B2B customization including custom lengths, lighting colors, profile sizes, connectors, waterproof connectors, packaging and branding. Project requirements should be confirmed before sampling so the neon strip, power system and accessories can be matched correctly.

IP65 vs IP67 vs IP68 LED Neon Flex

Choosing the correct waterproof construction is important for outdoor and wet-area lighting. The IP rating should match the actual exposure conditions, and the complete installation—including cable entries, connectors and end caps—must maintain the required protection level.

The IP rating of the neon body alone does not automatically make every field connection waterproof. Cutting, cable entry, connectors and end caps must be sealed correctly. For demanding IP68 projects, factory-prepared lengths and sealed terminations are recommended instead of uncontrolled field cutting.

Top-Bend vs Side-Bend LED Neon Flex

The bending direction is determined by the profile geometry and location of the luminous surface. Selecting the correct bend type before ordering is essential because LED neon should only be bent in the direction permitted by its construction.

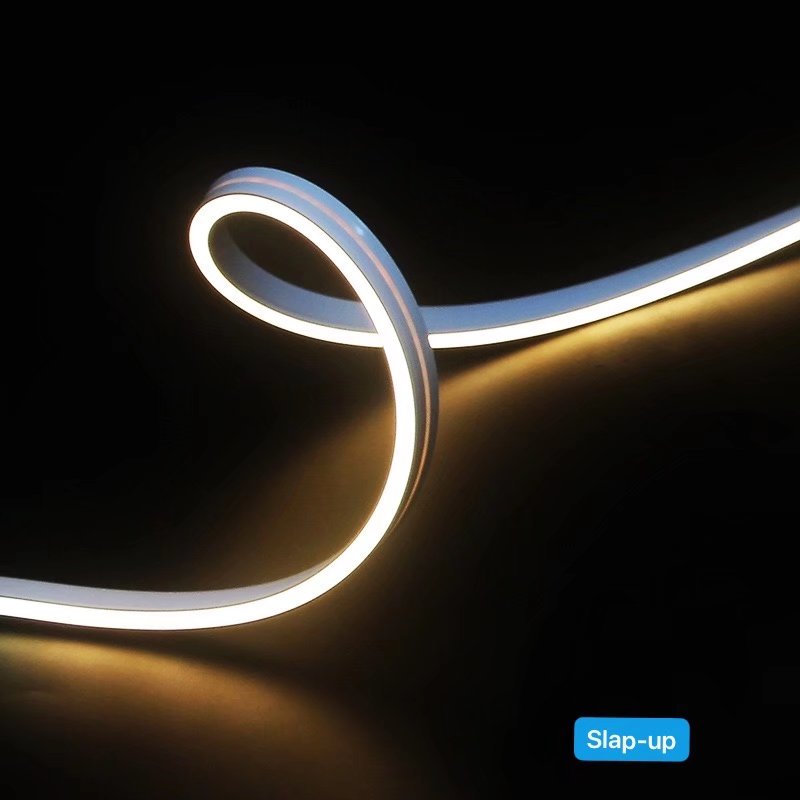

Top-Bend LED Neon Flex

Top-bend neon is commonly selected where the illuminated surface needs to remain visible while the profile bends around a shape in its designed bending plane. It is frequently used for outlines, lettering and architectural details.

Side-Bend LED Neon Flex

Side-bend profiles bend in a different plane and are useful where the lighting path must follow lateral curves. The required bend direction should be confirmed from drawings before production.

Do Not Exceed the Minimum Bend Radius

Every neon profile has a minimum permitted bend radius. Excessive bending, twisting or folding can damage the PCB, internal conductors or silicone housing. Ask Wallis for the minimum bend radius of the selected profile before finalizing curved installations.

LED Neon Flex Construction and Waterproof Performance

Flexible silicone construction supports creative curved installations when used within the specified bending limits.

Different internal LED strips can be selected according to color, density and lighting requirements.

IP67 configurations provide dust protection and waterproof performance for suitable outdoor and wet-area applications.

LED Neon Flex vs Traditional Glass Neon

Applications of Waterproof LED Neon Flexible Strip Light

• Outdoor architectural outlines and façade lighting

• Commercial signage and advertising

• Channel letters, logos and illuminated graphics

• Hotels, restaurants, bars and hospitality spaces

• Retail stores and display lighting

• Furniture, cabinets and integrated linear lighting

• Landscape and garden lighting

• Building contours and decorative façades

• Marine and suitable wet-area applications

• RV and automotive decorative lighting where specifications are suitable

• Exhibitions, events and temporary branded displays

• Customized OEM lighting installations

Flexible Neon Profile

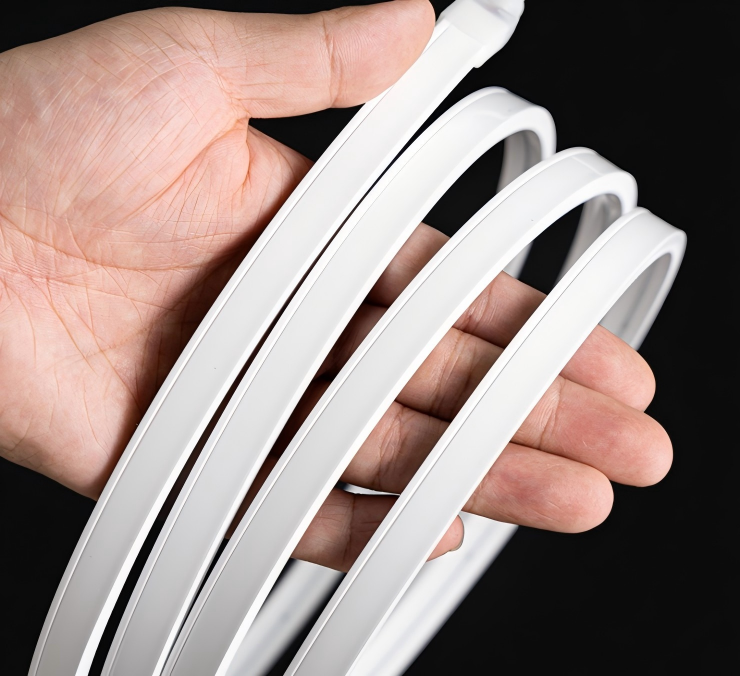

Silicone Housing Appearance

Waterproof Construction

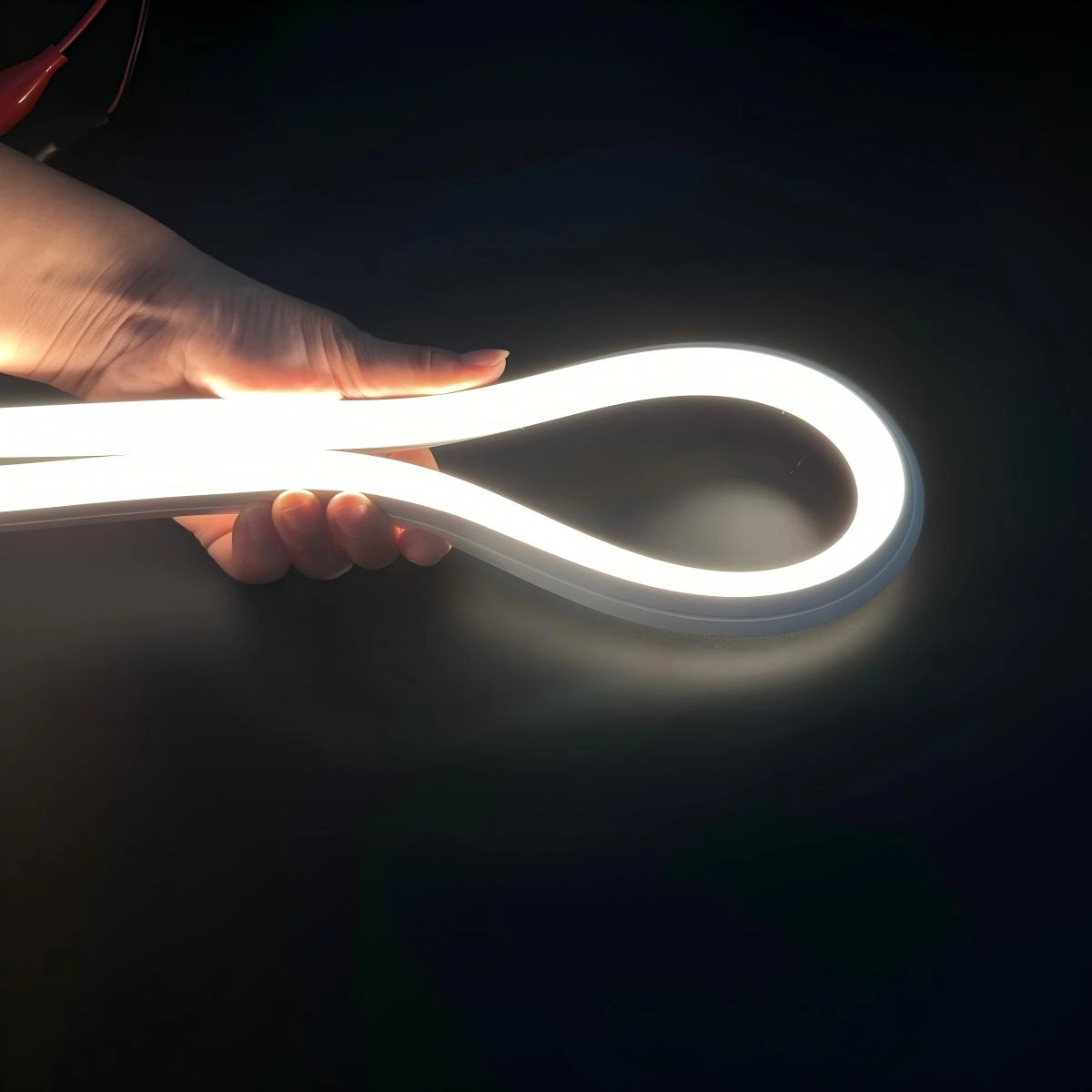

Premium Dot-Free Neon Finish

How to Choose the Right Waterproof LED Neon Flex

1. Confirm Indoor, Outdoor or Wet-Area Use

Start by defining the installation environment. Indoor decorative lighting may not require the same waterproof construction as exposed architectural façades, landscape lighting or installations close to water.

2. Select the Correct IP Rating

Specify whether IP65, IP67 or IP68 is required. For IP67 or IP68 projects, also confirm how the ends, cables and connectors will be waterproofed because these points are critical to maintaining the protection level of the complete installation.

3. Choose 12V or 24V

The voltage must match the LED neon and power supply. For longer commercial runs, 24V is often preferred, while 12V may be appropriate for specific shorter-run designs. Final choice should also consider cut length, total wattage and controller compatibility.

4. Choose Top Bend or Side Bend

Provide your lighting path or installation drawing so the correct bend direction can be selected. Using the wrong bending orientation can make the strip difficult to install or damage the neon profile.

5. Confirm Profile Size

Wallis lists multiple widths including 6 mm, 8 mm, 10 mm and 12 mm. Profile dimensions influence brightness appearance, bending performance, mounting hardware and installation space. The currently listed product model is LED Neon - 12 × 12.

6. Choose LED Type and Color

Choose between fixed white, single color, RGB, RGBW and other available configurations according to the project. The internal LED type and density should also be selected according to brightness, dot-free appearance and control requirements.

7. Confirm Cut Length Before Production

Cutting intervals vary according to the internal LED circuit. The existing product information mentions approximately 41.6 mm for one configuration, but this should not be treated as a universal cut interval for every 12V/24V neon option. Confirm the exact cut length of the selected model before ordering.

8. Confirm Maximum Run Length

Maximum continuous run length depends on voltage, power per meter, PCB design and feeding arrangement. Very long runs may require additional power feeds or separate circuits to maintain consistent brightness.

Power Supply and Controller Selection

Match the Power Supply Voltage

A 12V neon flex must use a compatible 12V DC power supply, while a 24V neon flex requires a 24V DC supply. Never connect a strip to an incompatible supply voltage.

Calculate Total Wattage

Power supply capacity should be calculated using the confirmed power per meter multiplied by the installed length, together with an appropriate design margin. Ask Wallis to confirm the wattage per meter of the selected profile before choosing the driver.

Match the Controller to the Color Configuration

Fixed-color LED neon may only require suitable switching or dimming equipment, while RGB and RGBW versions require compatible multi-channel controllers. Controller voltage and load capacity must match the selected neon flex.

Waterproof the Complete Electrical System

For outdoor projects, power supplies, cable joints, connectors and control equipment should also have protection appropriate to the installation environment. Waterproof neon alone cannot protect unsealed electrical connections.

Cutting, Sealing and Waterproof Connector Requirements

Waterproof LED neon can be cut only at the designated cutting positions of the internal circuit. After cutting a waterproof strip, the new end must be properly terminated and sealed using the correct end-cap and sealing process.

Factory-Cut Lengths for Waterproof Projects

For IP67/IP68 installations, factory-cut and factory-sealed lengths are recommended where possible. This reduces the risk of water entering through improperly sealed field-cut ends.

Waterproof Connectors

Waterproof connector options can be supplied for suitable projects. Connector pin count and cable configuration depend on whether the neon is single-color, CCT, RGB, RGBW or another circuit type.

End Caps and Cable Entry

End caps and cable exits are critical waterproof points. The final sealing method should match the required IP level and installation conditions.

Custom LED Neon Flex Solutions for B2B Buyers

Wallis supports distributors, lighting contractors, sign manufacturers, architectural lighting companies, furniture manufacturers, hospitality projects, retail fixture companies and other B2B buyers requiring customized LED neon flex.

• Custom 12V or 24V configurations

• Custom strip and finished lengths

• Custom profile dimensions

• Top-bend or side-bend profile selection

• Single-color, white, RGB and RGBW options

• Custom color temperature

• SMD or COB internal LED solutions

• Waterproof end caps and connectors

• Mounting clips and aluminum channels

• Custom cable length

• Logo and private-label support

• Custom packaging

• OEM / ODM development

What Information Should You Send for a Quote?

• Required voltage: 12V or 24V

• Required IP rating

• Indoor, outdoor or wet-area application

• Required profile size

• Top-bend or side-bend requirement

• Required color or color temperature

• Required strip length and quantity

• Desired LED type and density, if specified

• Controller or dimming requirement

• Connector and cable requirement

• Installation drawing or photos

• OEM logo requirement

• Packaging requirements

Why Source Waterproof LED Neon Flex from Wallis?

Wallis supplies customized LED lighting solutions for global B2B customers and supports both standard purchasing and project-based development.

• OEM manufacturing

• ODM development

• Multiple LED neon profile options

• 12V and 24V configurations

• IP65 / IP67 / IP68 options

• Custom connectors and accessories

• Project-based specification support

• Sample evaluation

• Custom branding and packaging

• Export and global B2B supply support

Waterproof LED Neon Flex for Global B2B Projects

Waterproof silicone LED neon flex is used in commercial and architectural projects worldwide because one flexible product family can combine continuous linear illumination, weather-resistant construction, multiple colors and customizable dimensions.

Company Daily Operations

Frequently Asked Questions About Waterproof LED Neon Flex

What is waterproof LED neon flex?

Waterproof LED neon flex is a flexible LED lighting product enclosed in a diffusing silicone profile. The housing creates a continuous neon-like light appearance while protecting the internal LED circuit from environmental exposure according to the specified IP rating.

Is LED neon flex suitable for outdoor use?

Yes, suitable IP-rated versions can be used outdoors for architectural outlines, signage, landscape lighting and commercial decorative applications. Select the waterproof rating according to the actual exposure conditions and ensure connectors and end caps are also properly protected.

What is the difference between IP67 and IP68 LED neon flex?

Both ratings provide strong dust and water protection, but IP68 versions are intended for more demanding immersion conditions according to the manufacturer's specified design and test conditions. For continuous or underwater use, confirm the exact IP68 specification, permitted installation conditions and sealing method before ordering.

Can IP67 LED neon flex be installed underwater permanently?

IP67 should not automatically be treated as a permanent underwater rating. For projects involving prolonged immersion, specify the application before ordering and use a suitable factory-confirmed IP68 product if required.

Should I choose 12V or 24V LED neon flex?

Both voltages are available. 24V is often advantageous for longer commercial runs because the lower current for equivalent power can help reduce voltage-drop challenges. The best choice also depends on cut interval, project length and power-supply design.

Can waterproof LED neon flex be cut?

Yes, but only at the specified cutting marks. The cutting interval depends on the internal PCB and voltage. After cutting waterproof neon, the new end must be correctly sealed before it is used in a wet environment.

Is the cutting interval always 41.6 mm?

No. The current Wallis page mentions approximately 41.6 mm for one LED strip configuration, while the wider neon product family uses different LED technologies, voltages and densities. Confirm the actual cut interval of the selected model before production.

What is the difference between top-bend and side-bend LED neon?

Top-bend and side-bend refer to the direction in which a particular neon profile is designed to curve relative to its luminous surface. Select the correct version according to the lighting path and do not bend the strip against its designed direction.

Can LED neon flex bend around very tight corners?

Every profile has a minimum bend radius. Bending tighter than the permitted radius or twisting the strip can damage the internal PCB or silicone housing. Provide the required curve radius so Wallis can recommend a suitable profile.

What colors are available?

The current product family lists warm white, natural white, cool white, red, green, blue, yellow, RGB and RGBW options. Confirm the exact color or CCT required for your project when requesting a quotation.

What LED technologies are available inside the neon flex?

Wallis currently lists SMD2835, SMD2216 and COB options. The most suitable type depends on neon profile size, LED density, brightness, color configuration and required dot-free appearance.

What is the maximum LED neon flex run length?

Maximum run length depends on voltage, wattage per meter, PCB design and power-feed arrangement. Long projects may require additional feed points. Send the required total length so the appropriate electrical layout can be confirmed.

Does cutting an IP67 or IP68 neon strip affect waterproofing?

Yes. Cutting opens the sealed profile, so the new end must be correctly terminated and waterproofed. Factory-prepared and sealed lengths are recommended for demanding outdoor and immersion projects.

Can Wallis provide waterproof connectors and custom cables?

Yes. Waterproof connectors and project-specific connector or cable requirements can be discussed before production. The correct connector depends on the voltage and number of lighting channels.

Can I order custom lengths?

Yes. Wallis lists standard 5m and 10m options and supports customized lengths. The requested length must match the electrical cutting interval of the selected LED neon configuration.

Does Wallis support OEM and ODM LED neon flex?

Yes. OEM and ODM support can include profile selection, custom length, color, connectors, logo, packaging and other project requirements subject to technical confirmation.

Can I order samples before mass production?

Yes. Sample testing is useful for confirming brightness, color, bend direction, dimensions, waterproof construction and installation method before larger commercial orders.

What is the typical lead time?

Current Wallis product information indicates approximately 3–5 days for samples and around 1–2 weeks for mass production, depending on order quantity, customization and the confirmed production schedule.

What information should I provide when requesting a quotation?

Provide the required quantity, voltage, IP grade, color, profile size, bend direction, finished length, application environment, controller requirement, connector type and any OEM packaging or branding requirements.

Request a Quote for Waterproof LED Neon Flex

Looking for a waterproof LED neon flex manufacturer for architectural lighting, outdoor signage, retail, hospitality or OEM projects? Wallis supplies customizable 12V and 24V silicone LED neon strip solutions with multiple profile sizes, colors and waterproof constructions.

Send your application, required IP rating, voltage, dimensions, color, quantity and installation drawings to receive a suitable product recommendation and quotation.
