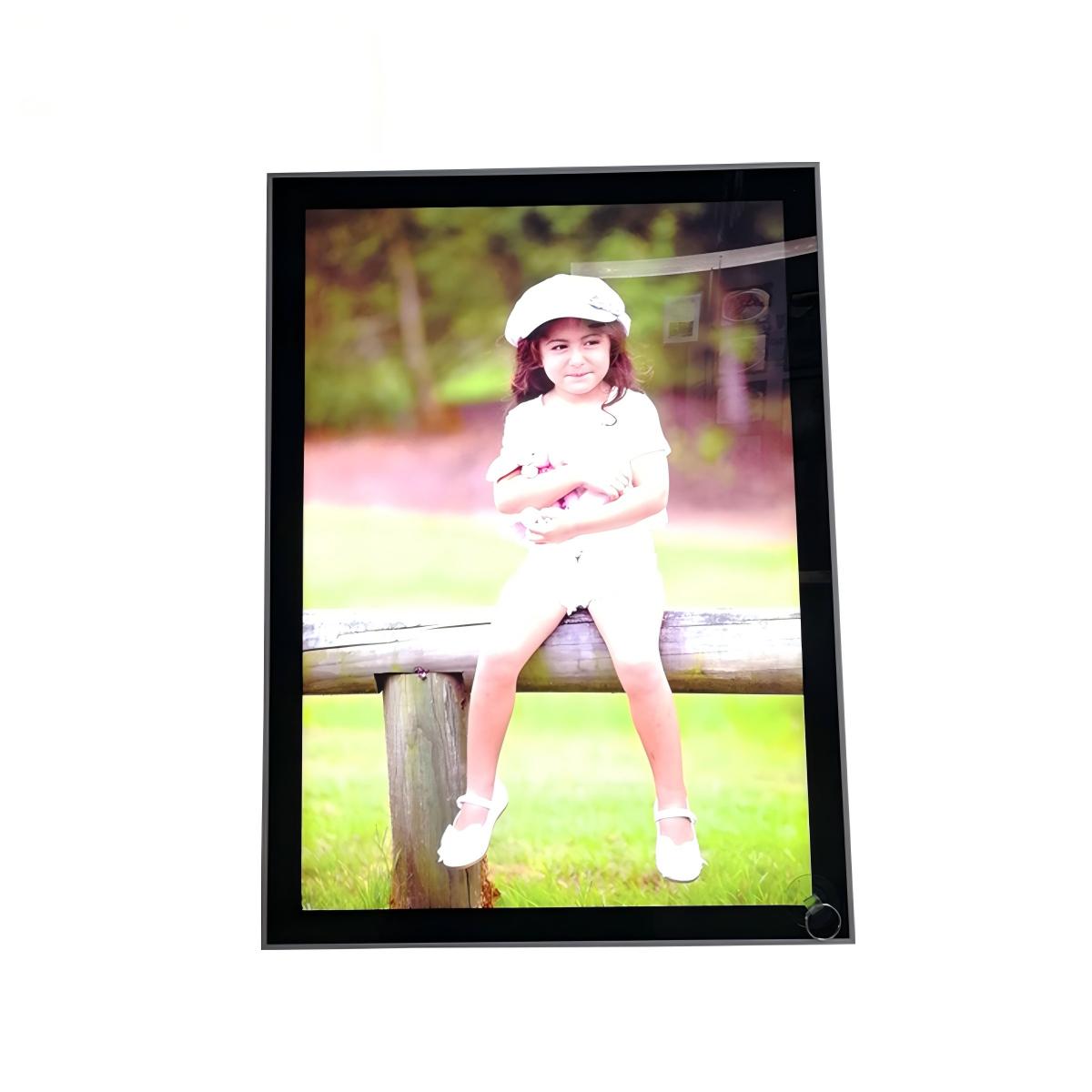

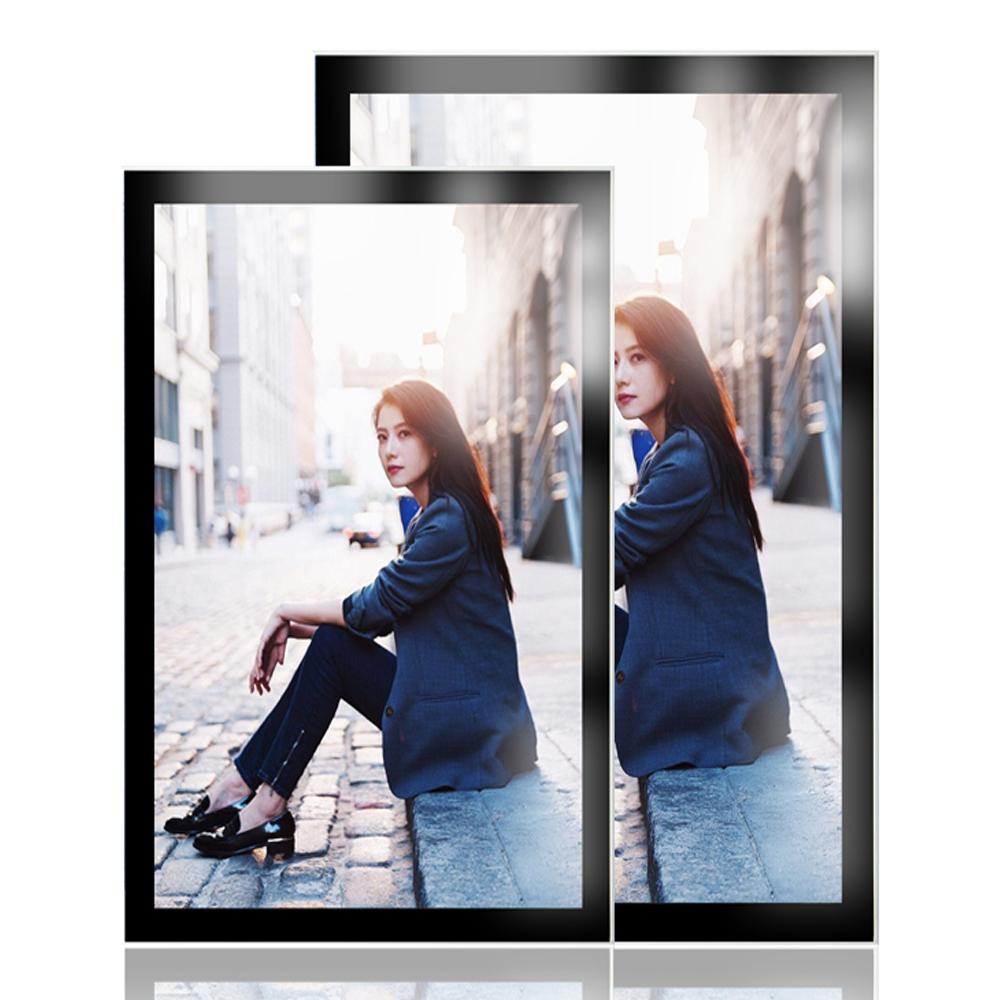

20mm Aluminum Magnetic LED Menu Light Box

20mm Aluminum Magnetic LED Menu Light Box for Restaurants & Retail

Wallis 20mm aluminum magnetic LED menu light box is a slim illuminated poster display designed for restaurants, cafés, bakeries, takeaway stores, hotels, shopping malls, retail stores and commercial advertising projects. The WLS-AF12A combines an aluminum frame, LED edge lighting, PMMA light guide panel and magnetic front cover for fast graphic replacement.

Standard formats include A4, A3, A2, A1, A0, B2 and B1, while customized frame dimensions can be developed for OEM and project orders. The current specification supports DC12V / DC24V operation, silver or customized aluminum frame colors, white lighting and single-sided or double-sided visual configurations.

Unlike conventional screw-open poster frames, the magnetic front panel can be lifted using a suction cup, allowing restaurant staff or retail operators to replace menus, price lists and promotional graphics without dismantling the complete light box from the wall.

For professional B2B projects, buyers should confirm poster size, visible view size, outer frame size, power consumption, LED color temperature, brightness, power-supply input, graphic media, protective front panel and installation environment before mass production.

Magnetic LED Menu Light Box Specifications

Important terminology: the LGP is a light guide panel, not the LED light source itself. The LEDs inject light into the acrylic panel, while the LGP distributes that light across the graphic area. This distinction makes the technical description more accurate for B2B buyers and search engines.

What Is a Magnetic LED Menu Light Box?

A magnetic LED menu light box is a slim illuminated advertising frame that uses a removable magnetic front panel instead of a conventional screw-open or snap-open structure. The front cover can be lifted to access the printed menu or poster while the main aluminum body remains fixed to the wall.

Magnetic Front Cover

Integrated magnets hold the front panel securely against the light-box body while still allowing fast access when graphics need to be replaced.

Suction-Cup Opening

The current AF12A structure uses a suction cup to lift the magnetic front cover. This avoids visible hinges or opening tabs and supports a clean display appearance.

20mm Slim Aluminum Body

The 20mm profile keeps the display relatively close to the wall, which is useful for restaurants, cafés, hotel corridors, retail counters and other commercial interiors where bulky sign cabinets are undesirable.

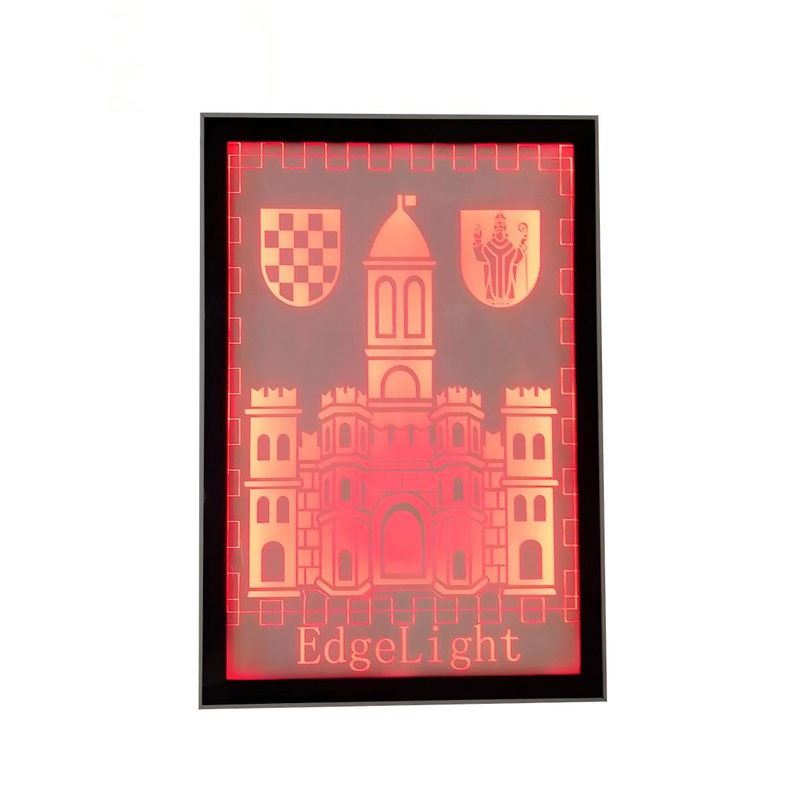

Edge-Lit LED + PMMA LGP Structure

The AF12A uses LEDs together with a PMMA acrylic light guide panel to illuminate the graphic. Light enters the LGP from the panel edge and is redistributed across the display surface through the optical structure of the acrylic panel.

Why Use an LGP?

An edge-lit LGP allows the light box to remain much slimmer than a conventional deep backlit sign cabinet while still providing illumination across a large poster surface.

Uniformity Depends on More Than LED Brightness

Final uniformity depends on LGP optical pattern, acrylic quality, LED spacing, reflective backing, poster transmission and display dimensions. A larger A0 or B1 box can require a different lighting arrangement from a compact A4 unit.

Inspect for Hotspots and Dark Areas

Appearance-critical projects should inspect a powered sample for bright edges, dark centers, corner shadows, visible LED points and CCT differences before approving mass production.

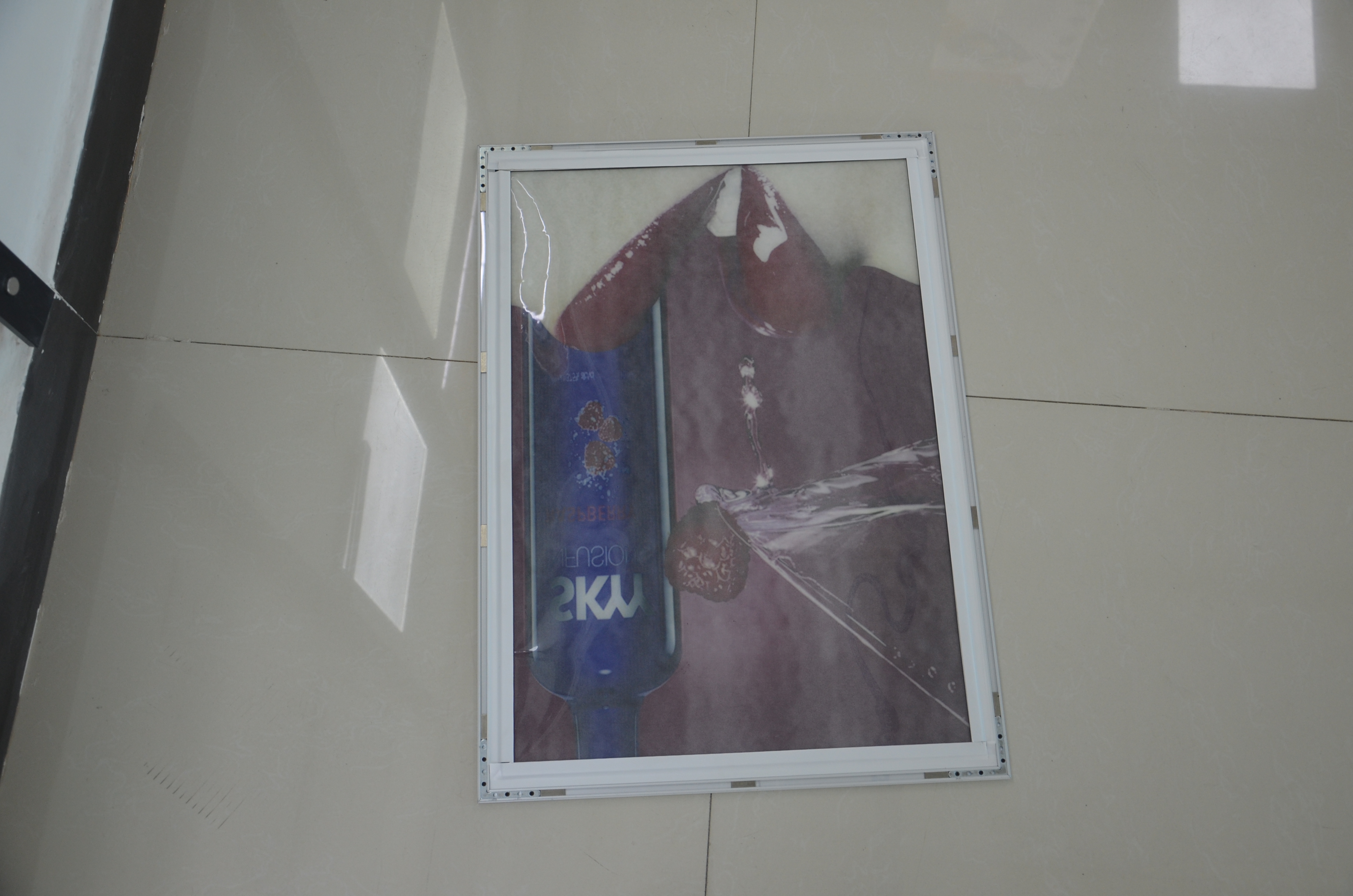

Quick Poster Replacement with Magnetic Front Access

Step 1: Open the Front Panel

Place the suction cup on the magnetic front panel and carefully lift the panel away from the aluminum frame.

Step 2: Remove the Existing Graphic

Remove the existing menu, price list, promotional poster or advertising insert while keeping the optical panel clean and free from dust.

Step 3: Position the New Poster

Insert the new graphic according to the specified poster dimensions and align important artwork inside the visible-view area.

Step 4: Reattach the Magnetic Cover

Return the magnetic panel to the frame and check that all edges are seated correctly before switching the display back on.

Suction Cup Opening

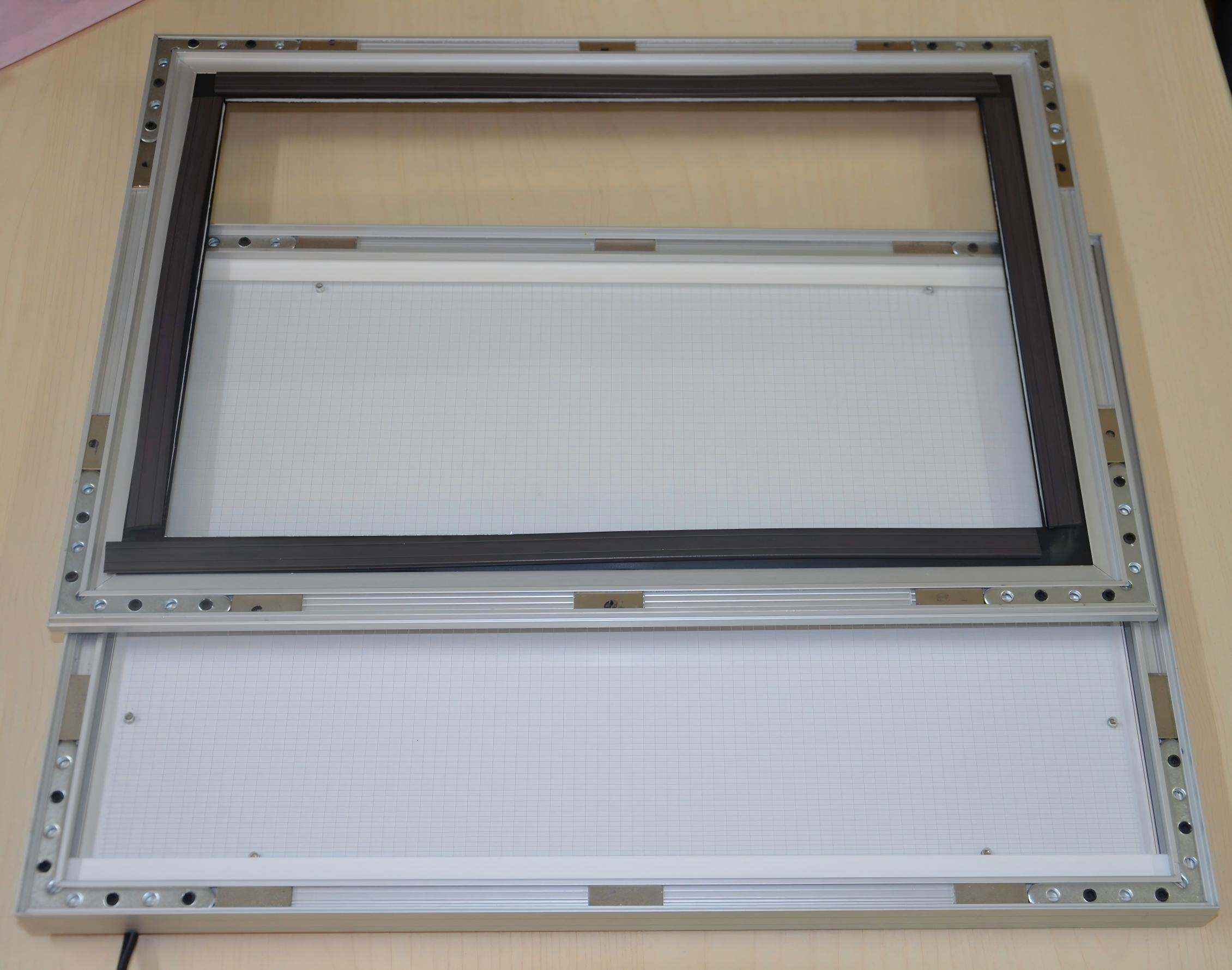

Magnetic Fixing System

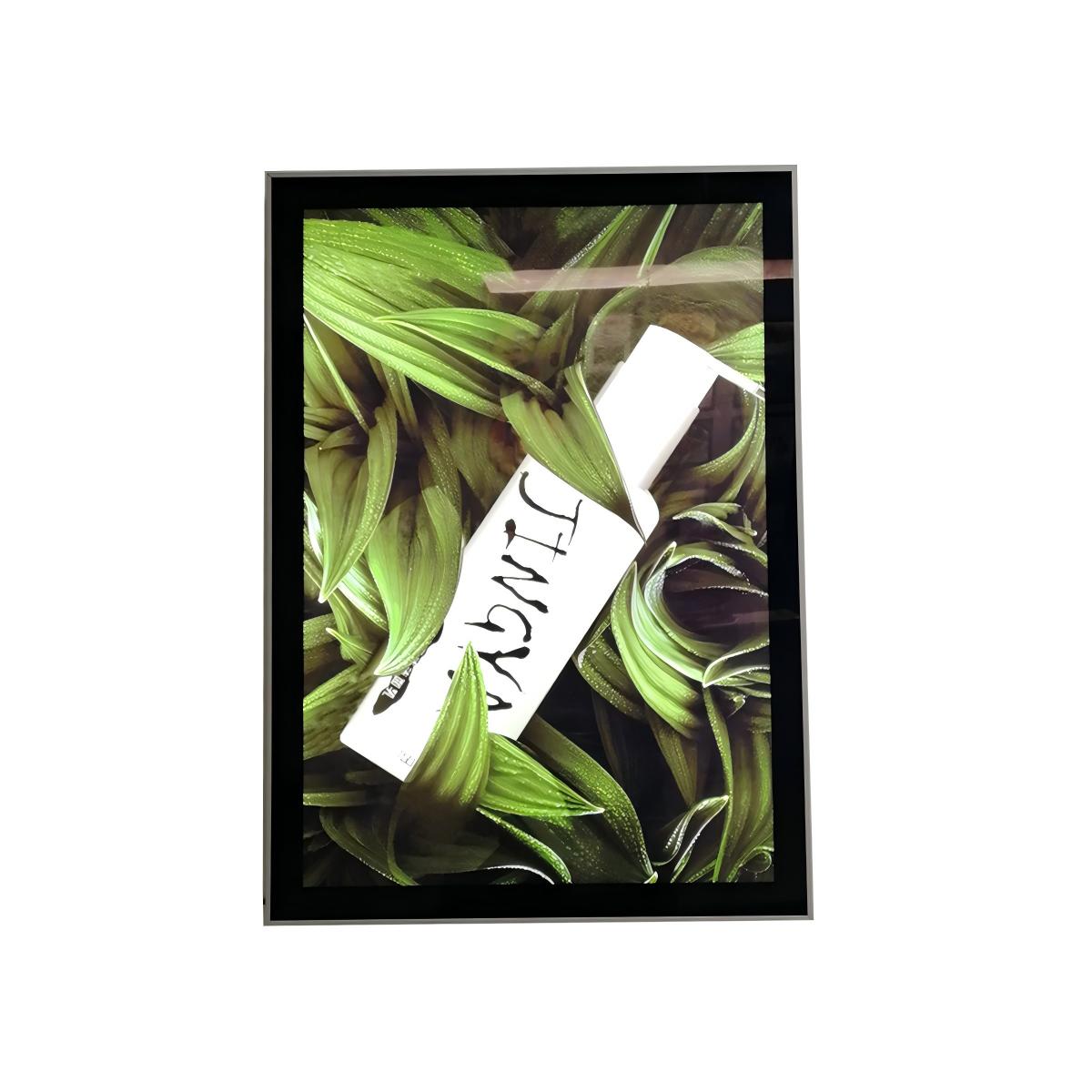

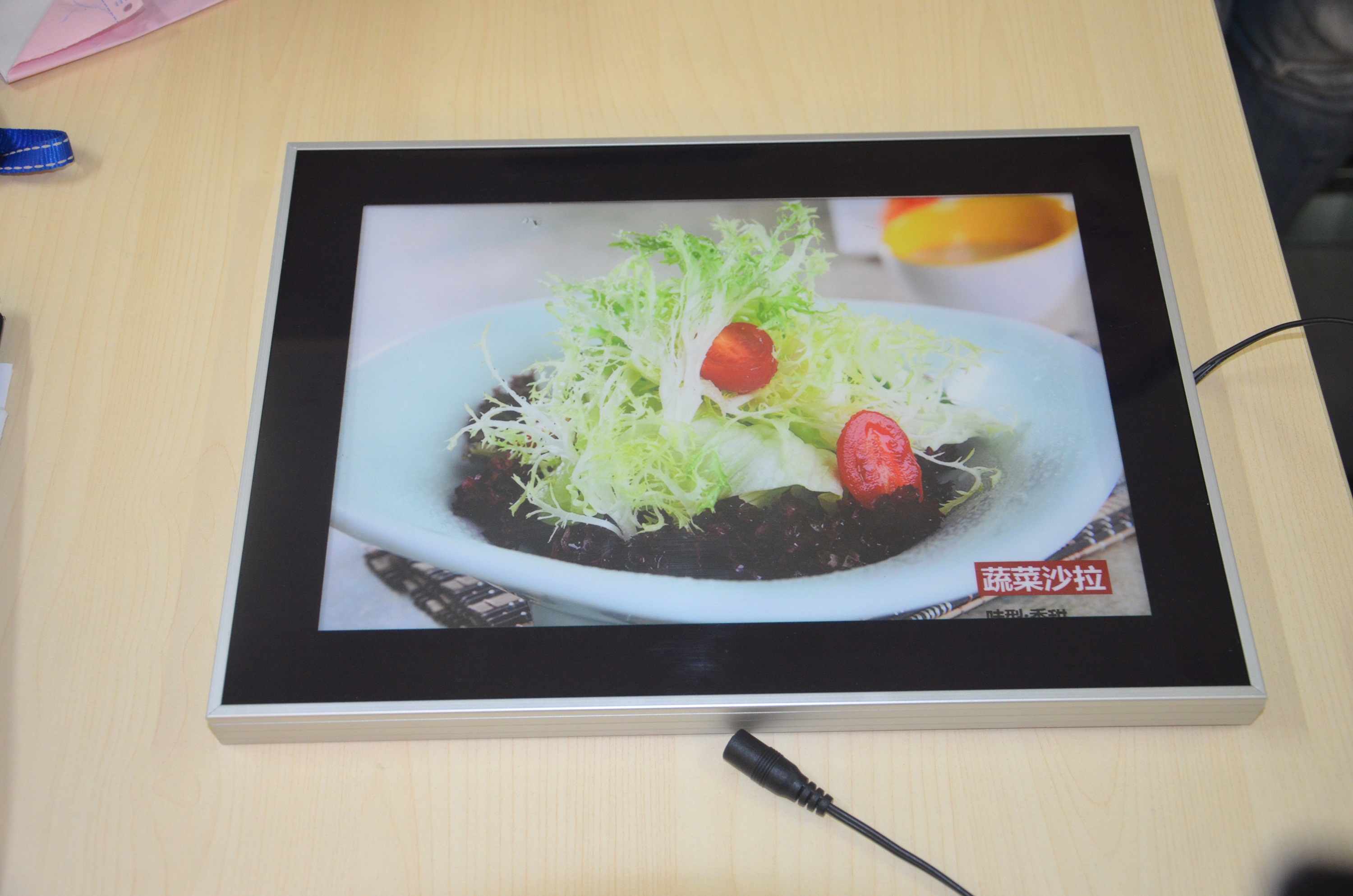

Finished Display

AF12A Standard Sizes: Poster Size, View Size & Frame Size

For menu-board artwork and installation planning, poster size, view size and outer frame size are different measurements. Poster size determines the printed insert, view size defines the visible artwork area, and frame size determines the required wall space.

A4 dimension check: the current source lists the A4 frame size and view size both as 322 × 270 mm, while the other formats show a smaller view area than outer frame dimensions. This value has been preserved from the original data, but Wallis should reverify it before using the A4 measurements in a technical drawing or quotation.

How to Prepare Menu & Poster Artwork

Use Poster Size for Printing

Printed graphics should be prepared according to the confirmed poster size rather than the complete outer frame dimensions.

Keep Important Artwork Inside the View Area

Menus, prices, QR codes, product photographs and logos should remain inside the visible-view dimensions so important information is not hidden by the frame or magnetic front structure.

Choose Graphic Media for Backlit Display

For illuminated displays, graphic media should be selected according to light transmission, print density and desired color saturation. Backlit film or another suitable translucent media can be evaluated using the actual AF12A light box.

Approve a Printed Sample Under Illumination

Dark colors, heavy ink coverage and certain substrates can change perceived brightness after illumination. Brand-critical menus should therefore be checked inside the powered light box before large-volume printing.

Single-Sided vs Double-Sided Magnetic Light Boxes

Single-Sided Wall Display

Single-sided units are suitable for restaurant menus, wall advertisements, hotel information boards, café price lists and promotional graphics viewed from one direction.

Double-Sided Display

The current Wallis specification lists a double-sided visual option. For such projects, confirm total thickness, lighting construction, poster access, suspension or mounting method and power-cable arrangement before production.

Portrait or Landscape Orientation

Many commercial illuminated poster frames can be configured in portrait or landscape orientation. For Wallis custom orders, confirm the required orientation together with bracket and cable positions rather than assuming both orientations use identical hardware.

Brightness, CCT & Power Consumption

Specify Brightness When It Matters

The existing Wallis page describes the illumination as bright and uniform but does not publish a fixed lux value. Buyers with minimum brightness requirements should specify the measurement method and request data for the exact display size.

Confirm LED Color Temperature

The current specification states white lighting but does not publish a fixed Kelvin value. For restaurant chains or multi-store projects, specify the target CCT so different light boxes have a consistent visual appearance.

Wattage Depends on Display Size

An A4 light box and a B1 light box normally require different LED arrangements. Request the actual watts per unit for the selected size when calculating project electrical loads.

Confirm the AC/DC Power Adapter

The AF12A operates on DC12V / DC24V according to the current specification. The external power supply should be selected according to local AC input voltage, total power, plug type and applicable electrical requirements.

Applications of Aluminum Magnetic LED Menu Light Boxes

Restaurant Menu Boards

Display illuminated food menus, daily specials, combo offers and promotional campaigns while allowing staff to update printed materials without specialized tools.

Café & Bakery Price Displays

Cafés, bakeries, dessert stores and beverage shops can use slim illuminated menu boards for pricing, seasonal products and new-product introductions.

Takeaway & Quick-Service Restaurants

Magnetic front access is useful for businesses that frequently change pricing, limited-time offers or printed menus.

Retail Promotions

Retail stores can use the light box for promotional posters, product launches, pricing graphics, brand campaigns and illuminated advertising.

Hotel & Commercial Information Displays

Hotels, shopping malls and commercial buildings can use illuminated frames for event information, wayfinding graphics, promotions and tenant advertising.

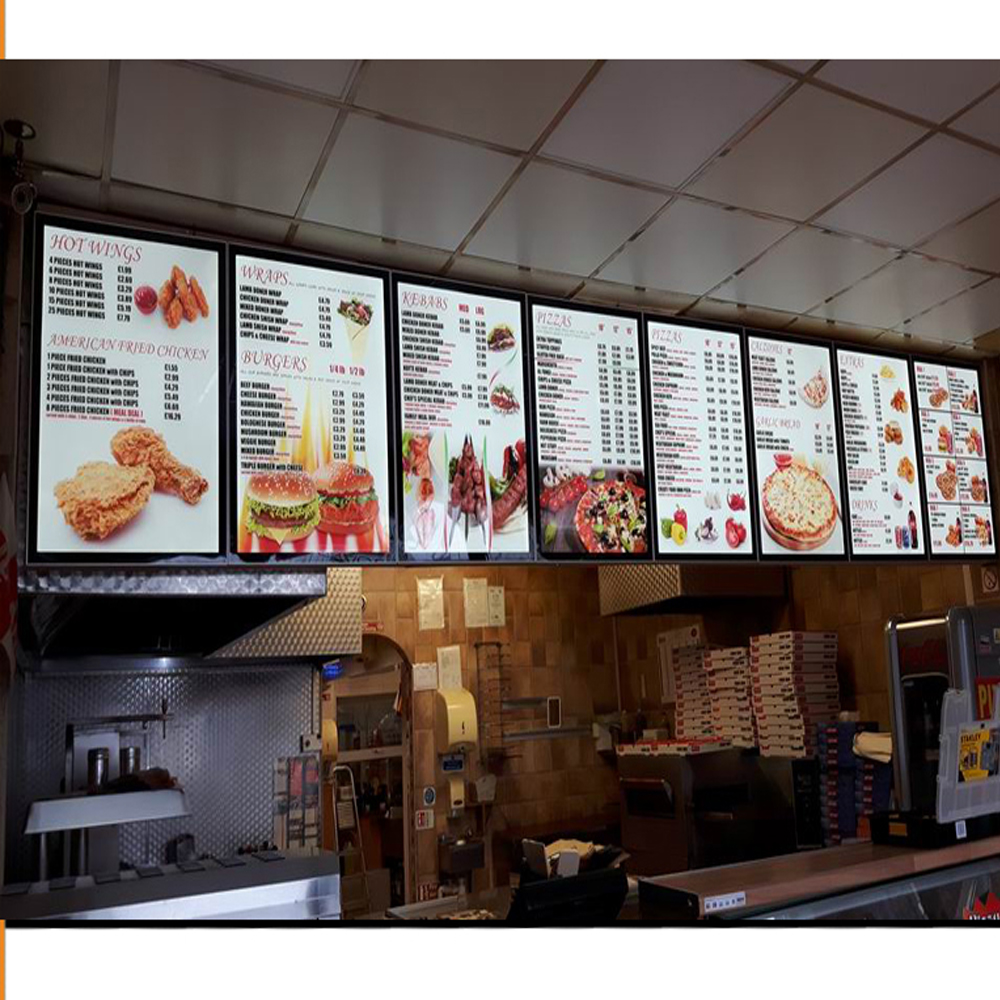

Restaurant Menu Board

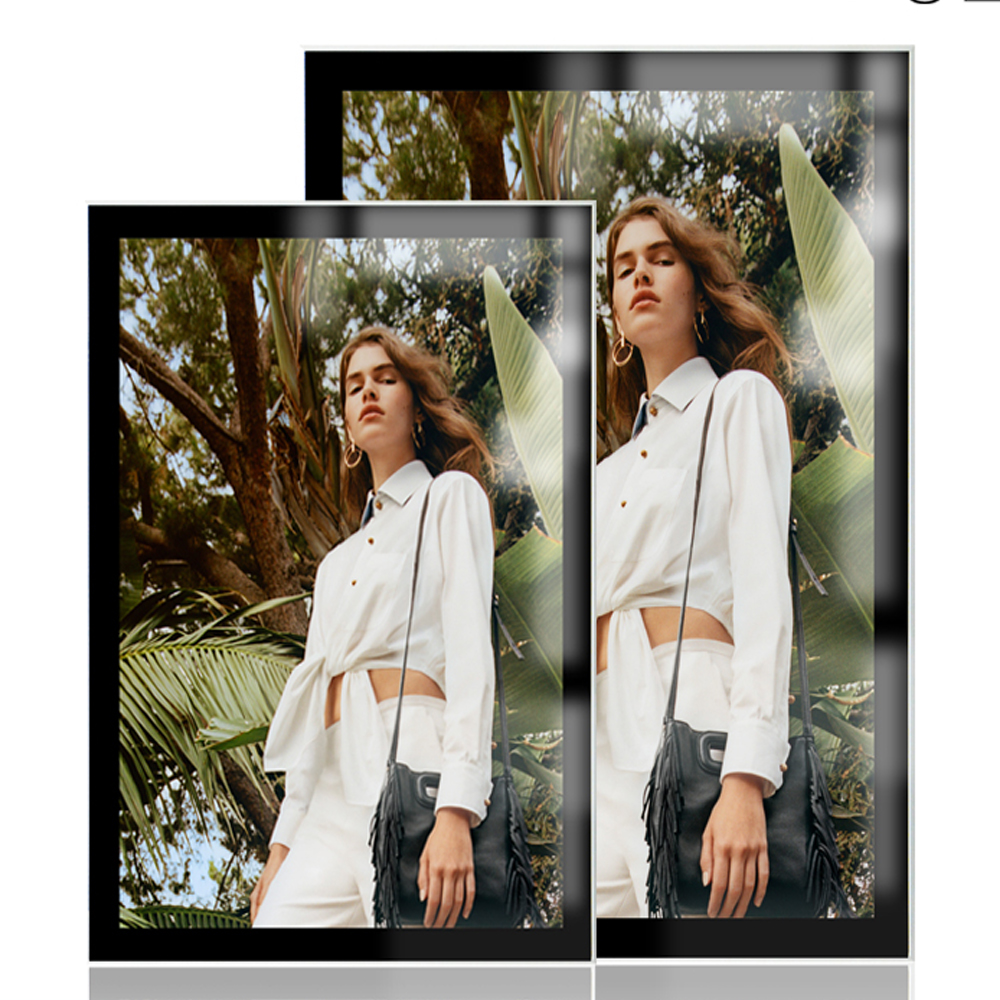

Wall-Mounted Advertising Display

Magnetic Front vs Snap Frame LED Light Box

Separating these two product types is useful for SEO. This page should target magnetic LED menu light box, while Wallis's snap-frame product page should target LED snap frame poster light box. This reduces keyword cannibalization between the two display products.

Indoor vs Outdoor Magnetic LED Light Boxes

Standard AF12A Is Primarily for Indoor Use

The current Wallis product is primarily designed for restaurants, cafés, retail stores, hotels, shopping malls and other protected indoor commercial locations.

Outdoor Use Requires a Different Structure

Outdoor applications should consider waterproof sealing, UV exposure, drainage, corrosion, wind load, front-panel durability, cable entry and outdoor-rated power components. The standard AF12A should not be described as waterproof without an applicable tested construction.

Indoor Window Displays Are Different from Outdoor Installation

A light box installed inside a storefront can be visible from outdoors while remaining protected from rain. That type of installation does not require the same construction as a light box directly exposed to weather.

How to Choose a Magnetic LED Menu Light Box

1. Select the Poster Format

Choose A4, A3, A2, A1, A0, B2, B1 or provide a custom poster dimension.

2. Confirm Poster, View and Frame Dimensions

These dimensions serve different purposes and should all be approved before graphic printing and installation.

3. Select Single or Double Side

Define the number of viewing directions and required mounting method before the light box structure is finalized.

4. Confirm LED CCT

Specify the required white-light color temperature when multiple displays must visually match.

5. Confirm Brightness Requirement

Define a measurable brightness criterion if the project has strict visibility requirements.

6. Specify Graphic Media

State whether the customer will use backlit film, translucent paper or another graphic material so fit and optical appearance can be evaluated.

7. Confirm Power Supply

Provide destination-country AC voltage, plug type and cable requirements so a compatible power adapter can be selected.

8. Approve a Powered Sample

Check frame finish, magnetic opening, graphic fit, brightness, uniformity, CCT, power supply and mounting hardware before approving bulk production.

Quality Control for Magnetic LED Menu Light Boxes

• Outer frame size and squareness

• Poster size and visible-view dimensions

• 20mm profile and assembled depth

• Aluminum surface finish and color

• Magnetic holding strength and panel alignment

• Suction-cup opening operation

• PMMA LGP scratches and edge damage

• LED function and electrical connection

• DC12V / DC24V configuration

• Brightness and illumination uniformity

• LED CCT consistency between units

• Dark spots, bright edges and corner shadows

• Front protective panel condition

• Graphic insertion and removal

• Wall-mounting hardware

• Power adapter, plug and cable specification

• Logo and custom labeling where applicable

• Export packaging and accessories

Inspect the Product While Illuminated

Many optical defects are difficult to identify while the light box is switched off. Final QC should therefore include powered inspection of the LGP and poster display surface.

Compare Multiple Units for Project Orders

Restaurant chains and retail projects often install several light boxes side by side. Batch inspection should therefore check visible differences in brightness and white-light color.

OEM & Custom Magnetic LED Light Box Service

Custom Frame Dimensions

In addition to standard A- and B-series formats, custom frame size, poster size and visible opening can be reviewed for restaurant chains, signage companies and commercial projects.

Custom Aluminum Colors

Silver is currently listed as the standard frame color, while other finishes can be discussed for OEM orders.

Custom Lighting Requirements

Projects requiring a defined CCT, brightness or power configuration should submit those requirements before sample production.

Acrylic & LGP Processing

Wallis can integrate acrylic processing, LGP design, CNC shaping and frame assembly for customized display projects.

OEM Branding & Packaging

Customized labels, logo requirements and export packaging can be reviewed for distributors, restaurant-equipment suppliers and signage companies.

Sustainability Considerations

LED edge lighting can reduce electrical demand compared with some older illumination technologies, while the slim LGP structure can reduce the amount of material required compared with deeper sign cabinets. However, sustainability should be evaluated for the complete light box rather than the PMMA or LED component alone.

Reusable Display Hardware

The aluminum frame, magnetic panel and lighting system can remain in service while printed menus and promotional graphics are replaced, reducing the need to replace the entire display for each campaign.

Material Recovery Depends on Local Systems

Aluminum and PMMA can enter recycling or material-recovery streams where suitable collection and processing systems exist. Electrical components, LEDs, adhesives, magnets and mixed materials should be considered separately.

Avoid Unsupported Carbon Claims

Claims such as reduced carbon emissions should only be used when supported by product-specific energy data, lifecycle assessment or another documented comparison.

Workshop & Export Packaging

For international B2B orders, packaging should protect the aluminum profiles, magnetic front panels, PMMA light guide panels, electrical accessories and frame corners against scratching, impact and deformation during transportation.

Export Pallet Packaging

Container Loading

Why Choose Wallis for Magnetic LED Menu Light Boxes?

20mm Slim AF12A Design

The current AF12A product combines a slim 20mm profile with magnetic front access for commercial menu and poster displays.

Standard A4-A0 and B-Series Sizes

Published frame, view and poster dimensions make it easier for B2B buyers to coordinate printing and installation.

Fast Magnetic Poster Replacement

Suction-cup opening and magnetic front retention support frequent graphic updates in restaurants and retail environments.

LGP & Acrylic Processing Capability

Wallis can coordinate acrylic light guide processing with aluminum-frame assembly for customized illuminated-display projects.

OEM / ODM Project Support

Custom dimensions, frame finishes, lighting requirements, branding and packaging can be reviewed according to order requirements.

FAQ About Aluminum Magnetic LED Menu Light Boxes

What is an aluminum magnetic LED menu light box?

It is an illuminated poster frame using an aluminum body, LED lighting, an acrylic light guide panel and a removable magnetic front panel for quick menu or poster replacement.

How thick is the Wallis AF12A magnetic light box?

The current Wallis specification lists a 20mm thickness for the AF12A series.

How do I open the magnetic front panel?

The current AF12A design uses a suction cup to lift the magnetic front cover so the poster can be removed and replaced.

Do I need tools to replace the poster?

Normal poster replacement does not require dismantling the frame. The magnetic cover is opened with the supplied or compatible suction-cup method.

What standard sizes are available?

Published standard formats include A4, A3, A2, A1, A0, B2 and B1.

What is the difference between frame size, view size and poster size?

Frame size is the complete outer dimension, poster size is the printed insert dimension, and view size is the portion of the graphic that remains visible when installed.

Is the A4 view-size specification correct?

The current source lists both A4 frame size and view size as 322 × 270 mm. Because this differs from the dimensional pattern of the other sizes, buyers should request confirmation before producing A4 graphics or installation drawings.

Can Wallis manufacture custom sizes?

Yes. Custom frame dimensions, poster size, visible area and related project requirements can be reviewed for OEM / ODM production.

Is the light box single-sided or double-sided?

The current product specification lists both single-sided and double-sided visual configurations. Confirm the exact structure and mounting method when requesting the double-sided version.

What voltage does the magnetic LED menu light box use?

The current AF12A specification lists DC12V / DC24V.

Does DC12V / DC24V mean it plugs directly into the wall?

No. The light box requires an appropriate AC/DC power supply. Confirm the AC input range, output voltage, wattage, plug type and cable for the destination market.

What color temperature is the LED light?

The current specification states white light but does not define a fixed Kelvin value. Specify the required CCT if color matching is important.

How bright is the LED menu board?

The current page does not publish a measured lux or luminance value. Brightness depends on display size, LED configuration, LGP design and graphic media.

What is the power consumption?

Power consumption is not currently published for each size. Request the actual wattage of the selected A4-A0, B-series or custom light box.

What does the LGP do?

The PMMA light guide panel distributes LED light across the graphic area so the product can remain slim while providing illuminated poster presentation.

Is the LGP the actual light source?

No. The LEDs generate the light. The LGP guides and redistributes that light across the display surface.

What poster material should I use?

Use a graphic medium suitable for illuminated displays. Backlit film or another translucent printing material can be evaluated according to brightness and image requirements.

Does the light box include a protective front panel?

The current page describes an acrylic or PVC-type magnetic front panel, but buyers should confirm the exact material and thickness for the ordered configuration.

Can the light box be installed in portrait or landscape orientation?

Orientation should be confirmed with Wallis according to size, bracket position and cable routing. Include portrait or landscape orientation in the quotation request.

Can the magnetic LED light box be used outdoors?

The standard AF12A is primarily an indoor product. Outdoor use requires a protected structure with suitable front panels, waterproof electrical components, sealing and environmental validation.

Is the standard model waterproof?

The current product information does not publish a waterproof IP rating for the standard AF12A. It should not be marketed as waterproof without supporting product-specific test data.

Can Wallis customize the aluminum frame color?

Yes. Silver is currently listed and customized frame colors can be discussed for OEM orders.

Can Wallis provide OEM branding and packaging?

OEM branding, labels and customized export packaging can be reviewed according to project quantity and requirements.

Can I request a sample before mass production?

Current Wallis information states that sample testing before mass production is available. Buyers should evaluate magnetic opening, frame quality, graphic fit and powered illumination on the sample.

What information should I provide for a quotation?

Provide poster size or custom dimensions, quantity, single- or double-sided requirement, portrait or landscape orientation, frame color, LED CCT, required brightness if applicable, DC voltage, destination AC voltage, plug type, installation environment, logo, packaging and delivery destination.
