Foldable SEG LED Light Box Display for Trade Shows

Foldable SEG LED Light Box Display for Trade Shows & Retail

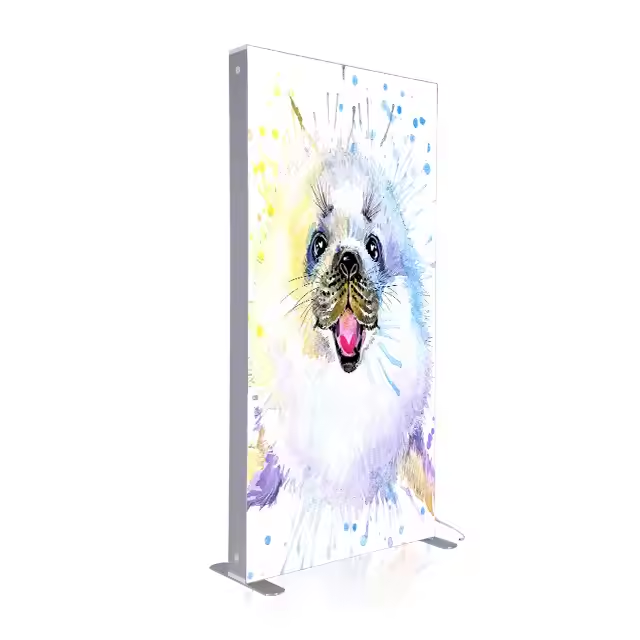

Wallis foldable SEG LED light box display is a portable illuminated fabric display system designed for trade shows, exhibitions, retail stores, pop-up shops, roadshows, showrooms, shopping malls and brand promotional events. It combines a foldable aluminum frame, LED illumination and Silicone Edge Graphics (SEG) to create a clean, illuminated display that can be packed more compactly than a conventional rigid light box.

The SEG fabric graphic uses a silicone strip sewn around the perimeter of the printed textile. The silicone edge is pressed into the channel of the aluminum frame, tensioning the fabric across the display surface without visible clips or external fasteners.

Wallis currently offers customized dimensions, silver, black, white or custom frame colors, 3000K / 4000K / 6500K lighting options and AC110V / AC220V / DC24V configurations. The current online product variant also shows an AF6 model in 2000 × 1000mm, while additional sizes can be developed according to project requirements.

For exhibition contractors, display distributors, advertising companies and OEM display brands, buyers should confirm the assembled frame size, SEG graphic size, packed dimensions, packed weight, power consumption, single- or double-sided configuration, support feet, driver specification, electrical connection and transport packaging before mass production.

Foldable SEG LED Frame Specifications

Electrical clarification: the current page lists AC110V, AC220V and DC24V under one voltage field and also describes a built-in driver. For technical accuracy, Wallis should confirm whether AC110V / AC220V are driver input options and DC24V is the internal or direct LED operating voltage before publishing a detailed wiring diagram.

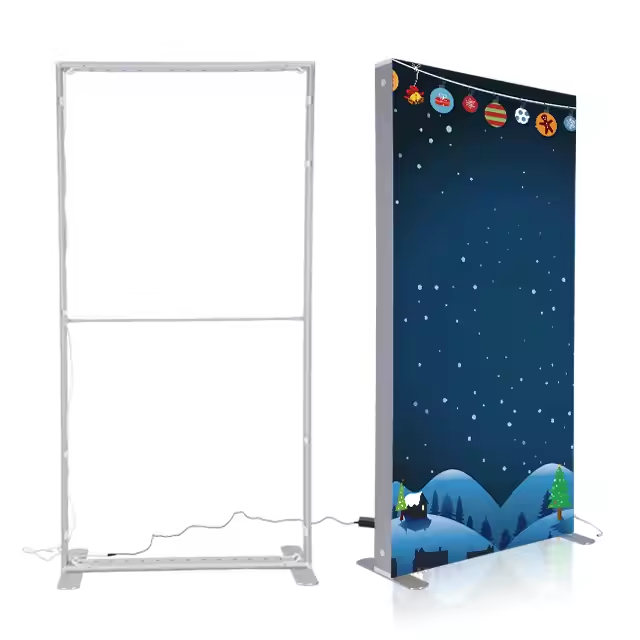

What Is a Foldable SEG LED Light Box?

A foldable SEG LED light box is an illuminated aluminum fabric-display system designed to collapse or fold into a smaller transport format and expand into a full-size advertising display at the destination.

SEG Means Silicone Edge Graphics

A narrow silicone strip is sewn around the perimeter of the fabric graphic. During installation, the silicone strip is pressed into a channel in the aluminum extrusion, tensioning the printed textile across the display face.

Edge-to-Edge Fabric Appearance

Because the silicone edge is hidden inside the frame channel, the visible fabric can extend close to the edges of the display, creating a clean illuminated graphic surface without external poster clips.

Designed for Repeat Graphic Changes

The fabric can be pulled out of the SEG channel and replaced with a new campaign graphic without replacing the entire aluminum display system.

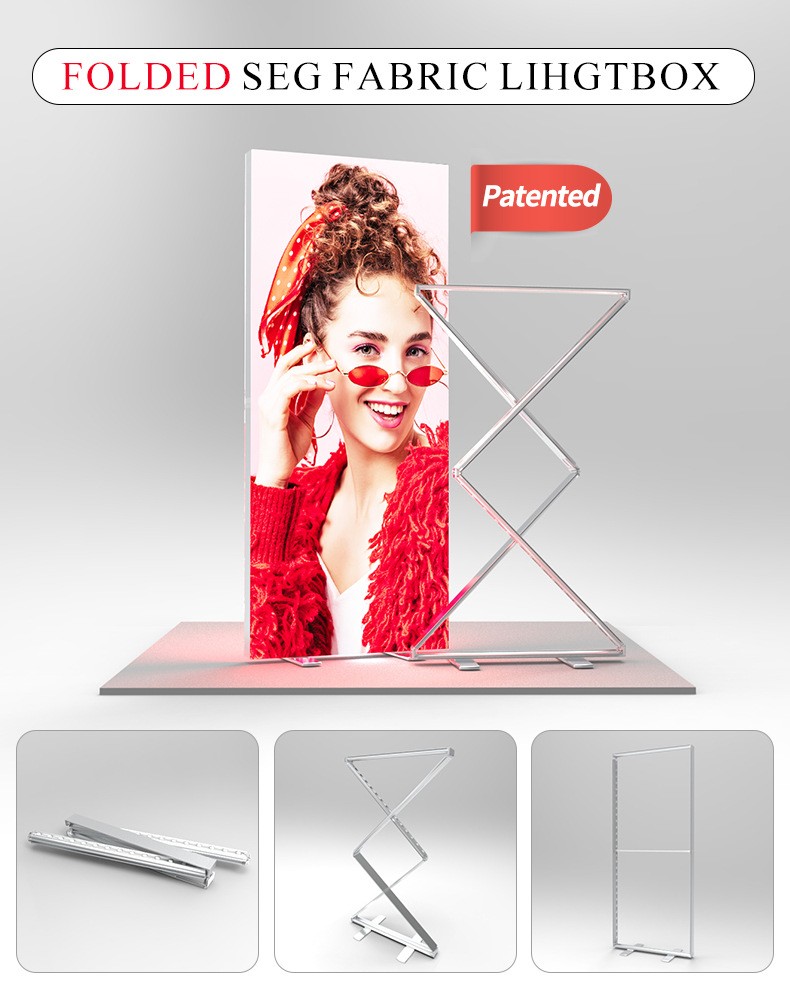

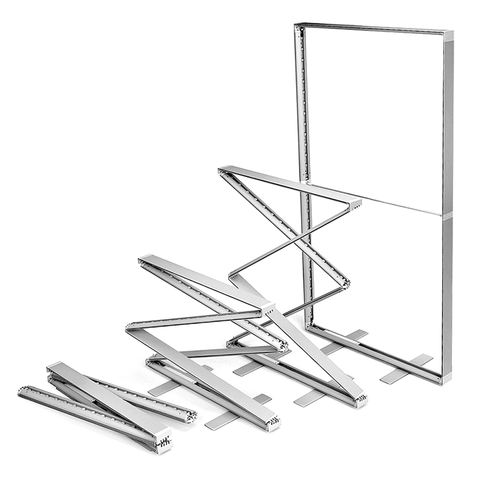

Foldable Aluminum Frame for Portable Exhibitions

Reduced Transport Volume

A key advantage of a foldable display is the ability to reduce the packed dimensions compared with transporting a fully assembled rigid light box. This can be particularly valuable for exhibitors moving displays between trade shows, roadshows and temporary events.

Fewer Loose Frame Components

The exact Wallis folding construction should be confirmed for each size, but the design objective is to simplify repeated assembly and packing compared with traditional multi-section display systems.

Repeated Setup and Breakdown

Exhibition contractors should evaluate hinge durability, locking points, electrical connectors, feet and support hardware when a display will be assembled and dismantled frequently.

Packed Size and Weight Should Be Added to the Datasheet

For a portable display product, packed dimensions and gross weight are critical purchasing data. Wallis should add both values for each standard configuration because buyers frequently calculate courier, air-freight and exhibition handling costs before purchasing.

Tool-Free SEG Fabric Graphic Replacement

Step 1: Start at One Corner

Align the silicone edge of the graphic with the corresponding groove in the aluminum profile.

Step 2: Press the Silicone Edge into the Channel

Press the silicone strip into the SEG groove by hand and continue around the perimeter.

Step 3: Tension the Fabric Evenly

Correct finished graphic dimensions and silicone-edge sewing are important because the fabric relies on tension to remain flat across the illuminated surface.

Step 4: Remove the Graphic for the Next Campaign

Pull the silicone edge from the channel and install a replacement fabric when the exhibition, campaign or retail promotion changes.

Backlit SEG Fabric: Graphic Specifications Buyers Should Confirm

Finished Graphic Size

The finished SEG textile dimension is not always identical to the outer aluminum-frame dimension. Request the exact graphic template for each frame size before printing.

Silicone Strip Size

The silicone edge must match the receiving groove of the selected frame profile. Buyers supplying their own graphics should request the correct silicone-strip specification.

Printing Method

Backlit SEG displays commonly use printed textile graphics, but the current Wallis page does not specify the exact fabric weight, coating or printing process. Buyers requiring printed graphics should confirm the textile and print method before artwork production.

Single-Sided Backing

Single-sided displays may require a rear backing layer to control light leakage and improve the illuminated appearance. The backing construction should be confirmed for the selected Wallis version.

Double-Sided Graphics

If both faces need illuminated SEG graphics, specify a double-sided configuration and confirm total depth, LED layout, graphic quantity and support structure before production.

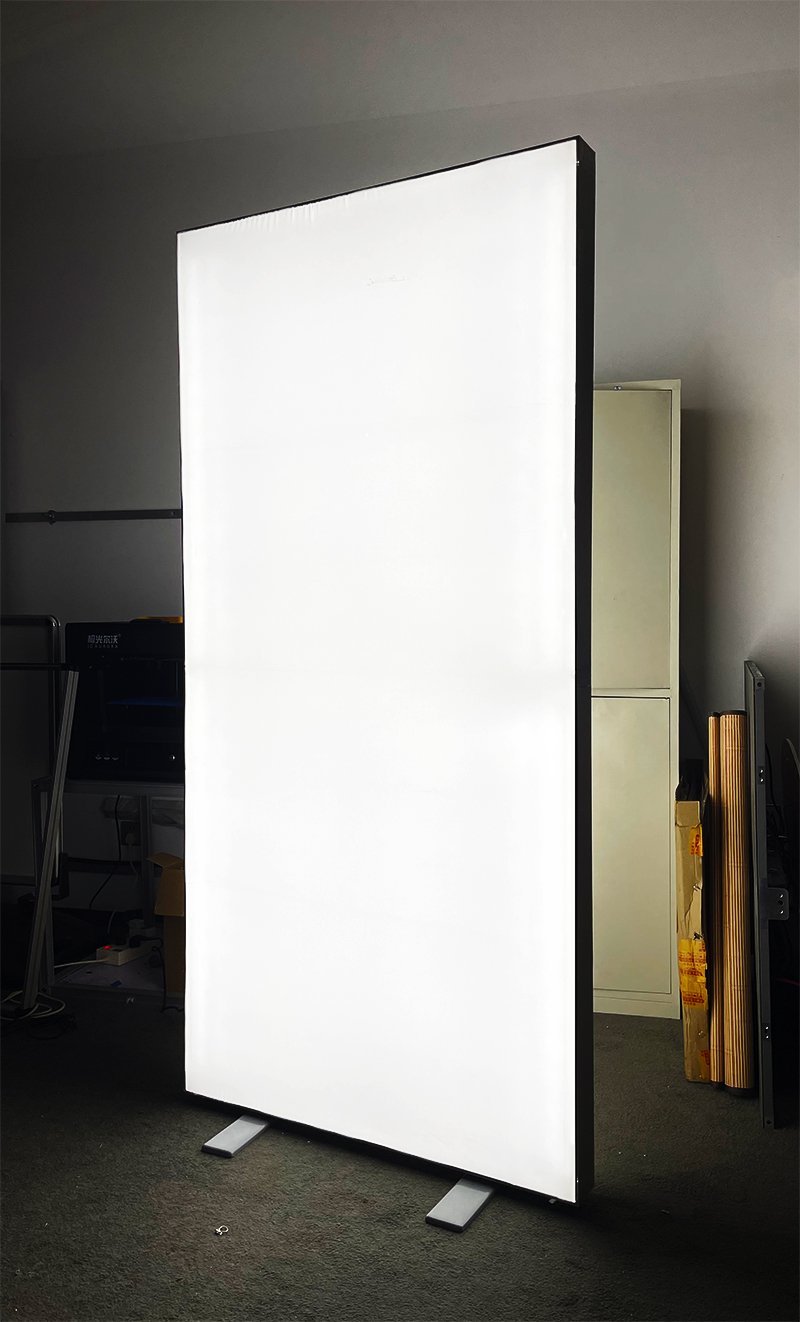

LED Illumination, Brightness & Color Temperature

3000K Warm White

3000K can be evaluated for hospitality, lifestyle retail and promotional environments that prefer a warmer illuminated appearance.

4000K Neutral White

4000K provides a more neutral white appearance and can suit exhibitions, showrooms and general commercial displays.

6500K Cool White

6500K is currently listed as an available cooler-white configuration and can create a crisp appearance in trade-show or advertising environments.

Ask for Measured Brightness

The current product page describes high brightness but does not provide a fixed lux or luminance figure. For bright exhibition halls, window displays or other demanding locations, define a measurable target rather than relying only on the phrase “high brightness.”

Check Uniformity Across Large Graphics

Larger displays should be inspected for edge hotspots, dark zones, LED point visibility and CCT variation. The LED arrangement may need to change as the frame becomes wider or taller.

Driver, Voltage & Power Requirements

AC110V / AC220V Versions

The current specification lists AC110V and AC220V. Buyers should confirm input frequency, plug type, cable configuration and whether the driver is integrated into the frame.

DC24V Version

DC24V is also listed. Confirm whether the order requires an external AC/DC power supply or direct connection to an existing 24V system.

Built-In Driver

The current Wallis page describes a built-in driver design intended to simplify wiring and maintain a cleaner finished display. Exact driver location, access method, input and output specifications should be confirmed for maintenance planning.

Request Wattage per Complete Display

Power consumption depends on frame size, LED quantity and whether one or two faces are illuminated. Buyers planning multiple displays should request actual watts per unit for electrical-load calculations.

Wall-Mounted, Hanging or Freestanding Installation

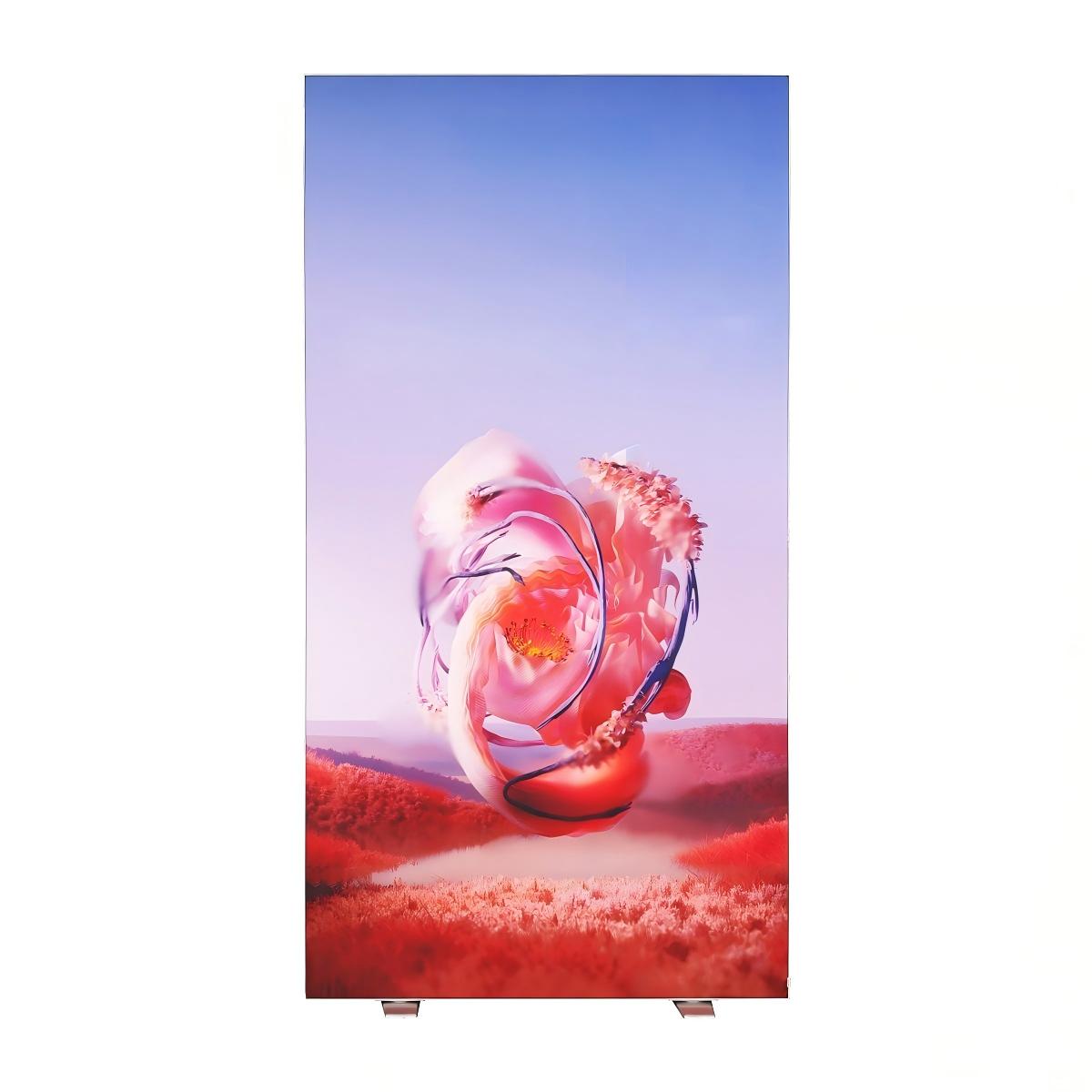

Freestanding Exhibition Display

Freestanding use is suitable for trade-show backwalls, exhibition entrances, pop-up stores and brand-activation areas. Confirm the required feet or support structure and the total base footprint.

Wall-Mounted Display

Wall mounting can suit permanent retail, showroom and commercial-interior displays where floor space is limited.

Hanging SEG Light Box

Hanging installations require suitable suspension points, cable lengths, load calculations and safety hardware. These requirements should be reviewed separately from a standard freestanding configuration.

Foldable SEG Light Box vs Traditional Modular SEG Light Box

Foldable SEG LED Light Box vs Traditional Pop-Up Display

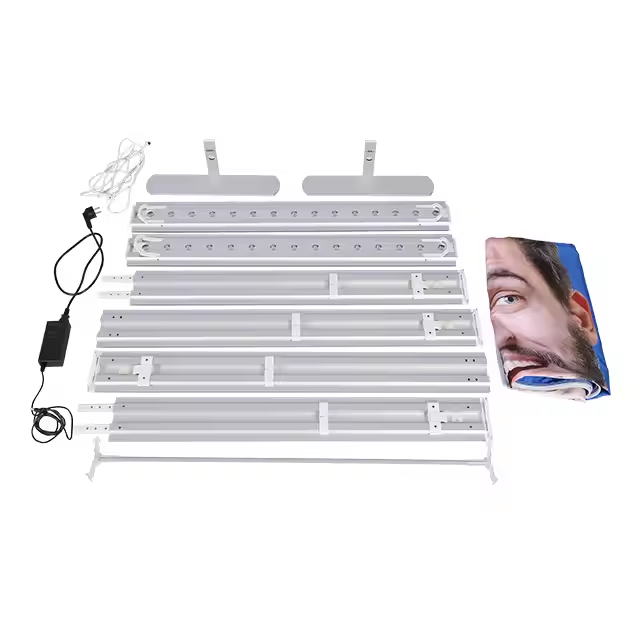

Packing Details & Accessories

Portable exhibition displays should be evaluated as a complete system rather than the aluminum frame alone. Buyers should confirm the included frame, LED system, driver or power supply, feet, connecting components, SEG graphic, transport bag and other accessories before shipment.

Carton Packing

Carton packing can suit warehouse storage, conventional shipping and distributor inventory.

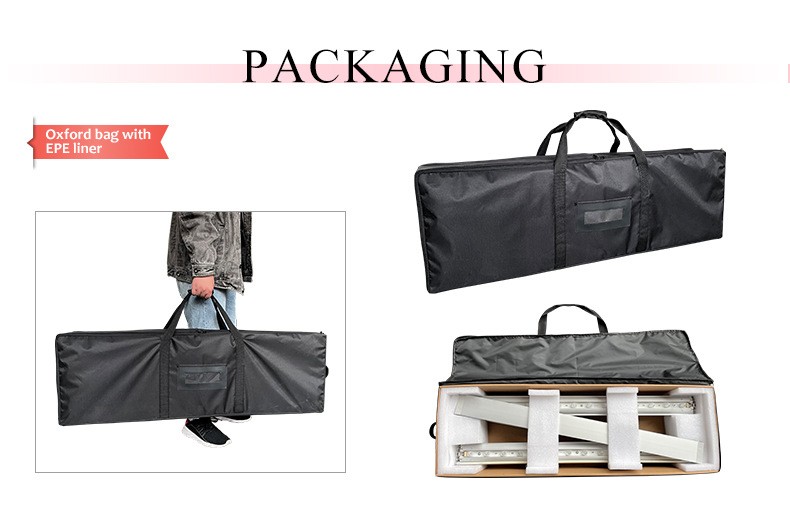

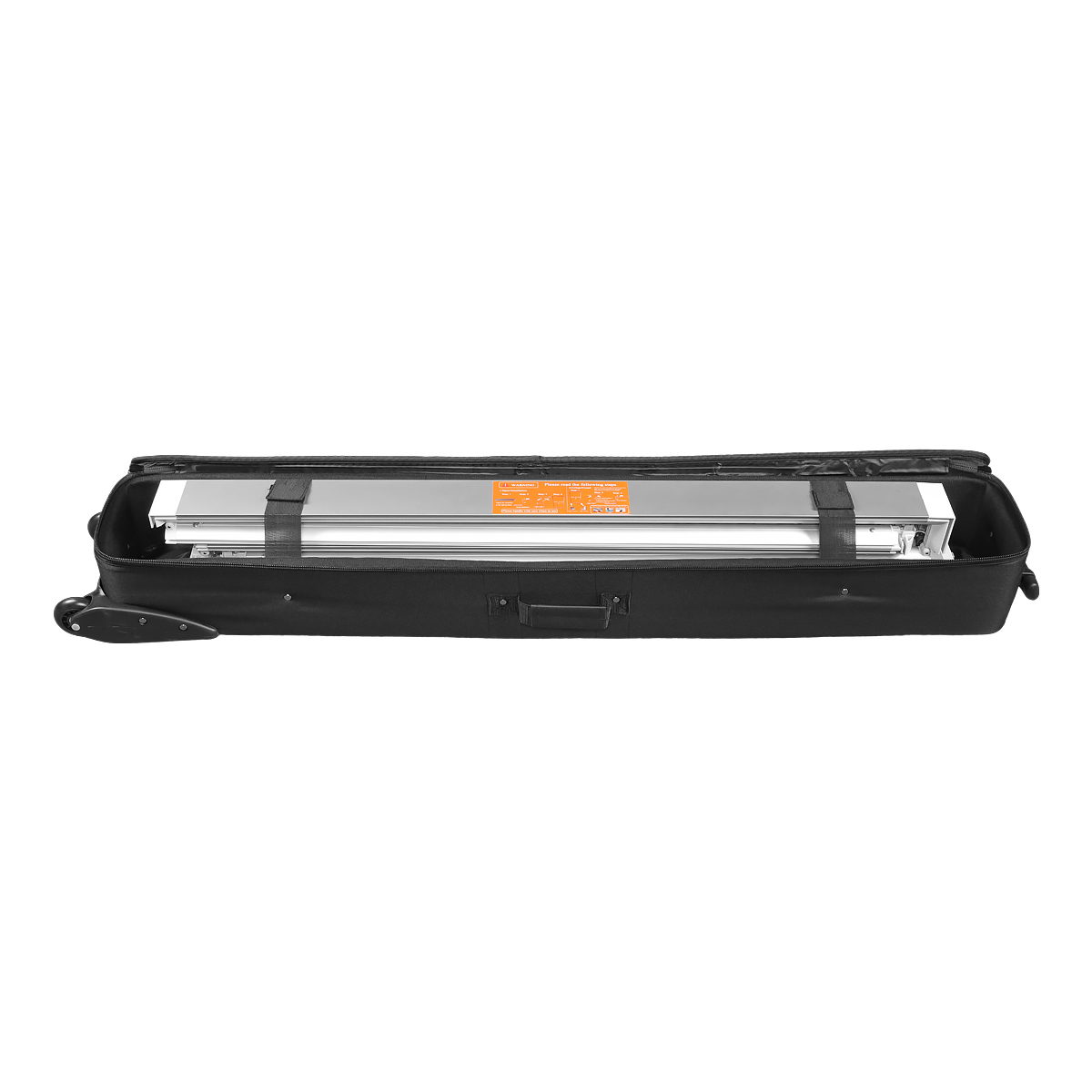

Oxford Bag Packing

Oxford bag packing can be useful for exhibitions, roadshows and displays that are repeatedly transported between events.

Add Packed Dimensions to Every Quotation

Packed length, width, height and gross weight should be listed because they directly affect courier, air-freight and handling costs.

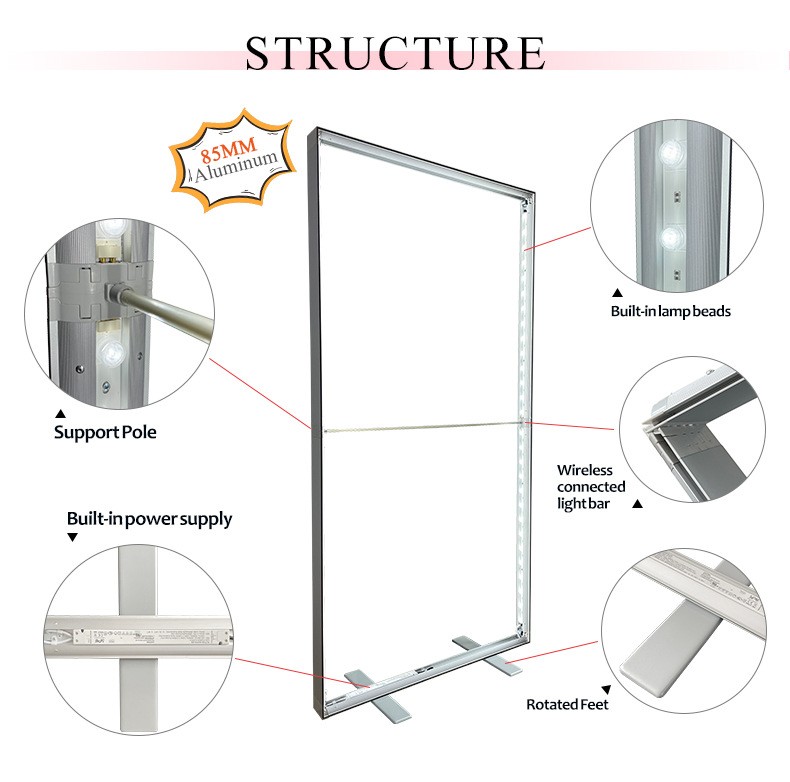

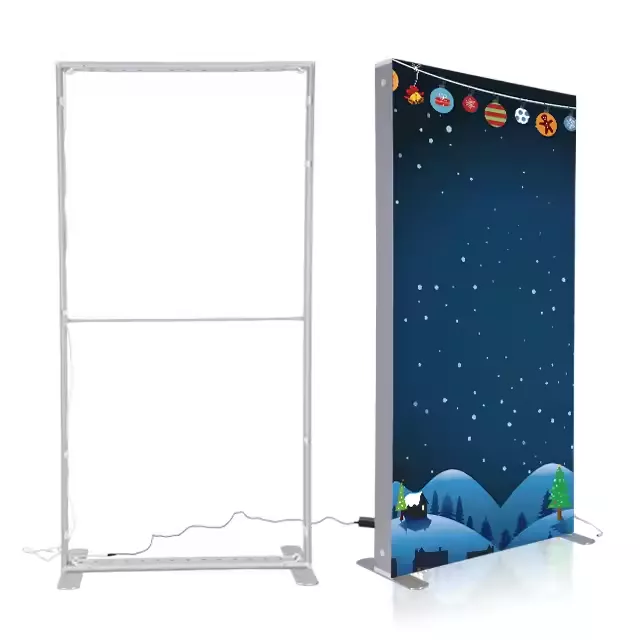

Foldable SEG LED Frame Construction & Built-In Driver

The current Wallis product describes a built-in driver design intended to reduce exposed electrical components and create a cleaner installed display. For portable systems, electrical connectors and wiring should remain protected during repeated folding, transportation and assembly.

Confirm Electrical Connections at Folding Joints

If wiring crosses or passes near hinged sections, the design should prevent cable pinching, excessive bending or connector damage during repeated use.

Driver Access for Maintenance

Buyers should confirm whether the driver can be replaced without dismantling the complete aluminum frame and whether replacement drivers can be supplied for long-term projects.

Applications of Foldable SEG LED Light Boxes

Trade Show Booths

Foldable SEG light boxes can be used as illuminated booth backwalls, entrance graphics, product-display panels and branded visual elements for exhibitions.

Roadshows & Traveling Exhibitions

Compact packing is especially useful for companies that transport the same display system to multiple cities or events.

Retail & Shopping Mall Promotions

Retail brands can update the SEG textile for product launches, seasonal campaigns and temporary promotional areas while reusing the illuminated frame.

Pop-Up Stores

Portable illuminated frames can create temporary branded walls or freestanding displays without requiring a permanent built-in advertising structure.

Showrooms & Product Launches

Showrooms can use backlit SEG graphics to introduce products, product families, specifications and brand messaging.

Corporate & Commercial Events

Conferences, corporate events and brand activations can use foldable illuminated displays where quick setup and professional graphic presentation are priorities.

How to Choose a Foldable SEG LED Light Box

1. Confirm Assembled Size

Provide the required display width and height, including any dimensional restrictions at the exhibition booth or retail location.

2. Confirm Graphic Size

Request the exact SEG graphic template before printing artwork.

3. Choose Single or Double Side

State whether one or both faces need illuminated graphics and whether a rear blocking fabric is required.

4. Select Installation Method

Define wall-mounted, hanging or freestanding installation and confirm the corresponding brackets, feet or suspension accessories.

5. Choose LED CCT

Select 3000K, 4000K or 6500K according to the brand visual style and surrounding environment.

6. Specify Brightness Requirements

For brightly illuminated exhibition halls or storefronts, request measurable light-output data for the final display size.

7. Confirm Voltage & Power Supply

Provide destination-country voltage and plug requirements and confirm whether the order uses AC input or a DC24V supply.

8. Check Packed Dimensions & Weight

Portable-display buyers should review packed dimensions and gross weight before comparing freight costs.

9. Choose Carton or Oxford Bag Packing

Select packaging according to whether the product will remain in inventory or travel repeatedly between exhibitions.

10. Approve an Assembled Sample

Before a volume order, assemble the sample and evaluate the folding mechanism, frame stability, fabric tension, illumination, electrical connections and packing process.

Quality Control for Foldable SEG LED Displays

• Assembled frame width and height

• Frame squareness and structural alignment

• Aluminum surface finish and color

• Foldable joints, hinges and locking mechanism

• Repeated folding and unfolding operation

• SEG channel dimensions

• Finished fabric size and silicone edge fit

• Graphic tension and wrinkle control

• LED function and brightness

• Illumination uniformity

• 3000K / 4000K / 6500K CCT where specified

• CCT consistency between multiple displays

• Driver and electrical connection

• Power consumption where specified

• Wall brackets, suspension fittings or freestanding feet

• Packing dimensions and gross weight

• Oxford bag or carton condition

• Power cables, connectors and ordered accessories

• OEM labels, logo and packaging

Test the Display Fully Assembled

An illuminated display should be inspected in its final assembled condition. This allows QC to identify frame misalignment, loose joints, uneven graphic tension and lighting differences that may not be visible when the product is folded.

Perform Repeated Folding Checks

For trade-show applications, the frame should be evaluated after repeated setup and packing cycles because hinges, electrical connections and frame locks experience more mechanical movement than a permanent light box.

OEM & Custom Foldable SEG LED Light Box Service

Custom Display Dimensions

Width and height can be reviewed according to booth dimensions, retail locations, transport requirements and visual design.

Custom Frame Colors

Current options include silver, black and white, with other finishes subject to project confirmation.

Custom LED CCT & Brightness

3000K, 4000K and 6500K are currently listed, while project-specific brightness requirements can be reviewed before production.

Voltage Customization

AC110V, AC220V and DC24V configurations are currently listed. Electrical construction should be confirmed according to the destination market.

OEM Logo & Packaging

Logo labels, cartons, transport bags and other packaging requirements can be discussed for distributors and display-equipment brands.

MOQ 1 Piece for Project Evaluation

The current Wallis page lists a minimum order quantity of one piece, allowing buyers to test a project configuration before larger-scale procurement.

Sustainability & Reusability Considerations

A reusable SEG display allows the aluminum frame and LED system to remain in service while printed graphics are replaced for new campaigns. This can reduce the need to replace the complete advertising display whenever branding changes.

Reusable Aluminum Display Structure

Aluminum frames can support repeated exhibition use when joints, profiles and electrical components are maintained correctly.

Replace Graphics Instead of the Whole Display

Updating only the SEG fabric is particularly useful for seasonal campaigns, product launches and exhibition schedules.

Avoid Unsupported Environmental Claims

Recyclability and carbon-impact claims should be based on the complete product construction, transport, electronics, graphic material and local recovery infrastructure rather than on the aluminum frame alone.

Why Choose Wallis for Foldable SEG LED Displays?

Foldable Portable Display Design

The product is designed around repeated transportation, setup and storage for exhibitions and promotional environments.

Custom Dimensions

Wallis supports project-specific width, height and frame configurations instead of limiting buyers to one standard size.

Multiple CCT Options

Current lighting options include 3000K, 4000K and 6500K for different brand environments.

Multiple Installation Methods

Wall-mounted, hanging and freestanding applications can be reviewed according to the project.

OEM & ODM Support

Custom colors, lighting, voltage, branding and packaging can be discussed for distributors, exhibition contractors and display brands.

Global B2B Display Projects

For repeat exhibition orders, buyers should retain an approved specification covering assembled size, graphic size, frame profile, CCT, power, driver, single- or double-sided construction, feet or mounting hardware, packed dimensions, weight and accessories.

FAQ About Foldable SEG LED Light Boxes

What is a foldable SEG LED light box?

It is a portable illuminated fabric display combining a foldable aluminum frame, LED lighting and silicone-edge fabric graphics for exhibitions, retail promotions and commercial advertising.

What does SEG stand for?

SEG stands for Silicone Edge Graphics. A silicone strip sewn around the fabric perimeter is inserted into the aluminum-frame channel to hold the graphic under tension.

What is the current Wallis model?

The current online Wallis product variant identifies the foldable display as model AF6. Confirm the exact model in the quotation because custom configurations may differ.

What size is the current AF6 display?

The current online variant shows 2000 × 1000mm, while the product specification also states that width and height can be customized.

Can Wallis make custom sizes?

Yes. Width, height and frame thickness are listed as customizable.

Is the aluminum frame really foldable?

Yes. Foldability is a core feature of the current product. Buyers should request the assembly and folding instructions for the exact size being ordered.

Does the display require tools for setup?

The current Wallis page describes tool-free SEG graphic installation and fast foldable setup. The exact frame locking and support method should be confirmed for the selected model.

How is the SEG fabric installed?

The silicone strip around the printed fabric is pressed into the corresponding groove in the aluminum frame.

Can the fabric graphic be replaced?

Yes. The SEG fabric can be removed from the channel and replaced with a new printed graphic while reusing the frame and LED system.

Does Wallis print the SEG fabric?

The current source confirms SEG fabric graphics but does not publish a detailed printing specification. If printed fabric is required, confirm the fabric material, print method, color profile and finished graphic dimensions during quotation.

Can the display be double-sided?

The current specification does not clearly define a standard single- or double-sided configuration. Buyers requiring two illuminated faces should specifically request a double-sided design.

What LED color temperatures are available?

The current Wallis specification lists 3000K, 4000K and 6500K.

How bright is the LED light box?

The current page describes high brightness but does not provide a fixed lux or luminance value. Request measured data for the actual frame size if a brightness target is required.

What is the power consumption?

Power consumption is not currently published. It should be confirmed according to frame size, LED configuration and number of illuminated faces.

What voltage does the display use?

The current specification lists AC110V, AC220V and DC24V. Confirm the exact driver and wiring configuration for the selected order.

Does the frame have a built-in driver?

The existing Wallis page describes a built-in driver design. Buyers should confirm the driver input, output, access and replacement method.

Can it be used as a freestanding trade-show display?

Yes. Freestanding installation is listed as an available use. Confirm the included feet, stabilizers or support hardware.

Can it be wall mounted?

Yes. Wall-mounted installation is listed in the current product specification.

Can the SEG LED frame be suspended?

Hanging installation is also listed, but suspension hardware and structural requirements should be confirmed according to frame size and installation location.

What are the packed dimensions?

The current Wallis page does not publish packed dimensions. Request carton or Oxford bag dimensions before arranging exhibition transport or freight.

How much does the display weigh?

Net and gross weights are not currently published. These should be confirmed for the selected dimensions because weight is important for portable-display logistics.

What packing options are available?

The existing page discusses carton packing and Oxford bag packing. Confirm which accessories and protective materials are included in each packing option.

What is the MOQ?

The current Wallis product specification lists a MOQ of one piece, which supports sample and custom-project evaluation.

Are samples free?

The current Wallis FAQ states that samples are available but are normally charged at a higher unit price because customized products require additional labor. Sample-cost treatment for a later bulk order should be confirmed in the quotation.

What is the sample lead time?

The current page lists approximately 3–5 working days after payment for samples. Customized dimensions, graphics and electrical requirements may affect timing.

Is the LED lifetime really over 50,000 hours?

The current page lists 50,000+ hours. Actual performance depends on LED quality, driver performance, heat dissipation, operating hours and ambient conditions.

Can Wallis customize the frame color?

Yes. Silver, black and white are listed, and other colors can be discussed for OEM projects.

Can Wallis customize the LED brightness?

LED brightness customization is mentioned on the current page. Buyers should define a measurable output target where performance is important.

Can Wallis provide OEM branding?

Yes. OEM logo and packaging customization are listed as available services.

What information should I provide for a quotation?

Provide assembled width and height, quantity, single- or double-sided requirement, SEG graphic requirement, installation method, frame color, 3000K/4000K/6500K CCT, required brightness if applicable, electrical input, destination plug type, packing method, logo requirements and delivery destination.

Request Foldable SEG LED Light Box Samples & Factory Pricing

Looking for a reliable foldable SEG LED light box manufacturer for trade shows, exhibitions, retail promotions or portable advertising displays? Send Wallis your required frame size, graphic configuration, installation method, lighting requirements, packing requirements and quantity for technical review, sample testing and B2B factory pricing.
