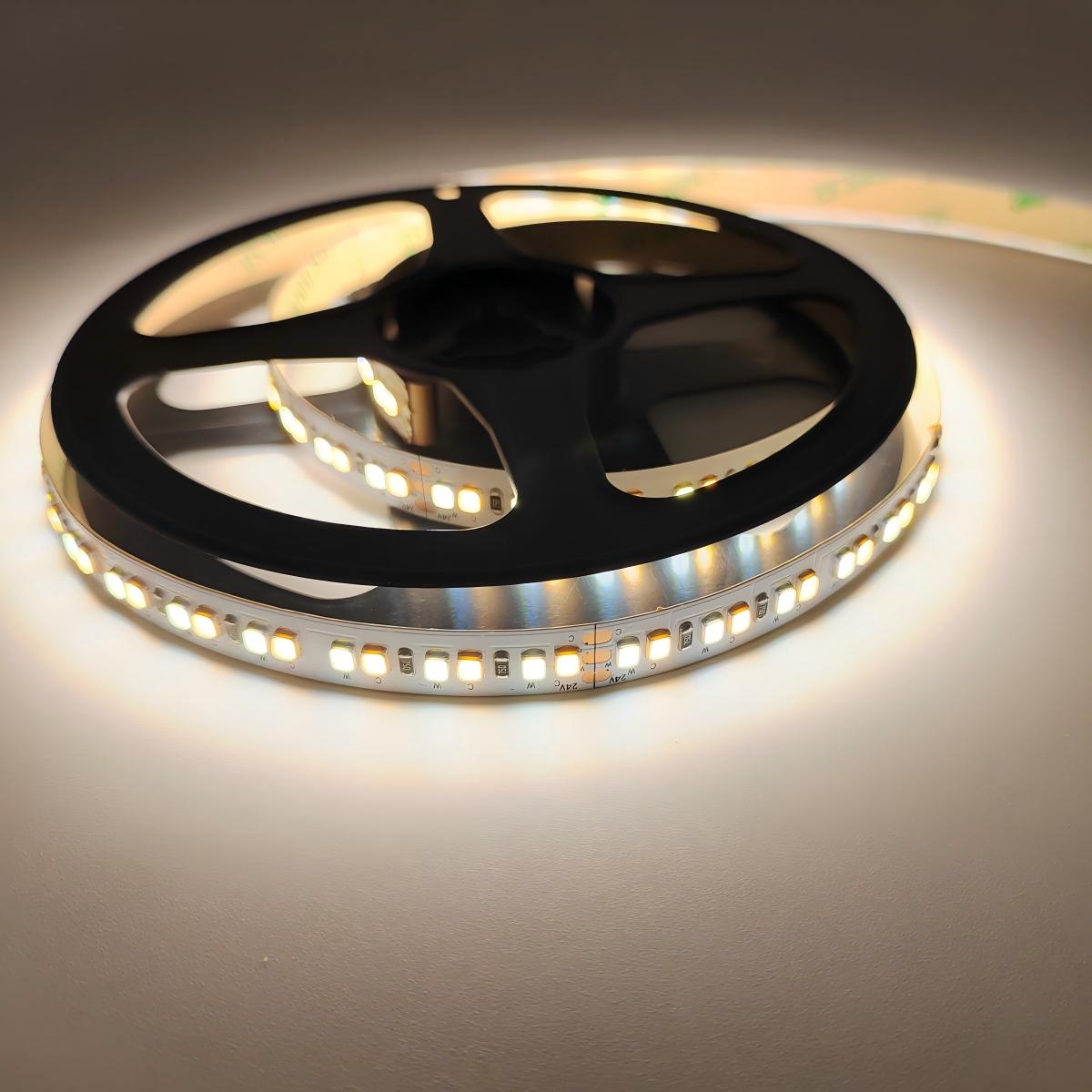

Tuneable white flexible led strip high efficiency 2835 Wallis custom

1. Indoor colorful led tape
2. High brightness and energy saving
3. Widly used Architectural decorative lighting
4. Several lengths for options
5. Custom service is possible
  • WLS-192NFS2835AD-

  • Wallis

Length:
Power :
Availability:
Quantity:

Tuneable white flexible led strip high efficiency 2835 Wallis custom


Tuneable means color temperature CCT adjustable LED flexible strips are popular products. CCT adjustable LED strips, with warm white and pure white / cool white in different SMD2835 LEDs, can be worked with CCT LED controller to achieve color temperature adjustable change from 2700-6500K, providing the capacity of color temperature tunable from warm white to cold white in one single led strip.


The strip led has some features as below:

  1.  Linear LED strip on flexible PCB with self-adhesive 3M tape on the back

  2. Various angle 180 degrees

  3. Made of SMD LEDs with lighting emitting in the direction of PCB

  4. Available colors: White , warm white , cold white , white colors 2700K to 6500K available

  5. Working Voltage: DC24V

  6. Cuttable every 12 LEDs per 62.5mm

  7. Anti-UV Design


Specification as below :

Part  Number Color LED Luminous (lm) Viewing Angle CCT
Wavelength
Current   (mA) CRI
Qty
IX-192NFS2835AD-CCT01-24V Adjustable
warmwhite
coolwhite
192pcs
WW+W
1380 120° 2700-6500K
Optional
580-600 ˃80Ra

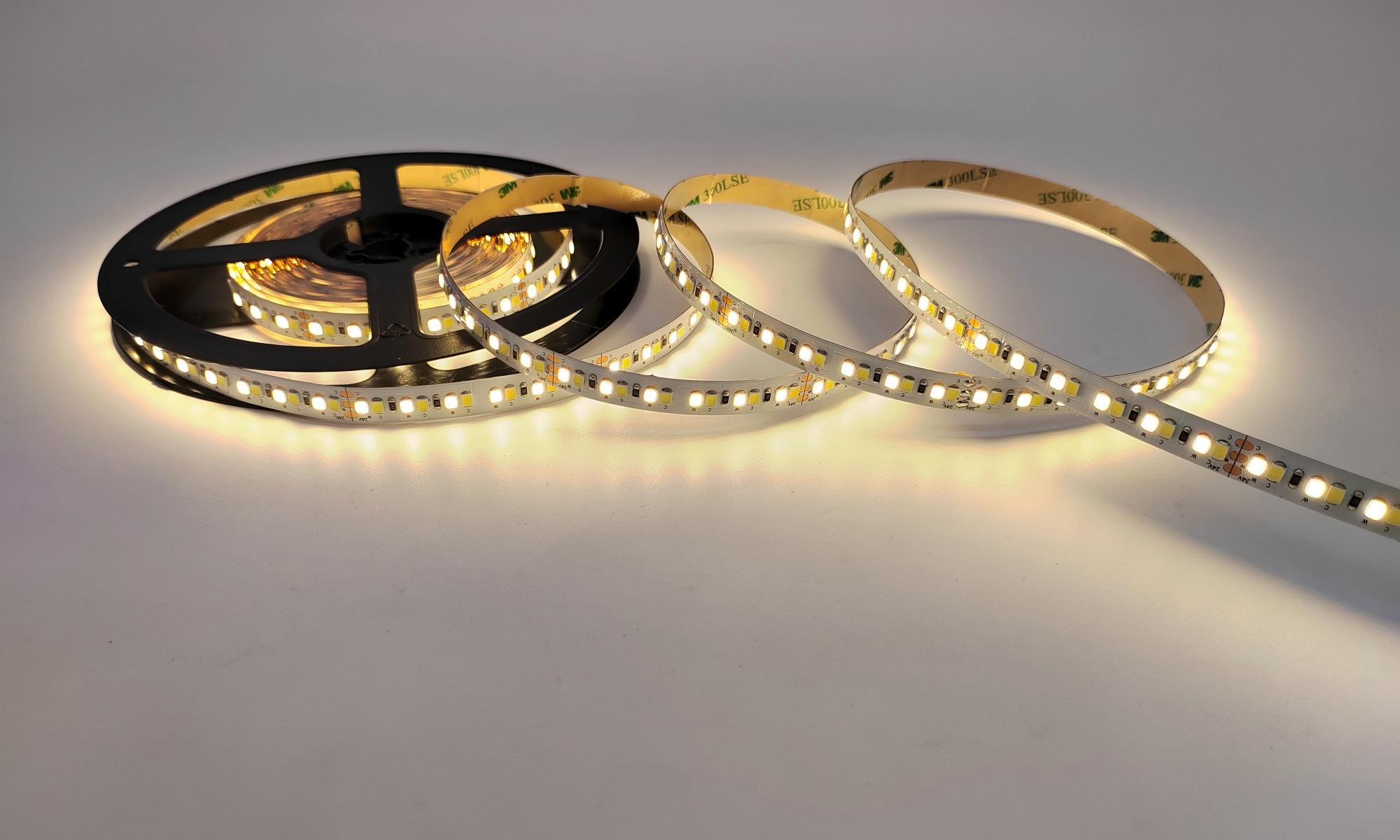

IMG_20220526_205246(1)

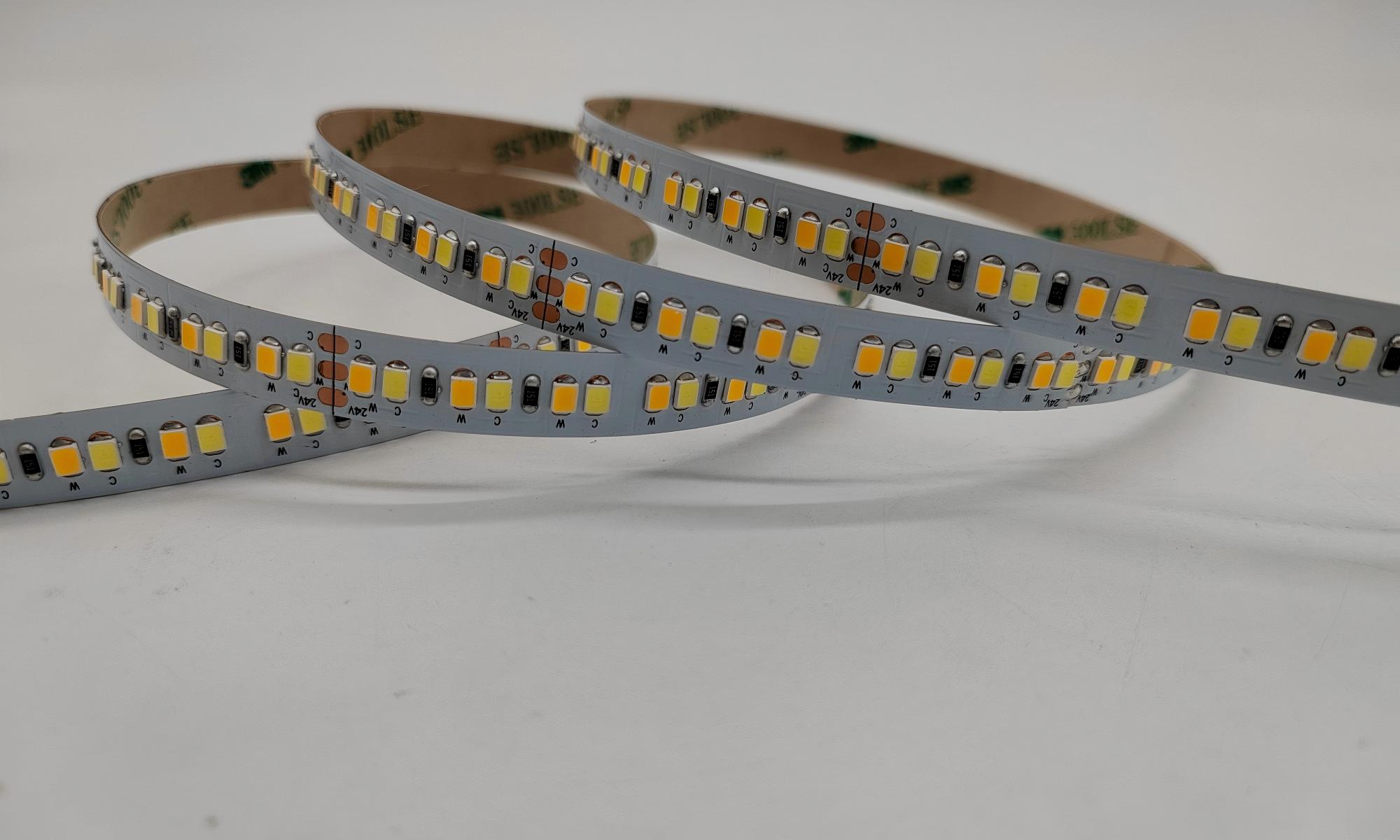

IMG_20220526_205124(1)




Applications:

  1. Car/Bus/Cruiser decoration

  2. Architectural decorative lighting

  3. Archway,canopy and bridge edge lighting

  4. Auditorium walkway lighting

  5. Backlighting for signage letters

  6. Channel letter lighting

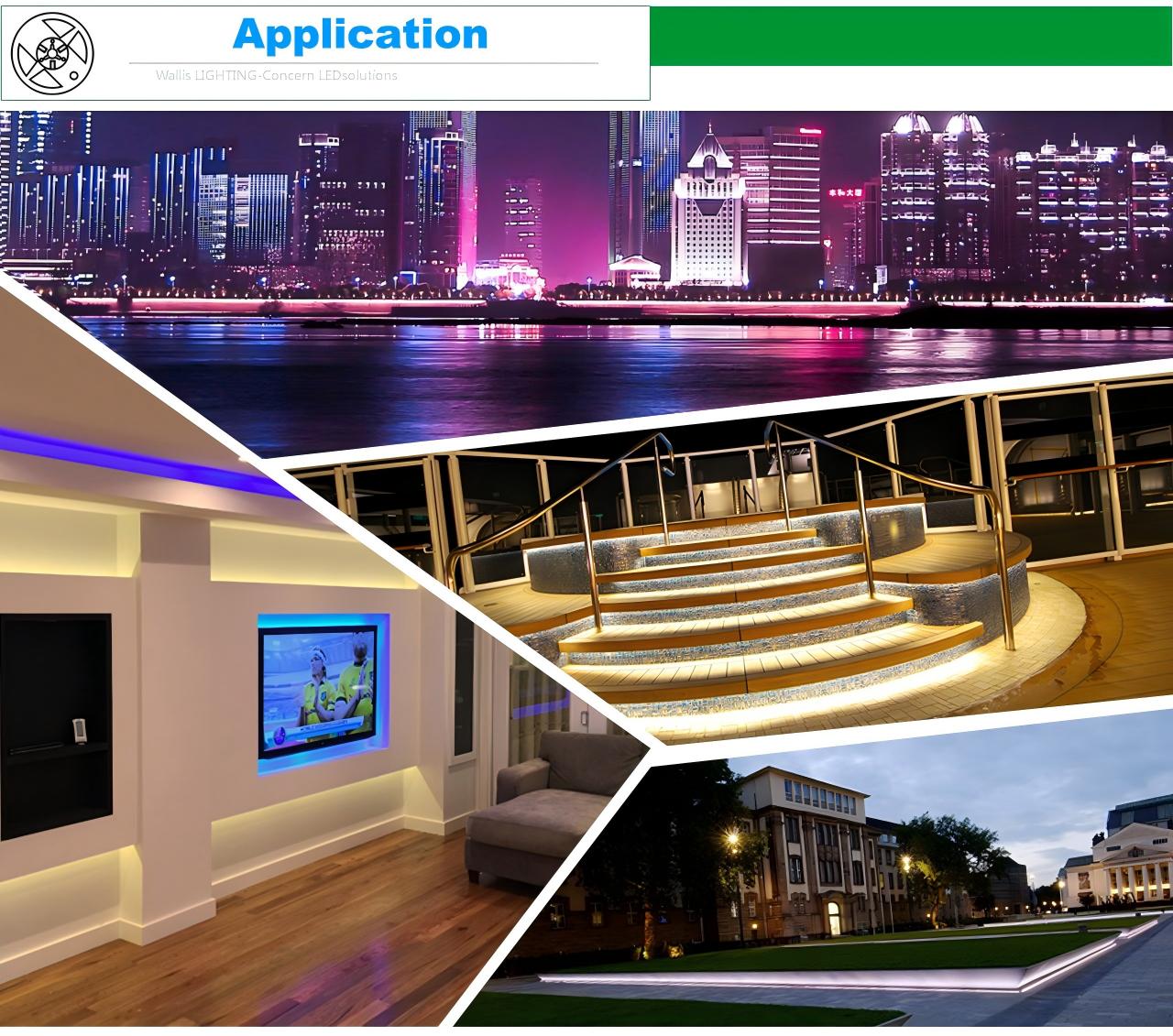

详情_11

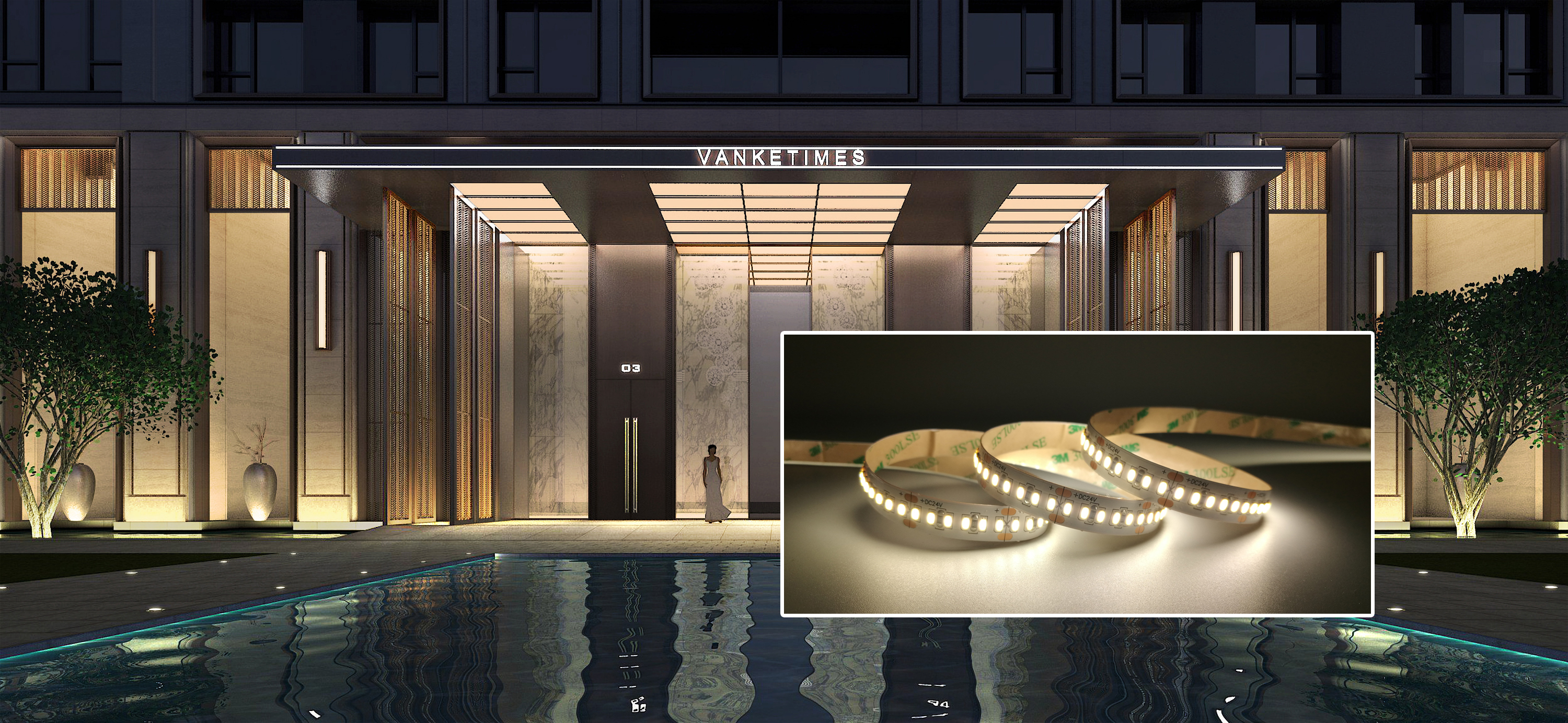

详情_02

FAQ:

1. Can it be cut?
A: Yes. This flexible led tape very 62.5mm cuttable and there are also cutting sign in the PCB


2. What about the lead time?
A: Samples need 3–5 days. Mass production takes 1–2 weeks, depending on the order quantity.


3.Do you have any MOQ limit for LED light orders?

A: Low MOQ. Samples are available for quality checking, even 1 pc is acceptable.


4. How to proceed with an order for LED lights?
A: First, let us know your requirements or application.
Second, we quote according to your requirements or our suggestions.
Third, the customer confirms the samples and places a deposit for the formal order.
Fourth, we arrange production.


5.  Can I print my logo on the LED light products?
A: Yes. Please inform us formally before production, and confirm based on our samples first.
