45W High Power Edge-Lit LED Light for Pop-Up & SEG Displays

High Power Edge-Lit LED Light for Pop-Up and SEG Displays

Wallis high power edge-lit LED light is a professional DC24V lighting solution designed for pop-up displays, SEG fabric light boxes, exhibition booths, advertising light boxes, retail display frames and portable illuminated display systems.

Model A-70040-10D combines high-performance OSRAM LED chips, an aluminum PCB and PMMA optical lenses. With 45W power, up to 4500 lm luminous flux, 6500K cool white output and a 15° × 45° beam angle, the module is designed to project strong light from the edge of suitable display structures.

For B2B display manufacturers, exhibition-system suppliers, sign makers and advertising companies, Wallis can support project-based LED selection and customization according to light box dimensions, installation structure, required brightness, single-sided or double-sided configuration and order quantity.

• 45W high-power edge-lighting module

• Up to 4500 lm luminous output

• DC24V low-voltage lighting system

• OSRAM LED chips

• 15° × 45° controlled optical beam

• PMMA optical lens

• Aluminum PCB for thermal management

• Suitable for pop-up, SEG and exhibition display projects

• OEM customization for size, power, structure and logo

Request LED Project Quote

High Power Edge-Lit LED Light Specifications

Project note: final LED quantity, power-supply configuration, mounting position and suitability should be confirmed according to the actual light box dimensions, depth, graphic material, single-sided or double-sided design and required brightness before mass production.

Key Features of High Power Edge-Lit LED Lighting

High Brightness: 45W and Up to 4500 Lumens

The A-70040-10D provides 45W power and up to 4500 lm luminous flux, making it suitable for professional illuminated display structures where strong light output is required.

High luminous output is particularly useful for exhibition graphics, SEG fabric displays and commercial advertising environments where the illuminated graphic needs to remain visually prominent under surrounding ambient light.

15° × 45° Optical Beam for Side Illumination

Unlike a conventional LED source that mainly projects light directly toward the front graphic, an edge-lighting module is positioned along the display frame and directs light across the interior of the light box.

The 15° × 45° optical distribution helps control the direction of the light. Correct positioning and module quantity are important for reducing excessive brightness near the LED source and minimizing dark areas farther from the light bar.

OSRAM LEDs for Professional Display Applications

The module uses OSRAM LED chips for high-output commercial display lighting. Combined with the specified 6500K color temperature, the lighting system produces a bright cool-white appearance suitable for advertising graphics and exhibition displays.

PMMA Optical Lens for Controlled Light Distribution

PMMA optical lenses are integrated with the LED lighting structure to control the light beam and direct useful illumination across the display area. Optical control is especially important in edge-lit systems because the LEDs are positioned away from the center of the graphic.

Aluminum PCB for Better Thermal Management

High-power LEDs generate heat during operation. The aluminum PCB provides a thermally conductive base that helps transfer heat away from the LED components and supports stable operation in commercial display installations.

Installation should still provide appropriate heat dissipation and ventilation according to the final frame structure, ambient temperature and operating schedule.

DC24V Operation for Commercial LED Systems

The listed module operates at DC24V. The power supply should be selected according to the total connected LED load and should include an appropriate engineering safety margin rather than being sized exactly at the theoretical maximum load.

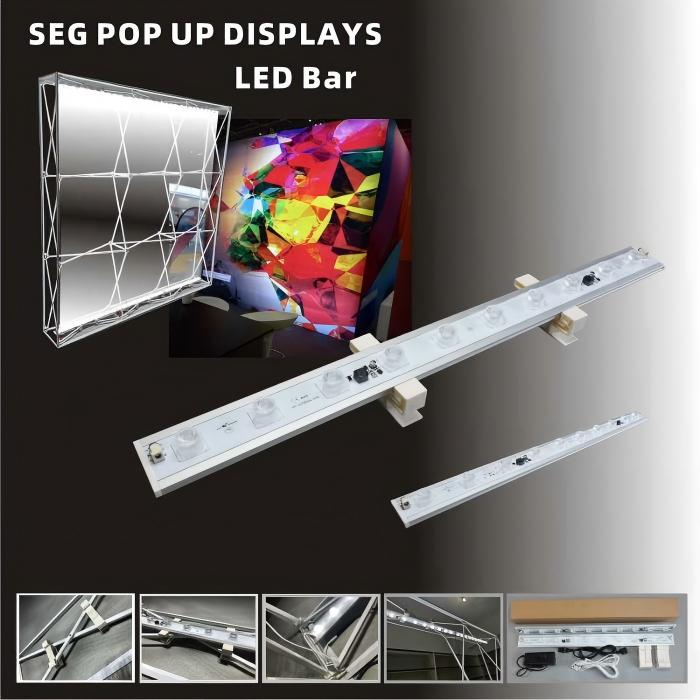

Overview of all parts

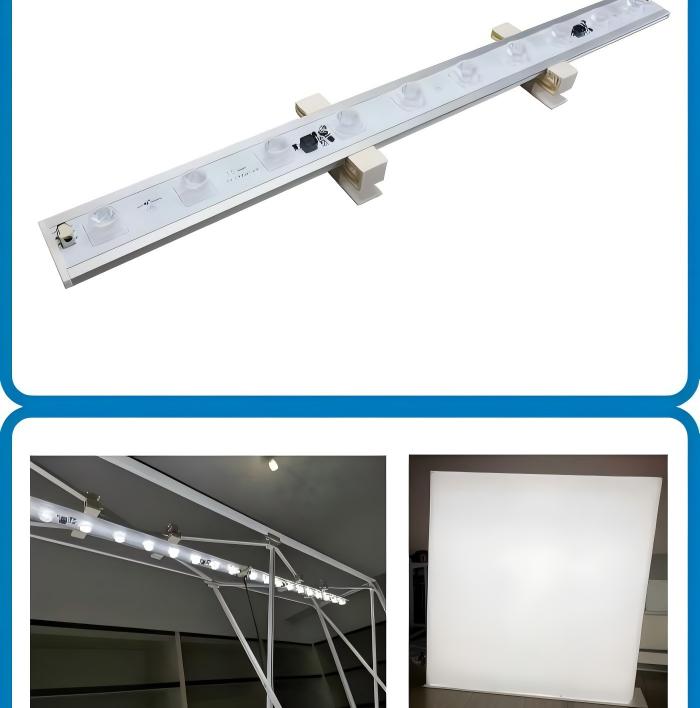

Pop-up lighting performance

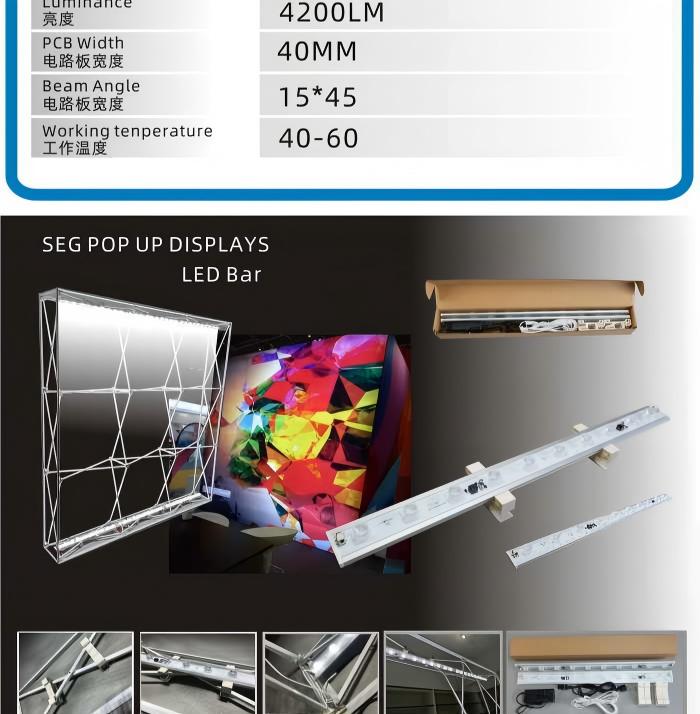

Specification of pop-up LED light

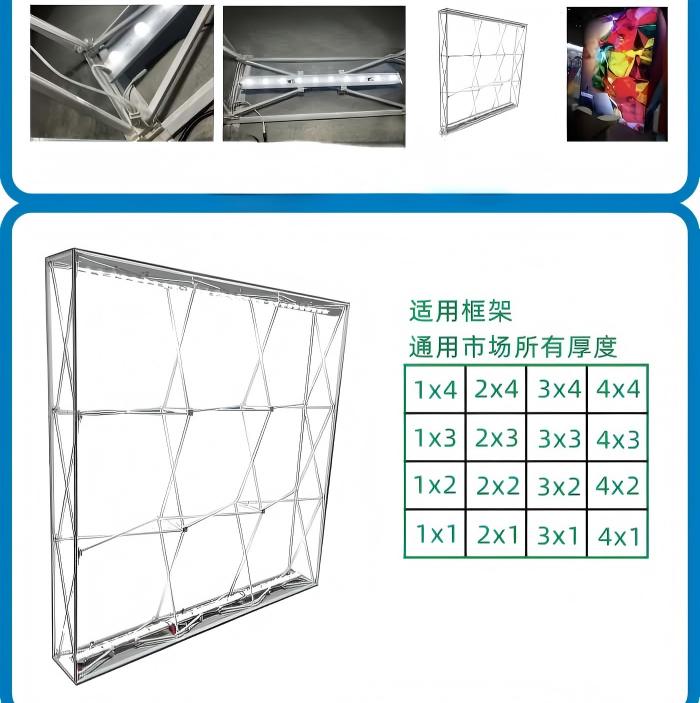

Pop-up LED lighting installation

Where Is This Edge-Lit LED Light Used?

SEG Fabric Light Boxes

SEG fabric light boxes use silicone-edge graphics stretched into an aluminum frame. High-power edge lighting can be installed around suitable frame structures to illuminate large-format textile graphics while helping keep the overall display system relatively slim.

Typical applications include exhibition fabric walls, trade-show displays, branded presentation walls, retail displays and advertising light boxes.

Pop-Up LED Exhibition Displays

Pop-up display systems require lighting components that can integrate into portable or reusable exhibition structures. This high-power LED solution can be considered for trade-show booths, event backdrops, conference displays and portable promotional systems where bright illumination is required.

Exhibition Booths and Backlit Walls

Large illuminated exhibition graphics often require strong light transmission across a relatively wide display area. Edge-mounted high-power modules can provide an alternative lighting architecture for suitable booth walls and illuminated exhibition systems.

Retail and Commercial Advertising Light Boxes

The module can also be used in suitable retail advertising frames, shopping-mall displays, branded graphics, promotional light boxes and commercial illuminated display structures.

How to Choose Edge-Lit LED Lighting for Your Display

LED light bar selection should not be based only on wattage or luminous flux. In an edge-lit display, the final result depends on the complete optical and mechanical structure of the light box.

Confirm Light Box Length, Width and Depth

Light box dimensions determine the light transmission distance and available installation space. A module that performs well in one frame may require a different quantity or mounting position in a larger, shallower or differently constructed display.

Confirm Single-Sided or Double-Sided Lighting

Single-sided and double-sided displays have different optical requirements. Tell Wallis how many graphic faces need to be illuminated so the proposed lighting arrangement can be evaluated for the actual display structure.

Confirm Graphic and Diffuser Material

Fabric, film and other graphic materials transmit and diffuse light differently. Final brightness and uniformity should therefore be evaluated with the intended display material whenever possible.

Confirm Installation Environment

Tell Wallis whether the display is intended for indoor or other environmental conditions and whether waterproof protection is required. Do not assume an IP protection level unless it has been specifically confirmed for the selected configuration.

Confirm Total LED Load and Power Supply

Because the listed module operates at DC24V, the correct power supply should be selected according to the number of modules and total system wattage. Electrical load, wiring method and required safety margin should be confirmed before installation.

Information Needed for LED Layout Recommendation

To help evaluate whether this high-power edge-lit LED light is suitable for your project, provide the following information with your inquiry:

• Light box length

• Light box width

• Internal light box depth

• Single-sided or double-sided display

• Graphic or fabric material if known

• Target brightness or existing lighting reference

• Indoor or other installation environment

• Whether waterproof protection is required

• Frame photos or structural drawings

• Quantity of light boxes

• Required LED module quantity or complete project quantity

• Any OEM logo, PCB or packaging requirements

Send Light Box Dimensions

OEM and Custom Edge-Lit LED Solutions

LED Module Size and Structure

Different exhibition and light box systems use different internal structures. Wallis can discuss customized dimensions and structural requirements according to the target display application.

Power and Lighting Configuration

Power and LED layout can be evaluated according to the light box dimensions and required illumination. Buyers should provide actual project information instead of selecting only by wattage.

Custom PCB Logo

Logo or brand customization on the PCB can be discussed for OEM projects. Provide the logo artwork, required quantity and other branding requirements before production.

Customized Packaging

Packaging requirements can be coordinated for distributors, display manufacturers and other B2B buyers that need project-specific labeling, packing or OEM presentation.

Why Choose Wallis High Power Edge-Lit LED Light?

Factory Supply for B2B Display Projects

Wallis supplies lighting components for professional display applications and supports customized requirements for display manufacturers, sign companies, exhibition-system suppliers and commercial advertising projects.

Project-Based Selection Support

Instead of selecting an LED module only from a catalog specification, buyers can provide their frame dimensions and application information so the lighting requirement can be reviewed against the actual project.

Quality and Performance Specifications

• OSRAM LED chips

• Aluminum PCB construction

• PMMA optical lenses

• DC24V operation

• Up to 4500 lm luminous output

• CE / RoHS listed certification

• 50,000-hour listed lifespan

• 2-year listed warranty

Custom Manufacturing Capability

Available customization can include LED module size, power, structure, PCB branding and packaging according to project requirements and production feasibility.

B2B Supply for Global Display Projects

Wallis works with display manufacturers, advertising companies, exhibition suppliers and other commercial buyers requiring customized illuminated display components. Project details can be reviewed before quotation to help identify the appropriate LED configuration.

Contact Wallis LED Experts

Frequently Asked Questions About Edge-Lit LED Lights

Can the pop-up edge-lit LED lamp be cut?

No. The listed aluminum PCB is 2mm thick and this model is designed as one complete piece, so customers should not cut it after receiving the product. Confirm the required size and lighting layout with Wallis before ordering.

Can Wallis print our logo or brand on the PCB?

Yes. PCB logo or brand customization can be discussed for OEM orders. Provide the logo artwork, required quantity and other customization requirements before production.

What information should I provide before requesting a quotation?

Provide the light box depth, length, width, single-sided or double-sided configuration, waterproof requirement, frame photos or drawings and total quantity. Information about the graphic material and target brightness is also helpful for evaluating the lighting arrangement.

How many LED edge-light bars do I need?

There is no universal quantity because it depends on the dimensions, depth, optical structure, graphic material, target brightness and whether the display is single-sided or double-sided. Wallis can evaluate the required quantity after receiving the project dimensions and frame information.

Where are the LED lights normally installed in a pop-up display?

Depending on the display design, edge-light modules may be positioned along opposing frame edges such as the upper and lower sections. Final mounting position should be determined according to the light transmission distance and actual frame structure.

Is this LED light suitable for SEG fabric light boxes?

Yes, it is designed for suitable SEG fabric light box and illuminated display applications. However, final suitability and quantity should be confirmed using the actual box depth, dimensions, fabric and brightness requirements.

Is this LED lamp suitable for exhibition pop-up displays?

Yes. Typical applications include exhibition pop-up displays, trade-show frames, portable illuminated advertising displays, event booths and reusable promotional display systems.

What power supply does the A-70040-10D require?

The listed module operates at DC24V and has a rated power of 45W. The complete power supply should be selected according to the number of connected modules, total electrical load, wiring arrangement and suitable engineering safety margin.

What color temperature does this edge-lit LED module use?

The listed A-70040-10D model uses 6500K cool-white light, which is commonly selected for bright advertising graphics, exhibition displays and commercial visual presentation.

Is the edge-lit LED module waterproof?

A specific IP rating is not listed for this model on the current specification. If waterproof protection is required, provide the installation environment and waterproof requirement before ordering so the appropriate solution can be confirmed.

What certifications are listed for this LED light?

The current product specification lists CE and RoHS. If your project requires specific compliance documents or market-specific certification information, confirm the documentation requirements with Wallis before ordering.

Can Wallis customize the LED lighting module for OEM projects?

Yes. The current product supports customization of size, power, structure and logo. Send your light box drawing, dimensions, quantity and technical requirements so manufacturing feasibility can be reviewed.

Get Custom LED Solution
