High-Lumen RGBWW 5050 SMD LED Strip Light

High-Lumen RGBWW 5050 SMD LED Strip Light for Commercial Projects

Wallis RGBWW 5050 SMD LED strip light is a flexible high-output lighting solution designed for commercial displays, architectural lighting, signage, retail interiors, decorative lighting and custom illumination projects. The listed 24V configuration uses 60 LEDs per meter and combines vivid RGB color effects with dedicated white-light output for greater lighting flexibility.

Designed for B2B lighting projects, this flexible LED strip supports a 100 mm cutting interval, wide 120° light distribution and easy installation with adhesive backing. Buyers can discuss project length, lighting effect, controller compatibility, packaging and other customization requirements with Wallis before mass production.

RGBWW 5050 LED Strip at a Glance

Key Features of RGBWW 5050 SMD LED Strip Light

High-Brightness 5050 SMD LED Technology

The 5050 SMD package provides a large light-emitting surface suitable for decorative and commercial applications requiring strong visual impact. With 60 LEDs per meter, the strip delivers closely spaced illumination for signage, displays, architectural accents and indirect lighting.

RGB Color Effects with Dedicated White-Light Output

The listed RGBWW configuration provides red, green and blue channels together with dedicated white-light output. This enables lighting designers to combine dynamic colored effects with practical white illumination instead of relying only on RGB color mixing.

Flexible and Cuttable for Custom Installations

The flexible PCB can follow straight runs, edges and suitable curved surfaces. The listed model can be cut at the marked 100 mm intervals, allowing installers to adapt the LED strip length to cabinets, light boxes, signage, display structures and architectural details.

120° Wide-Angle Light Distribution

A 120° viewing angle helps distribute light over a broad area, making the strip suitable for accent lighting, indirect illumination, display lighting and backlighting applications where consistent visual coverage is important.

Easy Adhesive-Backed Installation

Adhesive backing simplifies installation on clean, dry and compatible mounting surfaces. For commercial projects or long operating periods, installers should also evaluate heat dissipation, mounting profiles and installation conditions according to the final project design.

RGBWW 5050 LED Strip Technical Specifications

Note: Specifications above are based on the currently listed Wallis product data. Buyers should confirm final voltage, power, reel length, white-light specification, controller, protection level and other project requirements before mass production.

RGB Color Display and Lighting Effects

RGBWW LED strip lighting gives designers greater freedom to create colorful visual effects while retaining dedicated white-light capability. The following images show different output colors from the strip.

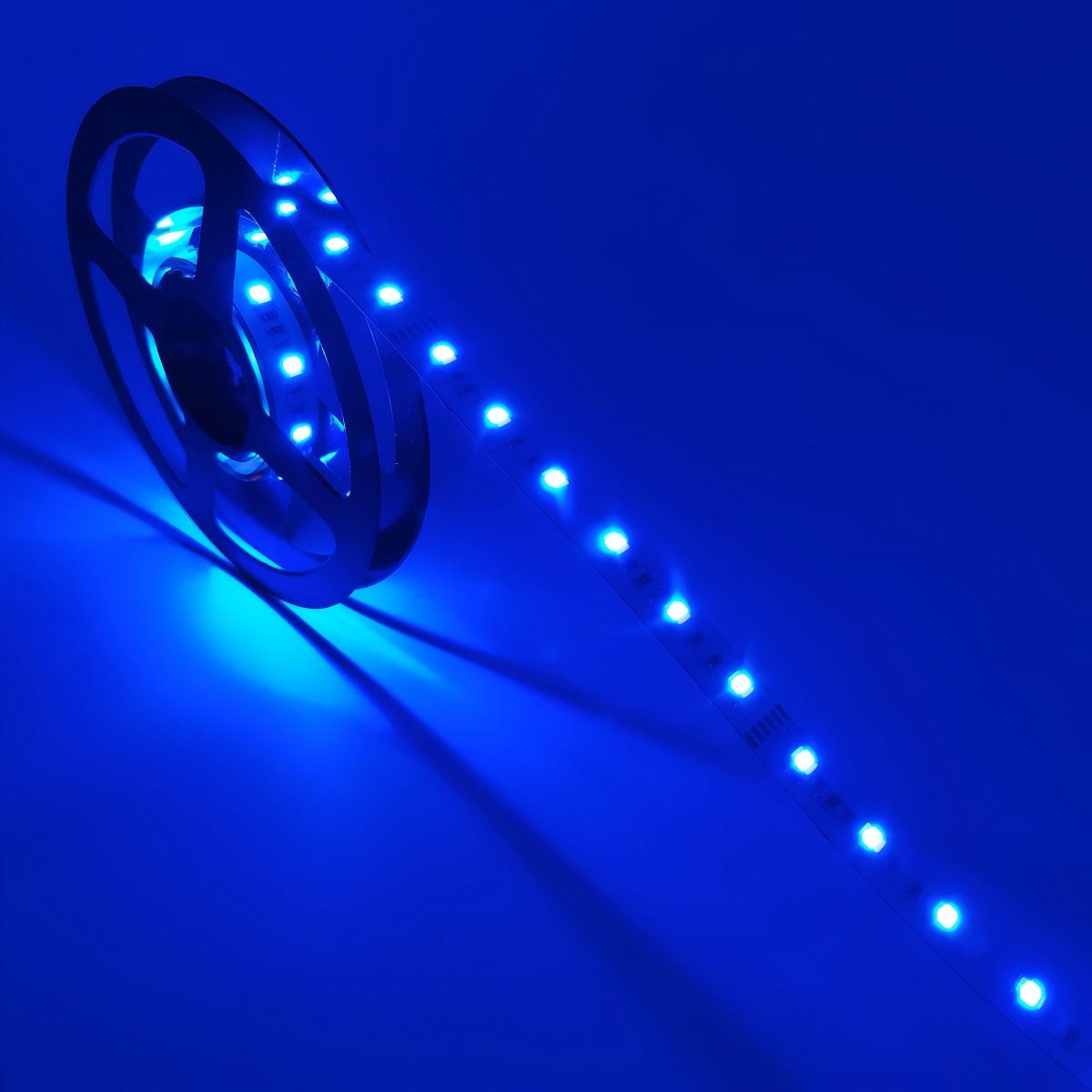

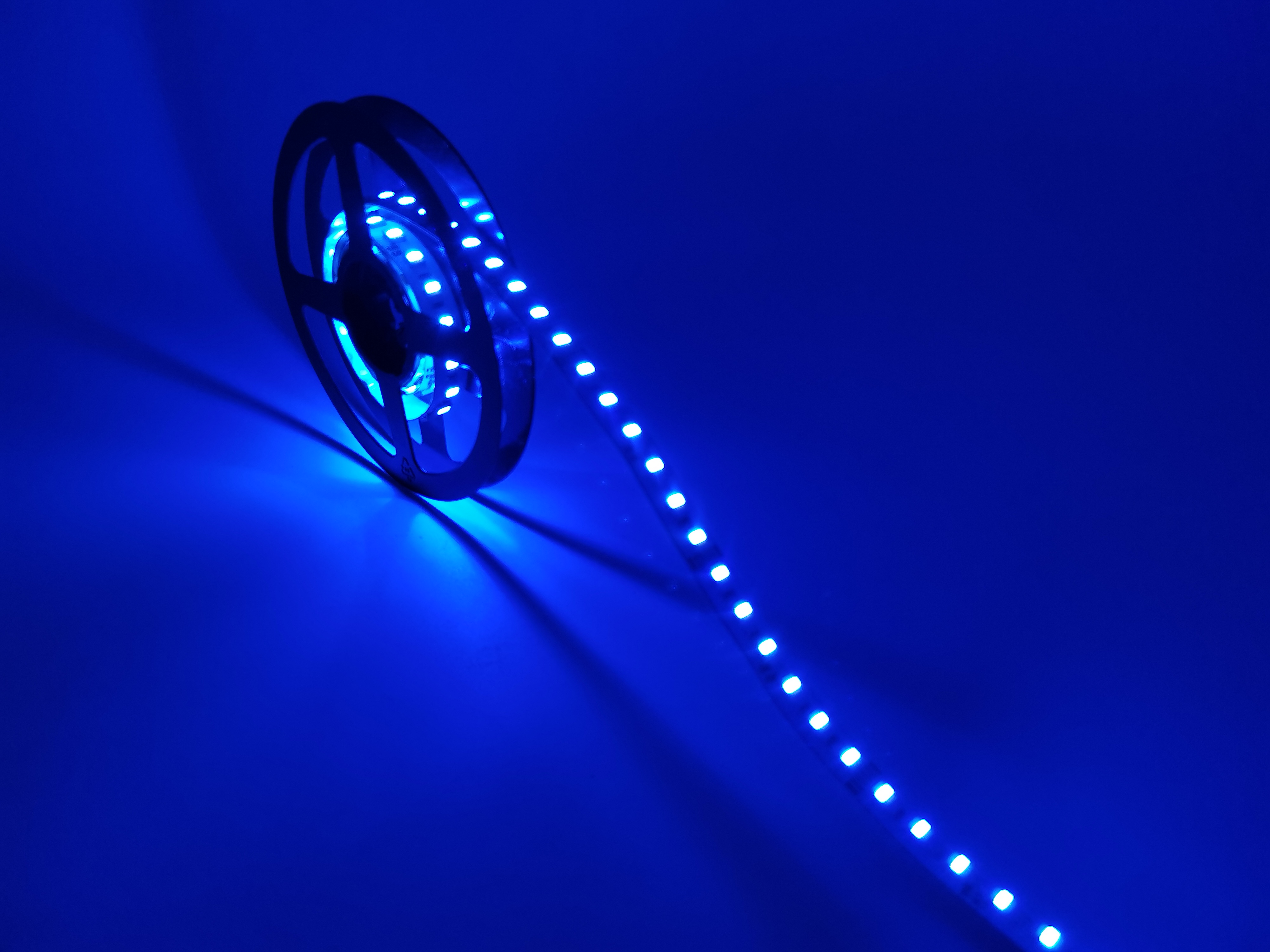

Blue Light

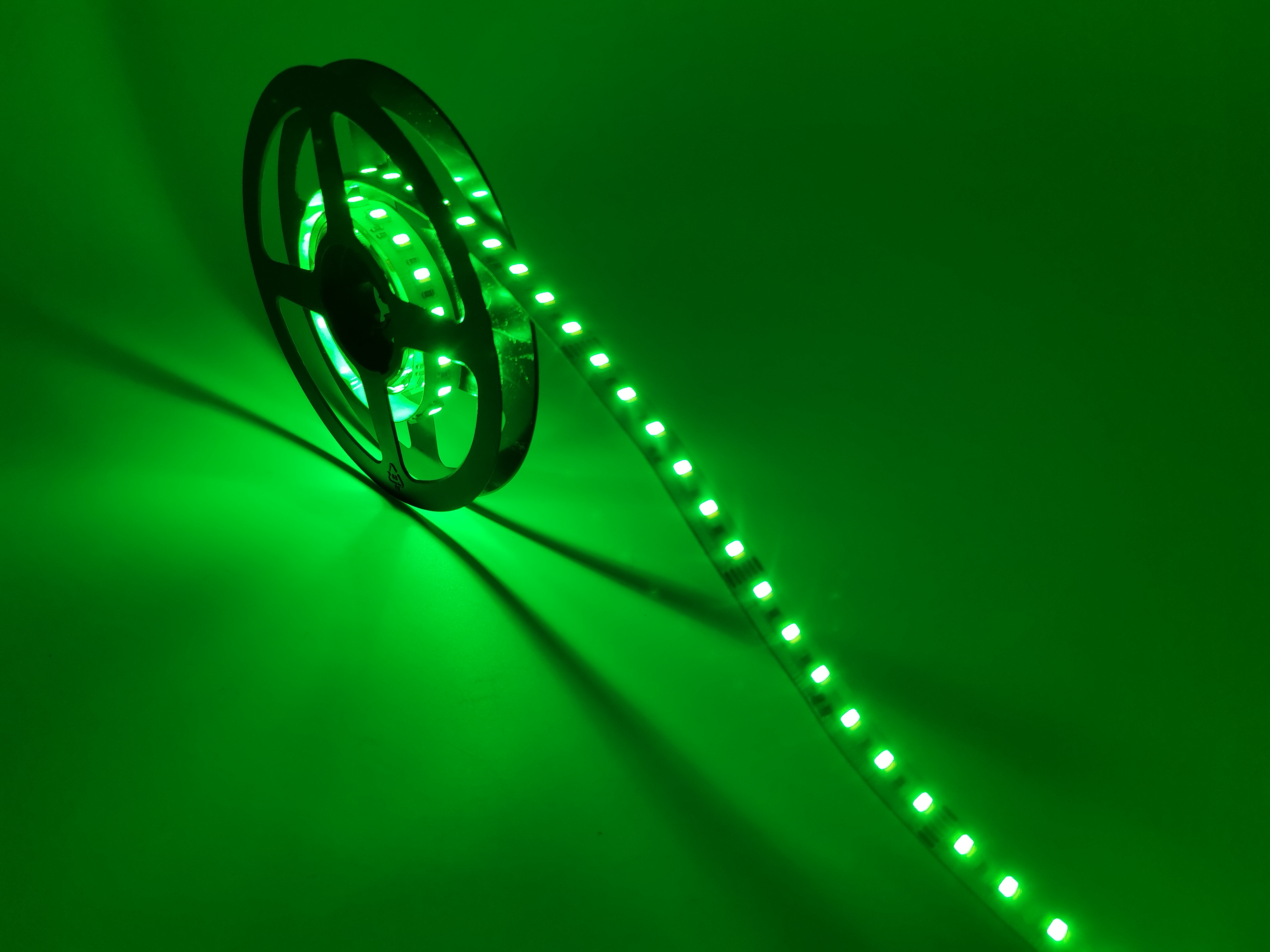

Green Light

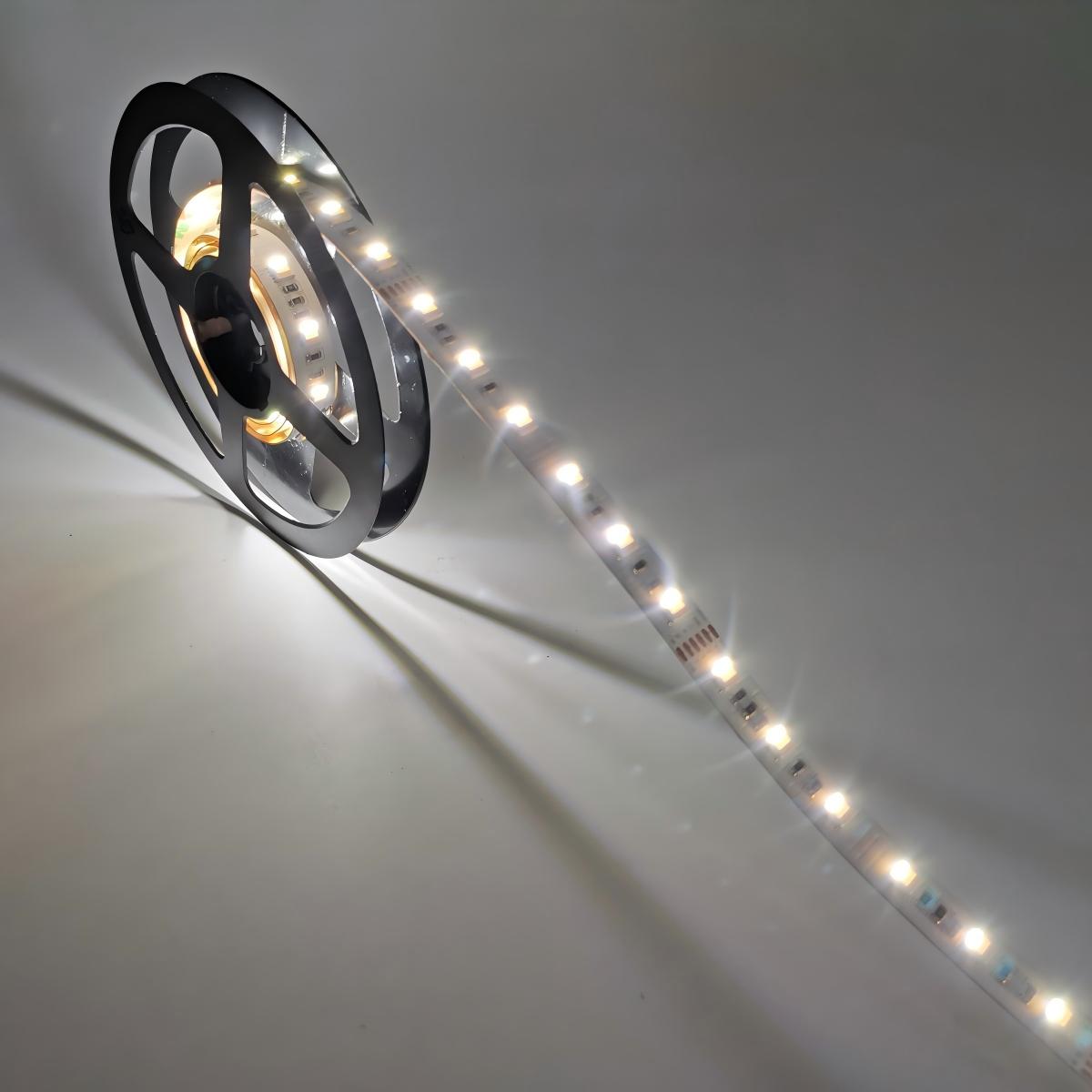

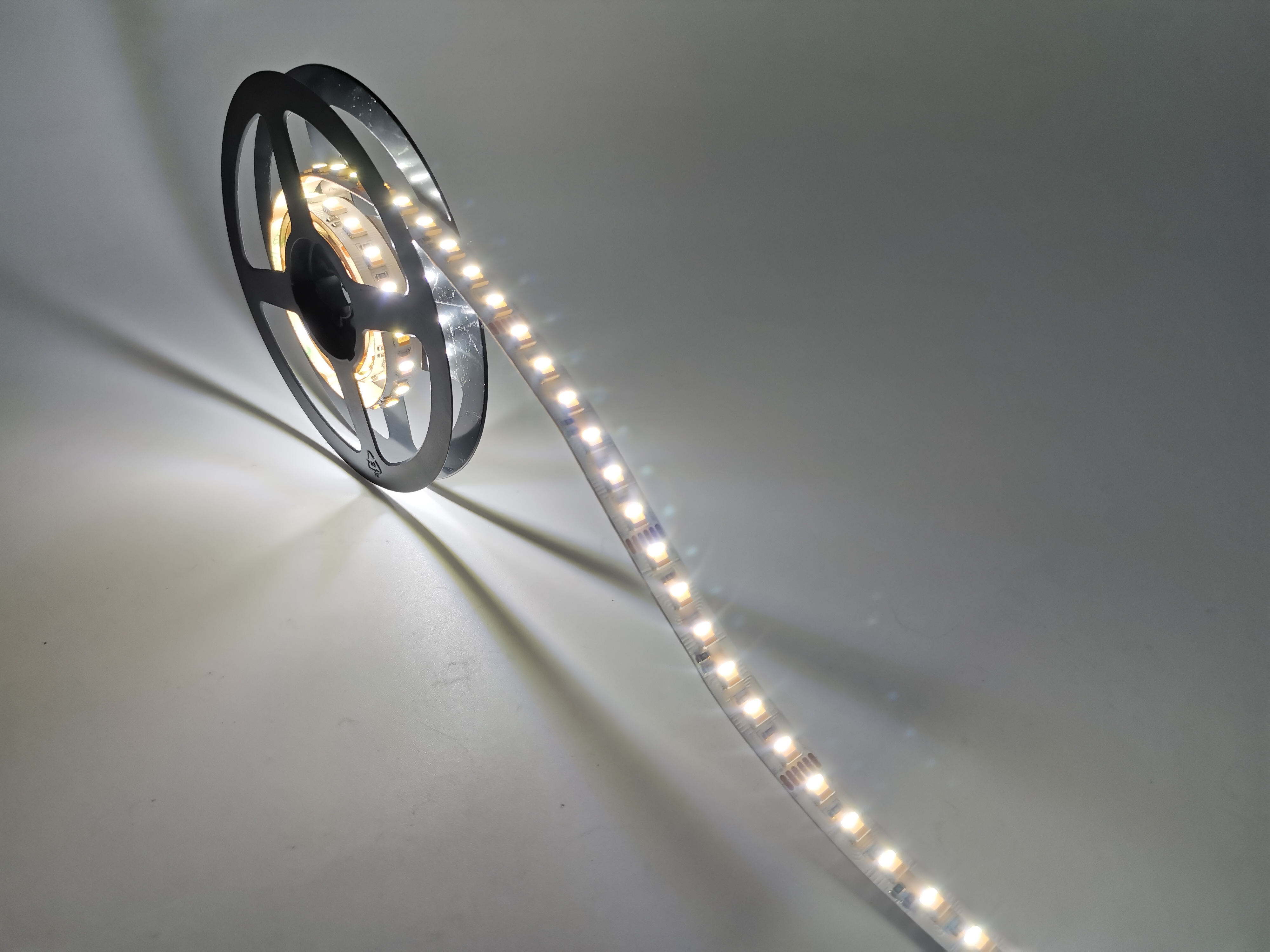

White Light

Applications of RGBWW 5050 SMD LED Strip Light

The combination of flexible installation, RGB color control and dedicated white output makes 5050 RGBWW LED strips suitable for a broad range of commercial and decorative lighting projects.

Architectural and Interior Lighting

Use the strip for ceiling details, wall accents, coves, corridors, archways, canopies, stair edges and other architectural features where concealed linear lighting can enhance the visual environment.

Retail Displays and Commercial Interiors

RGBWW lighting can be integrated into retail displays, showcases, bars, hotels, restaurants and exhibition installations to create adjustable branded environments and decorative lighting effects.

Signage, Channel Letters and Backlighting

Flexible 5050 LED strips can be used for suitable signage, illuminated letters, light boxes and backlighting systems where colorful output and compact installation are required.

Vehicle and Decorative Lighting

The product can also support suitable decorative lighting installations for cars, buses, cruisers, entertainment spaces and other customized lighting projects when the electrical and installation specifications match the application.

How to Choose RGBWW 5050 LED Strip for Your Project

Confirm the Required Voltage

The currently listed SKU is a 24V RGBWW 5050 LED strip. The strip voltage must match the selected LED power supply and controller. Never connect a strip to an incompatible supply voltage.

Confirm LED Density and Lighting Output

This model is specified at 60 LEDs/m. Buyers should evaluate required brightness, installation distance, diffuser design and desired visual uniformity when selecting an LED strip for commercial displays or architectural applications.

Select a Compatible RGBWW Controller

A multi-channel RGBWW LED strip requires a controller that matches the strip configuration, working voltage and electrical load. Before ordering, provide your controller type or control requirement so compatibility can be confirmed.

Calculate the Power Supply for the Total Installation

Power-supply selection should be based on the confirmed strip power, total installed length and operating conditions. For larger commercial installations, buyers should confirm the final electrical design and suitable power margin before installation.

Confirm Indoor or Protected Installation Requirements

The protection rating is an important purchasing parameter for LED strip projects. Tell Wallis whether the installation will be indoors, exposed to moisture or used in another demanding environment so the available construction can be confirmed before quotation.

Confirm Cut Length and Installation Layout

The listed model has a 100 mm cutting interval. Cutting should only be performed at the marked cutting points. Buyers planning custom light boxes, signage or architectural installations should determine the required segment lengths before production.

Custom RGBWW LED Strip Solutions for B2B Buyers

Wallis supports project-based sourcing and customization for customers such as lighting distributors, display manufacturers, signage companies, contractors, interior solution providers and commercial lighting projects.

For a faster quotation, provide your required quantity, voltage, strip length, RGB/white-light requirement, installation environment, controller requirement, application, packaging requirement and logo requirement. The Wallis team can then confirm a suitable product configuration based on your project.

Why Source RGBWW 5050 LED Strip from Wallis?

Low-Quantity Sample Support

Samples can be provided for product evaluation before larger orders. The current product information indicates that even one piece can be accepted for sample testing, helping B2B customers verify lighting performance before mass purchasing.

Support for Customized Requirements

Buyers can submit project-specific requirements before ordering. Logo and branding requirements can also be discussed and confirmed through sample approval before production.

Project-Oriented Technical Confirmation

Correct LED strip selection depends on more than color alone. Voltage, controller type, strip length, installation conditions, brightness and electrical load should all be confirmed before mass production, especially for commercial and architectural installations.

Frequently Asked Questions About RGBWW 5050 LED Strip

What is an RGBWW 5050 SMD LED strip light?

An RGBWW 5050 LED strip is a flexible lighting strip using 5050 SMD LEDs to provide RGB color effects together with dedicated white-light channels. It is suitable for projects that need both decorative colors and functional white illumination.

Is this RGBWW 5050 LED strip 12V or 24V?

The model currently listed on this page, WLS-60NFS5050RGBWW-24V, is a 24V configuration. Always confirm the final voltage before choosing the power supply and controller.

How many LEDs are there per meter?

The listed RGBWW 5050 LED strip has 60 LEDs per meter.

Can RGBWW 5050 LED strip light be cut?

Yes. The listed flexible LED strip can be cut every 100 mm. Cutting should only be performed at the marked cutting positions on the PCB to avoid damaging the circuit.

What controller is required for an RGBWW LED strip?

Use a compatible multi-channel RGBWW controller that matches the strip voltage, wiring configuration and required current. Buyers should confirm the controller specification before ordering the complete lighting system.

What applications are suitable for 5050 RGBWW LED strips?

Typical applications include architectural accent lighting, retail displays, hotels, bars, commercial interiors, signage, channel letters, light boxes, exhibition displays, backlighting and other decorative lighting projects.

What is the MOQ for RGBWW LED strip orders?

Low-quantity sample orders are supported. According to the current product information, one piece can be accepted for sample evaluation. Contact Wallis for the MOQ applicable to your final customized mass-production order.

What is the lead time for LED strip samples and bulk orders?

Samples typically require about 3–5 days. Mass production is generally around 1–2 weeks, depending on order quantity, customization requirements and the confirmed production schedule.

Can I customize the length or specification?

Custom requirements can be discussed before ordering. Send Wallis your required length, quantity, voltage, white-light requirement, application and installation conditions so the available configuration can be confirmed.

Can I add my company logo or custom packaging?

Logo and branding requirements can be supported subject to confirmation before production. For OEM orders, provide your artwork and packaging requirements when requesting a quotation.

How should I request a quotation for a commercial LED strip project?

Provide the required quantity, voltage, total installation length, lighting color, application, controller requirement, installation environment and any customization requirements. More complete project information helps the supplier confirm the appropriate configuration and quotation more efficiently.

Request a Quote for RGBWW 5050 SMD LED Strip Light

Looking for a 24V RGBWW 5050 LED strip supplier for signage, retail displays, architectural lighting or another commercial project? Send Wallis your technical requirements, target quantity and application details to receive a suitable product recommendation and quotation.
