Custom 33mm Super Thin SEG LED Fabric Light Box

33mm Super Thin SEG LED Fabric Light Box for Indoor Advertising

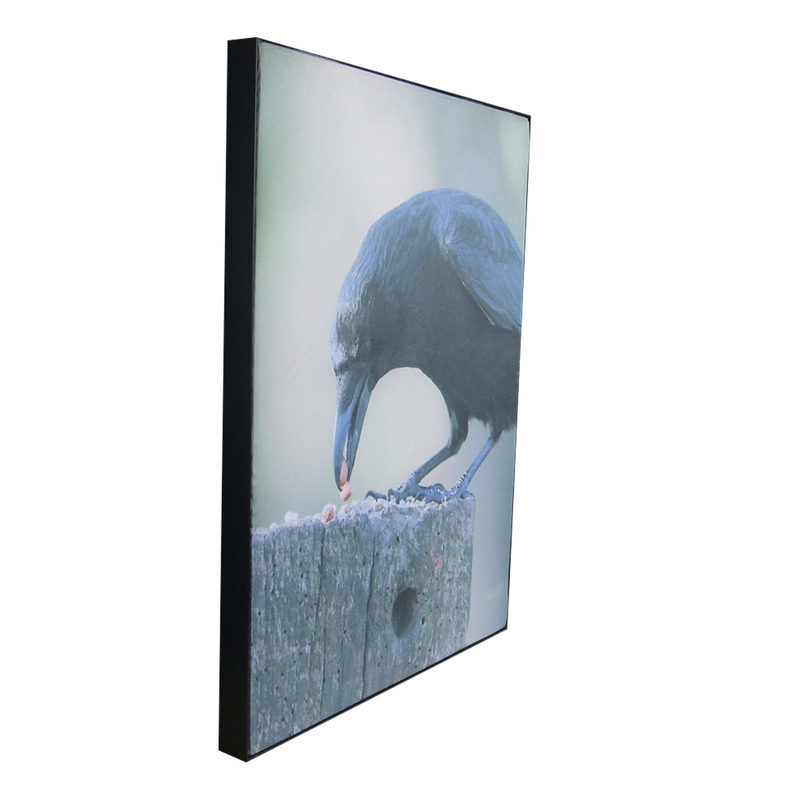

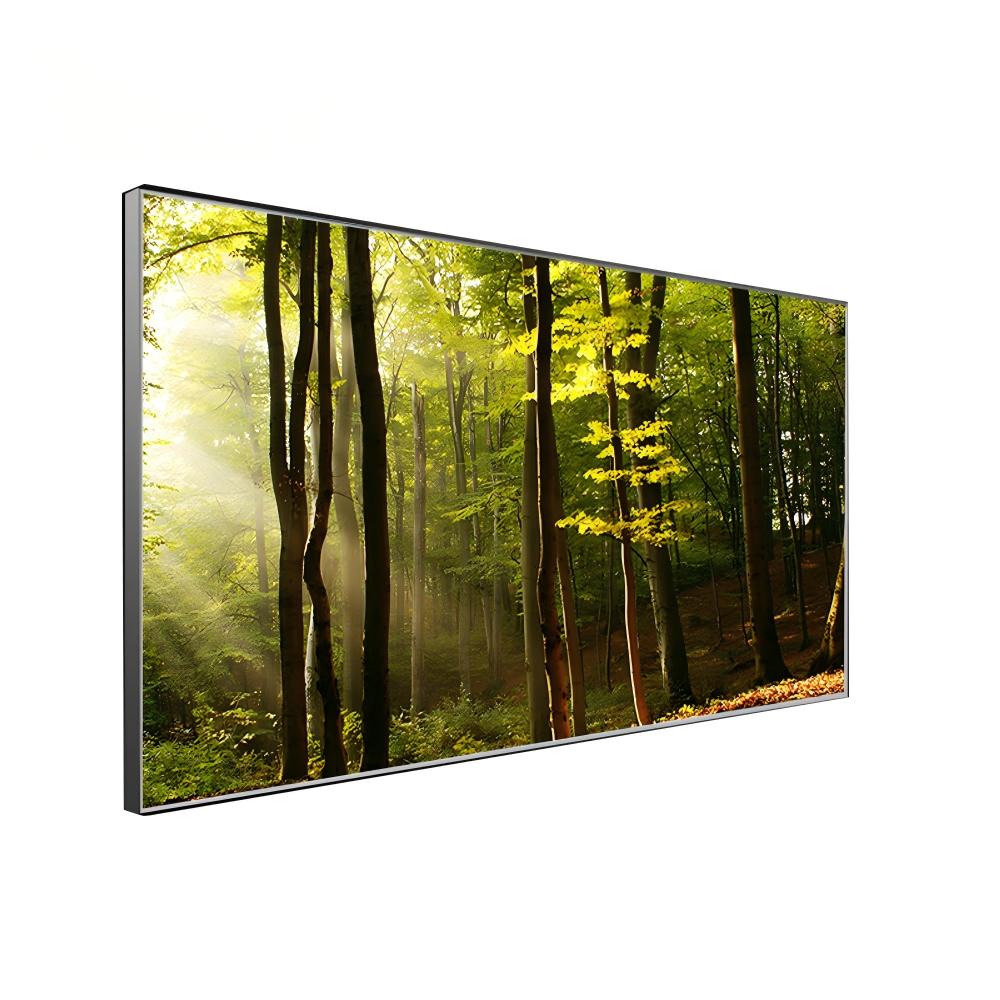

Wallis 33mm super thin SEG LED fabric light box is a slim illuminated advertising display designed for retail stores, shopping malls, exhibitions, showrooms, airports, restaurants, corporate interiors, branded walls and other indoor commercial display projects.

Model AF18 combines an aluminum profile, silicone edge graphic (SEG) fabric system and either a PMMA acrylic light guide panel or direct LED backlighting, depending on display size, required brightness and light-box depth.

The standard AF18 LGP configuration has a nominal 33mm profile depth. Current options include DC12V / DC24V, 3000K / 4000K / 6500K, silver / black / customized frame colors, single- or double-sided displays, wall-mounted, hanging and freestanding installation.

The SEG graphic uses a silicone strip sewn around the perimeter of the printed fabric. The silicone edge is inserted into the aluminum channel to tension the graphic across the front of the light box, producing a clean, nearly frameless display surface while allowing graphics to be removed and replaced when campaigns change.

For B2B projects, buyers should define the outer frame size, visible graphic size, finished SEG fabric size, profile depth, display side, LED architecture, brightness target, uniformity requirement, color temperature, CRI, power, installation type, graphic specification, certification requirements and quantity before quotation.

AF18 SEG LED Fabric Light Box Specifications

Engineering data still recommended: the current product page does not publish one fixed luminance, illuminance, lighting uniformity, CRI, watts per light box, LED chip specification, LED pitch, driver model, dimming protocol, IP rating or formal warranty for every AF18 configuration. These values should be confirmed according to the final size and lighting architecture.

How the SEG Fabric Graphic System Works

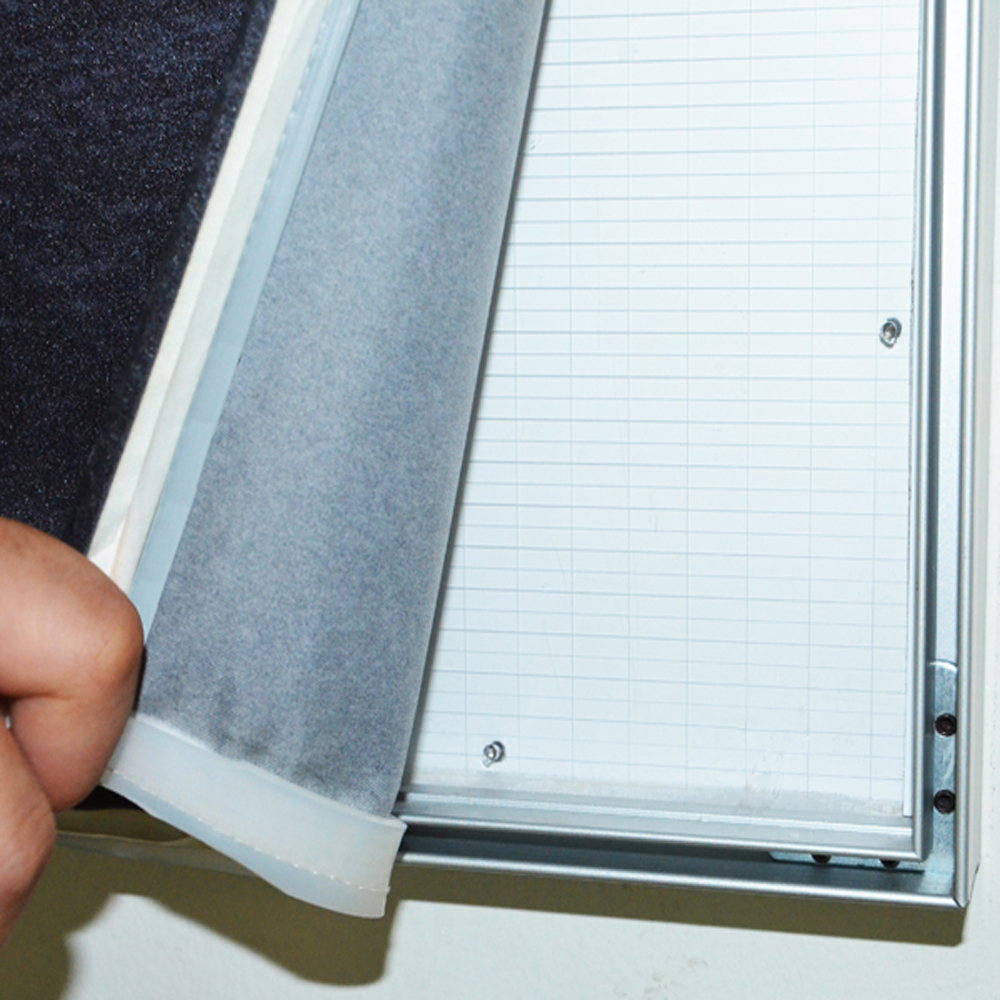

Silicone Edge Sewn to the Graphic

A flexible silicone strip is sewn around the perimeter of the printed fabric graphic. The silicone dimensions and sewing position must match the selected aluminum extrusion.

SEG Edge Inserts into the Aluminum Channel

The silicone edge is pressed into the narrow channel around the aluminum profile. Proper fabric size and silicone-edge dimensions create tension across the graphic face.

Tension Creates a Clean Display Surface

Correctly sized SEG graphics help reduce wrinkles and visible front fasteners, creating a clean illuminated surface suitable for premium retail and commercial environments.

Graphics Can Be Replaced for New Campaigns

When campaign artwork changes, users can remove the existing fabric and install a replacement graphic while retaining the aluminum frame and LED system.

Edge-Lit LGP vs Direct LED Backlighting

Wallis currently offers two lighting approaches for this product family. The correct choice depends on light-box dimensions, profile depth, brightness target, graphic material and desired uniformity.

Edge-Lit PMMA Light Guide Panel

In an edge-lit configuration, LEDs inject light into the edge of a PMMA light guide panel. A processed optical pattern extracts and distributes the light across the display surface.

The current Wallis page recommends the LGP approach particularly for super-thin structures below approximately 40mm depth and displays below approximately 2000mm. This is a current product guideline rather than a universal engineering limit; final suitability should be confirmed according to aspect ratio and brightness requirements.

Direct LED Backlit Module

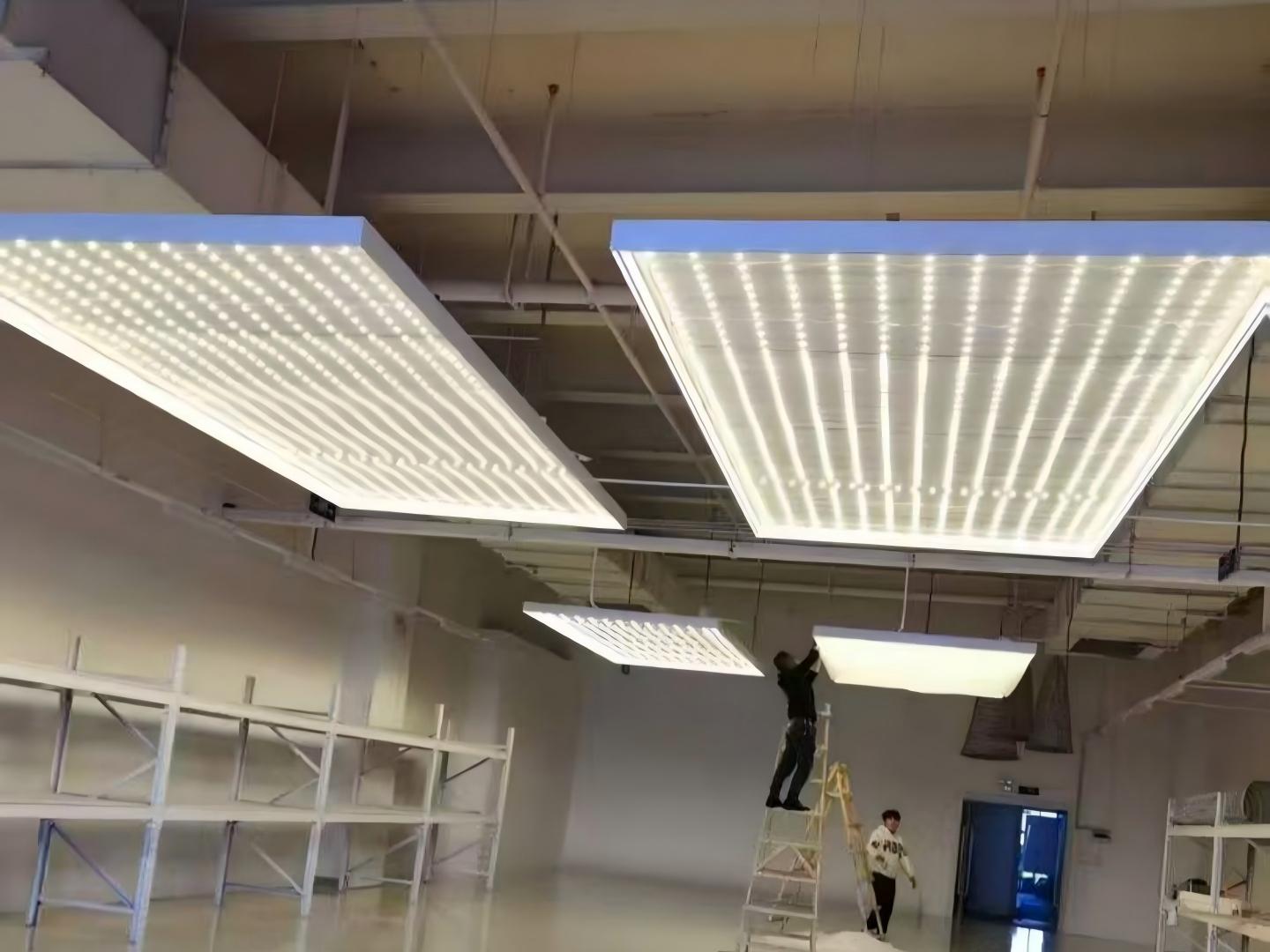

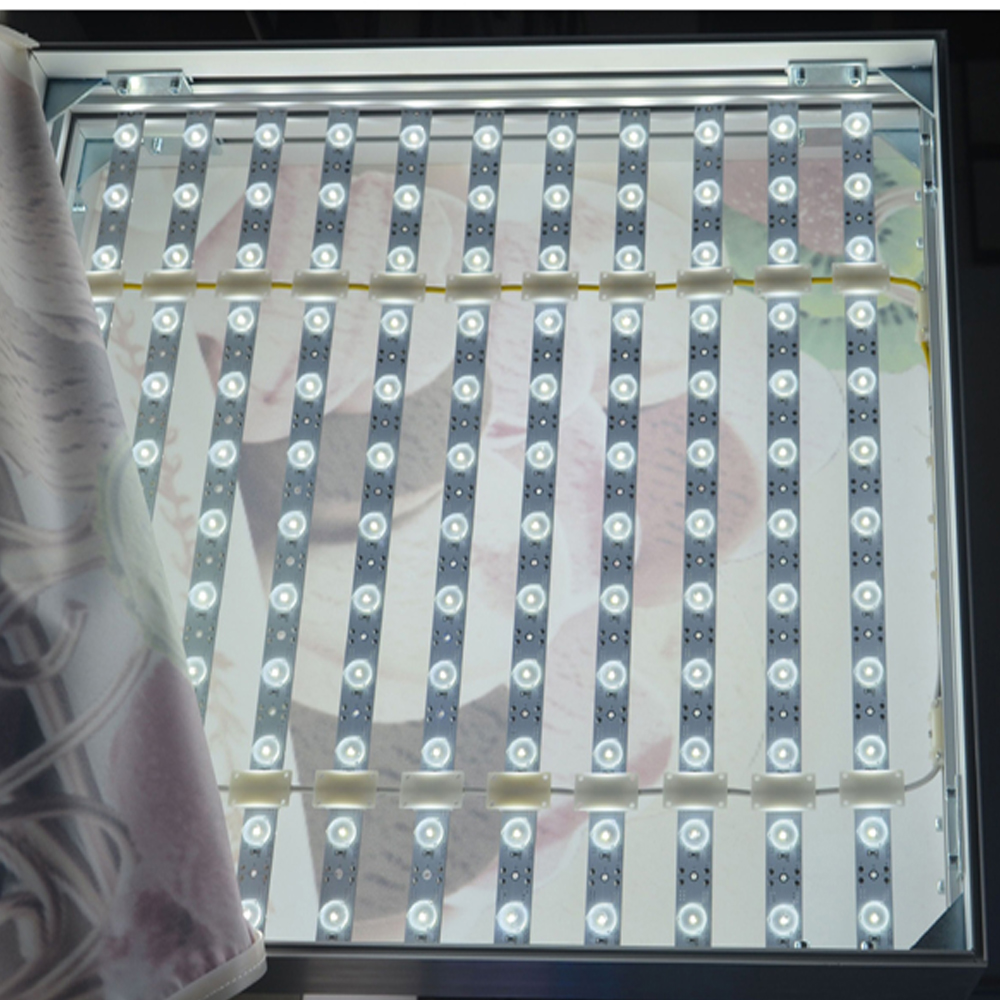

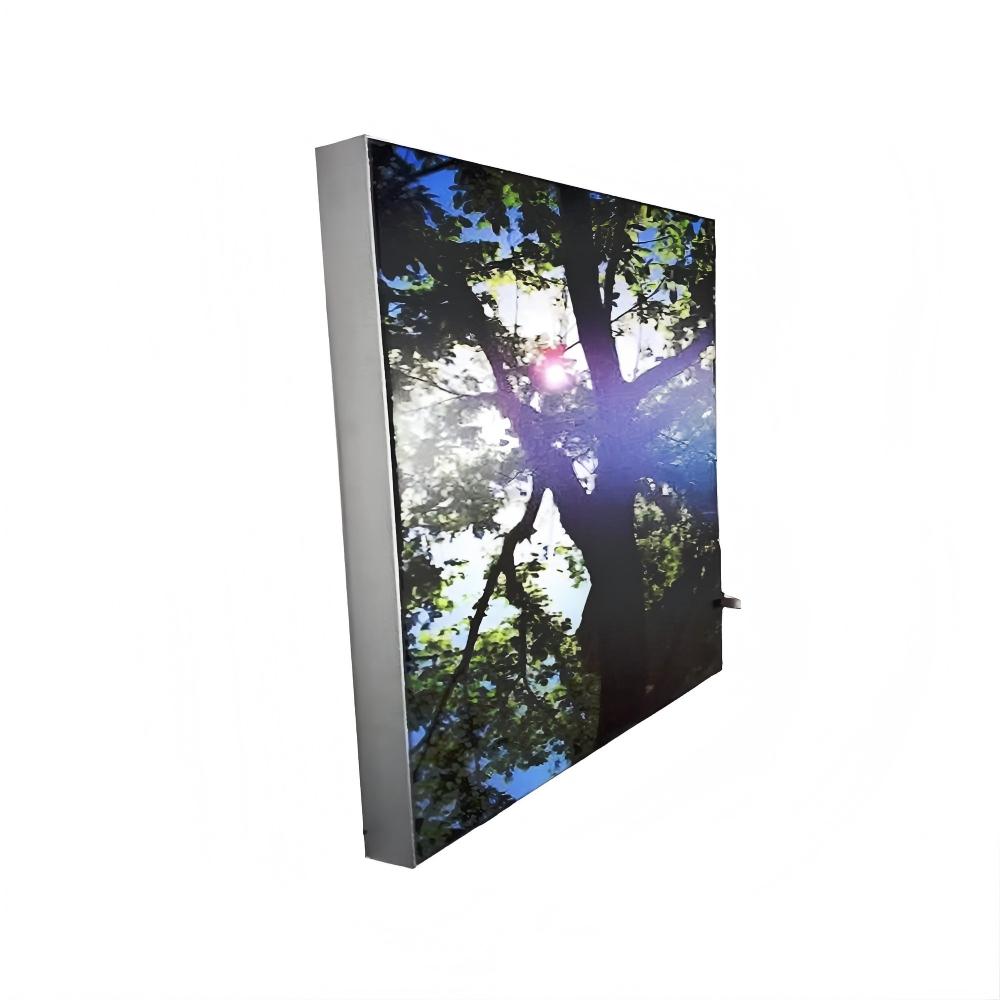

In a direct-backlit system, LED modules are positioned behind the fabric graphic and distribute light toward the display face without using a full PMMA light guide plate.

Wallis currently recommends LED backlit modules for larger fabric light boxes where greater display dimensions or project-specific brightness and uniformity make direct illumination more appropriate.

How to Choose Between LGP and Direct Backlighting

Choose LGP When Ultra-Slim Depth Is Critical

Edge lighting combined with a PMMA LGP is useful when installation depth must remain shallow and the panel dimensions remain suitable for the required optical uniformity.

Choose Direct Backlighting for Larger Display Areas

Large displays can require more direct light distribution. A direct-backlit LED layout can be designed according to the depth behind the graphic, LED beam angle and target brightness.

Compare Total Power, Not Only Profile Depth

Two light boxes of the same size can consume different power depending on LED architecture, brightness target, LED efficiency and driver selection. Request total watts for the final configuration.

Compare Measured Uniformity

When even illumination is contractually important, define a measurable uniformity target and test the complete system with the intended backlit fabric.

AF18 Standard Sizes, 33mm Profile & SEG Fabric Dimensions

Wallis currently publishes B1, B2 and A0–A4 reference dimensions for the AF18 LGP light box. The table distinguishes between frame size, visible area and finished fabric size, which is important when customers print replacement SEG graphics locally.

In the current reference table, the SEG fabric is approximately 10mm larger in both width and height than the listed frame/view dimensions. Buyers printing locally should not generalize this allowance to every customized profile. Always request the production drawing and silicone-edge specification for the exact frame.

Why the 33mm AF18 Profile Is Useful

Slim Wall Projection

A 33mm profile allows illuminated graphics to sit relatively close to the wall, making AF18 suitable for retail spaces where available depth is limited.

Clean Frameless Appearance

The silicone-edge fabric conceals much of the front aluminum structure, helping the illuminated artwork become the dominant visual element.

Suitable for Standard Advertising Formats

B1, B2 and A0–A4 reference dimensions simplify projects using familiar advertising and signage formats.

Custom Dimensions Available

Custom frame dimensions can be reviewed according to aluminum extrusion length, LGP feasibility, LED layout, shipping requirements and installation conditions.

3000K, 4000K & 6500K LED Color Temperature

3000K Warm White

Warm-white lighting can be considered for hospitality, luxury retail and interior environments that use warmer ambient lighting.

4000K Neutral White

Neutral-white lighting can provide a balanced appearance for showrooms, commercial interiors and general retail display applications.

6500K Cool White

Cool-white 6500K is useful where buyers want a crisp, bright visual appearance for illuminated advertising graphics.

Specify CRI Separately

Color temperature does not indicate color-rendering quality. The current product page does not publish a CRI value, so fashion, cosmetics, food and other color-sensitive projects should specify the required CRI separately.

DC12V & DC24V Power Options

The AF18 product specification currently supports DC12V and DC24V. The final voltage should be selected together with the LED layout, panel size, total wattage, power-supply location and cable length.

Confirm Total Power

Power consumption is not currently published as one fixed value because it changes with size and LED configuration. Buyers should request total watts per finished light box.

Confirm the LED Driver

Driver input voltage, output voltage, rated power, installation location and applicable certification should be confirmed for the destination market.

Dimming Requirements

The current Wallis page does not publish a standard dimming protocol. Projects requiring 0–10V, DALI, PWM or another control method should specify it before production.

Single-Sided & Double-Sided SEG Light Boxes

Single-Sided Display

Single-sided configurations are suitable for wall mounting and other installations where the display is viewed primarily from one direction.

Double-Sided Display

Double-sided configurations can be considered for hanging or freestanding displays viewed from both directions. The required profile and lighting architecture should be confirmed because a double-sided system may differ mechanically from the standard 33mm single-sided LGP configuration.

Wall-Mounted, Hanging & Freestanding Installation

Wall-Mounted SEG Light Box

Wall mounting is suitable for retail graphics, menu boards, showroom branding and permanent commercial advertising installations.

Hanging Light Box

Suspended installations can be used where graphics must remain visible above eye level or from multiple circulation paths. Suspension points and total assembled weight should be confirmed during structural design.

Freestanding Light Box

Freestanding displays require suitable feet, base structures or stabilizing supports. Larger units should be engineered according to height, width, center of gravity and the installation environment.

Applications for Super Thin SEG LED Fabric Light Boxes

Retail Stores

Replaceable SEG graphics are useful for seasonal promotions, new product launches, window displays, shop walls and visual merchandising.

Shopping Malls

Slim illuminated fabric boxes can be integrated into corridors, store entrances, brand walls and tenant advertising areas.

Exhibitions & Trade Shows

Custom SEG displays can be incorporated into exhibition booth walls, promotional backdrops and illuminated product areas.

Restaurants & Menu Displays

Illuminated fabric graphics can be used for menu imagery, restaurant branding and promotional messages where frequent artwork updates are required.

Showrooms & Brand Walls

Automotive, furniture, electronics, cosmetics and other showrooms can integrate edge-lit or backlit fabric graphics into architectural display systems.

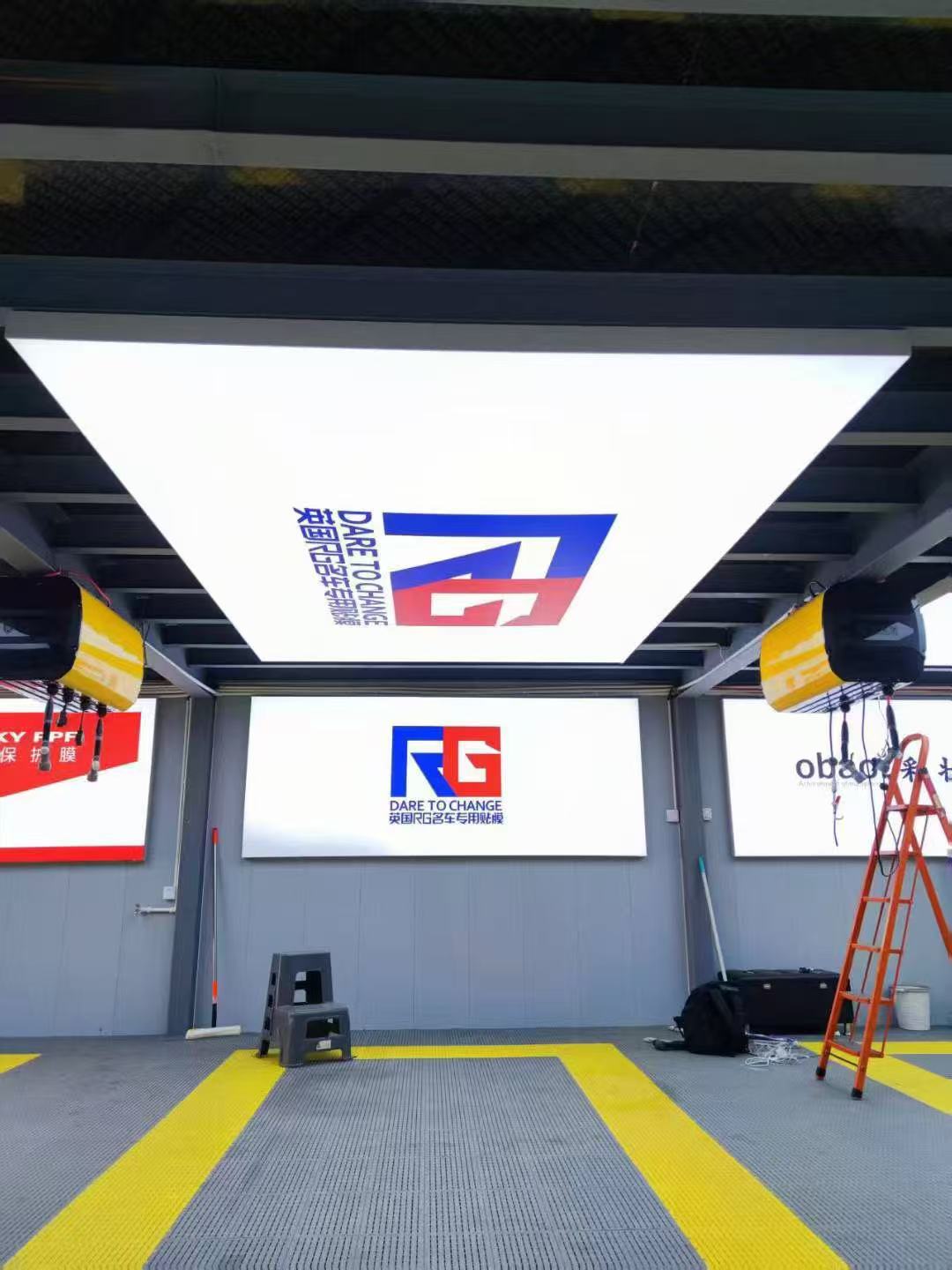

Stretch Ceiling & Interior Lighting

LED backlighting systems can also be incorporated into stretch-fabric ceilings and large illuminated interior surfaces when the profile depth, LED spacing and diffuser or fabric characteristics are designed for the application.

How to Prepare the Correct SEG Fabric Graphic

Confirm Finished Fabric Dimensions

Do not assume that fabric dimensions equal the visible size or outer frame size. Request the finished SEG graphic dimensions for the exact aluminum profile.

Confirm Silicone Edge Specification

Silicone width, thickness, hardness and sewing position influence how securely the graphic fits into the extrusion. These values are not currently published for AF18 and should be confirmed when graphics are produced locally.

Confirm Fabric Stretch Direction

Fabric stretch characteristics influence final tension. The printer and frame supplier should use the same finished-size specification.

Select a Fabric Suitable for Backlighting

Light transmission, diffusion, print density and white-point characteristics affect the illuminated result. Buyers should test the intended printed material with the actual LED system.

Check Fire-Rating Requirements

Shopping malls, airports, exhibitions and public interiors may require specific flame-performance documentation for fabric graphics. Provide the required standard before selecting the graphic material.

Brightness, Uniformity & CRI for Professional Displays

Luminance

For advertising displays, measured luminance expressed in cd/m² provides a more useful purchasing specification than the phrase “high brightness.” The current page does not publish one fixed luminance value because configurations vary.

Lighting Uniformity

Uniformity determines whether the fabric appears evenly illuminated across corners, center and edges. Define the required percentage and test method where uniformity is important.

CRI

CRI becomes especially important for cosmetics, fashion, food, art and premium retail graphics where accurate color rendering is important.

Graphic Density Influences Brightness

A heavily printed dark graphic can transmit less light than a pale graphic. Brightness evaluation should therefore use representative production fabric whenever possible.

Engineering Data B2B Buyers Should Request

• Exact aluminum profile drawing

• 33mm or project-specific profile depth

• Maximum recommended size for selected lighting architecture

• Frame size

• Visible graphic size

• Finished SEG fabric size

• Silicone edge width and thickness

• LED chip / module model

• LED spacing

• Total power consumption

• Power supply specification

• Measured luminance

• Uniformity percentage

• CRI

• 3000K / 4000K / 6500K tolerance

• Dimming protocol where required

• IP rating where required

• CE / RoHS documentation for exact configuration

• Fabric flame-rating requirement

• Formal warranty terms

Quality Control for SEG LED Fabric Light Boxes

Aluminum Frame Inspection

Check profile dimensions, corner joints, frame squareness, surface finish and visible scratches before assembly.

LGP Inspection

For edge-lit versions, inspect PMMA light guide dimensions, optical pattern, edge finish, surface scratches and contamination.

LED Functional Test

Verify LED operation, voltage, wiring, connectors and the selected color temperature before final packaging.

Brightness & Uniformity Inspection

Check the complete illuminated area for dark corners, bright edges, LED spotting and other visible inconsistencies.

SEG Fabric Fit Test

Install the production-equivalent fabric to verify graphic dimensions, silicone-edge fit, surface tension and corner appearance.

Burn-In Testing

Buyers requiring a defined burn-in test should specify the required duration and acceptance criteria because the current product page does not publish a standard burn-in protocol.

Golden Sample

For repeat retail or exhibition programs, retain an approved sample together with the frame drawing, fabric size, LED specification, CCT, power and packaging configuration.

Indoor Use & Environmental Protection

The AF18 product is primarily positioned for indoor use. The current page does not publish an outdoor IP rating for the complete light box.

Do Not Assume Outdoor Waterproof Performance

Outdoor displays require appropriate weather protection for the aluminum assembly, LEDs, wiring, connectors, driver and graphic. A separate outdoor structure should be technically confirmed rather than using the indoor AF18 specification unchanged.

Check Humidity & Temperature

High-humidity, refrigerated, high-temperature or other special indoor environments should also be identified during project specification.

Reusable Frame & Replaceable Graphic Design

One practical advantage of SEG displays is that the aluminum frame and lighting system can remain installed while the printed fabric is replaced when advertising campaigns change.

Reduce Complete Display Replacement

Replacing only the graphic can reduce the need to discard the complete illuminated frame during routine campaign updates.

Aluminum & PMMA Recycling Claims Should Be Qualified

Aluminum and PMMA can enter recycling streams under appropriate conditions, but actual recovery depends on material separation, contamination and local recycling infrastructure.

Avoid Unsupported Carbon-Reduction Claims

The original page refers to reduced carbon emissions. Without an energy baseline or lifecycle assessment, it is more accurate to state that efficient LEDs and reusable graphic systems can support energy- and material-efficiency goals.

OEM & Custom SEG Light Box Manufacturing

Custom Frame Size

Wallis can review customized outside dimensions, visible graphic dimensions and fabric dimensions according to the project drawing.

Custom Frame Color

Silver and black are currently listed, while other finishes can be discussed according to project quantity and production feasibility.

Custom Lighting Architecture

LGP edge lighting or direct LED backlighting can be selected according to display dimensions, depth, brightness target and uniformity requirements.

Local Graphic Printing Support

Customers that print SEG fabric locally should request the exact finished graphic size and silicone-edge specification before production.

OEM Packaging

Packaging can be developed according to frame size, assembled or knock-down format, LGP protection, LEDs, power supplies and export transportation requirements.

Workshop & Export Packaging

Light-guide panels, LED components and aluminum profiles require suitable export protection to reduce scratching, bending and impact damage during international transportation.

How to Specify an SEG LED Light Box for Quotation

1. Provide the Frame Size

State outside width and height and whether the project uses a standard AF18 size or customized dimensions.

2. Confirm Visible Graphic Area

Provide the required visible width and height separately from the outer frame dimensions.

3. Select Single or Double Side

Specify viewing direction and whether illuminated graphics are required on one or both sides.

4. Select LGP or Direct Backlighting

Wallis can recommend an appropriate architecture after reviewing size, profile depth and brightness requirements.

5. Select CCT

Select 3000K, 4000K or 6500K and specify CRI if color rendering is important.

6. Define Brightness & Uniformity

Provide measurable targets where required instead of using only general terms such as “high brightness.”

7. Select DC12V or DC24V

Confirm operating voltage, driver requirements and destination-market mains input.

8. Define Installation

Specify wall-mounted, hanging or freestanding installation and provide fixing requirements where necessary.

9. Confirm Graphic Supply

State whether Wallis supplies the printed SEG graphic or whether the customer prints replacement graphics locally.

10. Provide Quantity & Destination

Quantity, shipping destination and packaging requirements help determine production planning and export packing.

FAQ About 33mm SEG LED Fabric Light Boxes

What does SEG mean?

SEG means Silicone Edge Graphic. A silicone strip is sewn around the fabric perimeter and inserted into the channel of an aluminum frame.

What is the Wallis AF18 light box?

AF18 is Wallis's current super-thin SEG LED fabric light-box model shown on this product page, with a 33mm standard LGP profile in the published size table.

How thick is the AF18 SEG light box?

The current standard-size AF18 LGP table lists a profile thickness of 33mm.

Is every customized SEG light box exactly 33mm thick?

Not necessarily. The published AF18 LGP standard configuration is 33mm, while other lighting systems, double-sided structures or customized projects may require another profile. Confirm the final drawing.

What standard sizes are available?

Current reference formats include B1, B2, A0, A1, A2, A3 and A4, plus customized sizes.

What is the difference between frame size and fabric size?

Frame size describes the light-box structure, while fabric size describes the finished SEG graphic that includes the tension allowance required by the selected extrusion.

Can customers print replacement SEG graphics locally?

Yes, but they should request the exact finished fabric dimensions and silicone-edge specification for the actual profile before printing.

What is an LGP light box?

An LGP light box uses an acrylic or PMMA light guide panel to distribute LED light injected from the panel edges across the illuminated surface.

When should I choose LGP lighting?

The current Wallis page recommends LGP particularly for super-thin structures below approximately 40mm depth and sizes below approximately 2000mm, subject to final optical requirements.

When should I choose direct LED backlighting?

Direct LED modules can be more appropriate for larger displays or applications where the available depth and required brightness support direct backlighting.

Is the light box single-sided or double-sided?

Both single- and double-sided options are listed. The final profile and lighting system should be confirmed for the selected structure.

What voltage is available?

DC12V and DC24V are currently listed.

What LED color temperatures are available?

The current product specification lists 3000K, 4000K and 6500K.

What is the brightness?

The current page states that brightness can be customized but does not publish one fixed cd/m² or lux value. Request measured performance for the final configuration.

What is the lighting uniformity?

No numerical uniformity value is currently published for this exact product. Specify the required percentage when uniformity is a controlled project parameter.

What CRI is available?

The current page does not publish a CRI value. Buyers should specify their required CRI for color-sensitive applications.

Is the LED light box dimmable?

A standard dimming protocol is not currently published. Confirm the required control system before production.

Can the frame color be customized?

Yes. Silver, black and customized frame colors are currently listed.

Can it be wall mounted?

Yes. Wall mounting is one of the current installation options.

Can it be suspended from the ceiling?

Hanging installation is currently listed. Suspension hardware and structural requirements should be matched to the final size and weight.

Can it be freestanding?

Freestanding installation is also listed, subject to the appropriate base or support structure.

Can this AF18 light box be used outdoors?

This product is primarily designed for indoor use. The current page does not publish an outdoor IP rating for the complete AF18 assembly.

Does Wallis provide CE and RoHS?

CE and RoHS are currently listed as available. B2B buyers should request documents applicable to the exact LED, driver and assembled configuration being purchased.

How long does the LED light box last?

The existing Wallis FAQ states that optical performance can remain strong for more than five years under normal indoor conditions. Actual service life depends on LEDs, driver quality, working hours, heat dissipation and installation environment; this should not be treated as a formal warranty period.

Can the LGP and acrylic components be CNC machined?

The current Wallis FAQ states that LGP and acrylic components can be cut, drilled and processed according to customer drawings.

Can Wallis manufacture custom AF18 dimensions?

Yes. Customized dimensions, frame colors, lighting configurations, installation structures and fabric sizes can be discussed according to project feasibility.

What information should I provide for a quotation?

Provide outer frame size, visible graphic size, quantity, single- or double-sided requirement, wall-mounted/hanging/freestanding installation, LGP or direct-backlit preference, brightness target, uniformity target, CRI, 3000K/4000K/6500K requirement, voltage, graphic supply method, certifications, packaging and delivery destination.

Request Custom 33mm SEG LED Fabric Light Box Pricing

Looking for a reliable SEG LED fabric light box manufacturer for retail stores, exhibitions, malls, showrooms or indoor advertising projects? Send Wallis your frame dimensions, fabric size, lighting requirements, installation method and quantity for technical review, sample development and B2B factory pricing.
