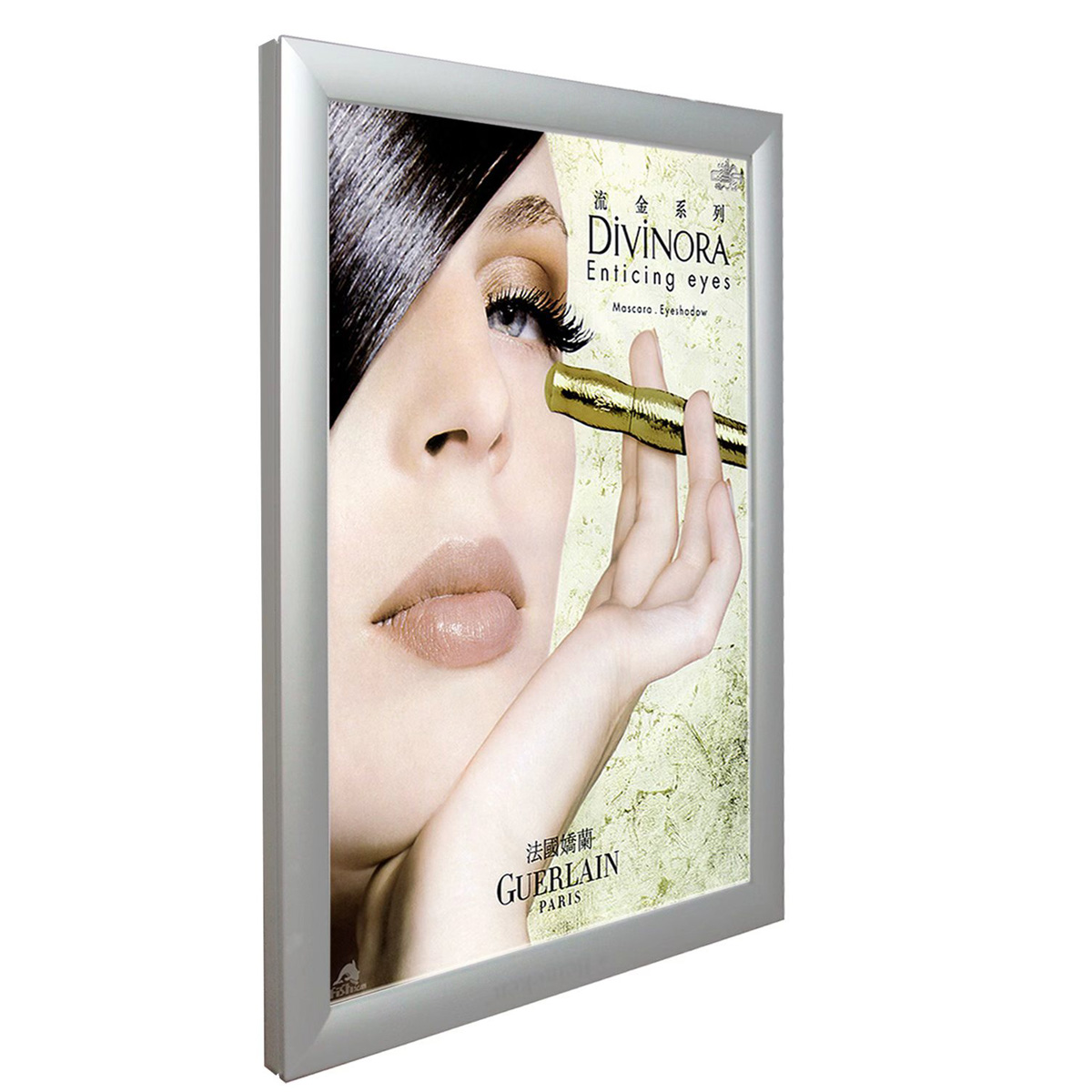

Wall-Mounted LED Snap Frame Light Box with Aluminum Frame

Wall-Mounted LED Snap Frame Light Box for Advertising Posters

Wallis wall-mounted LED snap frame light box is a slim, professional illuminated poster display designed for retail promotions, menu boards, movie posters, office signs, exhibitions, hotels, restaurants and commercial advertising.

The WLS-AF13 light box combines a silver aluminum clip frame, LED light source and acrylic light guide panel to produce bright and evenly distributed illumination across the graphic surface. Its four-side snap-open structure allows posters to be replaced from the front without removing the light box from the wall.

Standard poster formats include A4, A3, A2, A1, A0, B2 and B1. Wallis also supports custom frame dimensions, poster sizes, view areas, frame colors, light colors, voltage options and packaging for distributors, advertising companies and commercial display projects.

Four-Side Snap-Open Frame

Spring Clip Mechanism

Rear Wall-Mounting Brackets

LED Snap Frame Light Box Specifications

Note: The page lists a nominal thickness of 23mm, while the detailed AF13 size table lists 23.5mm. Confirm the final assembled depth, profile width and wall projection before placing a bulk order.

How the Edge-Lit LED Poster Light Box Works

The AF13 light box uses LEDs positioned along the edge of an acrylic light guide panel. Light enters through the LGP edge, travels through the acrylic and is redirected across the display surface by the optical pattern.

LED Edge Lighting

Edge-mounted LED tape allows the light box to remain significantly slimmer than many conventional direct-backlit poster boxes. LED placement and quantity should be matched to the frame size to maintain consistent illumination.

Acrylic Light Guide Panel

The acrylic LGP distributes light from the LED input edges across the poster area. A properly designed light guide pattern helps reduce visible bright edges, hot spots and dark zones.

Reflective and Diffusing Layers

Reflective backing redirects rearward light toward the graphic, while a suitable diffuser helps create a smoother illuminated surface. The complete optical structure should be matched to the poster material and required brightness.

Key Advantages of the Aluminum Snap Frame Light Box

Fast Front-Loading Poster Replacement

All four aluminum frame sides open from the front. Staff can remove the protective cover, replace the poster and close the rails without taking the light box down from the wall or using special tools.

Slim 23mm-Class Aluminum Profile

The slim edge-lit structure projects only a short distance from the wall, helping the display integrate into retail, restaurant, hotel and office interiors without appearing bulky.

Uniform LED Illumination

The LED and LGP system is designed to illuminate the complete poster area rather than concentrating brightness near individual LEDs. Final uniformity depends on the frame size, LED layout, LGP pattern and optical layers.

Portrait or Landscape Installation

The rectangular light box can be installed vertically or horizontally according to the graphic format, available wall area and wiring position.

Low-Voltage Lighting System

DC12V and DC24V options are available. The external power supply should match the LED voltage, total wattage, destination-market plug and applicable electrical certification requirements.

Custom Frame and Lighting Options

Buyers can request custom dimensions, aluminum finishes, frame colors, light colors, power cable positions, mounting brackets and export packaging for branded or project-specific installations.

Standard AF13 Poster, View and Frame Sizes

Poster size, visible view area and outside frame size are different measurements. Buyers should use the poster size when preparing graphics and use the frame size when checking available wall space.

The aluminum frame overlaps the graphic around the perimeter, so the complete poster is larger than the visible view area. Keep important text, QR codes and logos inside the confirmed safe viewing area.

Quick Poster Replacement Process

1. Switch Off the Power

Disconnect the light box from the power supply before replacing the graphic, inspecting internal components or cleaning the display.

2. Open the Four Aluminum Rails

Lift each spring-loaded snap rail from the front. The frame remains mounted on the wall while the graphic area becomes accessible.

3. Remove the Protective Cover and Old Poster

Carefully remove the front cover and existing graphic. Clean dust from the inside surface using a soft, non-abrasive cloth.

4. Insert the New Backlit Graphic

Align the new poster within the frame. Translucent backlit poster film is generally recommended for strong color and even illumination; confirm material thickness and print compatibility before bulk printing.

5. Replace the Cover and Close the Frame

Reinstall the protective cover and press all four aluminum rails into their closed positions. Check that the poster is flat and the edges are securely retained.

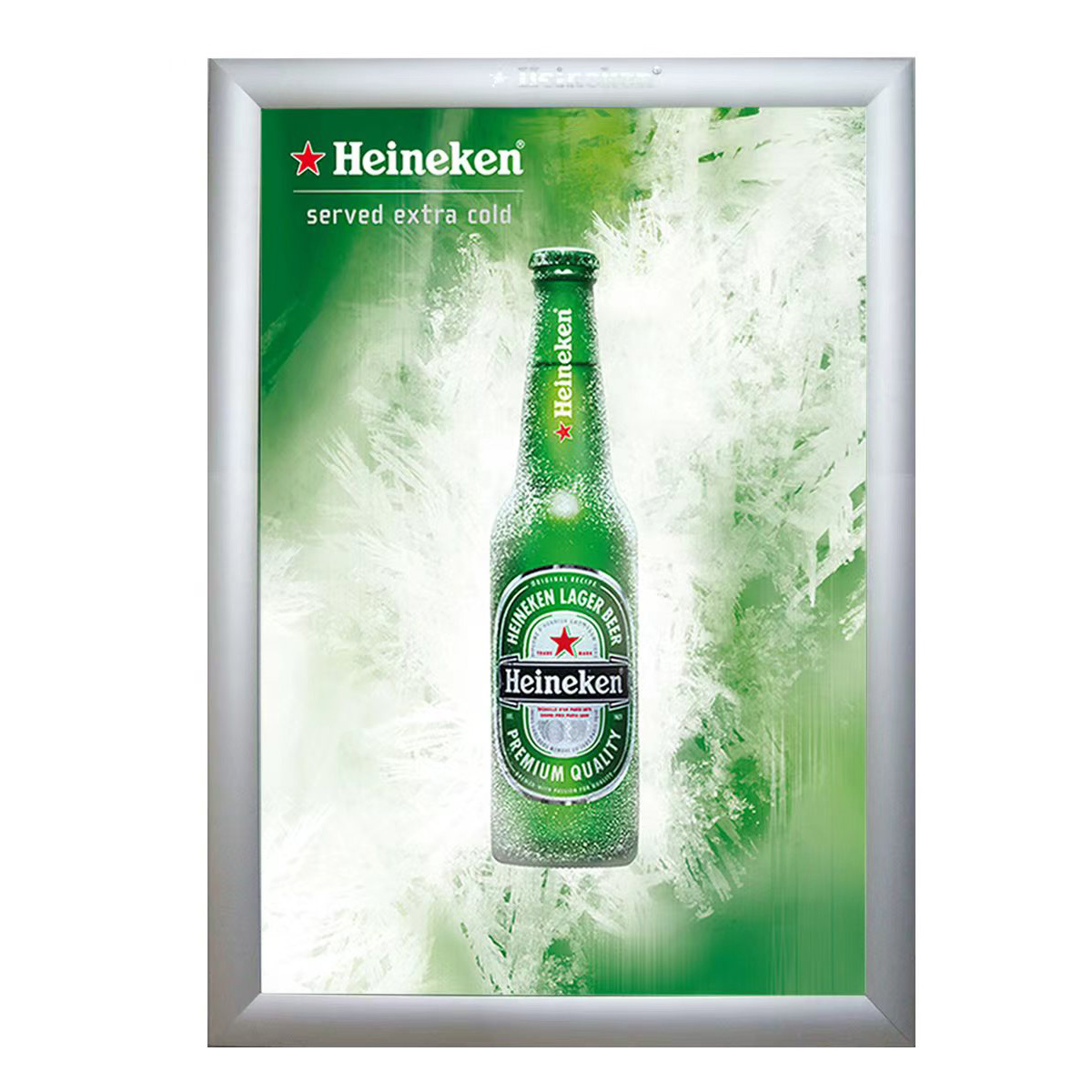

Rounded Aluminum Snap Frame

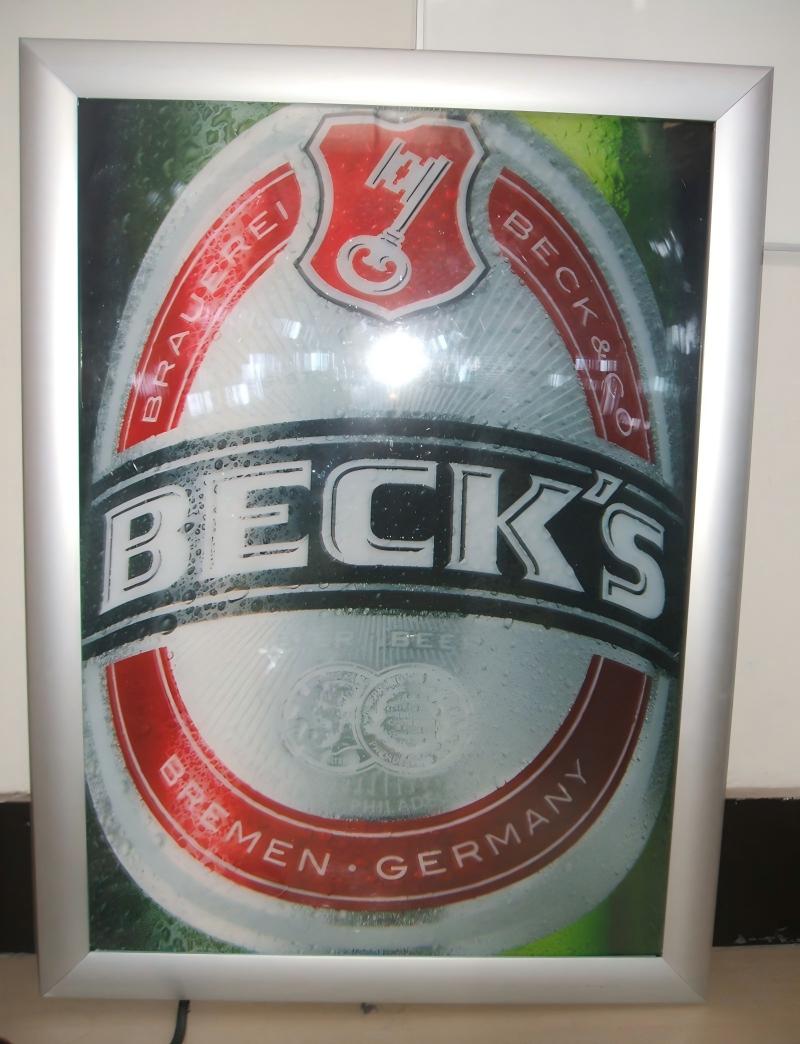

Easy Front-Loading Poster Replacement

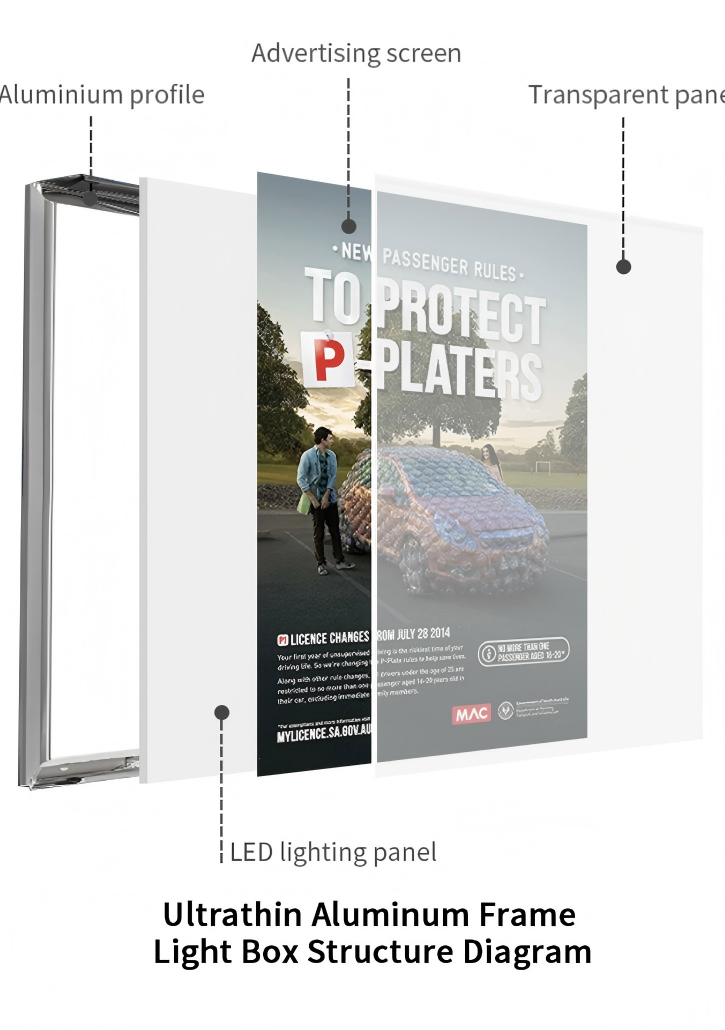

Light Box Components and Structure

Aluminum Snap Frame

The aluminum perimeter provides structural support, protects the internal optical layers and creates the quick-opening poster-access mechanism.

Protective Front Cover

A clear or anti-glare cover can protect the graphic from fingerprints, dust and frequent handling. Confirm whether the order requires clear gloss or anti-glare performance.

Backlit Poster Graphic

The print should be produced on media suitable for illuminated displays. Graphic density, ink loading and material opacity directly influence color saturation when the light box is switched on.

Diffuser, LGP and Reflective Backing

These optical layers guide, redirect and soften LED light so the complete poster surface appears more consistent.

LED Tape and Power Supply

LED tape provides the light source, while the compatible power adapter converts the local AC supply to the specified DC12V or DC24V output.

Light Box Structure

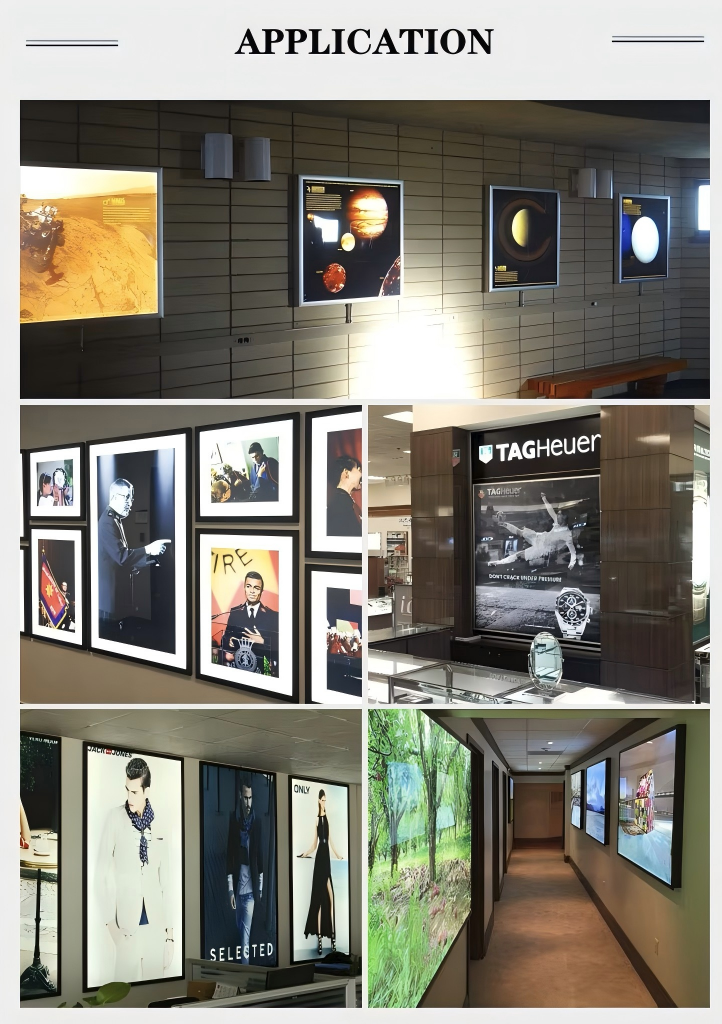

Commercial Display Applications

Applications of Wall-Mounted LED Advertising Light Boxes

Retail Stores and Shopping Malls

LED snap frame light boxes are suitable for promotional posters, product launches, price campaigns, directory signs and seasonal marketing graphics that need to be updated regularly.

Restaurants, Cafés and Menu Boards

Illuminated menu posters improve visibility in food-service environments and can be replaced when prices, products or promotional offers change.

Cinemas and Entertainment Venues

A0, B1 and custom formats can be used for movie posters, event promotions, entertainment schedules and directional graphics.

Hotels and Hospitality

Wall-mounted illuminated frames can display restaurant promotions, conference information, hotel services, spa offers and event schedules.

Offices and Public Buildings

Applications include reception branding, internal announcements, information posters, safety communications and illuminated directional signs.

Exhibitions and Showrooms

Slim aluminum poster light boxes can be incorporated into exhibition walls, product showrooms and temporary branded display environments.

Single-Sided vs Double-Sided Light Box

This product is presented primarily as a wall-mounted light box. Buyers requesting a double-sided version should confirm the complete profile, suspension system, wiring method and final thickness separately.

Installation Guidelines

Confirm the Wall Structure

Use fasteners suitable for the wall material and the weight of the selected light box. Concrete, masonry, timber and drywall installations may require different anchors.

Plan the Power Cable Position

Confirm whether the power cable exits from the side, bottom or rear before manufacturing. Concealed wiring may require a prepared wall outlet behind the frame.

Leave Access for Graphic Replacement

Avoid installing the light box so close to an adjacent wall, cabinet or ceiling that the snap rails cannot be opened fully.

Verify Portrait or Landscape Orientation

Confirm orientation before drilling mounting holes and before specifying the cable outlet, LED layout and graphic direction.

Use the Correct Power Adapter

The adapter output voltage must match the LED system. The power rating should include sufficient capacity for the complete light box without overloading the driver.

Indoor and Outdoor Use

The standard WLS-AF13 snap frame light box is primarily intended for indoor commercial environments. The current page does not specify a waterproof IP rating.

Outdoor or exposed installations require a purpose-designed enclosure with verified waterproofing, drainage, UV-resistant components, protected electrical connections and weather-compatible poster covers. Do not assume the standard indoor snap frame is suitable for rain or continuous humidity.

Graphic Preparation Recommendations

Use the Correct Poster Dimensions

Prepare the print according to the poster-size column rather than the outside frame size. The visible area is smaller because the aluminum rails overlap the graphic edges.

Keep Important Content Inside the Safe Area

Place logos, prices, contact details and QR codes within the confirmed view area. Avoid positioning critical content close to the poster edge.

Use Backlit Printing Media

Translucent backlit film normally provides better illumination than ordinary opaque paper. Test the selected print media, ink density and protective cover together before producing a large graphic order.

OEM and Custom Light Box Services

Wallis provides project-based manufacturing support for advertising companies, display distributors, retail fixture manufacturers and commercial signage contractors.

• A4, A3, A2, A1, A0, B2 and B1 standard sizes

• Custom frame, poster and view dimensions

• Silver, black or customized aluminum finish

• DC12V or DC24V LED configuration

• Custom LED color temperature

• Single-sided wall-mounted design

• Custom double-sided or hanging configuration

• Acrylic LGP laser dotting

• CNC cutting and drilling

• Custom cable outlet position

• Logo, label and packaging customization

• Sample evaluation before mass production

• Export packing and container-loading support

Workshop and Export Packaging

Aluminum frames, acrylic optical panels and front covers require protection against scratching, bending and impact during international transportation. Packaging can be adapted to light box dimensions, order quantity and shipping method.

Export Pallet Package

Container Loading

Information Needed for an Accurate Quote

• Poster size or custom graphic dimensions

• Required frame size and view size

• Required quantity

• Portrait or landscape installation

• Single-sided or double-sided display

• Wall-mounted, hanging or window installation

• DC12V or DC24V requirement

• Destination-country input voltage and plug type

• Required LED color temperature

• Silver, black or customized frame color

• Power cable outlet position

• Clear or anti-glare front cover requirement

• Indoor or outdoor installation environment

• Required electrical certifications

• Logo, label or branded packaging requirements

• Shipping and export packaging requirements

Frequently Asked Questions About LED Snap Frame Light Boxes

What is a snap frame LED light box?

It is an illuminated poster frame with spring-loaded aluminum rails that open from the front. The snap frame allows the graphic to be replaced quickly while the display remains mounted on the wall.

What sizes are available?

Standard AF13 poster formats include A4, A3, A2, A1, A0, B2 and B1. Custom frame, poster and visible-area dimensions can also be manufactured.

Is the thickness 23mm or 23.5mm?

The general specification describes the light box as approximately 23mm thick, while the detailed AF13 table lists 23.5mm. Confirm the final production drawing and assembled depth before ordering.

How quickly can the poster be replaced?

The poster can be accessed from the front by opening the four aluminum snap rails. No special tools are normally required for routine graphic replacement.

Can the light box be installed horizontally and vertically?

Yes. Portrait or landscape installation can be supported. Confirm the required orientation before production so mounting points, cable position and graphic direction can be checked.

Is this light box single-sided or double-sided?

The standard wall-mounted application is normally single-sided. Double-sided configurations can be discussed for hanging, window or open-area displays and may require a different profile and installation system.

What voltage does the light box use?

Wallis lists DC12V and DC24V LED options. The external adapter must be selected according to the LED voltage, power consumption and electrical requirements of the destination market.

What poster material should be used?

Translucent backlit film is generally recommended because it allows LED light to pass through the printed graphic. Test the print density and material with the actual light box before producing a large poster batch.

Is an anti-glare poster cover available?

Clear or anti-glare front-cover requirements should be specified when requesting the quotation. The final cover type can affect image sharpness, reflections and cleaning performance.

Can this light box be used outdoors?

The standard AF13 model is mainly intended for indoor use, and the current page does not list a waterproof IP rating. Outdoor projects require a specifically designed weatherproof light box.

Can Wallis customize the frame color?

Yes. Silver is the primary finish, while black and other customized aluminum finishes can be discussed according to project quantity and color requirements.

Can the LED color temperature be customized?

Yes. White lighting is standard, and 6500K is commonly specified on the current page. Other color temperatures should be confirmed before sample production.

What is the power consumption?

Power consumption varies according to poster size, LED quantity and voltage. The current page does not provide a wattage table, so request the rated wattage for the exact A4, A3, A2, A1, A0, B2, B1 or custom model.

What is the brightness of the light box?

The current page describes high and uniform brightness but does not publish a luminance or illuminance value. Buyers with a measurable brightness requirement should specify the target in cd/m² or lux.

What is the LED lifespan?

Actual service life depends on the LED specification, operating hours, heat dissipation, power supply quality and ambient temperature. Request the rated LED-hour specification and warranty terms for the selected configuration.

Can Wallis manufacture custom-size light boxes?

Yes. Wallis can customize the frame size, poster size, view area, frame color, lighting, voltage, mounting system, cable position and export packaging according to project requirements.

Can samples be provided before mass production?

Sample evaluation can be discussed before a bulk order to confirm frame quality, graphic fit, illumination, color temperature, cable position and packaging.

What information should I provide for a quotation?

Provide the poster size, frame dimensions, quantity, installation orientation, single- or double-sided requirement, voltage, plug type, LED color temperature, frame color, cable outlet position, application environment and packaging requirements.

Request a Quote for Wall-Mounted LED Poster Light Boxes

Looking for a wall-mounted LED snap frame light box manufacturer for retail posters, restaurant menus, cinema advertising, exhibitions or commercial signage? Wallis provides AF13 aluminum poster light boxes in A4–B1 sizes with custom dimensions, lighting and packaging options.

Send your poster size, quantity, voltage, frame color and installation requirements to receive a suitable product configuration, sample recommendation and factory quotation.
