Commercial COB LED Track Spotlight 10W 20W 30W

Commercial COB LED Track Spotlight 10W 20W 30W for Retail Lighting

Wallis commercial COB LED track spotlight is an adjustable indoor accent-lighting fixture designed for retail stores, showrooms, exhibitions, galleries, hotels, restaurants, offices and architectural interiors. Current power options include 10W, 20W and 30W, with 3000K, 4000K and 6000K color-temperature options for different commercial lighting environments.

The spotlight uses a COB LED light source and aluminum housing to combine concentrated illumination with thermal management. AC110–240V input, white or black housing options and track-mounted installation allow the fixture to be integrated into a range of commercial lighting projects.

For lighting distributors, retail contractors, exhibition companies, interior designers and OEM lighting brands, Wallis supports project-based customization. Buyers requiring professional lighting calculations should confirm CRI, delivered lumens, beam angle, track adapter, rotation and tilt range, driver model, dimming protocol, power factor, flicker performance and photometric files for the exact ordered SKU.

Product-positioning note: the current Wallis specification identifies this model as track mounted. The older phrase “surface mounted trace light” should not be used as the primary product description unless Wallis confirms a separate surface-mounted version. “Trace light” is also a wording error and should be replaced by “track light.”

COB LED Track Spotlight Specifications

CCT clarification: 3000K, 4000K and 6000K are white-light color temperatures, not RGB colors. Unless a selector mechanism is confirmed for this exact product, they should be described as available CCT options rather than a 3CCT switchable feature.

Beam clarification: the source page includes a beam-angle illustration but does not publish a numerical beam angle in its technical table. A fixed value should therefore not be added to the website until the exact optical specification is confirmed.

What Is a COB LED Track Spotlight?

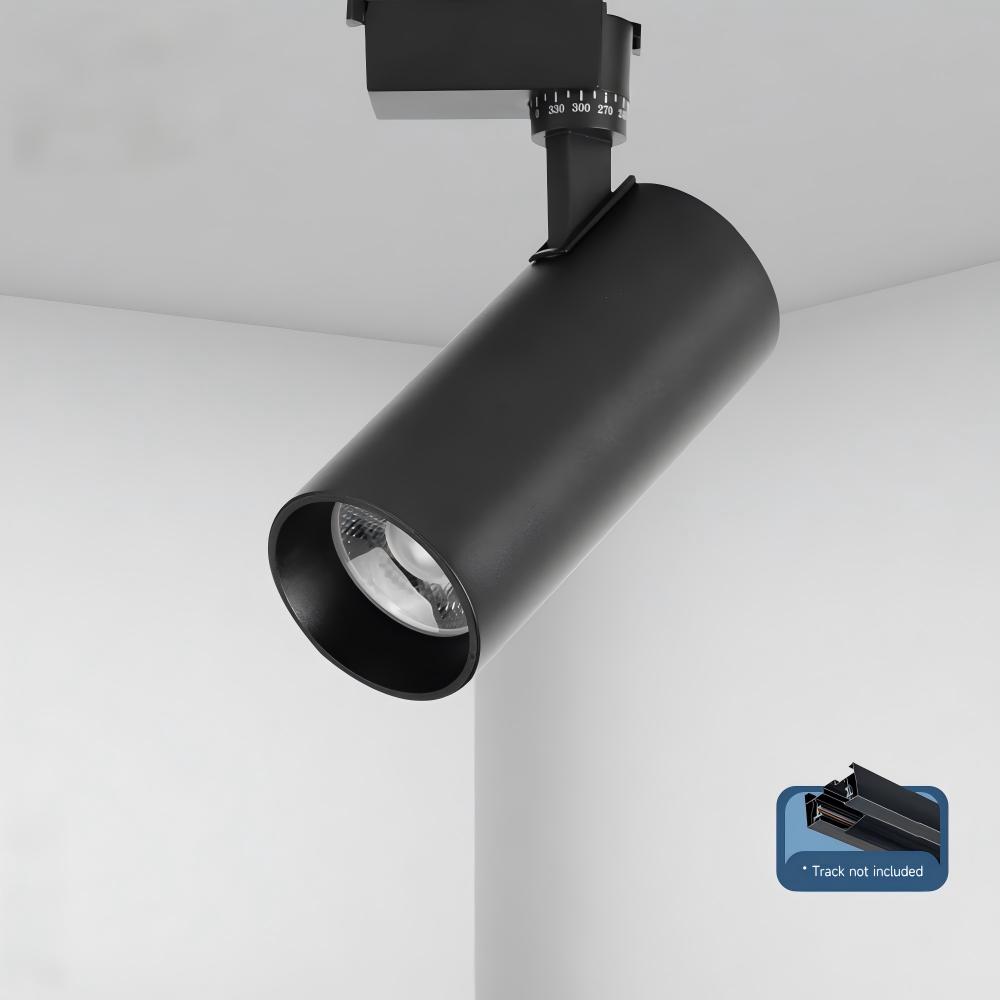

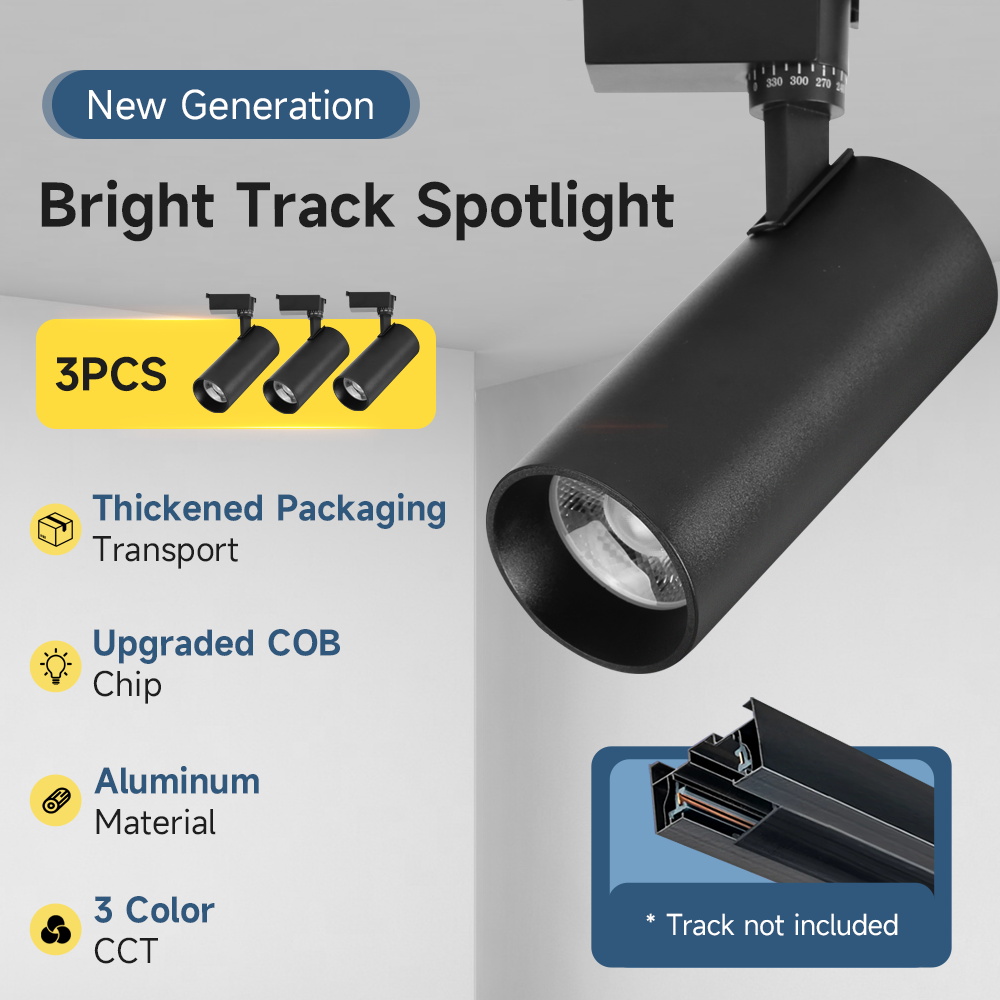

A COB LED track spotlight combines a chip-on-board LED light source, optical system, driver and adjustable luminaire body with a track adapter. The fixture can be repositioned along a compatible lighting track and aimed toward merchandise, displays, artwork or architectural features.

COB LED Light Source

COB technology places multiple LED chips within a compact light-emitting area. This construction can support a concentrated optical source suitable for commercial spotlights and controlled accent-lighting applications.

Track-Mounted Flexibility

Unlike a fixed recessed fixture, a track-mounted spotlight can normally be moved or aimed as display layouts change, provided the track adapter remains compatible with the installed track system.

Accent Lighting Rather Than General Lighting Alone

Track spotlights are frequently used to create visual hierarchy by making selected products or surfaces brighter than their surroundings. The required contrast depends on ambient lighting, beam angle, luminaire output and display material.

10W vs 20W vs 30W COB Track Spotlights

10W for Compact Accent Lighting

The 10W version can be evaluated for smaller merchandise, lower mounting heights, compact retail shelving, display cabinets and decorative accent areas where moderate output is sufficient.

20W for General Retail and Commercial Displays

The 20W option can cover a broad range of retail stores, showrooms, exhibitions and commercial interiors. Final suitability should be determined from target illuminance, beam distribution and mounting height.

30W for Larger Displays or Higher Mounting Positions

The 30W option can be considered for larger merchandise zones, showrooms, shopping malls and higher track positions where greater luminous output is required.

Do Not Select a Spotlight by Wattage Alone

Electrical wattage does not tell the complete lighting story. A professional specification should also compare delivered lumens, beam angle, center-beam intensity, CRI, mounting height and target lux.

3000K, 4000K or 6000K: Choosing Color Temperature

3000K Warm White

3000K creates a warmer atmosphere and can suit hotels, restaurants, boutiques, hospitality interiors and retail spaces seeking a softer visual environment.

4000K Neutral White

4000K provides a neutral commercial appearance and is commonly suitable for offices, showrooms, furniture displays, general retail and exhibition spaces.

6000K Cool White

6000K produces a cooler visual appearance that can be selected for certain modern retail concepts, technical product displays or high-contrast commercial environments.

These Are CCT Options, Not RGB Colors

3000K, 4000K and 6000K all describe shades of white light. The current product selector should therefore avoid labeling these choices as “RGB color.”

CRI Matters for Retail, Showroom and Gallery Lighting

The current Wallis page does not publish CRI. For commercial accent lighting, this is an important specification because customers evaluate the colors of products, textiles, finishes and artwork under the installed light.

Fashion and Apparel Stores

Garment and footwear retailers should verify how fabric colors, skin tones and branded colors appear under the selected CCT and LED source.

Furniture and Material Showrooms

Wood, stone, textiles, coatings and decorative panels can look different under different spectra. A high-quality mock-up should be considered when material appearance drives purchasing decisions.

Art and Exhibition Lighting

Gallery and museum projects often require project-specific color rendering, spectral, glare and control requirements. Request the required CRI and other lighting criteria before selecting the final COB version.

Beam Angle & Optical Distribution

Beam angle determines how concentrated or wide the illuminated area becomes at a given distance. The current Wallis page includes a beam illustration but does not provide a numerical beam angle in the specification table, so buyers should confirm the optic before completing a lighting layout.

Narrow Beam

Narrow optics concentrate the available light on smaller merchandise, artwork or architectural details and can create stronger accent contrast.

Medium Beam

Medium distributions are suitable for many shelving, fashion, furniture and product-display applications where controlled coverage is required.

Wide Beam

Wider optics cover larger display areas and may be useful at lower mounting heights or when a softer transition between illuminated zones is preferred.

Request Photometric Data

For project lighting, request an IES or equivalent photometric file for the exact wattage and optic. This allows designers to calculate illuminance, spacing, uniformity and accent ratios rather than estimating from wattage alone.

Track Adapter, Rotation & Installation Compatibility

Confirm the Track System Before Ordering

Commercial lighting tracks are not universally interchangeable. Buyers should provide the track specification, adapter drawing or existing system information before ordering replacement luminaires.

Track Mounted Is the Current Confirmed Installation

The current Wallis specification table states “Track Mounted.” The webpage wording “surface mounted” should therefore be removed unless Wallis verifies a separate canopy-mounted spotlight version.

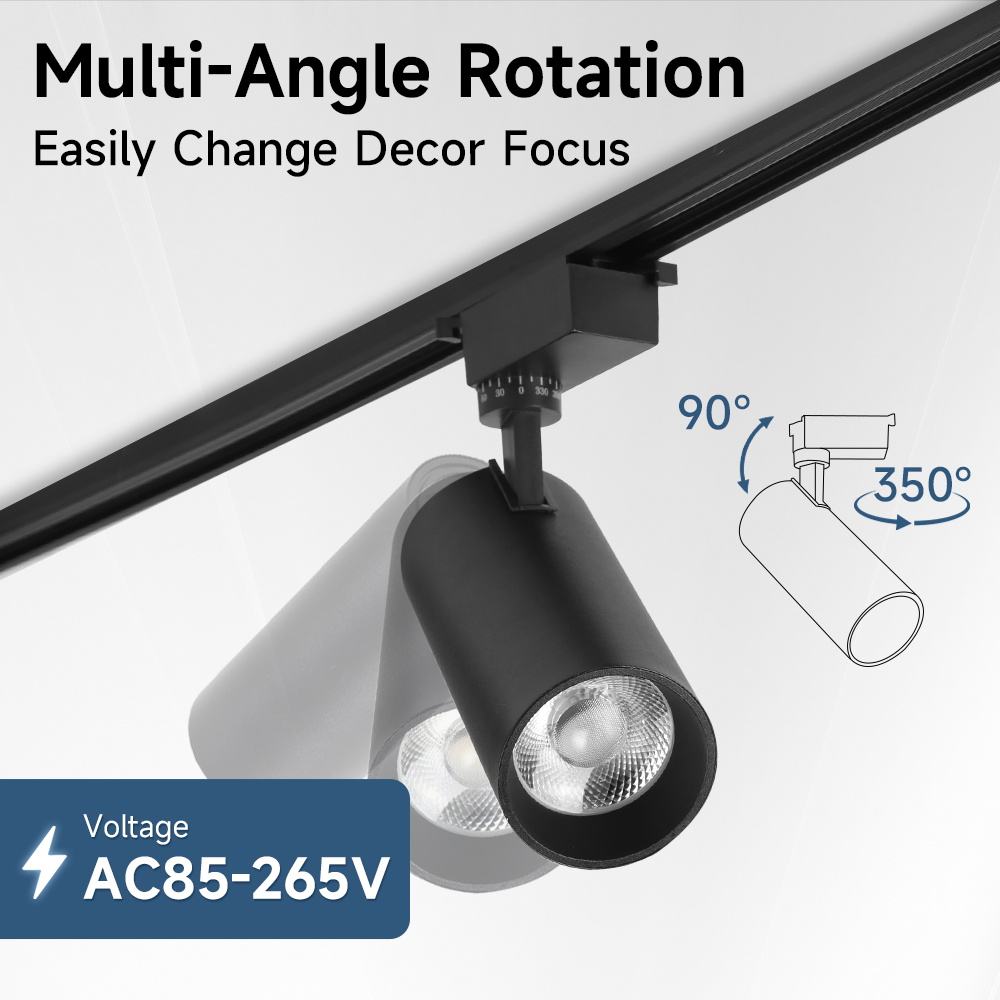

Rotation and Tilt

Directional adjustment allows the spotlight to follow changing merchandise or interior layouts. The exact rotation and tilt values should be confirmed before they are added to project drawings or technical datasheets.

New Projects Can Specify Track and Spotlights Together

For new retail or showroom installations, coordinating track rails, adapters and spotlights as one approved system reduces compatibility risk.

Driver, Dimming, Power Factor & Flicker

AC110–240V Input

The current Wallis specification lists AC110–240V input. For international projects, confirm line frequency, driver model, wiring method and destination-market electrical compliance.

Dimming Must Be Specified

The current source does not state whether the standard version is dimmable. Projects requiring TRIAC, 0–10V, DALI or another control protocol should define the requirement before sample production.

Power Factor

Commercial projects and tenders may specify a minimum power factor. Request the PF of the exact driver rather than assuming a value from the fixture wattage.

Flicker Performance

Retail displays are frequently photographed and filmed. If camera performance or low-flicker operation is important, include the required test criterion in the purchase specification.

Aluminum Housing & Thermal Management

Aluminum Body

The Wallis track spotlight uses an aluminum housing. Aluminum supports heat transfer from the LED and internal components while providing a rigid commercial fixture body.

Thermal Conditions Influence LED Performance

LED life and lumen maintenance depend on junction temperature, ambient temperature, driver quality and operating hours. Good thermal management is therefore relevant to long-term output stability.

50,000-Hour Claim Should Be Defined

The current page lists a 50,000-hour lifespan. For professional tender specifications, buyers should request the applicable lifetime definition, operating conditions or lumen-maintenance basis.

Indoor Commercial Use & IP62 Clarification

The Wallis product is primarily positioned for indoor retail, showroom, gallery, hotel, restaurant and office applications. The current specification lists an IP62 rating.

Keep IP62 as a Model-Specific Claim

If an IP rating is important for a project or tender, request test documentation applying to the exact luminaire, driver and track-adapter configuration before using IP62 as a contractual specification.

Do Not Automatically Position It as an Outdoor Spotlight

The current applications focus on indoor commercial lighting. Outdoor suitability would also require consideration of water exposure, corrosion, electrical connection, temperature and the complete track system.

Applications of Commercial COB LED Track Spotlights

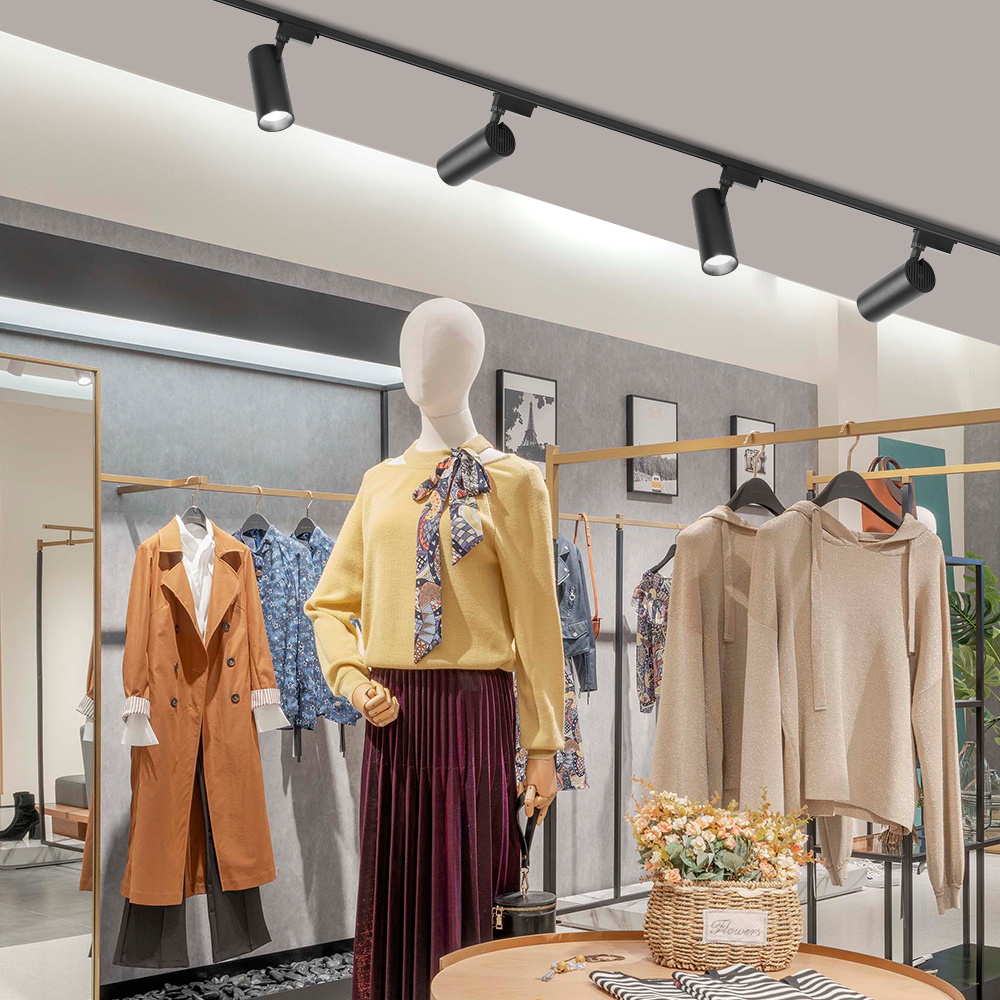

Retail Store Lighting

COB track spotlights can highlight merchandise, mannequins, shelves, wall displays, promotional areas and store windows while allowing aiming adjustments as the merchandising layout changes.

Showroom Lighting

Furniture, building-material, appliance and product showrooms can use adjustable track lighting to create accent contrast across changing display zones.

Exhibition & Trade Show Lighting

Exhibition booths can use track spotlights to illuminate products, graphics, samples and architectural booth elements while preserving flexibility when the stand layout changes.

Gallery Lighting

Galleries can direct light toward artwork or exhibition objects. Professional projects should additionally define color rendering, beam control, glare and dimming requirements.

Hotel & Restaurant Lighting

Hospitality interiors can use track spotlights for dining areas, feature walls, artwork, displays and decorative accent lighting. 3000K is often evaluated where a warmer atmosphere is preferred.

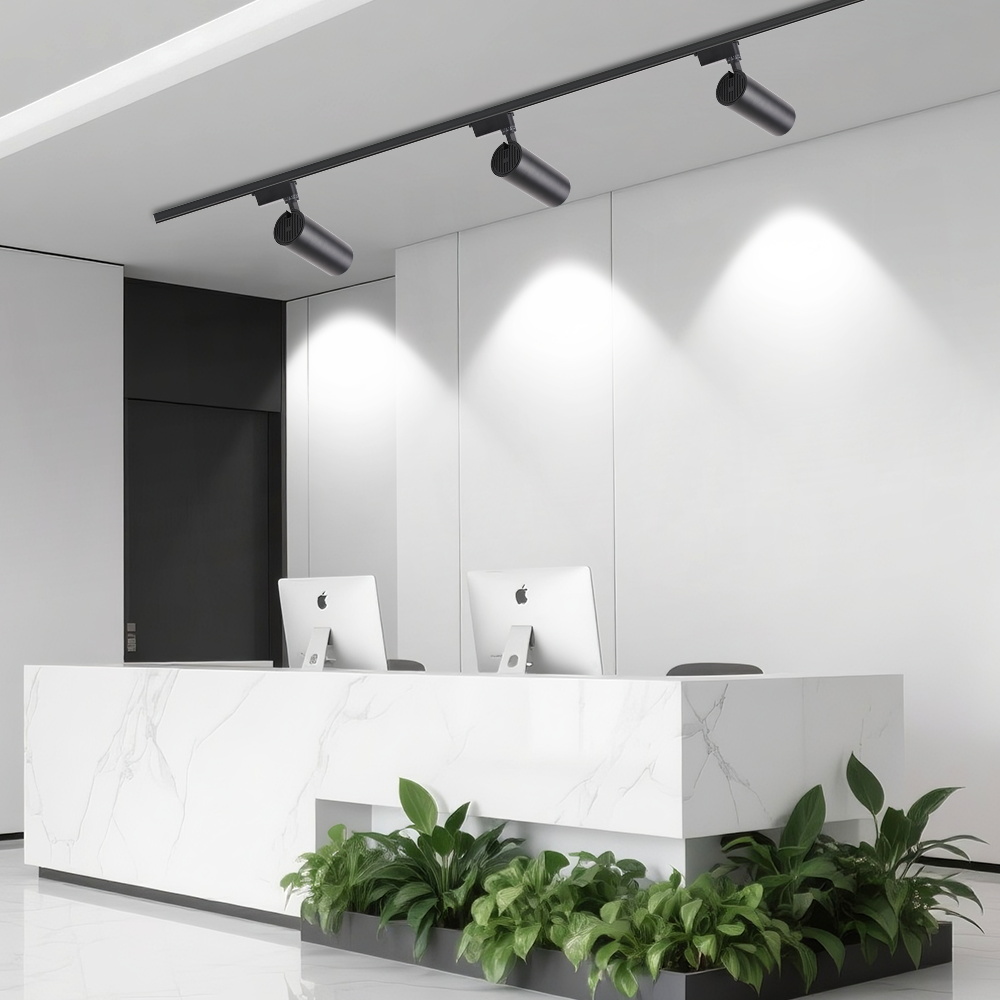

Office & Commercial Interiors

Track-mounted spotlights can supplement general lighting by highlighting reception areas, product displays, feature walls and interior design elements.

How to Specify a COB LED Track Lighting Project

1. Define the Application

State whether the fixtures are for fashion retail, supermarket displays, furniture showroom, gallery, exhibition, hospitality or office lighting.

2. Provide the Mounting Height

Mounting height affects the required wattage, beam distribution and fixture spacing.

3. Select 10W, 20W or 30W

Use power as an initial selection, then verify performance using delivered lumens, beam distribution and target lux.

4. Choose 3000K, 4000K or 6000K

Select color temperature according to merchandise, brand atmosphere and interior materials.

5. Specify CRI

Define the required minimum color-rendering performance, particularly for fashion, furniture, food, art and other color-sensitive applications.

6. Confirm Beam Angle

Specify the required spot, medium or wide distribution after considering the illuminated object size and mounting distance.

7. Confirm Track Adapter

Provide the existing track system or request a complete compatible track-and-luminaire package.

8. Define Driver & Dimming

State whether standard non-dimming operation or a project-specific dimming interface is required.

9. Request Photometric Data

Use tested lumen output and IES or equivalent photometric data for professional lighting calculations.

10. Approve a Physical Sample

Evaluate brightness, CCT, CRI, beam appearance, glare, housing finish, track compatibility and driver behavior before bulk production.

Wallis OEM & Custom COB Track Spotlight Service

Custom Power Options

Current standard power options include 10W, 20W and 30W. Other requirements can be reviewed according to luminaire size, thermal design and project quantity.

Custom Color Temperature

The current page lists 3000K, 4000K and 6000K. Other CCT requirements should be confirmed according to LED availability and order specification.

White or Black Housing

White and black are currently listed as housing colors. Project-specific finishes can be discussed for OEM orders.

Driver & Optical Customization

Projects requiring a defined beam angle, dimming protocol, CRI, power factor or flicker specification should submit those requirements before sample production.

Logo & OEM Packaging

Wallis currently supports customer branding. Logo artwork, labels and packaging should be approved together with the pre-production sample.

Quality Control for Commercial LED Track Spotlights

For B2B commercial lighting projects, quality inspection should cover electrical, optical, mechanical and appearance parameters according to the approved sample and purchase specification.

• 10W / 20W / 30W input-power verification

• AC voltage and driver operation

• 3000K / 4000K / 6000K CCT verification

• CCT consistency between fixtures

• CRI where specified

• Delivered lumens where specified

• Beam angle and beam uniformity

• Visible optical defects

• Fixture aiming and mechanical stability

• Track adapter fit and electrical contact

• Dimming function where applicable

• Power factor where specified

• Flicker performance where specified

• Aluminum housing dimensions and finish

• Thermal operating condition

• Burn-in or aging inspection according to agreed QC procedure

• Applicable certification documentation

• Logo, labels, accessories and export packaging

Pre-Production Sample Approval

The current Wallis FAQ supports pre-production sample checking. For project lighting, approval should cover optical and electrical performance as well as housing appearance.

Final Inspection Before Shipment

Finished fixtures should be inspected against the approved specification before export, particularly when an order includes customized LEDs, drivers, housing finishes, branding or packaging.

Why Choose Wallis for COB LED Track Spotlights?

10W, 20W and 30W Power Range

Multiple wattages allow distributors and project buyers to cover different mounting heights and display requirements within the same product family.

Multiple White-Light CCT Options

3000K, 4000K and 6000K options allow buyers to select warmer, neutral or cooler white light according to the project concept.

Aluminum Commercial Fixture Design

The aluminum body combines a modern appearance with structural rigidity and heat-transfer functionality.

Sample Testing

Buyers can use samples to evaluate track compatibility, brightness, beam quality, CCT, housing finish and project suitability before bulk purchasing.

OEM & ODM Support

Wallis supports project-based customization, customer branding, bulk production and export requirements for lighting distributors, contractors and commercial customers.

Wallis Global B2B Lighting Projects

For repeat commercial lighting orders, buyers should retain an approved master specification covering wattage, CCT, CRI, beam angle, lumen output, track adapter, driver, dimming, housing finish, certification and packaging. This reduces specification drift between samples and repeat production.

FAQ About COB LED Track Spotlights

What is a COB LED track spotlight?

It is a directional track-mounted luminaire using a chip-on-board LED light source and optical system to provide focused accent lighting for retail, showroom, exhibition and commercial applications.

What power options does Wallis offer?

The current Wallis specification lists 10W, 20W and 30W versions.

Which is better: 10W, 20W or 30W?

The correct wattage depends on mounting height, beam angle, target lux, merchandise size and ambient lighting. 10W can suit smaller accents, while 20W and 30W can be evaluated for larger or higher installations.

What color temperatures are available?

The current product information lists 3000K, 4000K and 6000K white-light options.

Are 3000K, 4000K and 6000K RGB colors?

No. They are correlated color temperatures describing different shades of white light. They should not be labeled as RGB colors.

Is this a 3CCT switchable track light?

The current source confirms 3000K, 4000K and 6000K options but does not clearly confirm that one fixture contains a switch allowing all three CCTs. Request confirmation if a 3CCT switchable version is required.

What is the CRI of the Wallis track light?

The current product page does not publish CRI. Specify the required value and request confirmation for the exact COB LED version before ordering.

What is the beam angle?

The source page contains a beam-angle illustration but does not provide a numerical beam value in the product specification. The exact optic should therefore be confirmed before lighting calculations or quotation.

Is this the same as Wallis's 15°–60° zoom track light?

This page should be treated as the general 10W/20W/30W commercial COB track spotlight product unless Wallis confirms the same 15°–60° zoom optical system. The zoom specification should not be copied from another SKU without verification.

Is this product track mounted or surface mounted?

The current technical table explicitly states “Track Mounted.” The older “surface mounted” wording should be removed unless a separate surface-mounted version is confirmed.

What track system does the spotlight fit?

The current source does not identify the track-adapter standard. Provide the existing track specification or request a compatible track system with the luminaires.

Can the spotlight head be rotated and tilted?

The product is designed for directional track lighting, but the current source does not publish exact rotation or tilt angles. Request these values when they are required for project drawings.

What is the actual lumen output?

The page lists approximately 100 lm/W luminous efficiency but does not publish measured lumens for each complete 10W, 20W and 30W luminaire. Request tested delivered-lumen data for lighting calculations.

Does 100 lm/W mean the 20W version produces exactly 2000 lumens?

Not necessarily. Optical losses, LED performance, driver efficiency, CCT and test conditions can affect the delivered lumen output of the complete luminaire.

Is the track spotlight dimmable?

The standard page does not specify dimming. If dimming is required, provide the control protocol so Wallis can confirm an appropriate driver configuration.

Can Wallis provide DALI track lights?

DALI is not listed as a standard feature on the current source page. It should be submitted as a project-specific requirement for technical evaluation.

What voltage does the fixture use?

The current Wallis specification lists AC110–240V input.

Is the track light IP62?

IP62 is listed on the current product page. If the IP rating is contractually important, request model-specific test documentation before final specification.

Can this spotlight be used outdoors?

The product is positioned primarily for indoor commercial lighting. Outdoor use should only be considered after confirming the complete fixture, driver, track and environmental protection requirements.

What housing colors are available?

White and black are currently listed. Other finishes can be discussed for OEM orders subject to production feasibility.

Is the housing aluminum?

Yes. Aluminum is listed as the lamp-body material and main fixture material.

Is the lifespan really 50,000 hours?

The current Wallis page lists 50,000 hours. For engineering specifications, request the applicable test basis, lumen-maintenance definition and operating conditions.

Are CE, RoHS and CCC certifications available?

CE, RoHS and CCC are listed on the current page. Buyers should request documentation covering the exact ordered luminaire and driver before using the certifications for compliance purposes.

Can I order a sample before bulk production?

Yes. The current Wallis FAQ states that sample testing is available and that one piece can be accepted for sample evaluation.

What is the sample lead time?

The current source lists approximately 3–5 days for samples. Customized optical, driver, housing or branding requirements may change this timing.

What is the mass-production lead time?

The current Wallis FAQ lists approximately 1–2 weeks depending on quantity, customization and production schedule. Final timing should be confirmed after sample approval.

Can Wallis print our logo on the track lights?

Yes. The current Wallis page states that logo branding can be supported. Logo position, artwork and appearance should be approved on the sample before bulk production.

What information should I provide for a quotation?

Provide quantity, application, mounting height, 10W/20W/30W requirement, 3000K/4000K/6000K CCT, CRI requirement, beam angle, track system, input voltage, dimming requirement, housing color, certifications, logo, packaging and delivery destination.

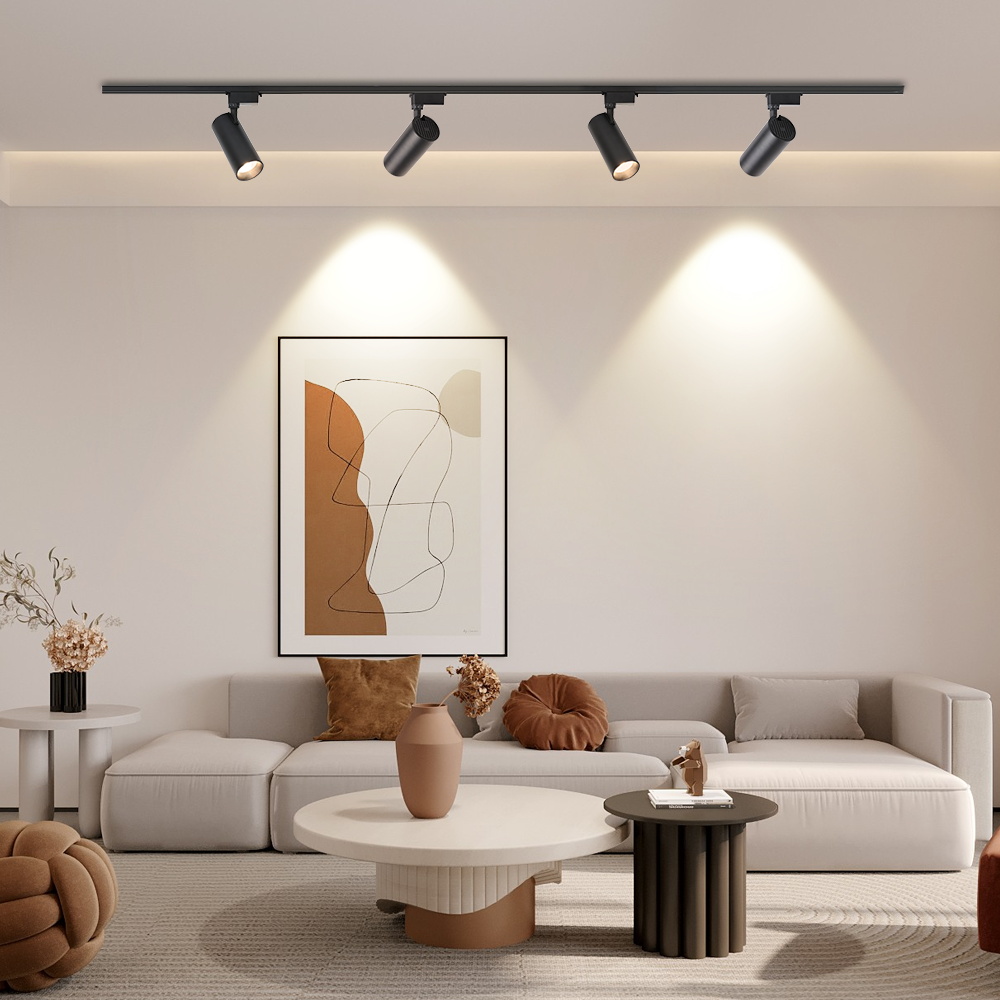

Request COB LED Track Spotlight Samples & Factory Pricing

Looking for a reliable COB LED track spotlight manufacturer for retail stores, showrooms, exhibitions or commercial interiors? Send Wallis your wattage, CCT, CRI, beam angle, track type, driver requirements and quantity for technical review, sample testing and B2B factory pricing.
