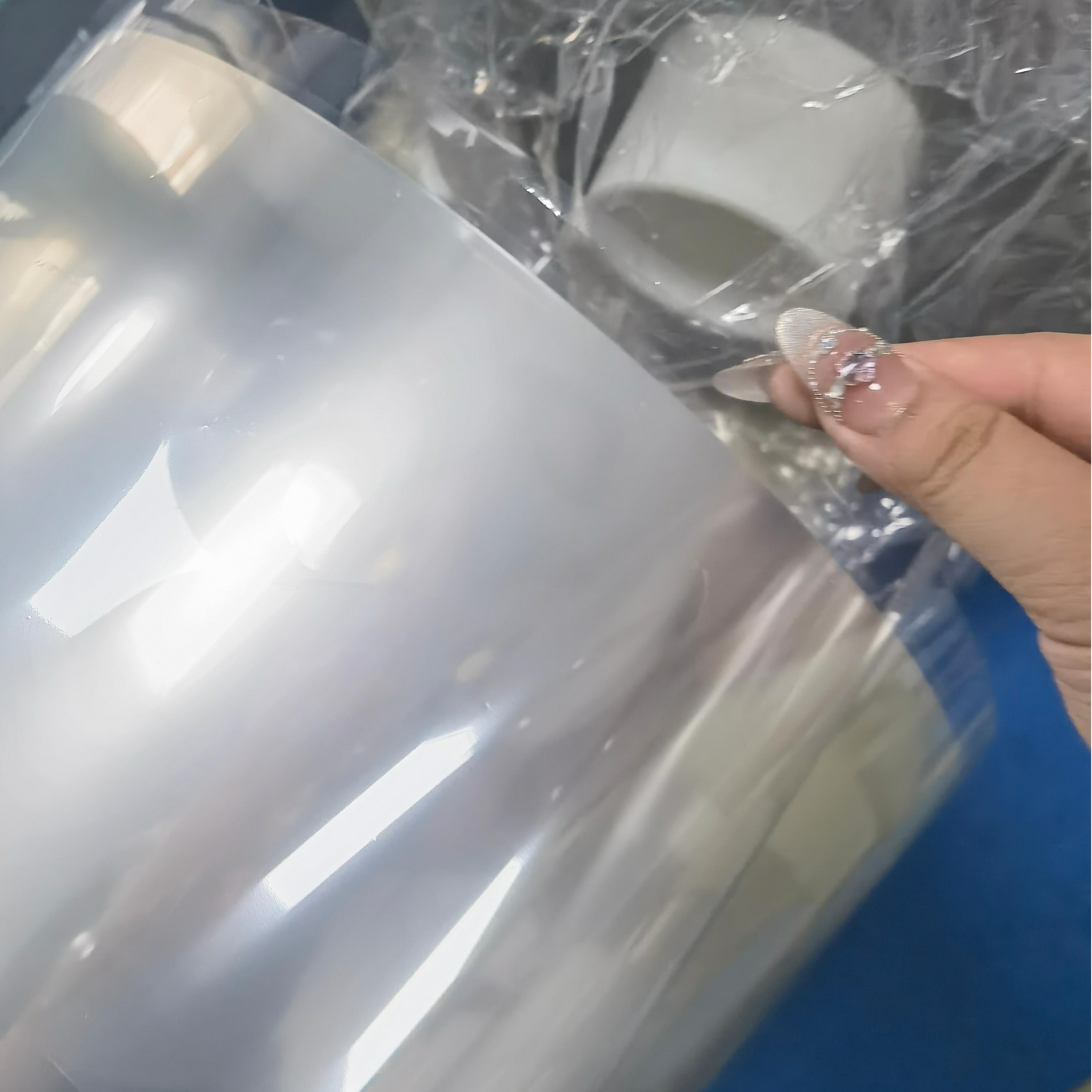

High-Performance Transparent BOPET Film Roll with Two-Way Stretch

Transparent BOPET Film Roll for Packaging, Printing and Lamination

Transparent BOPET film, also known as biaxially oriented polyethylene terephthalate film or biaxially oriented polyester film, is a thin PET film engineered through stretching in both the machine direction (MD) and transverse direction (TD).

This biaxial orientation gives BOPET an important combination of tensile strength, dimensional stability, optical clarity, stiffness, thermal stability and converting performance. These characteristics make transparent BOPET film widely used as a printing web, lamination substrate, packaging layer, label material, electrical insulation film and industrial carrier film.

For professional buyers, however, specifying only “clear BOPET film” is not enough. Film selection should also consider thickness, width, haze, light transmission, gloss, coefficient of friction, thermal shrinkage, MD/TD tensile properties, surface treatment, corona level, printing method, adhesive system, barrier target and final laminate structure.

What Is Transparent BOPET Film?

BOPET stands for Biaxially Oriented Polyethylene Terephthalate. PET polymer is first converted into film and then oriented in two directions during manufacturing.

Machine Direction (MD)

Machine direction is the direction in which the film travels through the production line. Stretching the film in this direction helps orient the PET molecular structure and contributes to tensile and dimensional performance.

Transverse Direction (TD)

Transverse direction runs across the width of the film. Orientation in both MD and TD produces the balanced film structure associated with BOPET.

Does “Two-Way Stretch” Mean a Different Type of BOPET?

No. In technical terminology, BOPET already means the PET film has been biaxially oriented. “Two-way stretch” is a descriptive way of explaining the MD and TD stretching process rather than a separate category of polyester film.

Why Biaxial Orientation Matters in BOPET Film

High Tensile Strength

Biaxial orientation creates a strong polyester film capable of maintaining web integrity during printing, coating, slitting, metallizing, lamination and other roll-to-roll processes.

Good Dimensional Stability

Stable dimensions are particularly important for precision printing, registration, coating, electrical insulation and multilayer lamination. Excessive dimensional change can create wrinkles, registration errors or laminate distortion.

High Optical Clarity

Transparent BOPET can provide high clarity and gloss for applications where the packed product, graphics or underlying substrate must remain visible.

Thermal Stability

Polyester film is valued for its thermal and dimensional stability during printing, drying, lamination and other converting operations. The allowable processing temperature and shrinkage must still be checked against the exact BOPET grade.

Plain, Treated and Functional BOPET Films Are Different

One of the most important sourcing principles is that not every transparent BOPET film has the same surface or functional properties.

Important Technical Properties of Transparent BOPET Film

Thickness

Film thickness affects tensile behavior, stiffness, yield, barrier, cost and converting conditions. Buyers should specify both nominal thickness and acceptable tolerance.

Haze and Light Transmission

High-clarity packaging and display applications should define optical requirements instead of relying only on the word “transparent.” Haze and light transmission should be evaluated on the exact thickness and surface grade.

Gloss

Surface gloss influences appearance after reverse printing, lamination and packaging conversion. High-gloss BOPET is often selected for premium printed structures.

MD and TD Tensile Properties

Tensile strength and elongation should be evaluated in both MD and TD because the film experiences different loads during printing, slitting, laminating and final package use.

Thermal Shrinkage

Thermal shrinkage becomes important when film passes through hot-air dryers, coating ovens, lamination equipment or other elevated-temperature processes. Test temperature and exposure time should be included when comparing shrinkage specifications.

Coefficient of Friction

Coefficient of friction (COF) affects how the film moves over rollers, forming collars, guides and other machine surfaces. Film that is too slippery or too high in friction can create handling problems depending on the converting process.

Surface Tension

Surface tension is particularly important for printing, coating and adhesive lamination. Buyers should define whether treatment is required on one or both sides and confirm the required treatment level before production.

Is Plain Transparent BOPET a High-Barrier Film?

Standard BOPET provides useful gas and aroma barrier together with strong mechanical properties, but buyers should not automatically classify every transparent BOPET film as a high-barrier packaging film.

When a packaged product is highly sensitive to oxygen or moisture, the packaging engineer should define measurable OTR and WVTR targets for the complete laminate.

OTR – Oxygen Transmission Rate

OTR measures oxygen passing through the film or package under defined test conditions. Lower OTR indicates stronger oxygen-barrier performance.

WVTR – Water Vapor Transmission Rate

WVTR measures water-vapor transmission under specified temperature and humidity conditions. Lower WVTR indicates stronger moisture-barrier performance.

High-Barrier Transparent BOPET Options

Projects requiring significantly higher barrier can evaluate specialized coated structures such as AlOx, SiOx, PVDC or other transparent barrier technologies depending on application, processing, recycling strategy and destination-market requirements.

Metallized BOPET

Metallizing BOPET can significantly change optical and barrier performance. Metallized PET is commonly selected when opacity and enhanced barrier are acceptable, while transparent high-barrier projects require different coating technologies.

Is Standard BOPET Film Heat Sealable?

Standard plain BOPET should not automatically be specified as the heat-sealing layer of a flexible package.

In many conventional flexible packaging laminates, BOPET serves as the printing and structural outer web, while PE, CPP or another sealant film provides the sealing surface.

When direct heat sealing of the polyester film is required, buyers should request a specifically designed heat-sealable or peelable BOPET grade and define the sealing substrate, temperature, pressure, dwell time and required seal strength.

Transparent BOPET for Flexible Packaging

BOPET is widely used as an outer printing and structural web in laminated flexible packaging. Its dimensional stability supports printing registration while its stiffness and mechanical performance contribute to the finished pouch or package.

BOPET / PE Laminates

A BOPET/PE laminate can combine the printability and stability of polyester with the sealing functionality of polyethylene. The exact PE structure should be selected according to seal temperature, product contents and packaging equipment.

BOPET / CPP Laminates

BOPET/CPP structures are used in selected packaging systems where polyester provides the outer structural and printed web while CPP contributes sealing and other package-specific properties.

Printed Packaging

Reverse printing can protect graphics inside a laminate. Ink, treatment level, adhesive and curing conditions should be tested together because good film clarity alone does not guarantee printing adhesion.

Transparent BOPET for Printing and Lamination

Corona Treatment

Corona treatment increases surface energy to improve wetting and adhesion for compatible inks, coatings and adhesives. Treatment may be supplied on one side or both sides according to converting requirements.

Chemical Primer or Adhesion-Promoting Coating

Chemically treated polyester films can provide additional adhesion performance for specific ink, coating and adhesive systems.

Dry Lamination

BOPET is widely used in dry-laminated flexible packaging. Adhesive chemistry, coating weight, curing, residual solvent, film treatment and final food or industrial requirements must be evaluated as a complete system.

Extrusion Lamination

Suitable BOPET films can also serve as substrates in extrusion-laminated structures. Surface treatment and bonding performance should be confirmed with the intended resin and process conditions.

Transparent BOPET for Window Packaging and Clear Displays

High-clarity BOPET can be used as a transparent window material in paperboard packaging, gift boxes, food cartons, cosmetic boxes and retail display structures where the customer must see the product through the package.

Buyers should evaluate film thickness, clarity, haze, stiffness, adhesive compatibility, cutting behavior and carton-window converting performance.

BOPET Film for Electrical and Electronic Insulation

Polyester film is widely used in electrical applications because suitable grades provide dimensional stability and useful dielectric performance.

Typical applications can include insulation components for motors, transformers, capacitors, cables and electronic assemblies.

Electrical Grade Must Be Specified

General packaging-grade transparent BOPET should not automatically be treated as an approved electrical-insulation grade. Electrical projects should specify required dielectric strength, thermal class, thickness, applicable standards and long-term operating conditions.

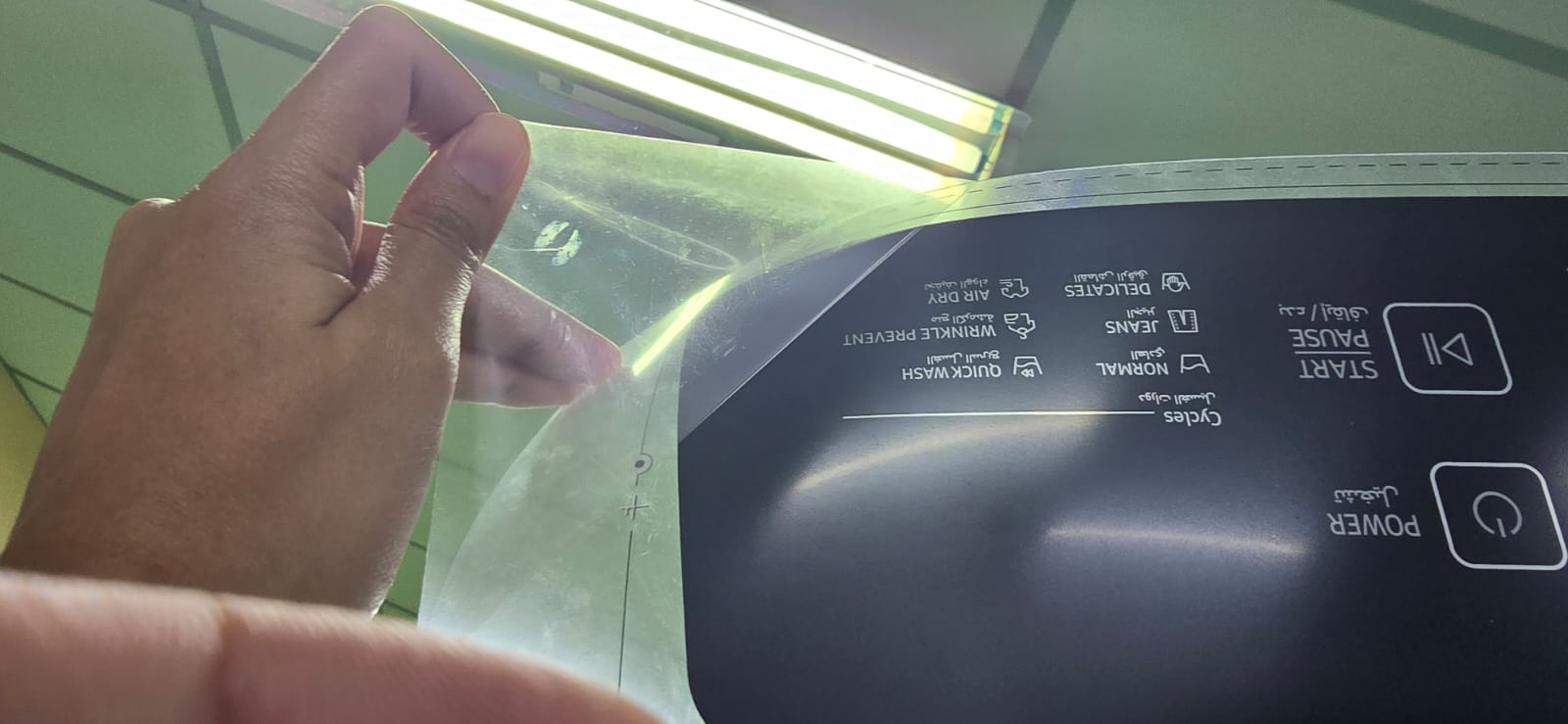

BOPET Film for Release, Protective and Industrial Applications

Release Film

Polyester can serve as a stable carrier for silicone or other release coatings used in adhesive, composite and converting industries. Release force should be specified according to the final adhesive or resin system.

Protective Film Base

BOPET can be used as a dimensionally stable carrier or protective layer in selected industrial products. Scratch resistance and surface hardness depend on the exact grade or coating.

Adhesive Tapes

PET film can serve as a backing for high-performance adhesive tapes when the film thickness, surface treatment, adhesive chemistry and final mechanical properties meet the project requirements.

Transparent BOPET vs. BOPP, CPP and PE Film

There is no universally “best” flexible packaging film. Material selection should be based on the role of each layer in the complete package.

Surface Treatment: One Side or Two Sides?

One-Side Treated BOPET

One-side treatment is useful when only one surface requires printing, adhesive bonding, coating or metallizing.

Two-Side Treated BOPET

Two-side treatment may be preferred when both surfaces must interact with inks, adhesives or functional coatings.

Confirm Which Side Faces the Ink or Adhesive

Roll winding direction and treated-side orientation should be included in the purchase specification so the film enters the customer's printer, coater or laminator in the correct direction.

Food Packaging and Regulatory Requirements

BOPET is commonly used in food-packaging structures, but general-purpose transparent polyester film should not automatically be described as approved for every direct-food-contact application.

Buyers should identify the food type, contact conditions, processing temperature, final laminate structure and destination market, then request the appropriate documentation for the exact film grade.

Is Transparent BOPET Film Recyclable?

BOPET is a PET-based material, but whether a finished product is practically recyclable depends on the complete construction and the available collection and recycling infrastructure.

A printed BOPET/adhesive/PE multilayer pouch, for example, should not be described as recyclable simply because one layer is PET. Inks, coatings, adhesives, metalization, other polymers, layer thickness and local recycling rules all influence the recyclability of the finished package.

UV, Anti-Static and Anti-Fog Properties Require Special Grades

UV-Stabilized BOPET

Standard clear BOPET should not automatically be described as long-term UV-stabilized film. Outdoor, solar-control and optical projects should specify an appropriate UV-stabilized grade together with the expected exposure conditions.

Anti-Static BOPET

Anti-static performance requires a suitable formulation or coating. Electronics and dust-sensitive applications should define the required surface-resistance range rather than assuming standard PET film provides ESD control.

Anti-Fog BOPET

Anti-fog behavior is also a functional surface property and should be specified separately when condensation control is important.

Quality Control for BOPET Film Rolls

High-quality BOPET film should be evaluated for both material properties and roll-converting quality.

• Thickness profile: check nominal gauge and cross-web uniformity.

• Width: verify slit-width tolerance.

• Haze and clarity: important for transparent packaging and optical uses.

• Gloss: confirm surface appearance where relevant.

• MD/TD tensile properties: check against the approved specification.

• MD/TD thermal shrinkage: evaluate at the specified test conditions.

• COF: confirm machine-handling characteristics.

• Surface tension: verify treated-side performance before printing or lamination.

• Surface defects: inspect gels, scratches, contamination and optical marks.

• Roll edges: check telescoping, edge damage and winding alignment.

• Winding tension: confirm the roll is free from excessive wrinkles or blocking.

• Splices: define permitted quantity and identification method.

How to Choose the Right Transparent BOPET Film Roll

1. Define the Final Application

State whether the film will be used for flexible packaging, printing, lamination, labels, carton windows, electrical insulation, release film, metallizing or another industrial process.

2. Specify Film Thickness

Thickness influences stiffness, yield, strength, handling and conversion economics. Specify nominal gauge and tolerance whenever available.

3. Define Optical Requirements

For high-clarity applications, provide acceptable haze, light transmission and gloss requirements.

4. Confirm Surface Treatment

Specify untreated, corona-treated or chemically treated film and state whether treatment is required on one or both sides.

5. Provide the Printing Process

Identify gravure, flexographic, screen, UV or another printing system together with the ink supplier or ink family when possible.

6. Define the Lamination Structure

Provide the complete laminate, for example BOPET/PE, BOPET/CPP or another structure, together with adhesive and curing conditions.

7. Define Barrier Requirements

If barrier is critical, provide target OTR and WVTR with the required temperature, humidity and test method.

8. Specify Roll Configuration

Provide roll width, core diameter, maximum outside diameter, roll length or weight, winding direction and treated-side orientation.

9. Confirm Special Functional Requirements

Clearly identify heat-seal, anti-static, anti-fog, UV, release, metallizing, low-COF, high-COF or other functional requirements.

10. Run a Production Trial

Evaluate the film on the actual printer, laminator, coater, slitter or packaging line before confirming commercial production.

What Information Should Buyers Include in a BOPET Film RFQ?

• Application: packaging, printing, lamination, label, insulation, release, metallizing or other use.

• Thickness: nominal micron value and tolerance.

• Roll width: required slit width.

• Core: required core internal diameter.

• Roll OD: maximum acceptable outside diameter.

• Roll length or weight: according to machine requirements.

• Optical properties: haze, transmittance and gloss where relevant.

• Surface treatment: untreated, corona or chemical treatment.

• Treated sides: one side or two sides.

• Surface tension: required treatment level.

• COF: required machine-handling range if critical.

• Thermal shrinkage: MD/TD requirement and test conditions.

• Printing: printing process and ink type.

• Lamination: adhesive and complete laminate structure.

• Barrier: target OTR and WVTR if required.

• Special function: heat seal, UV, anti-static, anti-fog, metallizing or release coating.

• Compliance: food-contact, electrical, industrial or destination-market documentation.

• Quantity: sample, trial and projected commercial volume.

Why Work With Wallis for Transparent BOPET Film?

B2B Film Supply for Converters

Wallis supplies transparent BOPET film for packaging manufacturers, printers, laminators, label converters, industrial film processors and other commercial users.

Application-Based Film Selection

Film should be selected around the customer's final printing, lamination, metallizing, electrical or packaging process instead of treating every transparent BOPET grade as interchangeable.

Custom Roll Requirements

Buyers can provide required thickness, roll width, core, winding and other converting parameters for project evaluation.

Surface Treatment Options

Corona treatment, printing adhesion, lamination and other surface requirements can be discussed according to the intended production process.

Sample Testing Before Bulk Production

Sample qualification allows buyers to confirm handling, printing, lamination, optical quality and roll performance before approving commercial quantities.

Frequently Asked Questions About Transparent BOPET Film

What does BOPET stand for?

BOPET stands for biaxially oriented polyethylene terephthalate. It is PET polyester film stretched in both machine and transverse directions.

Is BOPET the same as PET film?

BOPET is a specific type of PET film produced through biaxial orientation. Not every PET sheet or film is biaxially oriented.

What does two-way stretch BOPET mean?

It means the PET film has been oriented in the machine direction and transverse direction. This is the defining biaxial-orientation process used to make BOPET.

What is transparent BOPET film used for?

Typical uses include flexible packaging, printing, lamination, carton windows, labels, electrical insulation, release films, metallizing, tapes and industrial carrier applications.

Is BOPET suitable for flexible packaging?

Yes. BOPET is widely used as a structural and printable outer layer in flexible packaging laminates. The complete packaging structure must still be designed according to sealing, barrier and shelf-life requirements.

Is transparent BOPET a high-barrier film?

Standard transparent BOPET offers useful gas and aroma barrier but should not automatically be classified as a high-barrier film. High-barrier applications may require specialized coatings, metallization or deposited barrier layers.

Is plain BOPET heat sealable?

Standard plain BOPET is not necessarily a heat-sealing film. Direct sealing applications should use a specifically designed heat-sealable grade or combine BOPET with a compatible sealant layer such as PE or CPP.

Can BOPET film be corona treated?

Yes. Corona treatment can increase surface energy for printing, coating and adhesive bonding. Buyers should specify treatment side and required surface-tension level.

Can BOPET film be printed?

Yes. Suitable treated BOPET is used for gravure, flexographic and other printing systems. The film treatment, ink system and subsequent lamination process should be tested together.

Can BOPET be dry laminated?

Yes. BOPET is commonly used in dry lamination. Adhesive selection, surface treatment, curing and the second web should be qualified as a complete structure.

Can BOPET be metallized?

Suitable metallizable BOPET grades can receive a deposited metal layer to modify barrier, appearance and optical properties.

What is the difference between BOPET and BOPP?

BOPET is polyester-based and is often selected for strength, stiffness, dimensional stability and thermal performance. BOPP is polypropylene-based and can provide advantages such as lower density and strong moisture-barrier performance. Final selection depends on the package structure.

What does COF mean in BOPET film?

COF means coefficient of friction. It influences how the film slides across itself and machine components during high-speed processing.

Why is thermal shrinkage important?

Excessive shrinkage during hot processing can create registration errors, wrinkles and dimensional changes. Shrinkage should therefore be evaluated under conditions relevant to the customer's process.

Can BOPET be used for food packaging?

BOPET is widely used in food-packaging structures, but buyers should confirm the regulatory documentation for the exact film grade, coatings, inks, adhesive structure and intended market.

Is BOPET recyclable?

BOPET is PET-based, but practical recyclability depends on the complete finished structure and local recycling infrastructure. Multimaterial laminates should not automatically be described as recyclable.

Is standard BOPET UV resistant?

Long-term UV performance is grade specific. UV-sensitive outdoor or optical projects should request a dedicated UV-stabilized polyester film.

Is standard BOPET anti-static?

Not necessarily. Anti-static or ESD applications require a suitable functional grade or coating and a defined electrical-resistance specification.

What information is needed to quote a BOPET film roll?

Provide application, thickness, width, core, roll OD, treatment, optical requirements, COF, shrinkage, printing or lamination process, barrier target, special functions, quantity and destination.

Should I test BOPET samples before bulk production?

Yes. Production trials can confirm printing adhesion, lamination bonding, web handling, COF, optical quality, shrinkage and roll performance under the buyer's actual processing conditions.

Choose BOPET Film by Function, Not by Transparency Alone

Transparent BOPET is a high-performance polyester substrate because biaxial orientation provides an effective balance of strength, dimensional stability, clarity and converting performance.

But professional film selection should go beyond the phrase “two-way stretch BOPET.” Buyers should define whether the project requires plain, corona-treated, chemically treated, heat-sealable, metallizable, high-barrier, UV-stabilized, anti-static or another specialty BOPET grade.

Send Wallis your thickness, width, roll configuration, surface treatment, printing or lamination process, target optical properties and end-use requirements to discuss an appropriate transparent BOPET film solution.
