23mm Slim LED Snap Frame Light Box for Window & Retail Poster Displays

Wallis 23mm LED snap frame light box is a slim edge-lit advertising display designed for retail windows, shopping malls, restaurants, exhibitions, airports, commercial interiors and promotional poster displays. The WLS-AF2 series combines an aluminum snap-open frame, PMMA acrylic light guide panel and LED edge lighting to create an illuminated poster display with quick front access for graphic replacement.

Standard poster formats include A4, A3, A2, A1, A0, B2 and B1, while customized dimensions can be developed for OEM and project orders. Current configurations include DC12V / DC24V lighting, silver or black aluminum frames, customized frame colors, white or customized light colors, and single-sided or double-sided display options.

The four-side snap-open structure allows posters and promotional graphics to be changed from the front without dismantling the complete light box. This makes the product particularly suitable for retailers, restaurants, property managers and advertising companies that update campaigns frequently.

For professional B2B projects, buyers should distinguish between poster size, visible view size and outer frame size. Lighting projects should also confirm LED color temperature, power consumption, brightness or lux requirement, power-supply specification, graphic media, installation orientation and indoor or outdoor environment before mass production.

23mm LED Snap Frame Light Box Specifications

Specification clarification: the product family is described as a 23mm slim light box, while the detailed AF2 dimensional table below lists an assembled thickness of 23.5mm. For projects with recessed mounting, narrow window spaces or strict cabinet-depth limits, confirm the final assembled depth before production.

The current FAQ also describes pure white around 6500K as a commonly used configuration, while the main specification table states White / Customized. Buyers requiring a controlled CCT should therefore specify the exact Kelvin value on the purchase specification.

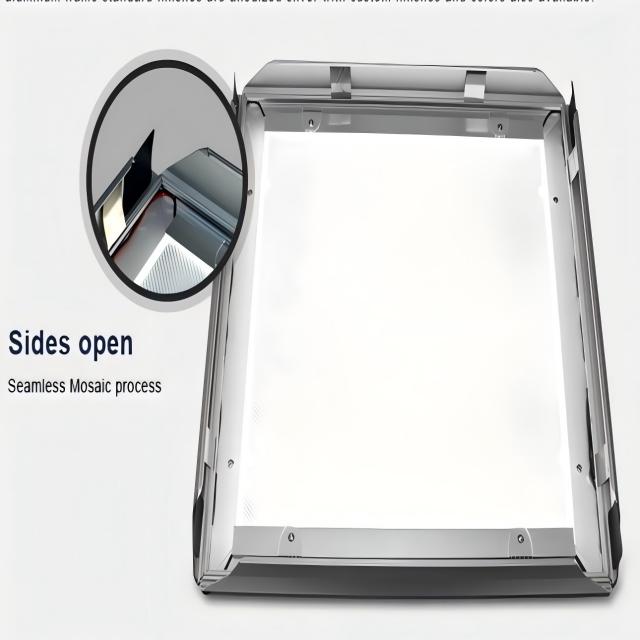

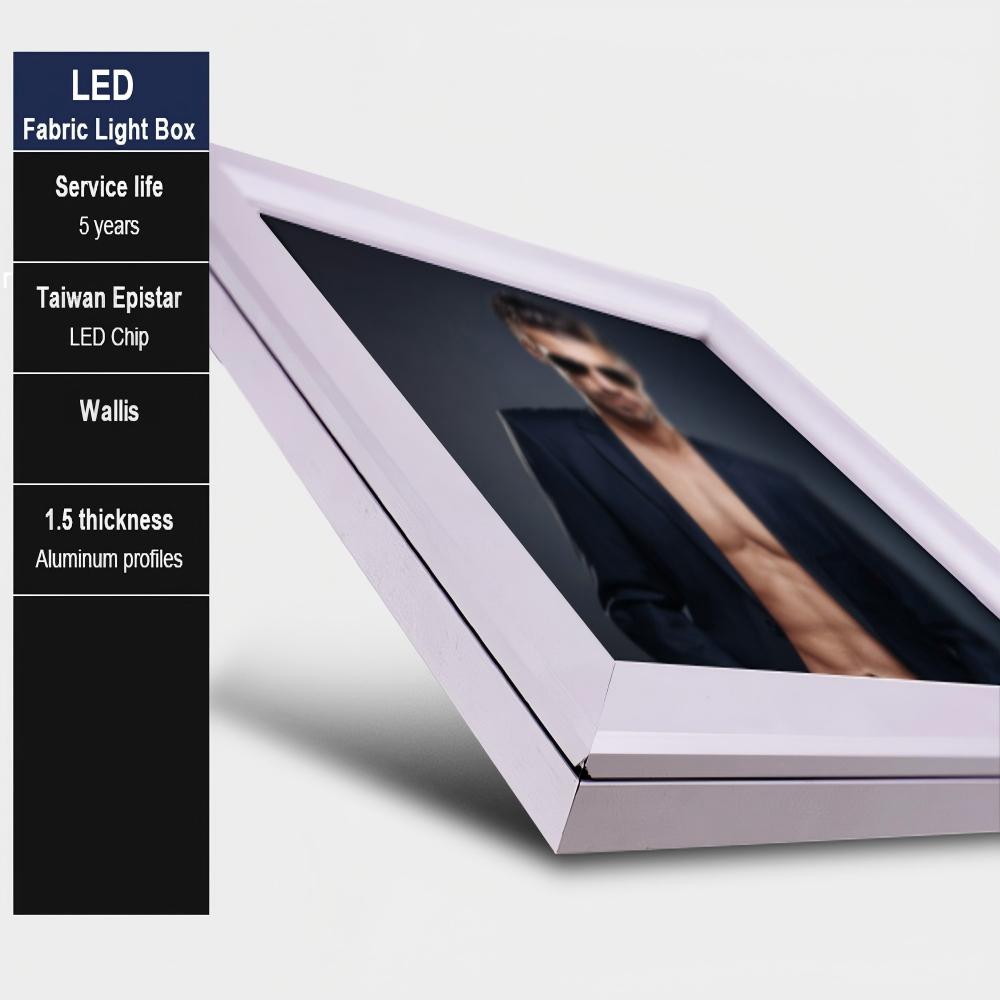

Four-Side Snap-Open Frame

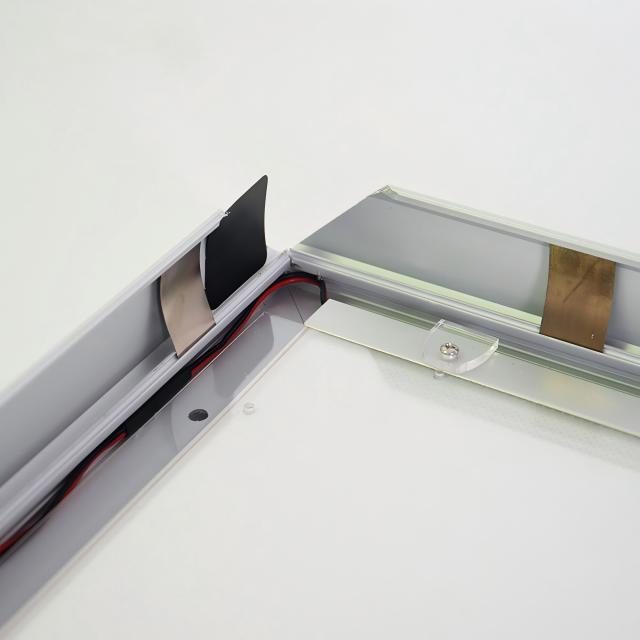

Spring Snap Mechanism

Rear Mounting Brackets

Core AF2 Light Box Configuration

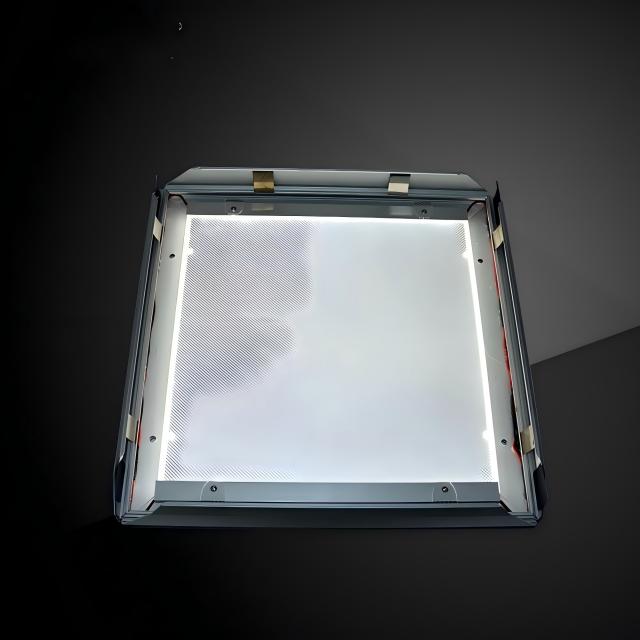

How the Edge-Lit PMMA Light Guide Panel Works

The AF2 light box uses LED edge lighting together with a PMMA acrylic light guide panel. Instead of placing a full array of LEDs directly behind the graphic, LEDs introduce light from the edge of the acrylic panel and the LGP redistributes that light across the poster area.

PMMA Light Guide Panel

The light guide panel controls the distribution of LED light across the graphic surface. LGP optical design, engraving or dot pattern, acrylic quality, LED spacing and reflective materials all affect final brightness and uniformity.

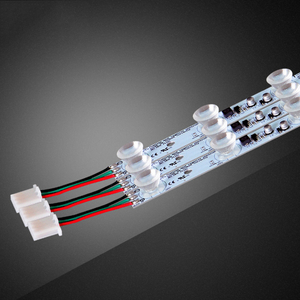

LED Edge Lighting

Edge-mounted LEDs help keep the complete light box slim. The exact LED arrangement can vary with poster dimensions, brightness requirements and whether illumination is required on one or two display faces.

Reflective Back Layer

A reflective backing system helps redirect light toward the poster surface instead of allowing useful illumination to escape through the rear of a single-sided unit.

Graphic and Front Protection

The poster sits within the front-loading frame system. Buyers should confirm the recommended graphic media, maximum insert thickness and whether a clear protective overlay or anti-glare cover is included or required for the specific order.

Quick-Change Four-Side Snap Frame System

Front-Loading Poster Replacement

The aluminum rails snap open from the front so the existing poster can be removed and a new graphic inserted without removing a wall-mounted light box from its installation position.

Designed for Frequently Updated Campaigns

Retail promotions, restaurant menus, property advertising, event information and seasonal campaigns often require regular graphic replacement. Front access reduces the number of installation steps required for each poster change.

Graphic Overlap Must Be Considered

The aluminum snap profile overlaps the outer edge of the poster. Important text, QR codes, prices and logos should therefore stay within the confirmed visible view area rather than being positioned directly against the poster edge.

Standard AF2 Poster Size, View Size & Frame Size

Poster size, visible view size and outer frame size are different measurements. Use poster size when preparing the printed graphic, view size when positioning visible design elements, and frame size when confirming available wall or window installation space.

Besides these standard AF2 formats, Wallis supports customized poster dimensions and outer frame sizes. For custom projects, provide the required graphic size, visible opening, portrait or landscape orientation, mounting environment and available installation space.

Preparing Artwork for an LED Snap Frame Light Box

Use Poster Size for the Printed Graphic

The poster should be produced to the approved poster dimensions rather than the outer frame dimensions.

Keep Important Content Inside the View Size

The frame covers part of the poster perimeter. Keep logos, QR codes, prices, headlines and other important information within the visible opening to prevent the snap profile from covering the artwork.

Use Backlit Graphic Media

Illuminated displays normally perform best with graphic media engineered for transmitted light. Buyers should confirm the recommended backlit film, paper or printed insert according to the required brightness, color saturation and viewing distance.

Test White Areas and Dark Colors

Dark artwork, heavy ink coverage and low-transmission media can reduce visible brightness. Approve a printed graphic in the actual illuminated light box when color-critical branding is required.

Single-Sided vs Double-Sided LED Poster Light Boxes

Single-Sided Wall-Mounted Display

A single-sided version is suitable when advertising is viewed from one direction, such as wall-mounted retail posters, menu displays, property advertisements and internal directional signage.

Double-Sided Window Display

The current Wallis product information lists double-sided display as an available configuration. This can be useful where a window advertisement needs to be viewed from both inside and outside. Exact suspension, mounting hardware, power cable arrangement, depth and two-face lighting construction should be confirmed for the custom order.

Confirm Graphic Orientation

Both portrait and landscape layouts can be considered according to project dimensions and mounting design. Confirm orientation before brackets, cable exits and custom frame dimensions are finalized.

LED Brightness, CCT & Uniformity: What B2B Buyers Should Confirm

Brightness or Lux

The existing Wallis page describes the AF2 as bright and uniform but does not publish a measured lux figure. Projects with minimum brightness requirements should specify the test distance and measurement method and request data for the exact poster size.

Color Temperature

White is the current standard color category, while the existing FAQ describes approximately 6500K pure white as a common configuration. Warm white, neutral white or other LED colors should be specified numerically where color temperature matters.

Power Consumption

Power consumption changes with poster size, number of LED edges and single- or double-sided construction. Buyers should request wattage for the exact A4, A3, A2, A1, A0, B2, B1 or custom size rather than assuming one fixed value for the entire series.

Lighting Uniformity

Inspect the illuminated poster for edge hotspots, dark centers, corner differences, LED point visibility and color variation. Larger light boxes can require different optical layouts than smaller formats.

Power Supply

The AF2 lighting system uses DC12V / DC24V. Confirm the supplied AC/DC power adapter, input voltage, plug type, cable length and applicable safety requirements for the destination market.

Applications of the 23mm LED Snap Frame Light Box

Retail Store Window Advertising

Fashion stores, supermarkets, convenience stores and branded retail locations can use illuminated snap frames for seasonal promotions, product launches, price campaigns and storefront advertising.

Shopping Mall Advertising

Slim poster light boxes can be installed in commercial corridors, tenant areas, information points and promotional zones for product advertising, wayfinding and marketing campaigns.

Restaurants & Menu Displays

Restaurants, cafés and food-service operators can update printed menus and promotional graphics without replacing the complete display fixture.

Exhibitions & Trade Shows

LED snap frames can support booth advertising, company introductions, new-product displays and temporary campaign graphics where easy poster changes are valuable.

Airports, Hotels & Commercial Buildings

Indoor illuminated poster frames can be used for promotions, public information, directional graphics and branded communication in high-traffic commercial environments.

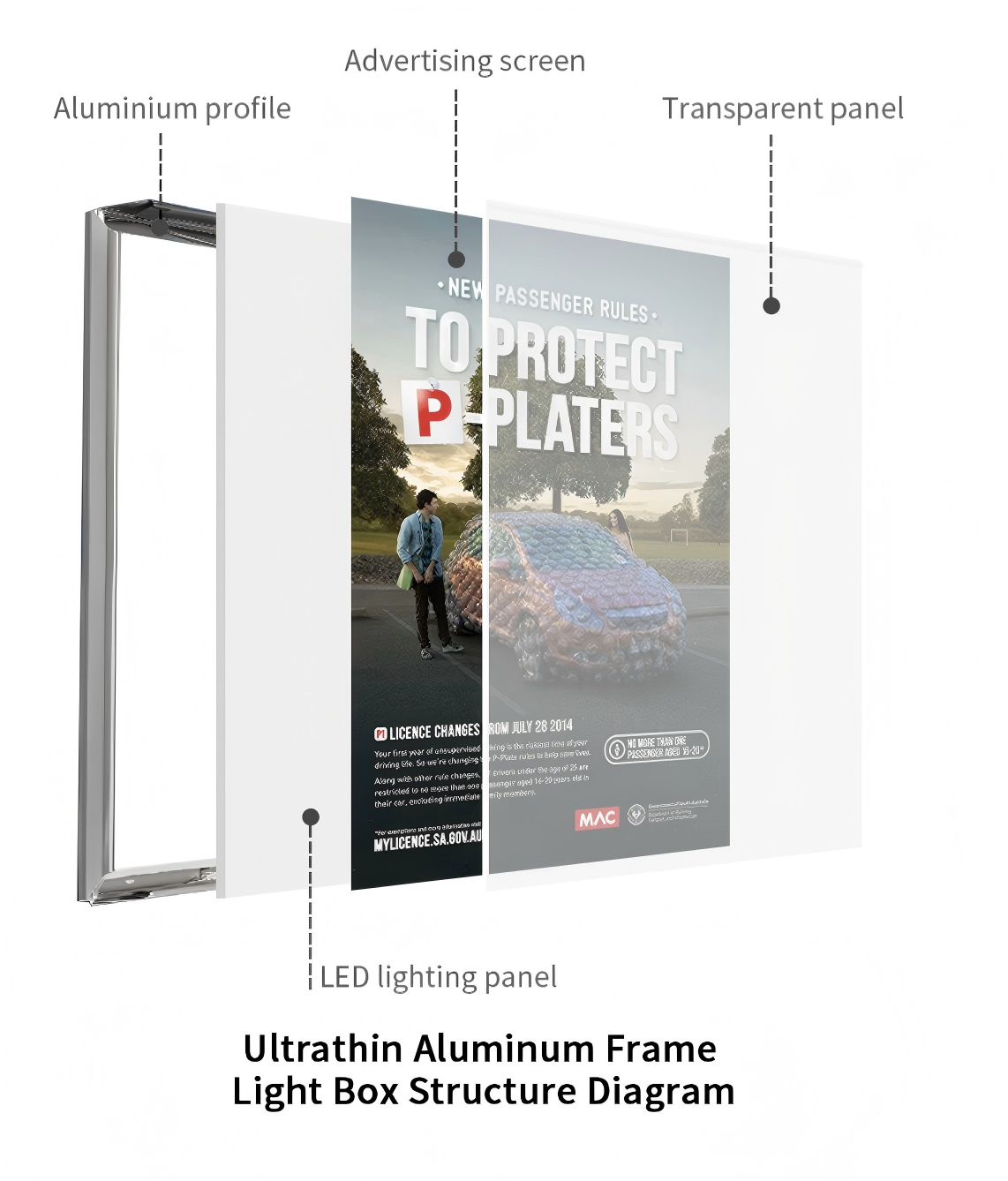

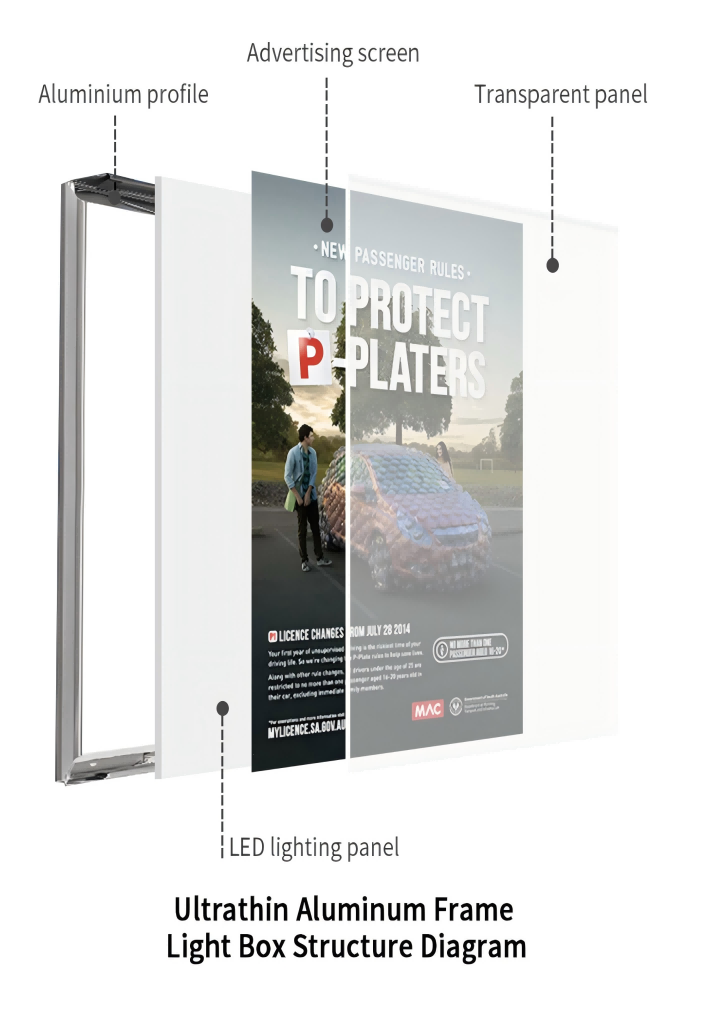

LED Light Box Panel Structure

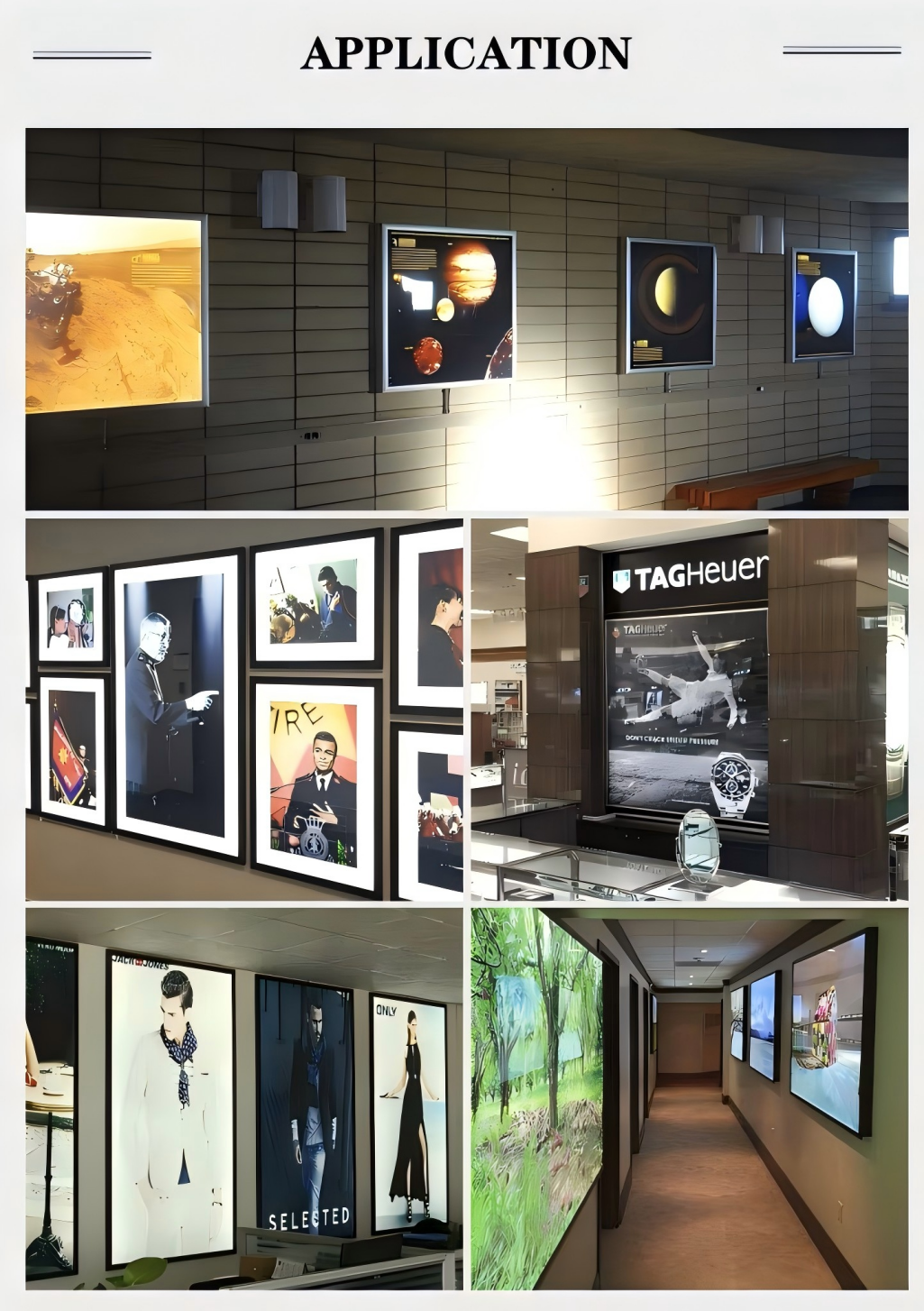

Commercial Display Applications

Indoor vs Outdoor LED Snap Frame Light Boxes

AF2 Is Primarily an Indoor Commercial Display

The current Wallis FAQ identifies this model primarily for indoor use. It is suitable for internal retail windows, shopping malls, restaurants, exhibitions and other protected commercial environments.

Window Display Does Not Automatically Mean Outdoor Rated

A light box installed inside a storefront window can face outdoor viewers without being exposed directly to rain. This is different from mounting the complete electrical display outdoors.

Outdoor Projects Need a Dedicated Construction

Exterior installations should specify water ingress protection, drainage, UV exposure, wind load, corrosion, outdoor-rated power supply, cable sealing and front-panel materials. The standard AF2 should not be described as waterproof unless the exact customized construction has been tested accordingly.

LED Snap Frame Light Box vs Non-Illuminated Poster Frame

OEM & Custom LED Snap Frame Light Box Service

Custom Poster & Frame Dimensions

In addition to A4–A0, B2 and B1, Wallis can review customized frame dimensions, visible openings and poster sizes for retail chains and commercial display projects.

Custom Aluminum Frame Finish

Silver and black are currently listed. Other frame colors or finishes can be discussed according to brand requirements and production feasibility.

Custom LED Color

White lighting is standard in the current specification, while other light colors or CCT requirements can be discussed before production.

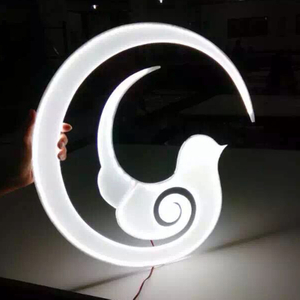

Custom Acrylic LGP Processing

Wallis states that acrylic and LGP components can be cut, drilled and processed according to custom drawings and dimensional requirements.

Single-Sided or Double-Sided Display

Select the display configuration according to viewing direction, installation environment and power-cable arrangement.

OEM Logo & Packaging

Customized branding, labels and export packaging can be reviewed for distributors, advertising companies and commercial project buyers.

Quality Control for LED Poster Light Boxes

Frame Dimension & Squareness

Check outer dimensions, poster opening, visible area, corner alignment and overall frame squareness against the approved drawing.

Snap Mechanism

Open and close each frame rail to confirm consistent spring action, graphic retention and easy front access.

Illumination Uniformity

Inspect the illuminated surface for dark areas, hotspots, edge brightness variation, corner shadows and LED point visibility.

LED Color Consistency

Large multi-unit projects should compare multiple light boxes side by side so visible differences in white color or brightness can be identified before shipment.

Electrical Test

Confirm DC12V / DC24V operation, LED function, connector condition and the correct power supply for the ordered size.

LGP & Acrylic Surface Inspection

Inspect the PMMA components for scratches, contamination, chips, edge damage and other visible defects that could influence optical appearance.

Mounting Hardware & Accessories

Verify brackets, cables, adapters and other ordered accessories against the packing list before export.

Why Choose Wallis for Custom LED Snap Frame Light Boxes?

Complete Aluminum Frame + LGP + LED Solution

Wallis combines the aluminum frame, PMMA acrylic light guide panel and LED lighting system into a complete advertising display product rather than supplying only one component.

Standard A/B Sizes Plus Custom Dimensions

Standard A4–A0 and B-series formats simplify routine commercial orders, while custom dimensions support project-specific installations.

Quick-Change Graphic Design

The four-side snap frame supports repeated campaign updates without requiring tools for normal front-loading poster replacement.

OEM / ODM Support

Custom dimensions, frame colors, lighting specifications, single- or double-sided structures, branding and packaging can be reviewed for wholesale and project customers.

FAQ About 23mm LED Snap Frame Light Boxes

What is an LED snap frame light box?

An LED snap frame light box is an illuminated poster display with front-opening aluminum frame rails. The Wallis AF2 uses LED edge lighting and a PMMA light guide panel to illuminate replaceable printed graphics.

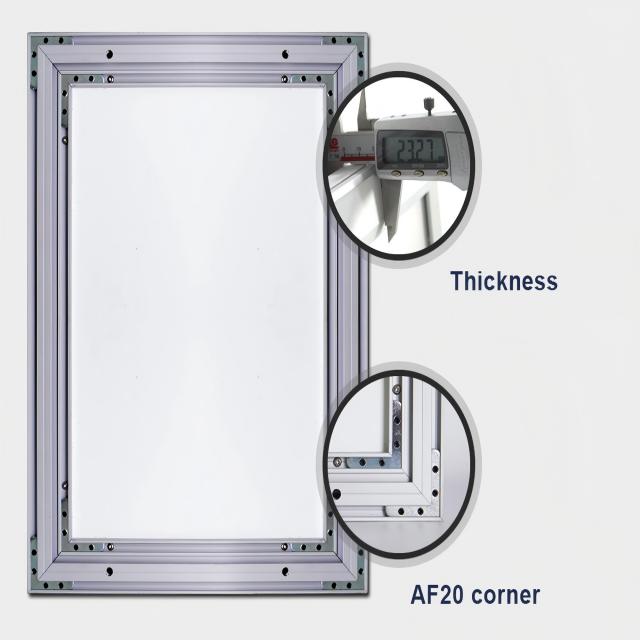

Is the Wallis AF2 light box 23mm or 23.5mm thick?

The product is marketed as a 23mm slim LED light box, while the current detailed AF2 size table lists 23.5mm. Buyers with strict installation-depth requirements should confirm the final assembled measurement for the ordered size.

What poster sizes are available?

Current standard formats include A4, A3, A2, A1, A0, B2 and B1. Customized poster and frame dimensions are also available subject to project confirmation.

What is the difference between poster size and view size?

Poster size is the complete printed graphic inserted into the frame. View size is the area that remains visible after the aluminum snap rails overlap the poster edges.

Why is the frame size larger than the poster size?

The outer frame includes the aluminum profile and surrounding structure, so its overall dimensions are larger than the inserted poster.

Can posters be changed without tools?

The four-side front-opening snap frame is designed for quick graphic access and normal poster replacement without dismantling the light box from the wall.

Does Wallis offer single-sided and double-sided light boxes?

Yes. The current product information lists both single-sided and double-sided display configurations. Exact dimensions, mounting and lighting construction should be confirmed for the selected version.

Can the light box be installed in a shop window?

Yes, window display is listed as an installation application. If the unit is mounted inside a storefront window, confirm the required viewing direction, suspension or wall mounting method and power-cable route.

Can the AF2 LED light box be used outdoors?

The standard model is primarily intended for indoor environments. Outdoor use requires a dedicated structure designed for rain, UV exposure, corrosion, electrical protection and the actual installation conditions.

Is the standard light box waterproof?

The current source does not publish a waterproof IP rating for the standard AF2. Do not specify it as waterproof unless the customized version has an appropriate tested construction.

What voltage does the LED light box use?

The AF2 specification lists DC12V / DC24V. Confirm the AC/DC power supply, plug and input-voltage requirement for the destination market.

What LED color temperature is available?

The main specification lists white or customized light color. The current FAQ describes approximately 6500K pure white as a commonly used configuration. Specify the exact CCT if a controlled white color is required.

How bright is the LED snap frame?

The existing page does not publish a measured lux value. Brightness depends on poster size, LED configuration, LGP design and graphic media. Request project-specific brightness data where a minimum lux level is required.

What is the power consumption?

The current page does not publish wattage for each AF2 size. Since larger light boxes typically require a different LED arrangement from smaller units, request the actual wattage for the ordered poster size.

Does the light box have visible LED dots?

The PMMA LGP is designed to distribute edge light across the graphic. Final uniformity depends on LED spacing, LGP optical pattern, poster size and viewing conditions. Approve a sample when illumination uniformity is critical.

Can the light guide panel be laser cut or CNC processed?

Yes. Current Wallis information states that LGP and acrylic components can be cut, drilled and processed according to drawings and customized dimensions.

Can I customize the aluminum frame color?

Yes. Silver and black are currently listed, and customized frame colors can be discussed for OEM or project orders.

Can Wallis make custom sizes?

Yes. Custom poster size, outer frame dimensions, visible area, installation structure and other project requirements can be reviewed.

How long does an LED snap frame light box last?

The existing Wallis FAQ states that the panel can maintain strong optical performance for more than five years under normal indoor conditions. Actual service life depends on LED quality, driver or power-supply quality, operating hours, ambient temperature and maintenance.

Is an LED snap frame the same as an OLED display?

No. An OLED display is a self-emissive electronic display technology. The AF2 is a static printed-poster display illuminated by LEDs and an acrylic light guide panel.

What graphic material should I use?

Use a graphic material compatible with illuminated poster displays. Backlit film or another suitable translucent print medium is typically evaluated according to required brightness and print quality. Confirm the recommended insert specification before bulk printing.

Can the light box be installed in portrait or landscape orientation?

Orientation can be reviewed according to the selected poster size and installation structure. Confirm bracket position, cable exit and graphic orientation when placing the order.

What information should I provide for a quotation?

Provide poster size, quantity, single- or double-sided requirement, wall or window installation, frame color, light CCT, voltage, required brightness if specified, custom dimensions, logo or packaging requirements and delivery destination.
