Automatic Servo Packaging Machine: Speed & Buying Guide

Automatic Servo High-Speed Packaging Machine: How It Works and How to Choose

An automatic vertical up-and-down servo packaging machine is designed to automate film sealing and packaging for discrete products moving through an industrial production line. Servo-controlled sealing movement, optical product detection, touchscreen operation and adjustable machine settings help manufacturers improve packaging consistency while reducing repetitive manual sealing work.

Wallis WLS-AC81 is an automatic servo packaging machine with a rated packaging speed of approximately 30–40 pieces per minute. Its principal features include a servo-driven vertical up-and-down sealing mechanism, optical product detection, high-temperature anti-sticking sealing knives, touchscreen control, electric height adjustment and protective guarding.

This type of machine is most appropriately evaluated for individual products, packaged components, plastic products, electronics, cosmetics, healthcare items and general consumer goods that need automated film wrapping, sealing and cutting. It should not automatically be treated as a vertical form-fill-seal machine for loose powders, granules or liquids unless the complete production line includes the required dosing and filling equipment.

For B2B buyers, machine selection should therefore start with the actual product dimensions, packaging film, required output, sealing method, installation layout and upstream/downstream equipment rather than speed alone.

What Is an Automatic Vertical Up-and-Down Servo Packaging Machine?

The term describes an automatic packaging system in which a servo motor controls the vertical movement of the sealing mechanism. Products are detected and transferred through the packaging area, after which the sealing assembly performs the programmed sealing and cutting cycle.

Compared with manual or basic mechanically driven sealing equipment, servo control allows the sealing motion to be positioned and repeated electronically. This makes it easier to coordinate the sealing cycle with product movement at higher production speeds.

What Does “Vertical Up-and-Down” Mean?

In the WLS-AC81 specification, “vertical up-and-down” refers primarily to the motion of the servo-driven sealing mechanism. It should not be interpreted to mean that the packaging film itself is simply moving vertically up and down.

Is It the Same as a VFFS Machine?

No. A conventional vertical form-fill-seal or VFFS machine forms a bag from rollstock film, doses product into the bag and then seals the package. Powders, granules and other loose products normally require a compatible weighing or dosing system.

The Wallis WLS-AC81 is specified as an automatic servo packaging and sealing machine for individual products. Buyers requiring powder filling, liquid filling or granular dosing should identify those functions separately during system design.

Wallis WLS-AC81 Automatic Servo Packaging Machine Specifications

How the Automatic Servo Packaging Process Works

1. Product Infeed

Individual products enter the packaging machine through the production line or infeed section. Stable product spacing is important because the sealing cycle must be synchronized with product movement.

2. Optical Product Detection

The optical detection system identifies product position and provides the control system with the timing information required for the packaging cycle.

3. Film Positioning

Packaging film must remain correctly aligned around the product and through the sealing section. Film specification, tension and tracking can directly affect seal quality and package appearance.

4. Servo-Controlled Sealing Movement

The servo system controls the vertical up-and-down motion of the sealing assembly so the sealing knife reaches the film at the programmed point in the production cycle.

5. Heat Sealing and Cutting

High-temperature sealing knives form the required film seal and perform the cutting operation according to the machine configuration. The Teflon-coated knife surface helps reduce sticking between hot sealing components and suitable packaging films.

6. Finished Package Discharge

The sealed product exits the machine and can move to inspection, coding, shrinking, cartoning, case packing or another downstream operation depending on the complete packaging-line design.

Why Servo Control Matters in High-Speed Packaging

Servo control is particularly useful when a sealing motion must repeatedly synchronize with products moving through an automated line.

Repeatable Positioning

Electronic motion control helps the sealing assembly repeat a programmed movement profile from cycle to cycle.

Faster Response

Servo drives can respond quickly to control commands, which is important when sealing cycles must remain synchronized with product movement at production speed.

Controlled Motion Profile

Acceleration, travel and return motion can be managed more precisely than with a simple fixed mechanical cycle, depending on the machine-control design.

Better Format Adaptability

Electronic control can make machine adjustment easier when products of different dimensions are introduced, although physical machine limits still apply.

Optical Product Detection and Sealing Accuracy

Product detection is one of the most important control functions in an automatic sealing machine. The machine needs to know when a product has reached the correct position before initiating the sealing cycle.

Detecting Product Position

Optical sensors monitor product presence and location on the conveyor or packaging path.

Preventing Incorrect Seal Timing

Correct detection reduces the risk of the sealing assembly operating at the wrong point relative to the product.

Product Surface Can Affect Detection

Highly reflective, transparent, very dark or unusually shaped products can behave differently with optical sensors. Representative production samples should therefore be tested before commercial operation.

Teflon-Coated High-Temperature Sealing Knives

The WLS-AC81 uses high-temperature anti-sticking sealing knives with a Teflon-coated surface.

Reduced Film Sticking

An anti-stick surface helps reduce adhesion of compatible packaging film to the heated sealing component during repeated cycles.

Cleaner Seal Appearance

Stable temperature, appropriate pressure and clean sealing surfaces contribute to more consistent package edges.

Knife Condition Still Requires Inspection

Anti-stick coating does not eliminate maintenance. Operators should inspect the sealing surfaces for contamination, wear, coating damage and cutting performance as part of preventive maintenance.

What Does 30–40 Pieces per Minute Mean in Real Production?

Wallis specifies approximately 30–40 pieces per minute for the WLS-AC81, but actual production speed can vary according to product size, spacing, packaging material and operating conditions.

Product Length and Height

Larger products generally require more conveyor space and can affect the timing available between sealing cycles.

Product Spacing

Irregular product spacing can reduce stable line speed because the machine must respond to the actual product flow.

Packaging Film

Film thickness, sealability, heat response, friction and tension behavior can influence how fast a stable seal can be produced.

Sealing Temperature and Dwell

A packaging film that requires a wider sealing window may allow different operating conditions from a film that needs longer heating or cooling time.

Upstream and Downstream Equipment

The practical output of the complete line can only be as stable as the product feeding, inspection, shrinking, conveying, coding or packing operations connected to the machine.

Understanding the WLS-AC81 Packaging Size Range

The listed packaging range is L + H ≤ 500 mm and W + H ≤ 400 mm. This means buyers should not evaluate product length, width and height independently.

The combined dimensions must remain within the machine's specified working envelope. Before purchasing, provide the maximum and minimum dimensions of every SKU expected to run on the machine.

Minimum Product Size

The smallest required product should also be tested because sensor detection, conveyor transfer and film handling can behave differently with very small or thin products.

Maximum Product Size

Do not size a machine using only the most common SKU. The largest product expected during the machine's service life should be included in the selection process.

Product Orientation

The way a rectangular product enters the machine can change the effective length, width and height used for packaging calculations.

Packaging Film Selection Is Critical

Packaging-machine performance depends on the interaction between the machine and the actual film. The phrase “plastic film” is too broad for production approval.

Film Type

Provide the exact film structure planned for production. If the film specification has not been finalized, both machine and film should be evaluated together.

Film Thickness

Thicker and thinner films can require different sealing temperatures, film tension and machine settings.

Sealing Window

The film must create an acceptable seal within a practical temperature and cycle-time range for the production line.

Printed Film

If printed or registered film is required, the buyer should discuss artwork registration, print-mark sensing and cut-position requirements before approving the machine configuration.

Shrink Film

If the finished package is intended to shrink tightly around the product, sealing and shrinking should be treated as two related process stages. The required shrink tunnel and film should be selected as part of the complete packaging line.

Automatic Servo Packaging Machine vs. VFFS vs. Flow Wrapper

The correct equipment category should be confirmed against the actual product, packaging format and film path rather than selected only from a general term such as “automatic packaging machine.”

Suitable Applications for the WLS-AC81 Servo Packaging Machine

Plastic Sheets and Plastic Components

PVC, PET, PETG and other finished plastic products or components can be automatically wrapped and sealed when their dimensions and packaging film are compatible with the machine.

Printed Products and Matching Pages

Printed sheets, matching pages, manuals, booklet-type products and other prepared flat products can be evaluated according to their dimensions, thickness and feeding stability.

Electronics and Accessories

Small electronic products, accessories and packaged components can benefit from automated film sealing where product orientation remains stable during conveyor transport.

Cosmetics and Personal Care Products

Boxes, kits and suitable cosmetic products can be film packaged when the required film, dimensions and final package appearance are compatible with the equipment.

Healthcare Products

Suitable healthcare or pharmaceutical-related products can be evaluated for secondary or external film packaging. Pharmaceutical use should not automatically be interpreted as sterile packaging or validated primary pharmaceutical packaging.

Food Products

Discrete or pre-contained food products can potentially be packaged when the equipment, film, hygiene design and regulatory requirements are appropriate. Loose powders, granules or liquids require separate dosing and filling systems and should not be assumed to run directly through this machine.

General Consumer and Industrial Goods

Stationery, household goods, accessories, kits and other regular-shaped items can be evaluated using product samples and the specified packaging range.

Touchscreen Control and Product Changeover

An industrial packaging machine may need to run several product SKUs during one production day. Changeover time therefore matters almost as much as maximum cycle speed.

Parameter Adjustment

The touchscreen allows operators to monitor and adjust relevant machine settings according to the required product configuration.

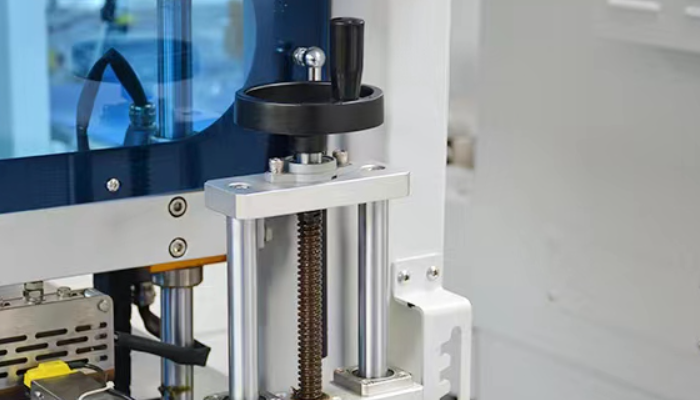

Electric Height Adjustment

Electric adjustment helps adapt the machine structure to different product dimensions without relying entirely on manual mechanical adjustment.

Record Production Settings

For repeat SKUs, factories should maintain controlled setup records for product dimensions, film, sealing temperature, conveyor settings and inspection criteria even when machine recipe storage is not specified.

Safety Considerations for Automatic Sealing Machines

Automatic packaging equipment contains moving conveyors, servo-driven mechanisms, heated sealing components and cutting areas. Safety should therefore be evaluated as part of the equipment specification rather than treated as an accessory.

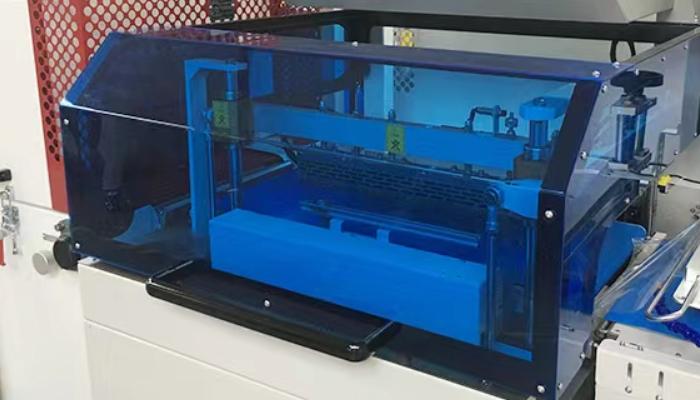

Protective Safety Cover

The WLS-AC81 includes a protective cover around the operating area to reduce accidental access to moving and hot components during normal operation.

Emergency and Interlock Requirements

Buyers should confirm emergency-stop architecture, guard interlocks and required safety standards for the destination market before final machine approval.

Operator Training

Touchscreen automation reduces repetitive adjustment but does not eliminate the need for trained operators who understand setup, film threading, sealing temperatures, jams, maintenance and safe shutdown procedures.

Packaging Quality Depends on More Than Servo Accuracy

Servo accuracy helps control movement, but good packaging quality depends on the complete process.

Sealing Temperature

Too little heat can produce incomplete seals, while excessive heat can distort, weaken or burn certain films.

Sealing Pressure

The seal must receive appropriate contact conditions across the sealing area.

Dwell Time

Film must remain under the required sealing conditions long enough to form a reliable seal without unnecessarily limiting output.

Film Alignment

Misaligned or unstable film can lead to wrinkles, poor appearance or inconsistent sealing.

Product Position

Incorrect product spacing can place the product too close to the sealing area or prevent the machine from maintaining stable cycle timing.

Integrating the Machine Into an Automatic Packaging Line

Upstream Product Feeding

The upstream process must deliver products at a stable orientation and rate compatible with the packaging machine.

Collating and Grouping

Products that need to be grouped, collated or stacked before wrapping may require upstream automation rather than expecting the packaging machine itself to perform the grouping function.

Date and Batch Coding

Projects requiring production dates, batch codes, barcodes or traceability information should define where and how coding equipment will integrate with the packaging line.

Shrink Tunnel

If shrink wrapping is required, the tunnel must be matched to the package dimensions, film type, conveyor speed and required final appearance.

Inspection and Rejection

High-volume production lines may require inspection for package presence, sealing defects, print codes or other defined quality characteristics.

Cartoning or Case Packing

Finished film-wrapped products can be transferred to secondary packaging equipment where required.

Maintenance Points That Affect Packaging Performance

Clean the Sealing Area

Film residue and contamination on hot sealing components can affect seal quality and should be removed using approved maintenance procedures.

Inspect the Teflon Surface

Worn or damaged anti-stick surfaces should be identified before they create repeated film sticking or inconsistent sealing.

Keep Optical Sensors Clean

Dust, labels or contamination on the detection system can interfere with stable product sensing.

Inspect Conveyor Tracking

Stable product transport is important for repeatable detection and sealing timing.

Record Alarm and Downtime Causes

Repeated downtime should be analyzed by cause rather than treated only as individual machine stops. Film issues, product spacing, sensor faults and seal contamination can produce different corrective actions.

How to Evaluate Packaging Efficiency and ROI

Maximum rated speed is only one part of packaging economics. A machine that runs rapidly but requires frequent stops, long changeovers or excessive film waste may deliver lower real-world efficiency than expected.

Actual Output

Measure good finished packs per production hour rather than relying only on rated cycles per minute.

Labor Reduction

Compare manual loading, sealing and inspection labor before and after automation.

Film Waste

Monitor startup waste, sealing rejects and material lost during format changes.

Changeover Time

Factories with many SKUs should include product-change time in productivity calculations.

Maintenance and Spare Parts

Evaluate sealing knives, Teflon components, sensors, belts, electrical components and recommended spare parts before purchasing production equipment.

Sustainability Should Be Measured Through the Packaging System

Automation itself does not automatically make a packaging process sustainable. Environmental performance depends on packaging-material use, reject rates, energy consumption, product protection, film structure and the complete end-of-life system.

If a project aims to use thinner films, mono-material structures, recyclable films or other alternative packaging materials, those films should be tested on the actual sealing system at the required production speed before implementation.

Quality Control and Factory Acceptance Testing

Before shipment or final production acceptance, buyers should evaluate the machine using representative products and the intended packaging film.

• Product range: test minimum, typical and maximum product sizes.

• Packaging speed: verify stable production speed with real products.

• Seal appearance: inspect wrinkles, incomplete sealing, scorching and contamination.

• Seal integrity: define an appropriate package-seal test for the application.

• Cut quality: inspect film separation and cut consistency.

• Product position: confirm the sealing zone remains clear of the product.

• Optical detection: test all product colors, surfaces and orientations.

• Film tracking: confirm stable film movement throughout extended operation.

• Temperature stability: verify sealing performance after continuous running.

• Changeover: run representative product-format changes.

• Safety guarding: verify guards and required safety functions.

• Alarm handling: review common faults and recovery procedures.

• Continuous run test: evaluate machine stability over an agreed test period.

• Documentation: confirm manuals, electrical information, spare-parts list and maintenance guidance.

How to Choose an Automatic Servo Packaging Machine

1. Define the Product

Provide product type, weight, surface, rigidity, orientation and whether it is individual, grouped or already contained.

2. Provide Minimum and Maximum Dimensions

List length, width and height for every important SKU rather than providing only one typical product.

3. Define Required Production Speed

State required good packages per minute and expected operating hours per shift.

4. Specify the Packaging Film

Provide film structure, thickness, roll specification and whether the film is printed, clear, shrinkable or otherwise functional.

5. Define the Finished Package

Explain whether the objective is loose overwrap, sealed film protection, shrink wrapping or another finished appearance.

6. Confirm Upstream Feeding

Identify whether products arrive manually, from a conveyor, collator, forming line, printing line or another automatic machine.

7. Define Downstream Equipment

Specify shrink tunnel, printer, inspection, conveyor, cartoner or other required line equipment.

8. Confirm Electrical Requirements

Confirm factory voltage, frequency, phase and any destination-market electrical requirements before shipment.

9. Define Safety and Compliance Requirements

Provide the destination country and applicable machine-safety, electrical or industry requirements that must be met.

10. Run a Product and Film Trial

Representative production samples provide the most reliable way to verify detection, film handling, sealing, cut quality and achievable operating speed.

What Information Should Buyers Include in a Packaging Machine RFQ?

• Product: name and description of the item being packaged.

• Product photos: provide multiple views when possible.

• Minimum dimensions: length × width × height.

• Maximum dimensions: length × width × height.

• Product weight: minimum and maximum where relevant.

• Required speed: target good packs per minute.

• Packaging film: material structure and thickness.

• Film roll: width, diameter and core if already defined.

• Printed film: identify registration requirements if applicable.

• Package style: overwrap, sealed package, shrink package or other format.

• Upstream process: manual feed, conveyor, collator or production equipment.

• Downstream process: shrink tunnel, coding, inspection, cartoning or case packing.

• Factory layout: provide available installation area and conveyor height.

• Electric supply: voltage, phase and frequency.

• Environment: normal industrial, dusty, humid, washdown or other condition.

• Safety standard: provide destination-market requirements.

• Language: specify required HMI and manual language.

• Spare parts: request recommended startup and wear-part package.

• Acceptance test: define production samples and test criteria before ordering.

Why Consider Wallis WLS-AC81 for Packaging Automation?

Servo-Controlled Sealing

The servo-driven vertical mechanism provides electronically controlled sealing movement for repeatable automated production.

30–40 Pieces per Minute

The listed speed supports medium- to high-volume packaging requirements, with actual performance dependent on product and film conditions.

Optical Detection

Product-position sensing helps coordinate sealing with the movement of items through the line.

Anti-Sticking Sealing Knives

Teflon-coated high-temperature sealing surfaces are designed to reduce sticking during repeated packaging cycles.

Touchscreen Operation

Touchscreen control provides operators with a centralized interface for machine operation and production adjustment.

Adjustable Product Range

Electric height adjustment and the specified packaging envelope allow manufacturers to evaluate multiple product SKUs on one machine.

Product-Based Customization

Machine configuration can be discussed according to product dimensions, packaging film and production-line requirements.

Sample Testing Before Purchase

B2B buyers should provide representative products and film so the packaging process can be evaluated under realistic production conditions before final machine approval.

Frequently Asked Questions About Automatic Servo Packaging Machines

What is an automatic vertical up-and-down servo packaging machine?

It is an automatic packaging system that uses servo control to drive the vertical movement of the sealing mechanism while products move through the packaging process.

What is the packaging speed of the Wallis WLS-AC81?

Wallis lists an operating speed of approximately 30–40 pieces per minute. Actual speed depends on product dimensions, packaging film and production conditions.

Is the WLS-AC81 a VFFS machine?

It should not be treated as a conventional VFFS machine based on its current specification. The WLS-AC81 is described as an automatic servo packaging and sealing machine for discrete products rather than a bag-forming and product-dosing system.

Can this machine package loose powder?

The WLS-AC81 specification does not list an auger powder-dosing system. Loose powder packaging normally requires dedicated dosing and filling equipment integrated with an appropriate bagging machine.

Can this machine package loose granules?

Not as a standalone dosing system based on the current specification. Loose granules normally require an upstream weighing or volumetric filling system and suitable bagging equipment.

Can this machine fill liquids?

The current WLS-AC81 specification does not list a liquid-filling pump or dosing system. Pre-filled or contained products may be evaluated for external film packaging, while loose liquid filling requires dedicated equipment.

What products can the WLS-AC81 package?

It can be evaluated for small and medium-sized discrete products within its packaging range, including plastic products, electronics, accessories, cosmetics, healthcare-related products and general consumer goods.

What is the maximum packaging size?

The listed packaging envelope is L + H ≤ 500 mm and W + H ≤ 400 mm. Buyers should provide actual product dimensions for compatibility confirmation.

Why does the machine use servo control?

Servo control provides electronically controlled positioning and movement of the sealing mechanism, helping synchronize repeated sealing cycles with product movement.

What does the optical sensor do?

The optical detection system identifies product position so the machine can coordinate sealing with the movement of the product through the packaging section.

Why are the sealing knives Teflon coated?

The anti-stick coating is designed to reduce adhesion of compatible packaging films to the heated sealing surface and support cleaner repeated sealing cycles.

Can the machine handle different product sizes?

Yes, within the specified working range. Electric height adjustment and other machine settings can help adapt the system to multiple SKUs.

What packaging film should be used?

Film compatibility should be confirmed according to film structure, thickness, sealability, product dimensions and the required finished package. Buyers should provide the intended film for production trials where possible.

Can recyclable or mono-material film be used?

Potential compatibility depends on the exact film's sealing window, thickness and mechanical behavior. A production trial is recommended before approving an alternative film structure.

Does the machine include a shrink tunnel?

A shrink tunnel is not listed in the basic WLS-AC81 specifications shown here. If shrink wrapping is required, the complete line configuration should be confirmed during quotation.

Can the machine use printed film?

Printed-film projects should be discussed specifically because registration and cut-position requirements may require appropriate sensing and control configuration.

What electrical supply does the WLS-AC81 require?

The current listed configuration is 380 V, three phase, 50–60 Hz with 3.5 kW power. Destination-market electrical requirements should be confirmed before ordering.

What are the machine dimensions?

The listed WLS-AC81 machine dimensions are approximately L1980 × W1150 × H1550 mm.

Is the machine suitable for pharmaceutical packaging?

Suitable healthcare or pharmaceutical-related products may be evaluated for external or secondary film packaging, but buyers must separately confirm hygiene, validation, regulatory and primary-package requirements for their application.

Can the machine be integrated with a production line?

Yes, line integration can be evaluated around product feeding, conveyors, coding, shrink tunnels, inspection and downstream packing equipment.

What determines the real packaging speed?

Product dimensions, spacing, film characteristics, sealing parameters, product detection, changeover and upstream/downstream line stability all influence practical output.

What should be tested before buying the machine?

Buyers should test actual products and intended film for speed, optical detection, film tracking, seal quality, cut quality, changeover and continuous running stability.

What information does Wallis need for a quotation?

Provide product photos, minimum and maximum dimensions, product weight, target speed, packaging film, package style, electrical supply, production-line layout and upstream/downstream equipment requirements.

Select the Packaging System by Product, Film and Line Requirements

The main advantage of an automatic servo packaging machine is not simply that it moves faster than a manual process. Its real value comes from coordinating product detection, controlled sealing movement, film handling, cutting and automated product transfer in a repeatable production cycle.

For the Wallis WLS-AC81, professional buyers should evaluate the 30–40 pcs/min rated speed together with the L + H ≤ 500 mm and W + H ≤ 400 mm packaging range, intended film, product geometry, sealing requirements, safety standards and connected production equipment.

Send Wallis representative products, packaging film information, required output and production-line layout to evaluate machine configuration and arrange technical discussion before commercial production.
